Adjustable Sow Feed Dispenser

The Adjustable Sow Feed Dispenser is a volumetric dosing unit designed for accurate individual feed distribution in mating, gestation and farrowing units. Installed below the dry-feed line, each dispenser measures a predetermined portion before releasing feed through a drop pipe to the sow trough.

A transparent container provides a clear visual indication of feed level and dosing volume, while the external adjustment mechanism allows farm staff to change the ration without dismantling the unit.

The dispenser can be integrated with manual, automatic or centrally controlled dry-feeding systems and adapted to different feed-pipe diameters and sow-house layouts.

• Adjustable Volumetric Dosing: Allows individual feed quantities to be set for different sow body conditions and production stages.
• Transparent Container: Provides quick visual control of feed level and dispenser operation.
• Easy External Adjustment: Side-mounted or turn-handle adjustment simplifies ration changes.
• Reliable Feed Flow: Cylindrical and conical geometry helps minimize bridging and supports consistent discharge.
• Multiple Release Options: Flap or ball-release configurations are available according to feeding-system requirements.
• Meal and Pellet Compatible: Suitable models can handle common commercial sow feeds.
• Low Maintenance: Simple construction and removable components facilitate cleaning and service.
• Automatic Feeding Compatible: Can be integrated with chain, auger and centrally controlled dry-feed distribution systems.

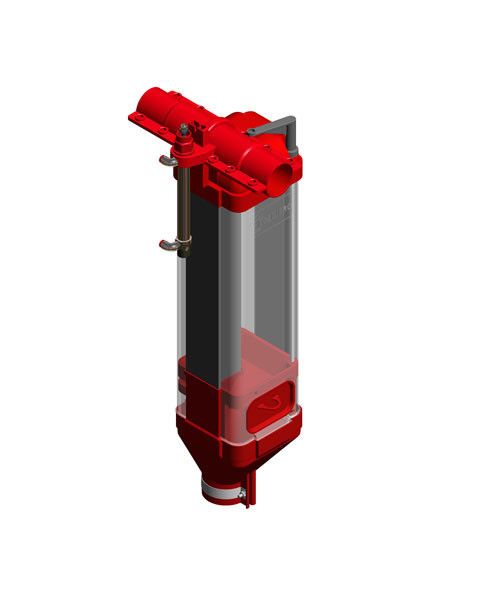

• Transparent Dosing Chamber: Holds the measured feed portion before discharge.
• Feed-Line Connection: Connects the dispenser to the overhead dry-feed pipe.

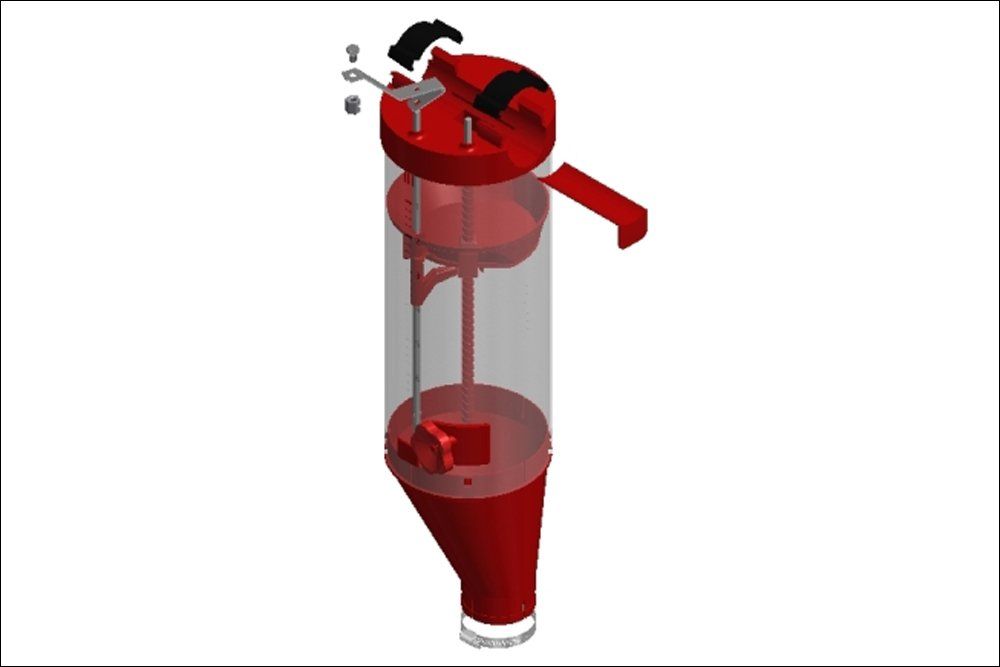

• Volume Adjustment Mechanism: Changes the effective chamber volume or feed quantity.
• Release Mechanism: Flap, ball or project-specific outlet controls feed discharge.
• Bottom Hopper: Guides the measured feed toward the drop pipe.
• Drop Pipe: Transfers feed from the dispenser to the individual sow trough.
• Mounting Components: Clamps and supports secure the unit to the feed-distribution line.

During the filling cycle, dry feed moves from the main distribution pipe into the transparent dosing chamber. The chamber volume is preset according to the required sow ration.

When the feeding cycle is activated, the bottom flap or release mechanism opens and the measured feed portion falls through the outlet and drop pipe into the sow trough.

After discharge, the outlet closes and the dispenser is ready for the next filling cycle. In automated installations, multiple dispensers can be filled and released as part of a coordinated feeding program.

• Product Type: Adjustable volumetric sow feed dispenser
• Reference Capacity Range: Approximately 0.75-10 L depending on dispenser model
• Common Capacity Options: 6 L, 8 L and 10 L for selected models
• Feed Pipe Compatibility: Approximately 38, 50, 55, 60 or 75 mm depending on model and adapter
• Reference Outlet: 75 mm for selected configurations
• Feed Types: Meal and pellets depending on configuration
• Release Options: Bottom flap, ball release or project-specific system
• Adjustment: Manual volumetric adjustment; automatic control available with compatible systems
• Container Material: Transparent durable plastic
• Bottom Hopper: Central or offset configuration available on selected models
• Final Specification: According to project requirements

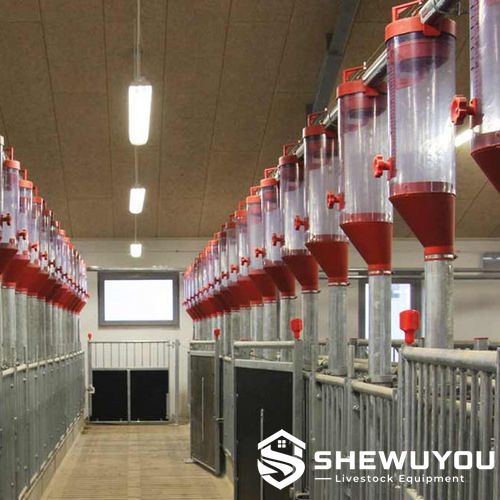

• Sow gestation stalls
• Sow insemination and mating units

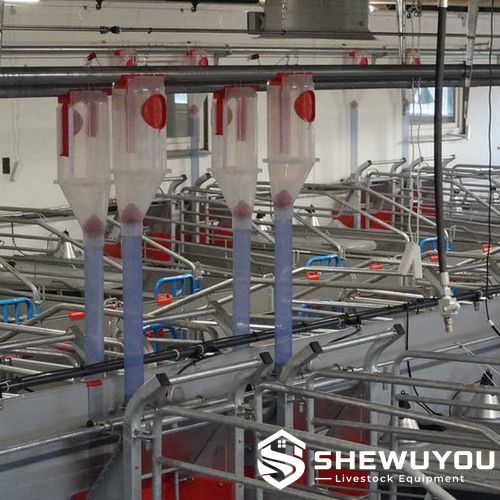

• Farrowing and lactation units
• Individual sow dry-feeding systems
• Commercial breeding farms
• Automatic chain and auger feeding systems
• Prefabricated steel structure pig houses
• Pig farm feeding-system renovation projects

• Dispenser capacity
• Feed-pipe diameter and adapters
• Flap or ball-release mechanism
• Central or offset bottom hopper
• Drop-pipe diameter and length
• Manual or automatic release system
• Individual or group control configuration
• Integration with phase-feeding systems
• Complete configuration according to project requirements

Installation:

• Confirm the feed-pipe diameter, dispenser spacing and individual sow-trough positions.
• Mount each dispenser securely beneath the main feed-distribution line.
• Install suitable adapters where dispenser and feed-pipe diameters differ.
• Connect the bottom hopper to the drop pipe leading to the sow trough.
• Set the required feed volume using the external adjustment mechanism.
• Test filling, release and complete discharge before putting the system into regular operation.

Maintenance:

• Check transparent chambers regularly for feed buildup or contamination.
• Inspect adjustment handles and release mechanisms for free movement.
• Clean bottom hoppers and drop pipes to prevent feed bridging.
• Check pipe clamps and supports for looseness.
• Verify dosing accuracy periodically.
• Replace worn seals, flaps or release components when necessary.

Q1: What is a volumetric sow feed dispenser?

It is a dosing device that measures a preset volume of dry feed and releases it through a drop pipe to an individual sow trough.

Q2: Can the feed amount be adjusted?

Yes. The dosing volume can be adjusted manually, and selected configurations allow adjustment while feed remains inside the dispenser.

Q3: What capacities are available?

Reference models cover approximately 0.75 to 10 liters, with 6, 8 and 10-liter versions commonly used in sow feeding systems.

Q4: Can the dispenser handle meal and pellets?

Yes. Suitable dispenser configurations are available for both meal and pellet feed.

Q5: Can it connect to different feed-pipe diameters?

Yes. Depending on the model, direct connections or adapters can accommodate common dry-feed pipe sizes.

Q6: Can the dispensers be released automatically?

Yes. Compatible control and release systems can automate feed discharge across multiple sow stalls.

Q7: Why is a transparent container useful?

It allows farm staff to confirm filling, feed level and discharge visually without opening the dispenser.

Q8: What information is required for a quotation?

Please provide the number of sows, feeding system type, feed-pipe diameter, required dosing range, feed type, stall layout, release method and project location.
