Electric 3-Way Sheep Auto Drafter

Sheep weighing and three-way sorting equipment for commercial livestock handling yards.

Configuration: According to project requirements

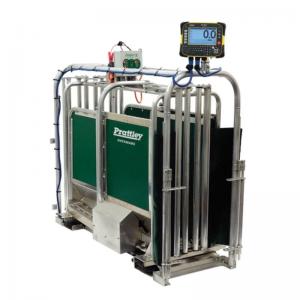

Electric 3-Way Sheep Auto Drafter

Product Image

Product Overview

The Electric 3-Way Sheep Auto Drafter combines a single-animal weighing position with powered gates that direct goat-farming-equipment/" target="_blank" class="keylink">sheep into one of three sorting routes. It can support weight-based drafting when paired with a compatible weighing indicator and load bars. The unit is suited to sheep farms, livestock groups and agricultural projects that need repeatable sorting within a handling race.

Key Features

• Three-way drafting for separating sheep by configured weight groups or operator-selected routes.
• Electric gate operation with automatic and remote-assisted workflow options.
• Rear gate arrangement designed to help animals move through the crate without snagging.
• Can be integrated with a suitable weigh indicator, load bars and existing sheep handling equipment.
• Optional mobility configuration for movement between handling locations.

Structural Components

The system comprises a framed weighing crate, weighing platform, entry and exit gates, electric gate drives and a control interface. A compatible indicator, load bars, battery supply, remote control and wheel kit can be specified as part of the project configuration. Final component scope is confirmed before ordering.

Working Principle

A sheep enters the crate from the handling race. The entry gate closes, the weighing system captures a stable weight, and the configured control system selects one of three exits. The exit gate opens to release the animal into the designated pen. In remote-assisted operation, the operator can control the gate sequence while retaining the selected drafting route.

Technical Specifications

Applications

Suitable for flock weight grading, market selection, management-group separation and routine sheep weighing. It can be planned as part of a dedicated sheep yard or a broader livestock equipment project. For mixed-species farm construction, the sheep drafting area should be designed around sheep race widths and animal flow rather than pig handling dimensions.

Customization Options

Race connection, pen layout, gate control, indicator compatibility, power arrangement and mobility can be specified according to project requirements. The handling layout can be coordinated with adjacent gates, fencing and steel structure building work. The final design is developed according to local climate and farm conditions.

Installation & Maintenance

Place the drafter on a firm, level surface and align the entry race and three exit routes for clear animal movement. Install and connect the weighing and electrical components according to their supplied instructions, then test each gate and drafting route before use. Regularly clean the platform, inspect gate movement and cables, check battery condition, and verify weighing calibration.

Product FAQ

Can the system sort sheep automatically?
Yes, when configured with compatible weighing and control equipment, it can direct sheep to three routes based on the programmed drafting rules.

Is a weighing indicator included?
The supply scope is confirmed for each quotation. Indicator and load-bar compatibility should be checked before ordering.

Can the drafter be moved between yards?
A mobile configuration is available upon request, subject to the site layout and selected accessories.
