Product Name	Automatic Sheep Footbath System
Product Image
Product Overview	The Automatic Sheep Footbath System is designed for routine hoof hygiene and flock management in commercial goat-farming-equipment/" target="_blank" class="keylink">sheep operations. Installed within or alongside a sheep handling race, the system guides animals through a controlled treatment bath while reducing manual filling, dosing and emptying work. A typical configuration combines a galvanized structural frame, enclosed race side panels, treatment trough, chemical dosing unit, water level control and powered tipping or drainage mechanism. The system is suitable for breeding farms, large flock operations, sheep handling yards, veterinary service stations and integrated livestock equipment projects.
Key Features	Automatic water level control helps maintain the required bath solution level during flock processing. Integrated chemical dosing system supports consistent preparation of hoof-care solution according to the selected concentration. Powered lifting or tipping mechanism simplifies emptying and cleaning of the footbath after use. Galvanized steel framework is suitable for livestock handling environments and repeated outdoor or barn use. High side panels help keep sheep moving forward and reduce jumping or sideways escape from the treatment lane. Race-compatible design allows integration with forcing pens, drafting gates, restraining equipment and complete sheep handling systems. Reduced manual filling and draining can improve labor efficiency in large flock hoof-care programs. System dimensions, race connection points and dosing configuration can be customized according to project requirements.

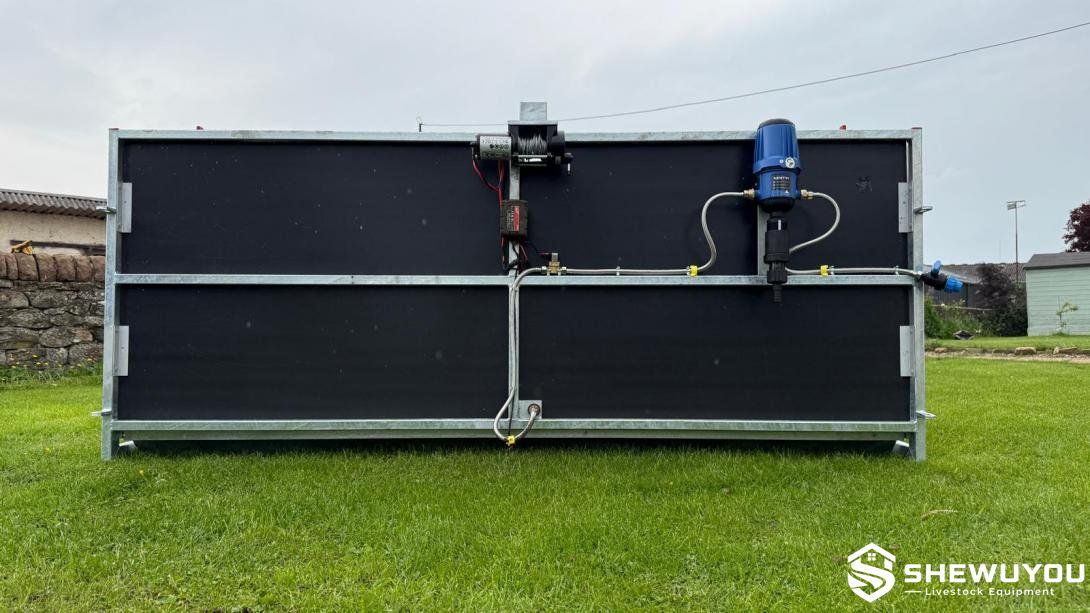

Structural Components	Footbath Trough: Holds the prepared hoof-care solution and forms the treatment path for the sheep. Galvanized Support Frame: Provides structural stability and connection points for the race and operating components. Race Side Panels: Guide sheep through the bath while limiting sideways movement. Chemical Doser: Mixes treatment chemical with incoming water according to the selected dosing ratio. Water Level Sensor: Detects solution level and activates refill operation when the bath level falls below the required point. Water Supply Connection: Connects the system to the farm water line. Chemical Supply Connection: Draws hoof-care concentrate from an external chemical container or drum. Winch or Tipping Mechanism: Raises or tilts the bath to support fast draining and cleaning. Control Button or Power Interface: Operates the lifting mechanism according to the selected configuration.
Working Principle	Water enters the system through the supply line and passes through the dosing unit, where hoof-care concentrate is introduced at the selected ratio. The prepared solution then fills the footbath trough. A level sensor monitors the liquid depth during operation. When the level drops, the system can automatically replenish water and treatment solution. Sheep are directed through the race so that all four hooves pass through the bath during normal movement. After the flock has been treated, the bath can be emptied using the integrated tipping or lifting mechanism. This helps remove used solution and accumulated contamination and simplifies subsequent washing and preparation for the next treatment cycle.
Technical Specifications	Product Type Automatic sheep footbath system Reference Dimensions Approximately 915 mm W x 2400 mm L Main Structure Galvanized steel frame with integrated treatment trough Dosing Method Automatic water-pressure-driven or project-specific dosing system Solution Control Adjustable according to chemical concentration requirements Level Management Automatic water level sensing and refill Emptying Method Powered tipping, lifting or drainage configuration Power Supply Battery, mains supply or according to project requirements Race Width Customizable according to sheep size and handling system Installation Fixed or integrated into a sheep handling race
Applications	Commercial sheep farms Large flock breeding operations Sheep handling races and drafting yards Veterinary hoof-care programs Sheep feedlots and finishing systems Mobile or semi-permanent livestock handling installations Agricultural research and demonstration farms Complete livestock equipment and sheep farm construction projects
Customization Options	Footbath length, internal width, race side panel height, frame configuration, dosing system, chemical tank connection, drainage arrangement and power supply can be customized according to project requirements. The system can also be integrated with forcing pens, anti-backing gates, drafting gates, weighing systems and other sheep handling equipment. Design adaptation is available according to local climate, flock size, farm layout and steel structure building conditions.
Installation & Maintenance	Install the unit on a level, stable base and align it with the sheep race to provide a straight and unobstructed animal flow path. Connect the clean water inlet, chemical supply line and power source according to the selected system configuration. Before operation, verify the dosing setting and confirm that the level sensor, valves and lifting mechanism are functioning correctly. After each treatment cycle, drain used solution, rinse the trough and remove manure or sediment. Periodically inspect hoses, fittings, galvanized structural parts, cables and moving components for wear or damage.
Project Cases	Automatic sheep footbath systems can be supplied as part of complete sheep handling projects, including gathering pens, forcing pens, raceways, weighing systems, three-way sorting gates and restraining equipment. For larger farms, the footbath can be positioned in a regular handling route so hoof-care treatment can be incorporated into routine flock movement.
Product FAQ	Q: What makes this system automatic? A: Depending on configuration, the system can automatically dose treatment chemical, monitor the liquid level and refill the bath while powered lifting or tipping simplifies emptying. Q: Can it be installed in an existing sheep race? A: Yes. Dimensions and connection points can be configured according to the existing race and farm layout. Q: Can the chemical concentration be adjusted? A: Yes. The dosing ratio can be selected according to the hoof-care chemical and farm treatment program. Q: Does the dosing unit require electricity? A: Some configurations can use water-pressure-driven dosing without electrical power, while other automated versions may use electric pumps or control systems. Q: Can the footbath be supplied with a battery-powered lifting system? A: Yes. Battery-operated, mains-powered and other lifting configurations are available according to project requirements. Q: Can it be included in a complete sheep handling project? A: Yes. SHEWUYOU can configure the footbath together with races, forcing pens, gates and other livestock handling equipment.
Product Gallery
