Product Name	Interlocking Sheep Footbath
Product Image
Product Overview	The Interlocking Sheep Footbath is a modular livestock hoof-care system designed for routine goat-farming-equipment/" target="_blank" class="keylink">sheep foot hygiene, pre-washing and treatment applications. Its narrow profile is suitable for installation within sheep races, handling lanes and mobile livestock handling systems where animals can be guided through the bath in a controlled flow. Multiple footbath sections can be joined together through interlocking end connections to create the required treatment length. This modular arrangement is particularly useful when farms require separate pre-wash and treatment stages or need to adapt the system to different flock sizes and handling layouts.
Key Features	Interlocking end design allows multiple units to be connected into longer sheep footbath systems. Profiled ribbed base helps spread the hoof and improve contact between the hoof surface and treatment solution. Built-in ribs improve footing and help reduce slipping as sheep move through the bath. Narrow configuration is suitable for sheep races, handling alleys and mobile livestock handling systems. Turned-in upper lip helps reduce splashing and treatment-solution loss during animal movement. Tough polyethylene construction provides good resistance to impact, moisture and routine agricultural use. Smooth outer edges help improve animal safety during entry, treatment and exit. Portable design enables rapid relocation between barns, yards, handling areas and seasonal treatment points. Suitable for commercial sheep farms, breeding operations, veterinary programs and agricultural project installations.

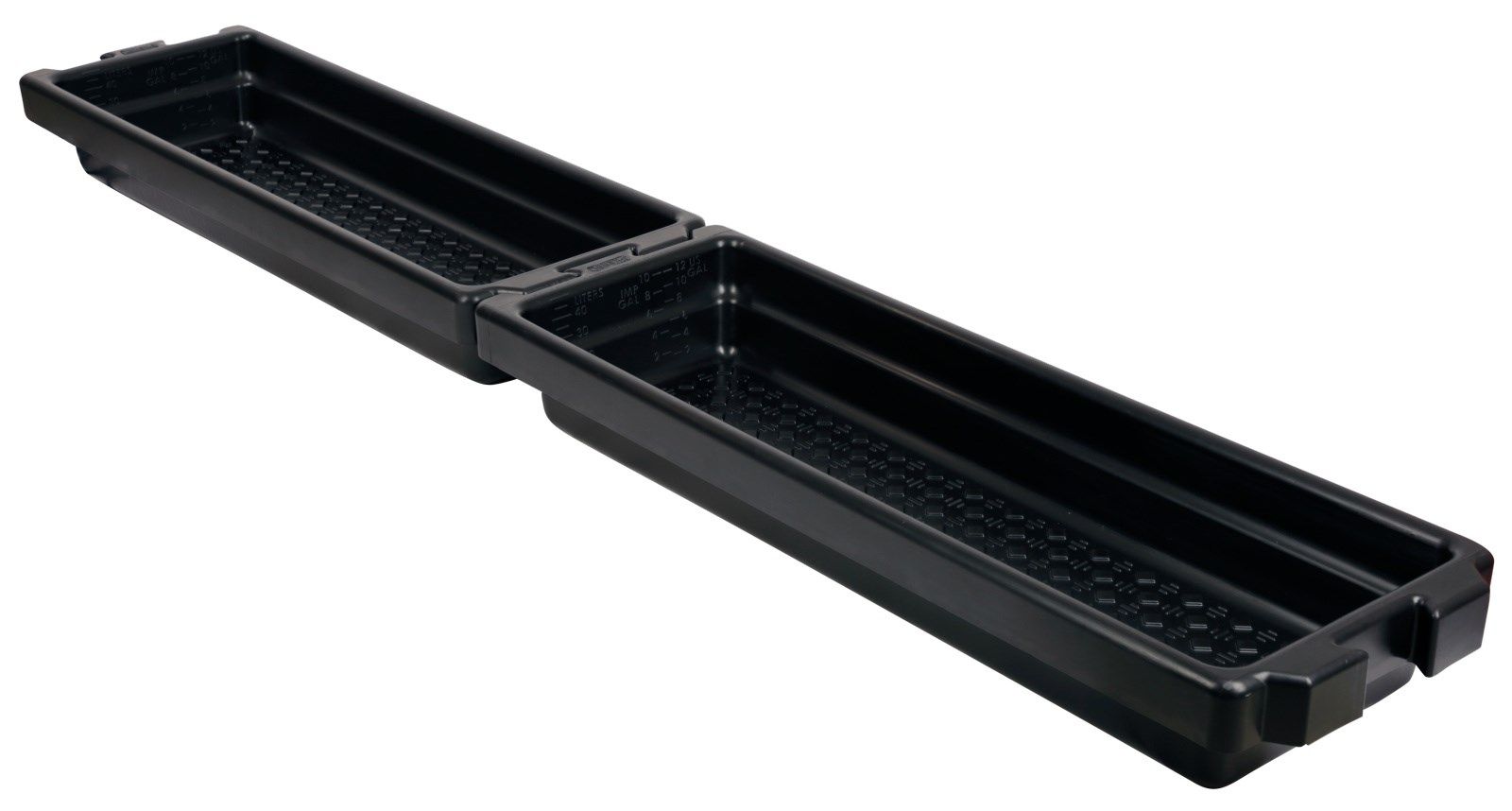

Structural Components	Polyethylene Bath Body: Forms the main chemical-resistant and impact-resistant treatment reservoir. Profiled Ribbed Base: Supports hoof opening, improves traction and increases contact with the treatment solution. Interlocking Ends: Allow multiple bath sections to be connected in series. Raised Side Walls: Help retain treatment liquid while directing sheep through the bath. Turned-In Lip: Helps limit splashing and reduce unnecessary solution loss. Rounded Safety Edges: Reduce sharp contact points around the animal passage area.

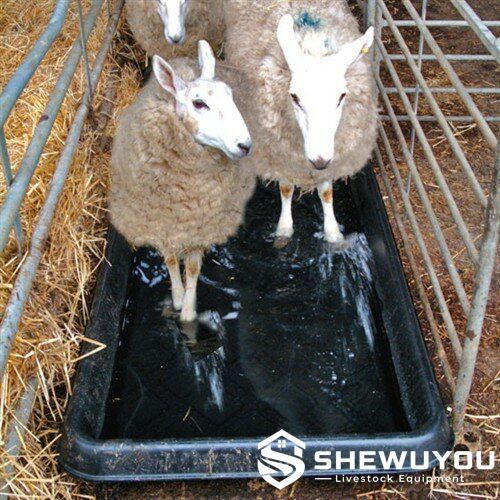

Working Principle	Sheep are guided through the footbath as part of a controlled handling or flock-management routine. As each animal walks across the profiled base, the ribbed structure helps spread the hoof and increases exposure of the hoof surface to the prepared washing or treatment solution. Multiple connected baths can be arranged in sequence. One section may be used as a pre-wash bath to remove mud and organic contamination, while subsequent sections contain the selected hoof-care solution. The final arrangement should be determined according to farm veterinary protocols, flock size and treatment requirements.
Technical Specifications	Product Type Interlocking sheep footbath system Construction Material Heavy-duty polyethylene or equivalent livestock-grade polymer Base Type Profiled ribbed anti-slip base Connection Type Interlocking modular ends Reference Dimensions Approximately 2451 mm L × 470 mm W × 203 mm H Reference Capacity Approximately 145 L System Length Customizable by connecting multiple sections Installation Portable floor-mounted arrangement Application Area Sheep races, handling lanes, barns and livestock treatment areas Configuration According to project requirements
Applications	Commercial sheep farms and breeding operations Routine flock hoof hygiene programs Footrot and lameness management programs under veterinary guidance Mobile sheep handling races Fixed livestock handling lanes Pre-wash and treatment bath configurations Veterinary and livestock service facilities Agricultural engineering and livestock farm construction projects Steel structure sheep sheds and centralized handling facilities
Customization Options	Footbath dimensions, system length, bath quantity, connection configuration and handling-race integration can be customized according to project requirements. Multiple modules can be combined to create pre-wash and treatment zones. Customized livestock handling packages, distributor packaging and project-specific configurations are available upon request. Layout recommendations can be designed according to flock capacity, local climate and farm conditions.
Installation & Maintenance	Place the footbath on a level, stable surface within the sheep race or livestock handling lane. Connect additional bath sections through the interlocking ends where a longer treatment path is required. Guide rails or handling panels should keep animals aligned with the bath and prevent bypassing. After use, empty the bath according to local farm-waste and chemical-handling requirements. Remove manure, mud and organic residues, then rinse the internal surfaces thoroughly. Inspect the ribbed base, side walls and interlocking joints regularly for damage. Store portable units on a stable surface away from unnecessary vehicle traffic when not in use.
Project Cases	Interlocking sheep footbath systems can be incorporated into complete sheep handling projects together with forcing pens, sheep races, sorting gates, weighing crates, restraining equipment and loading systems. For larger flock operations, multiple footbath modules can be installed in series to create separate cleaning and treatment stages before animals return to housing or pasture.
Product FAQ	Q: Why use an interlocking sheep footbath? A: The interlocking structure allows several bath sections to be joined, making it easier to create the treatment length required for different flock sizes and handling layouts. Q: What is the purpose of the ribbed base? A: The profiled ribs improve footing and help spread the hoof during passage, increasing contact between the hoof and the treatment solution. Q: Can one bath be used for washing and another for treatment? A: Yes. Connected units can be arranged as separate pre-wash and treatment stages according to farm management and veterinary protocols. Q: Is the system suitable for mobile sheep races? A: Yes. The narrow portable configuration is well suited to both fixed and mobile sheep handling systems. Q: Does the footbath require permanent installation? A: No. Standard units are portable and can normally be positioned directly within a suitable handling lane on a level surface. Q: Can the system length be customized? A: Yes. Additional interlocking sections can be supplied according to project requirements and the required treatment route.
