Mobile Manure Screw Press Separation Unit

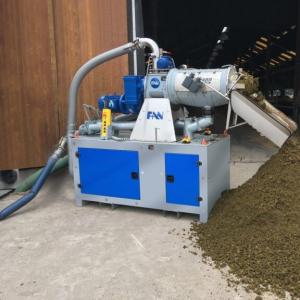

Reference image of a comparable mobile separator; final SHEWUYOU equipment appearance depends on the selected configuration.

The Mobile Manure Screw Press Separation Unit brings the main components of a solid-liquid separation line together on a transportable frame. Designed for livestock manure and other suitable pumpable organic slurries, it allows operators to move separation equipment between farm areas or project sites. The integrated layout helps reduce the amount of assembly required at each location while keeping the feed, separation, and discharge processes accessible to operators.

• Compact frame-mounted arrangement for relocation and temporary or shared-site operation.
• Integrated feed pump, pipework, electrical wiring, and controls according to the chosen configuration.
• Continuous screw press separation with distinct outlets for liquid and solid fractions.
• Frame and lifting provisions designed around the proposed handling method.
• Component access planned for screen inspection, cleaning, and routine maintenance.
• Suitable for integration into manure management systems at commercial pig farms and livestock facilities.

A typical unit includes a screw press separator, screen basket, geared drive, feed pump, slurry pipework, liquid outlet, solids discharge, control cabinet, and structural base frame. An effluent transfer pump, solids conveyor, or additional feed protection equipment can be assessed according to project requirements. The equipment arrangement should allow safe access to service points without obstructing hose connections or solids removal.

The feed pump delivers manure slurry to the separator. Inside the press, a rotating screw conveys the material through a screen basket. Liquid passes through the screen and leaves through the effluent outlet, while retained solids move toward the discharge end for compression and removal. Screen selection and discharge adjustment are matched to the feed material and the intended use of the separated fractions.

Feed material: Pig slurry, cattle manure slurry, or suitable digestate after application assessment.

Processing capacity: According to project requirements and feed characteristics.

Screen opening and discharge setting: Customizable.

Feed and effluent pumps: Selected according to the site layout and required transfer duty.

Connected load, dimensions, and operating weight: Available upon request for the selected configuration.

Mobility arrangement: Frame-mounted unit; transport and lifting method to be specified for the project.

• On-site pig slurry separation at commercial swine farms.
• Shared equipment serving several livestock buildings or farm locations.
• Temporary separation during manure treatment system upgrades.
• Digestate processing at agricultural biogas facilities.
• Contractor-operated manure separation projects.

The separator model, screen, pump arrangement, control functions, hose connections, solids discharge height, and frame layout can be specified for the project. The unit may be coordinated with manure pits, storage tanks, steel structure buildings, and existing farm access routes. Electrical protection and weather exposure requirements are designed according to local climate and farm conditions.

Position the unit on stable, level ground with sufficient clearance for solids discharge and service access. Connect the slurry suction line, liquid outlet, and suitable power supply, then check pump rotation, pipe connections, and control settings before operation. When relocating the unit, isolate power, drain and disconnect hoses, and use lifting equipment appropriate to its confirmed operating weight. Routine checks include the screen, screw, pump, seals, pipework, and electrical connections.

Can one unit serve several farms?
A mobile configuration can be planned for multiple sites. Transport access, lifting arrangements, power availability, and hose connections should be checked at every location.

Does the unit include pumps and controls?
The component package is customizable. The final quotation should identify the feed pump, any effluent pump, pipework, and control functions supplied.

What determines separation performance?
Feed composition, dry matter content, screen opening, pump delivery, and discharge setting all affect throughput and the condition of the separated solids.

Reference images of comparable mobile separator equipment and operating scenes:
