2-Block Mineral Holder for Cattle

The 2-Block Mineral Holder for Cattle is a heavy-duty livestock feeding accessory designed to provide a dedicated and accessible location for mineral blocks and salt blocks in commercial cattle facilities. The two-block configuration allows farm operators to present mineral supplementation in a controlled position rather than placing blocks directly on feed alleys, floors or other unsuitable surfaces.

The holder is manufactured with a robust welded steel structure and is particularly suitable for dairy barns, beef cattle housing, feeding alleys, loafing areas and livestock building projects. Stainless steel construction can be specified for improved resistance to moisture, mineral salts and corrosive barn environments.

Its compact design allows integration with livestock rails, concrete walls, pen partitions and other cattle housing structures, making it suitable for both new farm construction and renovation projects.

• Two-Block Capacity: Designed to accommodate two mineral or salt blocks in one convenient feeding station.
• Heavy-Duty Welded Structure: Robust fabrication provides reliable performance in demanding commercial livestock environments.
• Corrosion-Resistant Material: Stainless steel construction is available for improved resistance to moisture, salts and mineral residues.
• Controlled Block Placement: Keeps mineral blocks in a defined location and helps prevent them from being pushed along feeding alleys or contaminated by manure and floor debris.
• Easy Animal Access: Open-top construction allows cattle to comfortably reach salt and mineral blocks.
• Multiple Mounting Methods: Can be configured for livestock rail, wall or low concrete wall installation.
• Compact Barn Integration: Suitable for placement along feeding areas without occupying unnecessary floor space.
• Low-Maintenance Design: Simple welded surfaces facilitate routine cleaning and inspection.
• Project Customization: Dimensions, mounting brackets and material specifications can be adapted according to project requirements.

The mineral holder creates a fixed feeding point for compressed mineral blocks or salt blocks. Instead of leaving supplementation products loose on a concrete floor or feed alley, the blocks are placed inside a dedicated steel compartment where cattle can lick them directly.

Elevated or wall-mounted positioning can help keep the blocks more accessible and reduce unnecessary contact with manure, bedding and floor moisture. The open configuration also allows farm personnel to visually inspect remaining block quantity and replace supplements when required.

Final dimensions, material grade, block capacity and mounting configuration should be confirmed according to the mineral block specification and livestock project requirements.

• Commercial dairy cattle barns
• Beef cattle housing facilities
• Free-stall dairy barns
• Cattle feeding alleys
• Holding and loafing areas
• Calf and heifer facilities where compatible block sizes are used
• Livestock pen and rail systems
• Steel structure livestock buildings
• Cattle farm renovation projects
• Integrated livestock feeding and housing projects
• Agricultural equipment distributors and dealers

SHEWUYOU can manufacture mineral block holders according to cattle housing layouts, mineral block dimensions and installation requirements. Available customization may include:

• Holder length, width and depth
• Mineral block compartment dimensions
• Stainless steel material specification
• Single-block, 2-block or multi-block configurations
• Rail-mounting brackets
• Wall-mounting plates and bolt-hole patterns
• Low concrete wall installation
• Drainage openings according to project requirements
• Rounded or protected edges for livestock areas
• OEM identification and branding
• Bulk export packing

The final design can be manufactured according to local climate, barn structure, cattle group, mineral block dimensions and farm operating conditions.

Rail Installation: The holder can be equipped with brackets suitable for attachment to livestock rails. Rail dimensions should be confirmed before production.

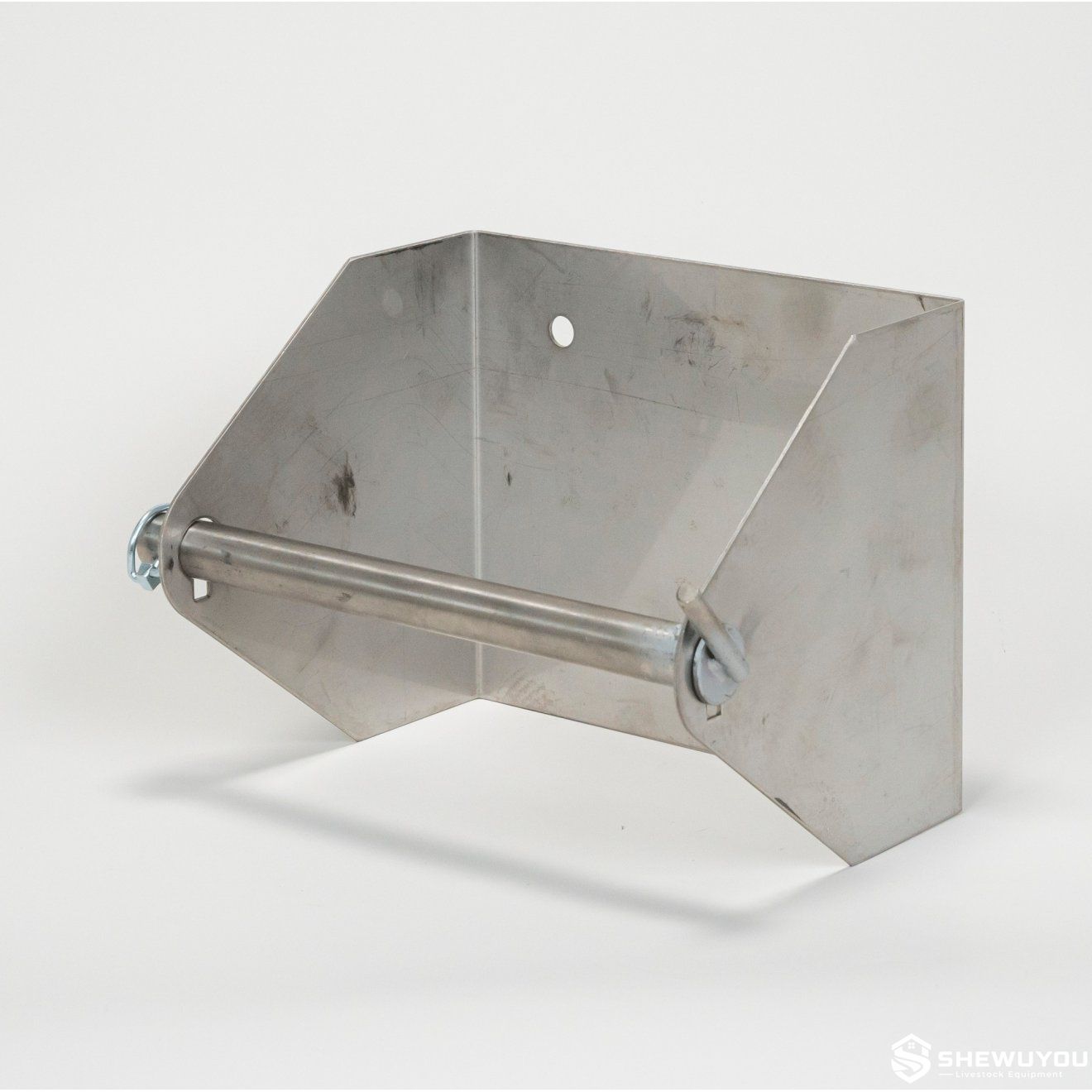

Wall Installation: The unit can be bolted directly to a structurally suitable barn wall using appropriate fasteners selected for the wall material and expected livestock loads.

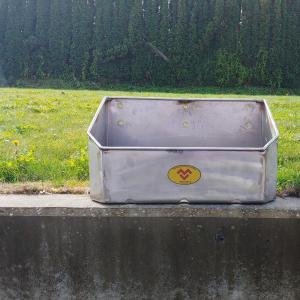

Low-Wall Installation: Installation on top of a low concrete wall can provide convenient cattle access while keeping mineral blocks separated from floor contamination.

Positioning: Select a location that cattle can access easily without obstructing feed distribution equipment, manure scrapers, gates or normal animal movement.

Cleaning: Remove mineral residue, dirt and accumulated moisture periodically. Stainless steel surfaces can be washed as part of the normal barn hygiene program.

Inspection: Routinely inspect welds, mounting bolts, brackets and surrounding livestock structures for looseness, deformation or damage.

The 2-Block Mineral Holder can be supplied as part of complete cattle housing and livestock equipment packages incorporating cow stalls, feeding barriers, cattle gates, drinking systems, manure handling equipment and steel structure farm buildings. For larger dairy and beef projects, mounting positions and holder quantities can be planned according to barn layout, cattle numbers and mineral supplementation management requirements.

Q1: What is the 2-Block Mineral Holder used for?

It provides a fixed location for presenting mineral blocks or salt blocks to cattle while keeping the blocks more organized and accessible within the livestock housing area.

Q2: Why is stainless steel recommended?

Mineral and salt products can create a demanding environment for metal equipment. Stainless steel provides good resistance to moisture and corrosion and is therefore well suited to long-term barn use.

Q3: Can the holder be mounted on cattle rails?

Yes. Rail-mounted configurations can be manufactured. The rail diameter or profile should be supplied before production so the mounting brackets can be matched correctly.

Q4: Can it be fixed directly to a concrete wall?

Yes. Wall-mounted and low-wall-mounted configurations are available according to the barn structure and installation requirements.

Q5: Are the exact dimensions fixed?

No. Dimensions can be customized according to the mineral block size, available installation space and project requirements.

Q6: Can other capacities be produced?

Yes. Single-block, 2-block and multi-block configurations can be developed according to commercial farm requirements.

Q7: Is this product suitable for commercial cattle farms?

Yes. Its welded construction, corrosion-resistant material options and flexible installation methods make it suitable for dairy farms, beef cattle facilities and livestock construction projects.
