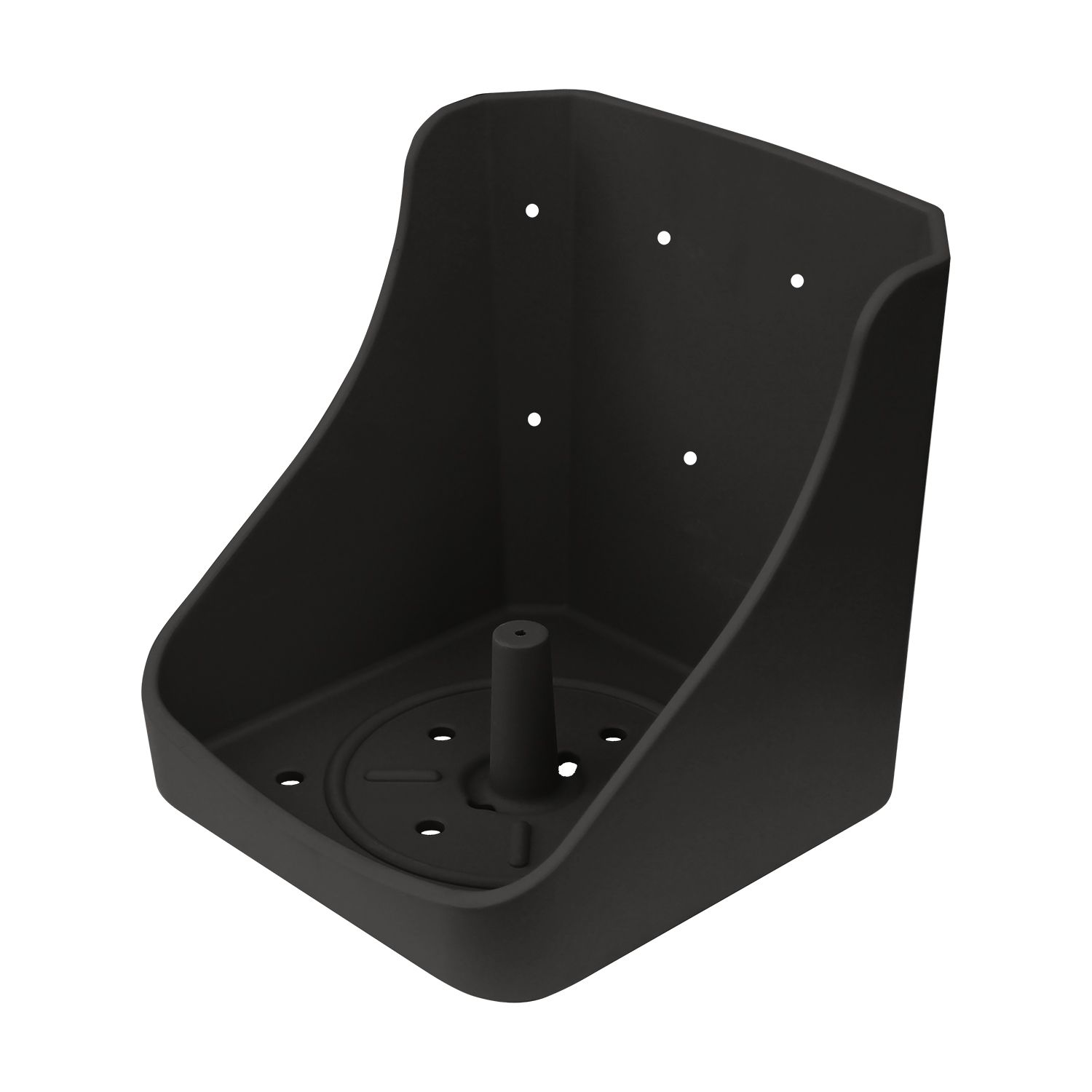

Mineral Block Holder with Drainage Holes

The Mineral Block Holder with Drainage Holes is a practical livestock feeding accessory designed to keep salt licks and mineral blocks securely positioned while reducing direct contact with wet floors, manure and surrounding contamination. Its molded enclosure combines a supportive base, high rear panel and protective side walls to help stabilize the block during animal use.

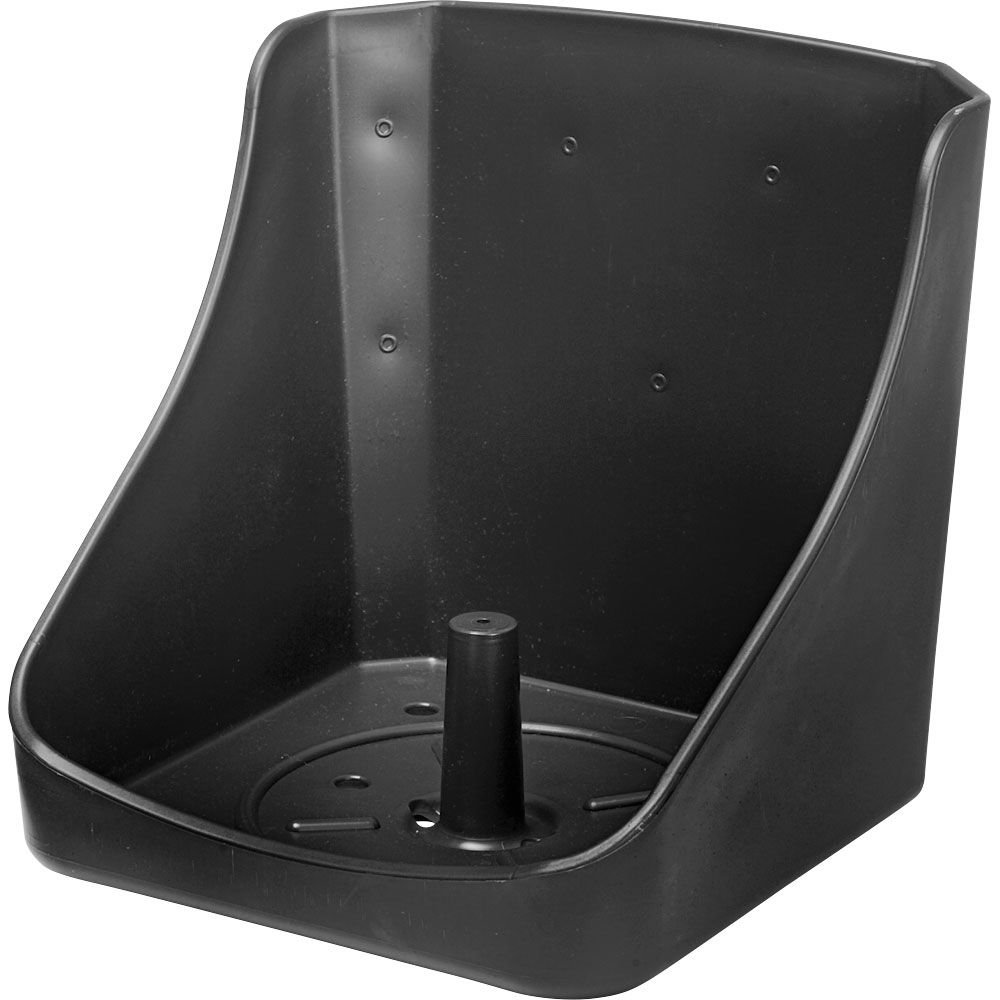

Integrated drainage openings allow accumulated rainwater, wash water and moisture to escape from the holder, helping reduce unnecessary dissolution of the mineral block. The reference configuration is suitable for a 10 kg salt lick and can be installed on a straight wall, in a corner or on a suitable post.

For commercial livestock projects, the holder can be incorporated into pig houses, cattle sheds, goat-farming-equipment/" target="_blank" class="keylink">sheep and goat facilities, equine buildings, outdoor yards and steel structure livestock buildings as part of an organized mineral supplementation system.

• Integrated Drainage Holes: Bottom drainage openings allow water and moisture to escape instead of collecting around the mineral or salt block.
• Protected Block Position: High rear and side walls help contain the block and reduce displacement during livestock use.
• Durable Molded Construction: The reference product uses high-quality modified polypropylene suitable for repeated livestock contact.
• Non-Toxic Material: Designed for animal feeding environments where material safety and easy sanitation are important.
• Multiple Mounting Positions: Suitable for mounting on straight walls, corners or posts according to barn and yard layout.
• Reduced Mineral Waste: Keeping the block elevated and drained can help reduce premature deterioration caused by standing water and dirty floor conditions.
• Easy Cleaning: Smooth molded surfaces and an open-front configuration simplify routine rinsing and removal of accumulated residue.
• Compact Installation: Wall-mounted positioning keeps mineral supplementation points organized without occupying unnecessary pen floor area.
• Suitable for Intensive Farms: Applicable to commercial pig farms, cattle operations, sheep and goat units, equine facilities and integrated livestock projects.

The mineral block is placed inside the molded holder where the base and surrounding walls help keep it in a controlled feeding position. Animals access the exposed surface from the open front while the holder limits direct contact between the block and contaminated pen surfaces.

When rainwater, condensation or wash water enters the holder, the drainage holes allow moisture to flow out of the base rather than remain around the block. This simple drainage principle is particularly beneficial in outdoor yards, naturally ventilated livestock buildings and humid farm environments.

Reference dimensions and capacity are based on a comparable market configuration. Final SHEWUYOU specifications should be confirmed according to the selected model and project requirements.

• Commercial pig farms and sow housing facilities
• Cattle barns, dairy farms and beef production units
• Sheep and goat housing systems
• Horse stables and equine facilities
• Outdoor livestock yards and pasture feeding points
• Breeding farms and livestock demonstration projects
• Steel structure livestock buildings
• Farm renovation and expansion projects
• Livestock equipment distributors and agricultural dealers
• Government and international livestock development projects

For livestock equipment projects, SHEWUYOU can configure mineral block holders according to farm type, animal category, building layout and procurement requirements. Customization options may include:

• Holder dimensions and compatible block size
• Plastic material specification
• Wall and corner mounting arrangement
• Mounting-hole layout
• Drainage-hole quantity and position
• Holder color
• OEM logo and private-label packaging
• Bulk packing for distributors and project procurement

Customized versions can be designed according to local climate, livestock species, housing system and farm conditions.

Mounting Position: Select an accessible location where animals can comfortably reach the mineral block without obstructing feeding alleys, gates, drinkers or manure-removal routes.

Installation Height: Determine mounting height according to livestock species, animal age and pen design. The holder should remain accessible while minimizing contamination from bedding and manure.

Fixing: Secure the holder to a structurally suitable wall, post or partition with appropriate corrosion-resistant fasteners selected for the substrate. Fastener specification should be determined according to the installation surface and project requirements.

Drainage Inspection: Check drainage holes regularly and remove compacted mineral residue, bedding or dirt that could restrict water discharge.

Cleaning: Remove the remaining block when necessary and wash the holder with water and farm-approved cleaning products. Inspect the molded body and mounting points during routine livestock-house maintenance.

Mineral block holders can be supplied as part of complete livestock equipment packages for pig farms, cattle barns, sheep houses and other agricultural buildings. In integrated projects, installation positions can be coordinated with penning systems, feeding equipment, drinking lines, ventilation systems and steel structure building layouts to improve accessibility and simplify daily farm management.

Q1: Why are drainage holes important in a mineral block holder?

Drainage holes allow rainwater, wash water and other moisture to escape instead of accumulating around the mineral block. This helps reduce unnecessary softening and dissolution.

Q2: What size mineral block can the holder accommodate?

The reference configuration is designed for a 10 kg salt lick. Other sizes can be developed or supplied according to project requirements.

Q3: Where can the holder be installed?

It can be installed on a suitable straight wall, in a corner or on a structural post, depending on the livestock building and feeding layout.

Q4: Is the product suitable for commercial pig farms?

Yes. A properly selected holder can be incorporated into commercial pig housing where block-form mineral supplementation is part of the farm management program. Installation position and block formulation should follow the farm's nutrition and veterinary management plan.

Q5: Can it be used outdoors?

Yes. The drainage structure makes this type of holder particularly practical for yards and other locations exposed to moisture. Material specifications can be selected according to local climate and farm conditions.

Q6: Can SHEWUYOU provide OEM or project customization?

Yes. Dimensions, compatible block size, material, color, drainage layout, packaging and branding can be customized according to project requirements and order quantities.
