Product Name	Remote-Controlled Poultry Lifting Inspection Vehicle
Product Image
Product Overview	The Remote-Controlled Poultry Lifting Inspection Vehicle is a mobile electric lifting platform developed for poultry-house inspection, equipment servicing and material handling applications. Its wireless remote-control system allows the lifting deck to be raised or lowered without requiring direct operation from a fixed control position. This makes the vehicle particularly practical for repetitive inspection work in multi-tier layer, pullet and broiler housing systems. The compact wheeled chassis, rechargeable power system and lifting mechanism allow the unit to be moved between cage rows and positioned at different working heights. Dimensions, platform configuration and operating specifications can also be adapted according to project requirements.
Key Features	Wireless Remote Control: Allows convenient lifting and lowering operation from a practical working position. Electric-Hydraulic Lifting: Powered lifting reduces repetitive manual adjustment during poultry-house inspection and servicing. Adjustable Platform Height: Provides flexible access to poultry equipment installed at different elevations. Rechargeable Battery Power: Supports mobile operation without a continuously connected power cable. Compact Mobile Chassis: Suitable for movement through poultry-house service aisles and maintenance areas. Stable Scissor Mechanism: Cross-arm lifting structure provides controlled vertical platform movement. Customizable Configuration: Dimensions, working height, platform size and other details can be adapted according to project requirements.

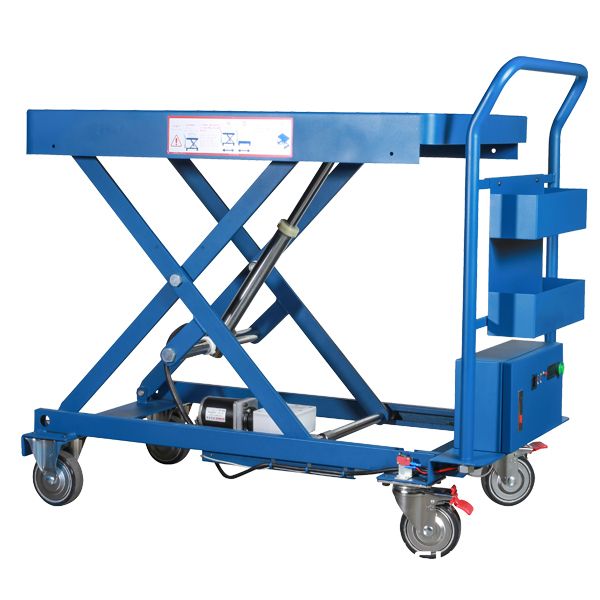

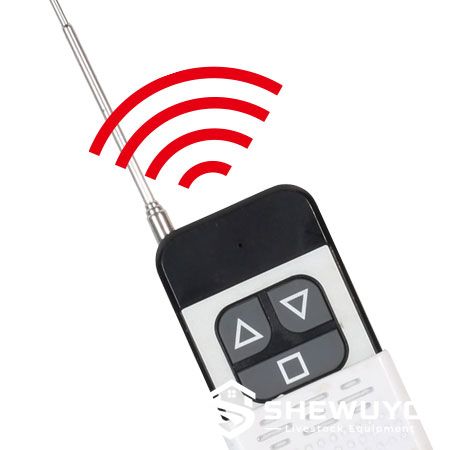

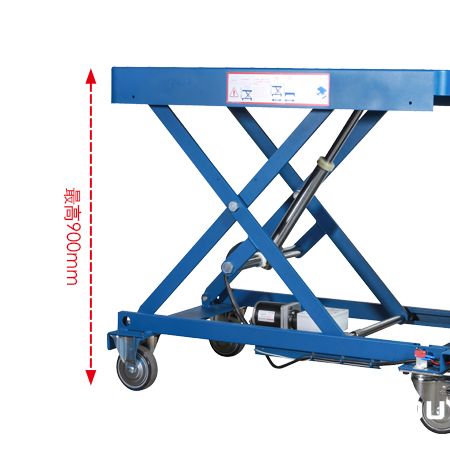

Structural Components	Mobile Base Frame: Rigid chassis supporting the lifting mechanism, battery and control equipment. Lifting Platform: Flat working deck for inspection tools, maintenance materials or project-specific applications. Scissor-Lift Assembly: Cross-linked structural arms provide controlled vertical elevation. Hydraulic Cylinder: Drives the lifting mechanism through the powered hydraulic system. Electric Motor and Pump: Supplies lifting power to the hydraulic circuit. Rechargeable Battery: Provides onboard electrical power for mobile operation. Wireless Remote Controller: Enables remote lifting and lowering commands. Casters and Brakes: Allow manual positioning and secure parking on suitable poultry-house floors.
Working Principle	The vehicle is first moved to the required inspection or service position inside the poultry house. After the wheels are secured, the operator uses the wireless remote controller to activate the lifting system. The electric motor drives the hydraulic pump, which supplies pressure to the lifting cylinder. The cylinder extends the scissor mechanism and raises the platform to the required height. After inspection or maintenance is completed, the operator lowers the platform using the remote controller and moves the vehicle to the next work location.
Technical Specifications	Product Type Remote-Controlled Electric Lifting Vehicle Reference Overall Size 1130 × 600 × 375 mm Reference Maximum Height 900 mm Reference Minimum Height 280 mm Reference Maximum Load 300 kg Control Method Wireless remote control Motor DC24V DC motor Power Source Rechargeable valve-regulated lead-acid battery Charging Voltage 100V-220V Full Charging Time Approximately 8 hours Other Configurations Available upon request
Applications	- Multi-tier layer cage houses - Pullet rearing facilities - Broiler cage systems - Commercial poultry farms - Steel structure poultry houses - Cage equipment inspection - Feeding-system maintenance - Nipple drinking-line inspection - Egg collection equipment servicing - Lighting and electrical maintenance - Ventilation equipment inspection - General poultry-house material handling
Customization Options	The lifting vehicle can be configured according to poultry-house layout and project operating requirements. Available customization may include: - Overall chassis dimensions - Platform width and length - Lifting range - Rated working load - Battery capacity - Charging specification - Remote-control configuration - Wheel and caster specification - Brake arrangement - Platform accessories - Tool storage configuration - Frame material and surface treatment Final specifications are determined according to project requirements, poultry-house aisle dimensions and intended operating conditions.
Installation & Maintenance	The vehicle is a mobile unit and normally requires no permanent installation. Before operation, confirm that the poultry-house floor is suitable for the wheel configuration and that sufficient aisle and turning clearance is available. Routine maintenance should include checking the scissor arms, pivot points, hydraulic cylinder, hoses, electrical connections, battery terminals, wheels, brakes and structural fasteners. Dust, feathers, feed residue and manure should be removed regularly from moving components. Battery charging should be performed according to the specified charging procedure. The vehicle should be incorporated into the poultry farm's regular cleaning and biosecurity program.
Project Cases	Remote-controlled lifting vehicles are suitable for poultry projects where personnel regularly service equipment installed at different elevations. In commercial layer and broiler houses, the unit can support maintenance of cage systems, feeding equipment, drinking lines, egg collection components, lighting and ventilation installations. For new projects, vehicle dimensions can be coordinated with aisle width, door openings, drainage layout and the overall steel structure poultry-house design.
Product FAQ	Q: How is the lifting platform controlled? A: The reference configuration uses a wireless remote controller for lifting and lowering. Q: Is the vehicle battery powered? A: Yes. The reference design uses a rechargeable onboard battery and DC motor. Q: Can the lifting height be customized? A: Yes. Alternative dimensions and lifting ranges can be considered according to project requirements. Q: Is it suitable for multi-tier poultry houses? A: Yes. Its mobile lifting function is suitable for inspection and maintenance tasks at different equipment heights. Q: Can it be designed for narrow aisles? A: Chassis dimensions and wheel arrangements can be customized according to available poultry-house clearance. Q: What information is required for quotation? A: Please provide the poultry-house aisle width, required working height, intended working load, platform size and local power supply information.
