Product Showcase	Content
Product Name	Hydraulic Poultry Inspection Lift Vehicle
Product Image

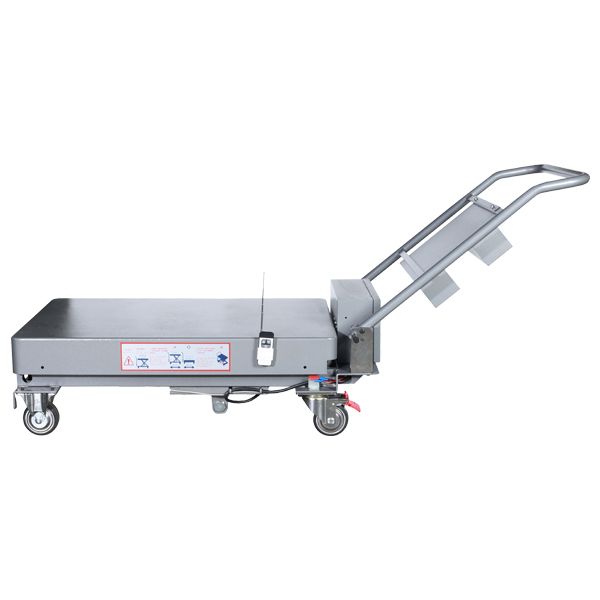

Product Overview	The Hydraulic Poultry Inspection Lift Vehicle is a compact mobile lifting platform adapted for inspection, maintenance and service operations in commercial poultry houses. Its electric-hydraulic scissor mechanism raises the working platform vertically, allowing operators or maintenance personnel to reach elevated cage rows, feeding equipment, drinking lines, ventilation components and other poultry house systems. The mobile chassis combines caster wheels, a push handle, battery-powered lifting and wireless control for convenient movement and height adjustment. The reference lifting platform provides a maximum lifting height of approximately 1280 mm and a rated load capacity of up to 300 kg. For poultry farm applications, platform dimensions, protective rails, operating height and accessories can be configured according to cage layout, aisle width and project requirements.
Key Features	Electric-Hydraulic Lifting: Hydraulic pump and cylinder components provide controlled vertical platform movement for inspection and maintenance access. Scissor-Lift Structure: Cross-linked lifting arms provide compact storage height and stable vertical elevation. Wireless Remote Control: The lifting mechanism can be controlled remotely for convenient platform positioning. Battery Powered: DC power allows mobile operation without continuous connection to an external power cable. 300 kg Reference Load Capacity: The referenced lifting trolley is rated for loads up to 300 kg. Compact Mobile Chassis: Swivel caster wheels and a push handle allow movement through service areas and poultry house aisles. Low Retracted Height: The platform lowers to a compact position for easier movement and storage. Custom Poultry Configuration: Safety guards, platform layout and working dimensions can be customized according to project requirements.

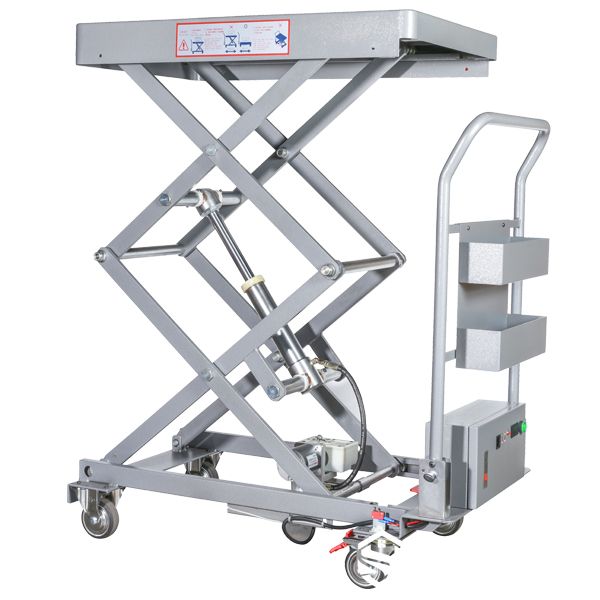

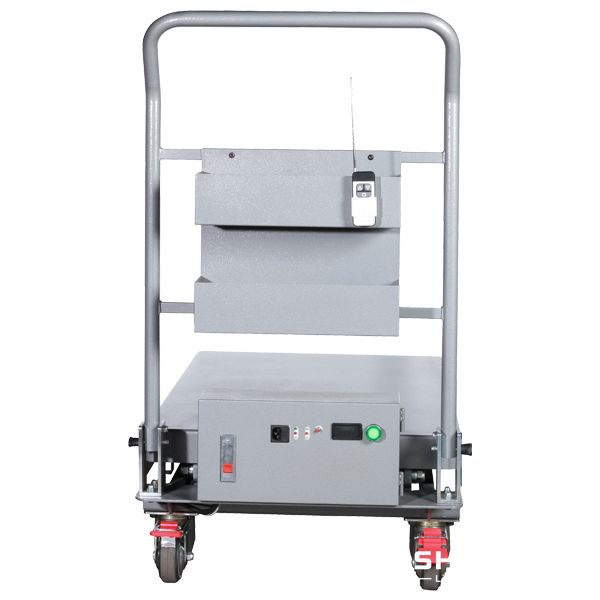

Structural Components	Working Platform: Flat steel platform providing the main lifting and service area. Scissor Lift Assembly: Heavy-duty crossed arms control vertical platform movement while maintaining a compact footprint. Hydraulic Cylinder: Converts hydraulic pressure into controlled lifting movement. Hydraulic Pump: Supplies hydraulic pressure to the lifting cylinder. DC Motor: The reference unit uses a DC24V motor to drive the lifting system. Battery System: Rechargeable valve-regulated lead-acid battery provides mobile power. Wireless Controller: Allows remote lifting and lowering operation. Mobile Wheel Set: Caster wheels provide manual positioning and maneuverability. Push Handle: Provides convenient manual control while relocating the trolley. Control Housing: Protects electrical switching, battery and operating components.

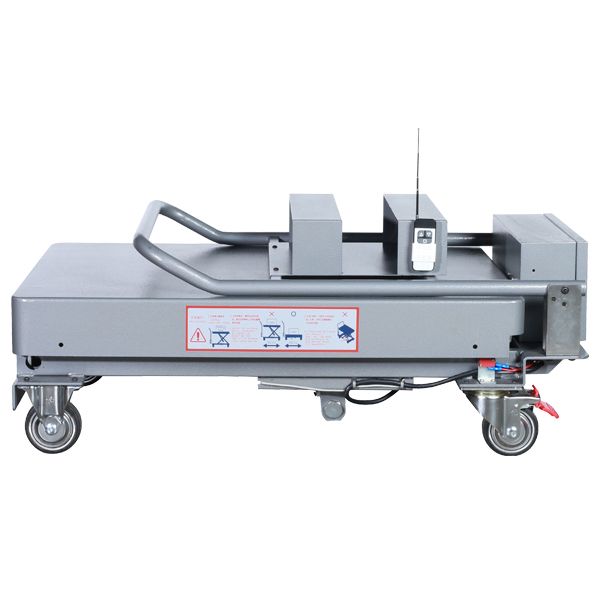

Working Principle	The vehicle is manually moved to the required inspection or maintenance position. Once correctly positioned, the operator activates the electric-hydraulic lifting system using the control interface or wireless remote controller. The DC motor drives the hydraulic pump, which supplies pressurized fluid to the hydraulic cylinder. The cylinder extends the scissor mechanism and raises the platform vertically. Lowering reverses the lifting sequence and returns the platform to its compact transport position. In poultry facilities, the lifting vehicle can support access to elevated cage components, feeding lines, drinking systems, lighting equipment, ventilation devices and other livestock equipment requiring periodic inspection.
Technical Specifications	Product Type: Electric-Hydraulic Mobile Lift Vehicle Reference Overall Size: 1030 x 600 x 375 mm Maximum Platform Height: 1280 mm Minimum Platform Height: 290 mm Reference Vehicle Weight: 122 kg Maximum Rated Load: 300 kg Control Method: Wireless remote control Motor: DC24V DC motor Power Source: Valve-regulated lead-acid battery Operating Voltage: 23.5V to 26.5V Operating Current: 3A to 12A Charging Voltage: 100V to 220V Fast Charging Time: Approximately 4 hours Full Charging Time: Approximately 8 hours Reference Operating Cycles: Approximately 70 cycles at 300 kg or 100 cycles at 150 kg Reference Full Rise Time: Approximately 30 seconds Poultry Application Configuration: Customizable
Applications	The Hydraulic Poultry Inspection Lift Vehicle can be configured for commercial layer farms, pullet rearing houses, breeder farms, broiler facilities and other livestock equipment projects requiring mobile elevated access. Typical tasks include inspection of upper cage tiers, servicing automatic feeding equipment, checking nipple drinking lines, maintaining ventilation components, replacing lighting equipment, inspecting electrical controls and supporting routine poultry house maintenance. The compact mobile format is particularly useful in steel structure poultry buildings where service access is required along long equipment rows.
Customization Options	Platform dimensions: Customizable Maximum working height: According to project requirements Safety guard rails: Available upon request Platform surface configuration: Available upon request Wheel configuration: Customizable Battery capacity: According to project requirements Charging voltage: According to local electrical standards Control method: Available upon request Tool storage accessories: Available upon request Poultry cage aisle compatibility: According to project requirements Steel structure poultry house integration: Available upon request
Installation & Maintenance	This mobile lift vehicle does not normally require permanent installation. Before operation, confirm that the poultry house floor is level, firm and suitable for mobile lifting equipment. Routine inspection should include the hydraulic cylinder, hoses, pump, scissor joints, wheel assemblies, battery condition, electrical controls and structural fasteners. Hydraulic components should be checked for leakage, abnormal movement or damaged connections. Battery charging should follow the specified charging procedure. Moving joints and wheel components should be inspected and serviced periodically according to actual operating frequency and farm conditions.
Project Cases	Hydraulic inspection lift vehicles can be included as maintenance and service equipment in new poultry farm construction or poultry house modernization projects. For complete farm projects, the required platform height and vehicle dimensions can be coordinated with cage systems, feeding equipment, drinking lines, ventilation systems, lighting equipment and steel structure building layouts.
Product FAQ	Q: What is the maximum load of the reference lifting vehicle? A: The referenced B-300 lifting trolley has a maximum rated load of 300 kg. Q: What is the maximum lifting height? A: The reference maximum platform height is 1280 mm. Q: How is the platform raised? A: A DC motor drives the hydraulic system, which extends the scissor mechanism and raises the platform. Q: Does the vehicle require a continuous power cable? A: No. The reference configuration uses a rechargeable battery for mobile operation. Q: Is wireless control available? A: Yes. The reference model uses wireless remote control. Q: Can it be customized for poultry house inspection? A: Yes. Platform dimensions, working height, protective components and other features can be configured according to project requirements.
Product Gallery
