Product Showcase	Content
Product Name	Safety-Rail Poultry Lifting Inspection Platform
Product Image
Product Overview	The Safety-Rail Poultry Lifting Inspection Platform is a mobile elevated-access solution developed for inspection and maintenance work in commercial poultry houses. It combines a compact mobile chassis with an electric-hydraulic scissor lifting mechanism, allowing operators to reach elevated cage tiers and poultry equipment more efficiently. The lifting platform can be configured with perimeter safety rails, an access gate, anti-slip flooring and other protective components according to project requirements. It is suitable for routine flock inspection, cage maintenance, feeding-system servicing, drinking-line checks, lighting work and ventilation equipment inspection. Its compact footprint makes it suitable for steel structure poultry buildings and intensive livestock equipment projects where aisle width and service clearance are limited.
Key Features	Electric-Hydraulic Lifting: Powered hydraulic components provide controlled vertical movement for inspection and maintenance work. Scissor-Lift Structure: Cross-linked lifting arms provide stable elevation while maintaining a compact retracted height. Safety-Rail Configuration: Perimeter guard rails and access protection can be added according to operator requirements. Battery-Powered Operation: Rechargeable DC power supports mobile operation without continuous connection to an external power cable. Wireless Lift Control: The reference lifting unit supports wireless remote control for convenient raising and lowering. Mobile Chassis: Caster wheels allow the unit to be repositioned between poultry cage rows and service areas. Compact Poultry House Access: Suitable for commercial poultry facilities where maintenance equipment must operate in restricted aisles. Customizable Platform: Working height, platform size, guard-rail layout and auxiliary components can be adapted according to project requirements.
Structural Components	Mobile Base Frame: Steel chassis supporting the lifting mechanism, hydraulic system, battery and wheel assemblies. Working Platform: Elevated service deck designed for poultry inspection personnel and maintenance tools. Scissor Lift Assembly: Cross-linked lifting arms provide controlled vertical platform movement. Hydraulic Cylinder: Converts hydraulic pressure into lifting force. Hydraulic Pump: Supplies pressurized hydraulic fluid to operate the lifting cylinder. DC Electric Motor: Powers the hydraulic pump in the battery-operated reference configuration. Safety Guard Rails: Perimeter rails can be configured around the working platform according to project requirements. Battery System: Rechargeable battery supplies mobile electrical power. Control System: Wireless remote and project-specific control options are available. Wheel and Brake Assembly: Mobile caster system supports positioning, with braking or locking components available according to the selected configuration.
Working Principle	The lifting platform is moved to the required service position while the platform remains in its lowered transport position. After the unit is correctly positioned and stabilized, the operator activates the electric-hydraulic lifting system. The DC motor drives the hydraulic pump, which supplies pressure to the hydraulic cylinder. The cylinder extends the scissor mechanism and raises the platform vertically to the required working level. From the elevated platform, maintenance personnel can inspect cage rows, feeders, nipple drinking systems, egg handling equipment, lighting, ventilation components and other elevated poultry equipment. After work is completed, the platform is lowered before the unit is moved to another position.
Technical Specifications	Product Type: Mobile Electric-Hydraulic Lifting Inspection Platform Application: Poultry cage inspection and maintenance Reference Base Unit Size: 1030 x 600 x 375 mm Reference Maximum Platform Height: 1280 mm Reference Minimum Platform Height: 290 mm Reference Equipment Weight: 122 kg Reference Maximum Load: 300 kg Reference Motor: DC24V Reference Power Source: Valve-regulated lead-acid battery Reference Operating Voltage: 23.5V to 26.5V Reference Charging Voltage: 100V to 220V Reference Fast Charging Time: Approximately 4 hours Reference Full Charging Time: Approximately 8 hours Reference Full Rise Time: Approximately 30 seconds Safety Rail Configuration: Available upon request Poultry Working Platform: Customizable Final Working Height: According to project requirements
Applications	The Safety-Rail Poultry Lifting Inspection Platform is suitable for commercial layer farms, pullet rearing facilities, breeder houses, broiler cage projects and other intensive poultry installations. Typical applications include upper-tier cage inspection, feeding-system maintenance, nipple drinking-line servicing, egg collection equipment inspection, ventilation-system maintenance, lighting replacement, electrical installation work and routine poultry house servicing. It can also be incorporated into new steel structure poultry house projects where dedicated elevated maintenance access is required.
Customization Options	Platform dimensions: Customizable Working height: According to project requirements Safety rail height and layout: Customizable Access gate configuration: Available upon request Anti-slip platform surface: Available upon request Wheel configuration: According to project requirements Wheel braking system: Available upon request Battery capacity: According to project requirements Control method: Available upon request Tool storage arrangement: Available upon request Poultry aisle compatibility: According to project requirements Charging voltage: According to local electrical standards
Installation & Maintenance	The platform is mobile equipment and normally does not require permanent installation. Before operation, poultry house floor condition, aisle width, cage height and required working level should be confirmed. The unit should be positioned on a firm, level surface before lifting. Wheel brakes or other stabilizing devices should be applied where included in the selected configuration. Routine maintenance includes inspection of hydraulic cylinders, hoses, pumps, scissor joints, structural fasteners, caster wheels, brakes, battery condition and electrical controls. Safety rails, gates and platform surfaces should also be checked regularly to maintain reliable operation in demanding poultry house environments.
Project Cases	Safety-rail lifting inspection platforms can be included as maintenance equipment for new poultry farm construction, cage system expansion and modernization of existing poultry houses. Platform size and working height can be coordinated with poultry cage tiers, automatic feeding equipment, drinking systems, egg collection lines, ventilation equipment and steel structure building dimensions according to project requirements.
Product FAQ	Q: Is the platform suitable for inspecting upper poultry cage tiers? A: Yes. The working platform can be configured according to the required poultry cage inspection height. Q: Can safety rails be installed around the platform? A: Yes. Perimeter rails, access gates and related protective components are available according to project requirements. Q: What is the reference load capacity? A: The referenced electric lifting base unit has a maximum rated load of 300 kg. Q: What is the reference maximum lifting height? A: The referenced base lifting unit reaches a maximum platform height of approximately 1280 mm. Q: Is the lifting system battery powered? A: Yes. The reference configuration uses a rechargeable battery and DC motor. Q: Can platform dimensions be customized? A: Yes. Platform dimensions, rail arrangement, working height and other features can be designed according to project requirements. Q: Can it be supplied as part of a complete poultry farm project? A: Yes. The lifting platform can be coordinated with cage equipment, feeding systems, drinking lines, ventilation systems and steel structure poultry houses.

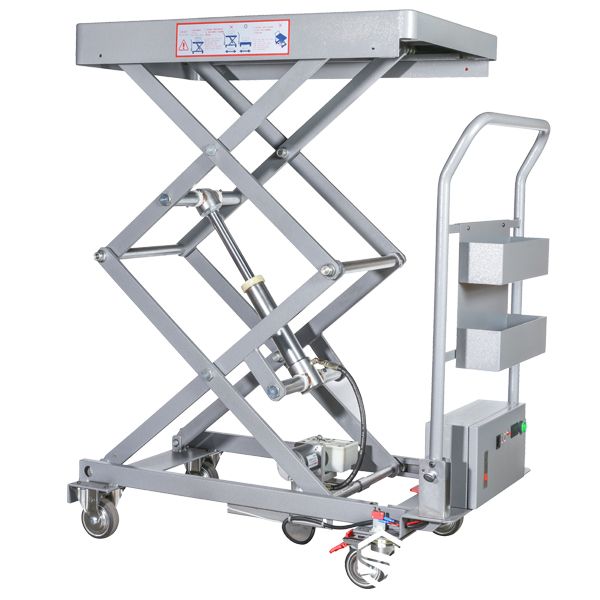

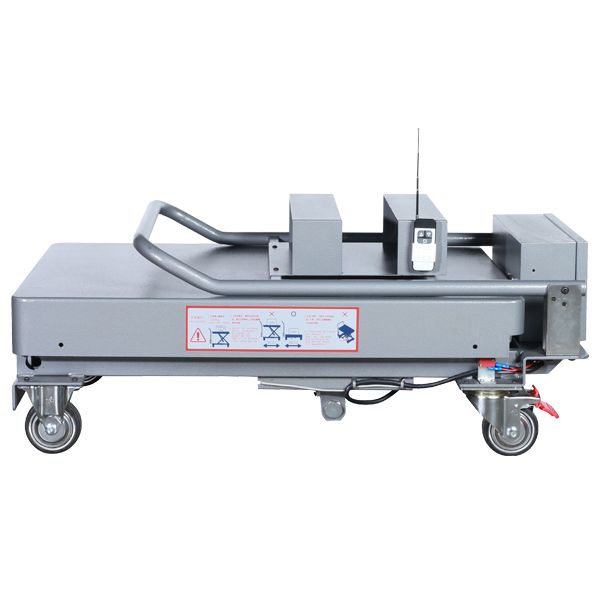

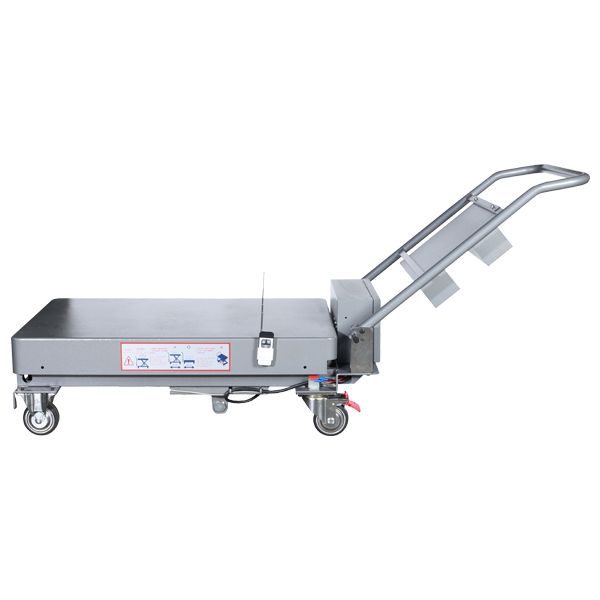

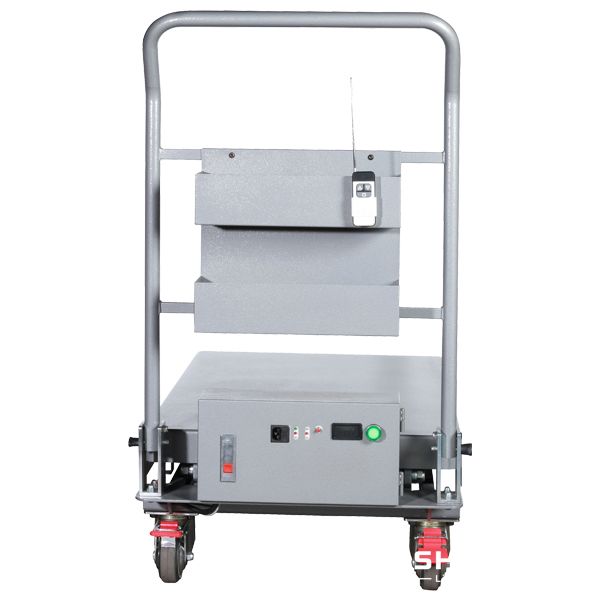

Product Gallery
