Product Showcase	Content
Product Name	Self-Propelled Electric Lifting Inspection Vehicle
Product Image
Product Overview	The Self-Propelled Electric Lifting Inspection Vehicle is a compact mobile work platform developed for elevated inspection, maintenance and operational tasks inside commercial livestock and poultry facilities. Unlike conventional manual inspection carts, the vehicle combines powered travel with an electrically controlled lifting platform, allowing the operator to move along service aisles and reach elevated equipment without repeatedly dismounting or repositioning ladders. The compact chassis is suitable for narrow passages in multi-tier poultry houses, livestock buildings, warehouse areas and steel structure agricultural facilities. The vehicle can be configured according to working height, aisle width, floor conditions and project-specific operating requirements.
Key Features	Self-Propelled Travel: Electric drive allows forward, reverse and steering operations without manual pushing. Electric Lifting Platform: Powered vertical lifting provides convenient access to elevated livestock equipment and upper poultry cage levels. Compact Maneuverability: Narrow chassis design is suitable for service aisles inside poultry houses and other agricultural buildings. Operator Platform: Guard rails provide an enclosed working area for elevated inspection and maintenance operations. Battery Powered: Rechargeable battery operation eliminates exhaust emissions and is suitable for indoor livestock environments. Low-Speed Elevated Travel: Project-specific configurations can use reduced travel speed when the working platform is raised. Electric Control System: Joystick or push-button control can integrate driving, steering, lifting and lowering functions. Project Customization: Platform dimensions, working height, wheel arrangement and power system can be configured according to project requirements.
Structural Components	Main chassis frame Electric drive motors Rechargeable battery system Electric control unit Operator control joystick or control panel Vertical lifting mechanism Working platform Safety guard rails Drive wheels and steering wheels Braking system Battery charger Emergency stop device Structural fasteners and protective covers
Working Principle	Electric drive motors move the inspection vehicle through the livestock or poultry house under operator control. The vehicle can travel forward, reverse and turn within the available aisle space. When elevated access is required, the lifting mechanism raises the operator platform vertically to the required working level. The operator can then inspect poultry cages, feeders, drinkers, ventilation equipment, lighting systems, electrical components and other elevated farm equipment. After completing the inspection, the platform is lowered to the transport position before the vehicle moves to another working area. Safety interlocks, speed limitation and braking configurations are available according to project requirements.
Technical Specifications	Product Type: Self-Propelled Electric Lifting Inspection Vehicle Drive Method: Electric self-propelled Lifting Method: Electric or electro-hydraulic Power Source: Rechargeable battery Control Method: Joystick or control panel Travel Direction: Forward, reverse and steering Working Height: Customizable Platform Height: According to project requirements Platform Dimensions: Customizable Vehicle Dimensions: According to project requirements Travel Speed: Available upon request Rated Load: According to project requirements Battery Capacity: Available upon request Charging Voltage: According to destination market Safety Configuration: Guard rails, braking and emergency stop available
Applications	Multi-tier layer poultry houses Pullet rearing facilities Breeder poultry houses Broiler cage systems Livestock equipment inspection Feeding system maintenance Drinking line servicing Ventilation equipment inspection Lighting and electrical maintenance Steel structure agricultural buildings Warehouse maintenance and picking operations
Customization Options	SHEWUYOU can configure the Self-Propelled Electric Lifting Inspection Vehicle according to livestock house dimensions, working aisle width, required platform height, floor conditions and equipment layout. Customization options can include working height, platform dimensions, vehicle width, battery capacity, motor configuration, wheel type, charging voltage, operating controls, safety guard arrangement and auxiliary tool storage. The complete vehicle can also be designed according to local climate and farm conditions.
Installation & Maintenance	The inspection vehicle is normally supplied as a complete mobile unit and requires limited on-site installation. Before operation, sufficient aisle width, floor flatness, overhead clearance and charging facilities should be confirmed. Routine maintenance includes checking batteries, electrical connections, drive motors, wheels, brakes, lifting mechanism, platform guard rails and control components. Moving parts should be inspected and lubricated according to the maintenance schedule. Feed dust, feathers, manure and other livestock-house contaminants should be removed regularly to maintain reliable operation.
Project Cases	Self-propelled lifting inspection vehicles can be supplied for new poultry farm construction, livestock equipment modernization and existing facility retrofit projects. Project selection normally considers aisle width, cage height, required working level, floor surface, battery charging conditions and surrounding equipment. The vehicle can be coordinated with poultry cage systems, automatic feeding lines, nipple drinking systems, egg collection equipment, manure removal systems and steel structure poultry buildings.
Product FAQ	Q: What is a self-propelled lifting inspection vehicle? A: It is a battery-powered mobile work platform that combines electric travel and vertical lifting for elevated inspection and maintenance. Q: Can the operator drive the vehicle while standing on the platform? A: Suitable configurations can integrate operator controls on the platform for driving, steering, lifting and lowering. Q: Is the vehicle suitable for poultry houses? A: Yes. Compact electric models are suitable for multi-tier poultry houses where narrow aisles and elevated equipment require frequent inspection. Q: Can the working height be customized? A: Yes. Platform height and lifting range can be designed according to project requirements. Q: Can the vehicle dimensions be customized? A: Yes. Width, length, wheel arrangement and platform dimensions can be matched to farm aisle conditions. Q: What power supply does the vehicle use? A: Rechargeable battery power is commonly used for clean indoor operation. Battery capacity and charging voltage are available according to project requirements.

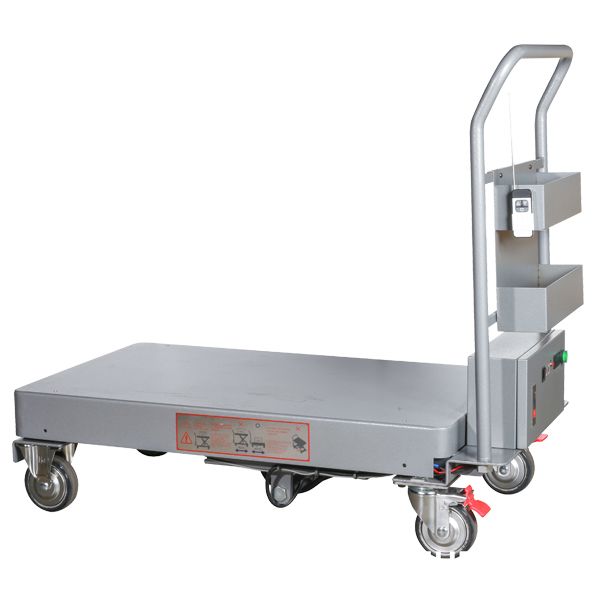

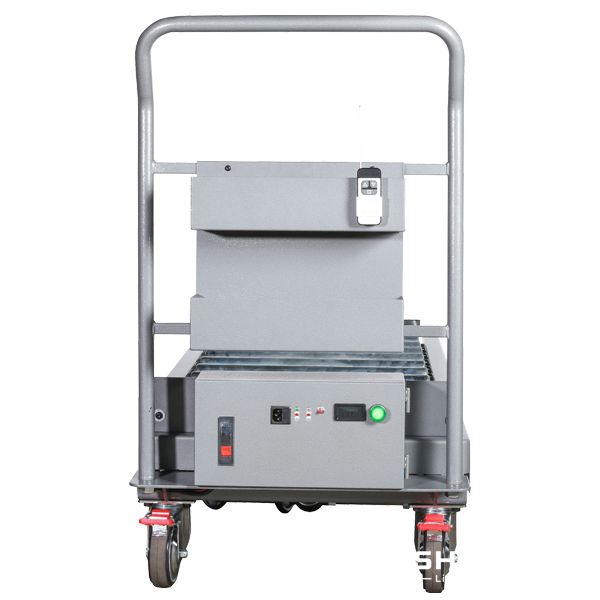

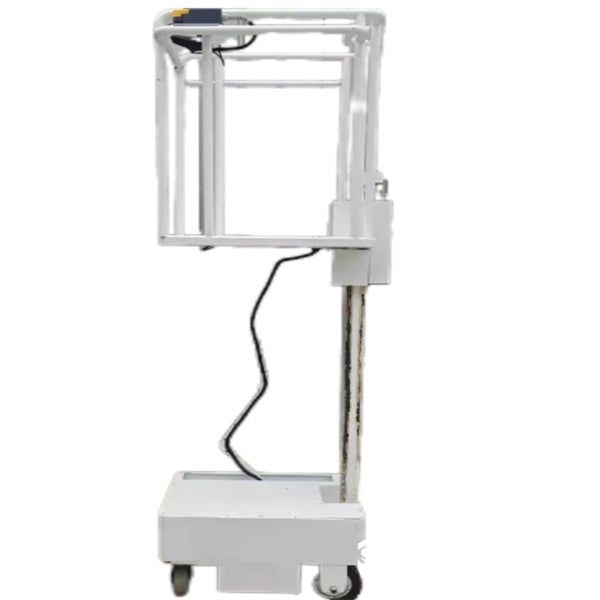

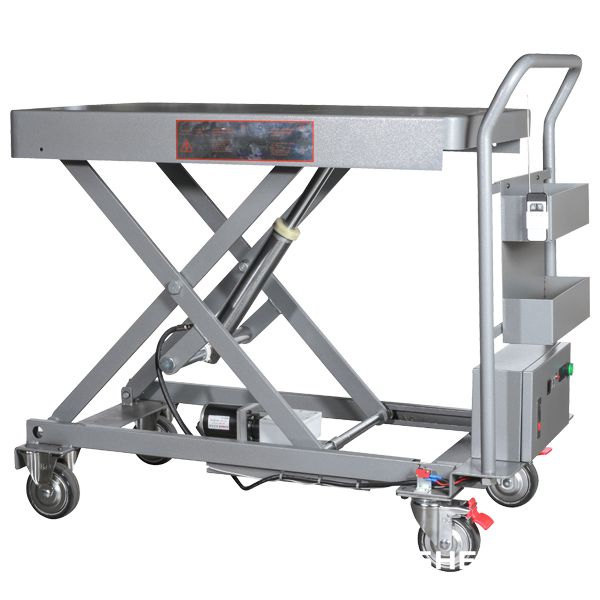

Product Gallery
