Product Name	Sole Cleaning and Hand Disinfection Station
Product Image

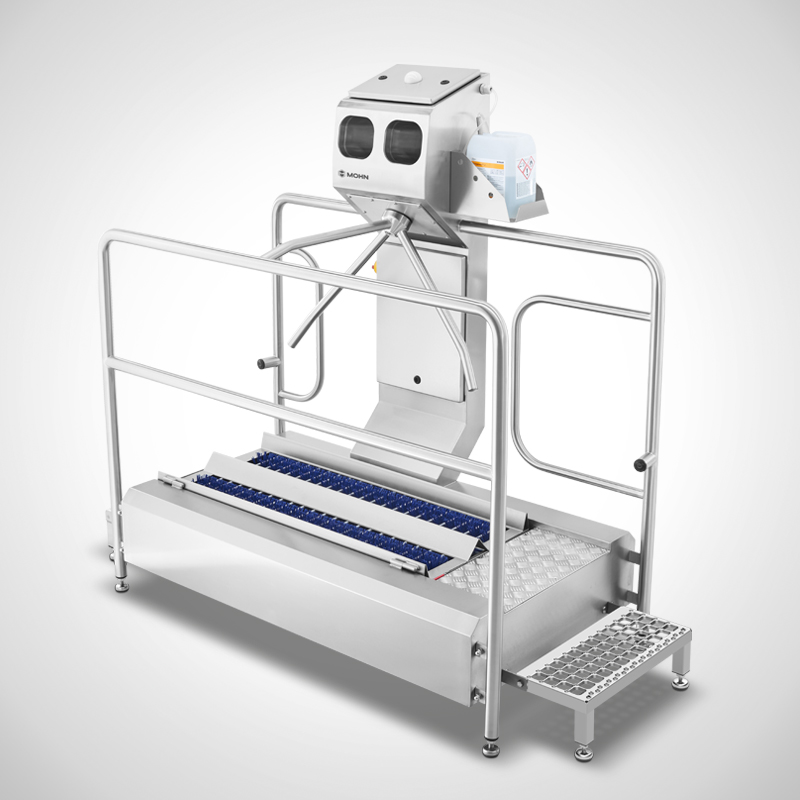

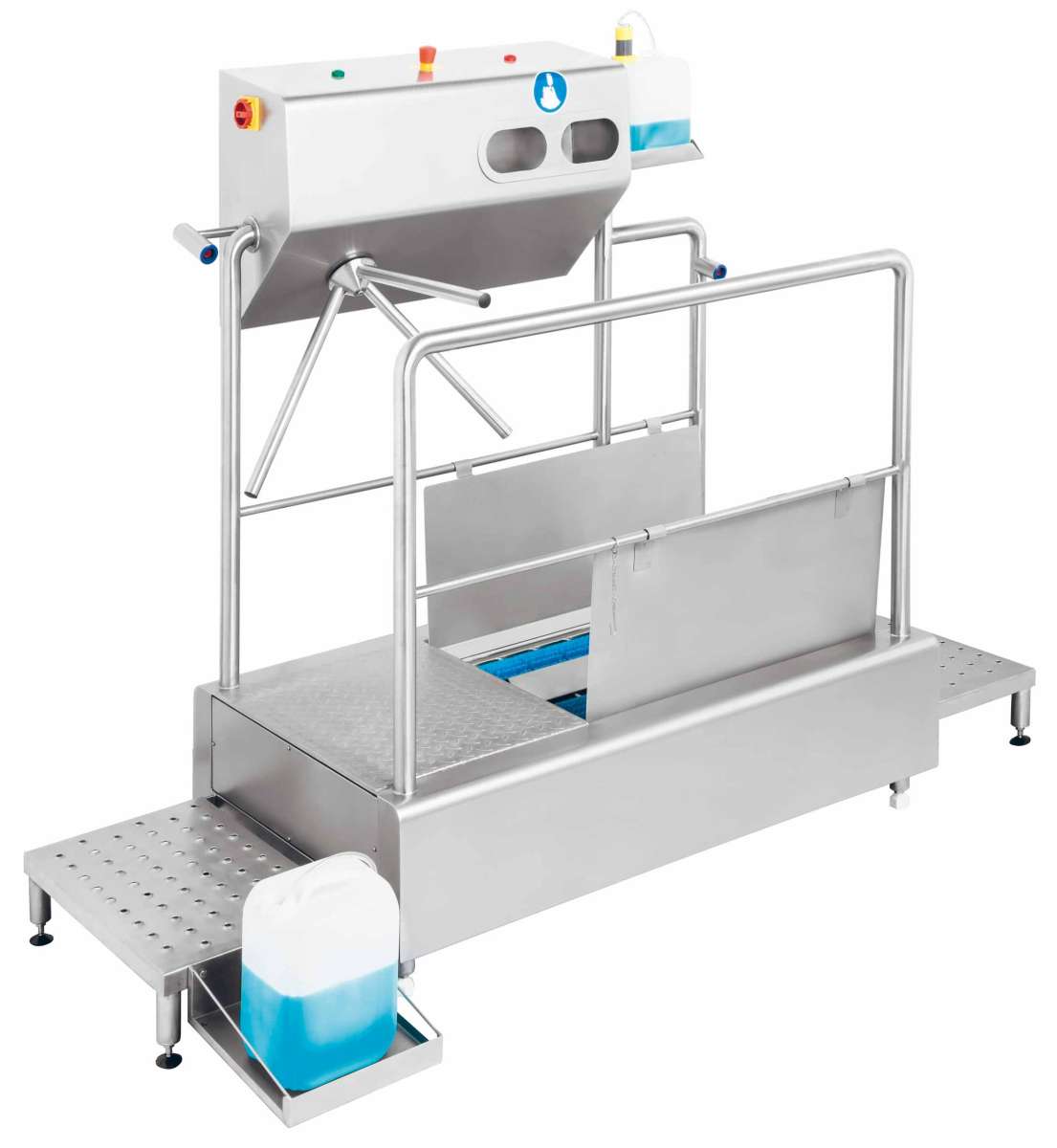

Product Overview	The Sole Cleaning and Hand Disinfection Station is an integrated personnel hygiene system designed for controlled entrances to livestock production areas. It combines mechanical footwear sole cleaning, disinfectant application, contactless hand disinfection and optional controlled access in one compact unit. The system is suitable for commercial pig farms, poultry farms, cattle farms, breeding centers, veterinary facilities and other livestock operations requiring structured personnel biosecurity procedures. Personnel pass through the sole cleaning section while rotating brushes mechanically remove contamination from footwear soles. The hand disinfection module then provides contactless disinfectant application. In controlled-access configurations, the turnstile can remain locked until the required hygiene procedure has been completed. The equipment can be incorporated into new pig farm construction, farm renovation projects, changing rooms and steel structure livestock buildings. System layout and configuration can be customized according to personnel flow, building dimensions and project requirements.
Key Features	Integrated Sole and Hand Hygiene: Combines footwear sole cleaning and hand disinfection in one personnel entrance system. Mechanical Roller Brushes: Rotating brushes provide physical cleaning of footwear soles during passage. Automatic Liquid Application: Water and compatible cleaning or disinfecting solution can be supplied to the brush section during operation. Contactless Hand Disinfection: Sensor-controlled hand treatment reduces unnecessary contact with the equipment. Controlled Personnel Access: An optional motorized turnstile helps ensure completion of the required hygiene sequence before entry. Open Hygienic Design: Accessible machine components simplify routine rinsing, inspection and maintenance. Non-Slip Passage: Anti-slip platforms, guide sections and handrails can improve stability during use. Corrosion-Resistant Construction: Stainless steel configurations are suitable for humid farm environments and frequent washdown. Modular Configuration: Brush length, access direction, dosing system and control functions can be adapted according to project requirements.
Structural Components	Main Stainless Steel Frame: Supports the hygiene station and provides a washable structural enclosure. Motorized Roller Brushes: Mechanically clean footwear soles as personnel move through the station. Water Supply Nozzles: Deliver water to the brush cleaning zone. Chemical Dosing System: Supplies compatible detergent or disinfectant according to the selected configuration. Hand Disinfection Module: Provides controlled disinfectant application to both hands. Hand Detection Sensors: Activate the disinfection cycle without requiring manual contact. Turnstile Access Gate: Controls personnel entry after completion of the hygiene cycle. Safety Handrails: Provide support while personnel cross the rotating brush section. Entry and Exit Platforms: Provide stable transition surfaces before and after the hygiene zone. Drainage Base: Collects and directs used liquid to the designated wastewater connection. Electrical Control System: Coordinates brushes, sensors, dosing and optional access-control functions.
Working Principle	Personnel enter the station through the designated entrance. The sole cleaning section is activated according to the selected control configuration, allowing motorized roller brushes to mechanically clean the footwear soles while water and compatible cleaning or disinfecting solution are applied. The user then places both hands into the hand disinfection chamber. Contactless sensors detect hand position and activate the disinfectant dosing system. In access-controlled configurations, the motor-driven turnstile is released after completion of the programmed hand hygiene sequence, allowing the user to proceed into the clean production area. This step-by-step design is consistent with professional personnel hygiene stations that combine roller-brush sole cleaning, contactless hand disinfection and turnstile-controlled access. :contentReference[oaicite:0]{index=0}
Technical Specifications	Product Type Sole Cleaning and Hand Disinfection Station Main Application Personnel Biosecurity Entrance Sole Cleaning Method Motorized roller brush cleaning Hand Disinfection Contactless automatic dosing Main Material Stainless steel configuration available Brush Length Customizable according to project requirements Chemical Dosing Automatic or adjustable configuration available Access Control Motorized turnstile available upon request Passage Direction Left-to-right or right-to-left configuration available Water Supply According to project requirements Drainage Wastewater connection required according to installation conditions Electrical Configuration According to destination market and project requirements Overall Dimensions Available upon request
Applications	Commercial pig farm personnel entrances Poultry farm biosecurity passages Dairy and beef cattle farms Breeding and genetics centers Livestock farm changing-room exits Clean-zone and dirty-zone transition areas Veterinary and quarantine facilities Feed mills and agricultural processing facilities Farm laboratories and technical rooms Large livestock group biosecurity projects New pig farm construction projects Steel structure livestock buildings
Customization Options	Brush Section Length: Cleaning length can be selected according to personnel throughput and installation space. Sole Cleaning Configuration: Brush arrangement and liquid application can be adapted according to project requirements. Hand Hygiene Module: Hand disinfection-only or combined hand washing and disinfection configurations are available. Access Control: Tripod turnstile, door-release interface or other access-control arrangements can be supplied upon request. Passage Direction: Entry direction can be configured according to personnel flow. Stainless Steel Configuration: Material selection is available according to operating conditions and project requirements. Chemical Dosing: Dosing time and liquid delivery can be configured according to compatible chemical requirements. Card Reader Integration: External access-control interfaces are available upon request. Dimensions: Customized according to corridor size and farm layout. Environmental Design: Designed according to local climate and farm conditions.
Installation & Maintenance	The station should be installed at a controlled personnel entrance between changing facilities and the clean livestock production area. Installation planning should include the required water supply, electrical connection, wastewater drainage and service clearance. The equipment should be mounted on a stable and level floor. Entry and exit directions should match the site's clean-to-dirty zoning and personnel movement plan. Routine maintenance includes removing debris from the brush section, cleaning the roller brushes, checking spray nozzles and dosing lines, inspecting sensors, cleaning drainage channels and verifying correct turnstile operation. Professional systems commonly use removable brush assemblies and open construction to simplify cleaning and machine hygiene. :contentReference[oaicite:1]{index=1} Only compatible cleaning and disinfecting chemicals should be used. Chemical concentration, dosing and safety procedures should follow the chemical manufacturer's instructions and applicable farm biosecurity requirements.
Project Cases	The Sole Cleaning and Hand Disinfection Station can be used as a controlled hygiene checkpoint in commercial livestock production projects. In pig farm construction projects, the station can be positioned after staff changing or shower facilities and immediately before access to animal production buildings. Personnel complete footwear and hand hygiene before entering the clean production zone. For existing livestock farms, compact configurations can be incorporated into personnel corridors, changing rooms or steel structure building entrances to upgrade biosecurity without extensive reconstruction. Similar hygiene systems are used in agricultural operations because integrated hand and sole cleaning can support controlled movement from external areas into hygienically managed production zones. :contentReference[oaicite:2]{index=2}
Product FAQ	Q: What functions does this hygiene station combine? A: The station combines mechanical footwear sole cleaning, liquid application, contactless hand disinfection and optional controlled personnel access. Q: How are the shoe soles cleaned? A: Motorized roller brushes mechanically remove contamination from the footwear soles while water and compatible cleaning or disinfecting solution can be applied. Q: Is the hand disinfection process automatic? A: Yes. Contactless sensors can detect both hands and activate the disinfectant dosing cycle. Q: Can the turnstile remain locked until hand disinfection is completed? A: Yes. Controlled-access configurations can be programmed so that personnel passage is released only after the required hygiene cycle. Q: Is the equipment suitable for commercial pig farms? A: Yes. It can be installed at controlled entrances, changing-room exits and clean-zone transition points in commercial pig farms and other livestock facilities. Q: Can the brush section be customized? A: Yes. Brush length and station layout can be selected according to project requirements, personnel flow and available installation space. Q: Can the station be installed in an existing livestock building? A: Yes. Compact configurations can be adapted to many existing corridors or entrance areas when suitable utility connections and drainage are available. Q: Can it be combined with other personnel hygiene equipment? A: Yes. The station can be integrated with changing rooms, shower systems, boot washing equipment, hand washing stations and other farm biosecurity facilities.
Product Gallery
