Product Name	Sole Cleaning and Hand Disinfection Station
Product Image

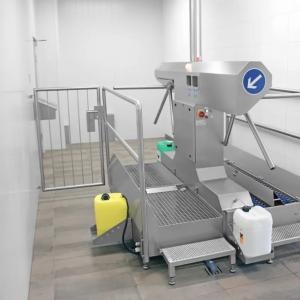

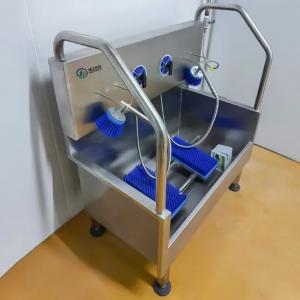

Product Overview	The Sole Cleaning and Hand Disinfection Station is an integrated personnel hygiene system designed for controlled entrances in commercial pig farms, poultry farms, cattle facilities, breeding centers and other livestock production sites. The station combines mechanical footwear-sole cleaning with automatic hand disinfection and controlled personnel access. When personnel enter the station, rotating brushes clean the soles while water and compatible cleaning or disinfecting solution are supplied to the cleaning area. Contactless hand disinfection is then completed before the access turnstile permits entry into the clean production zone. The compact stainless steel structure helps reduce the number of separate hygiene devices required at the entrance and is suitable for installation in changing rooms, hygiene corridors, clean/dirty transition areas and steel structure livestock buildings.
Key Features	Integrated Personnel Hygiene: Combines footwear sole cleaning, hand disinfection and controlled passage in one compact station. Mechanical Sole Cleaning: Rotating roller brushes remove dirt from footwear soles during personnel passage. Contactless Hand Disinfection: Sensor-controlled operation minimizes unnecessary contact with the equipment. Controlled Access: A motor-driven turnstile can release personnel only after the required hand hygiene procedure is completed. Step-by-Step Hygiene Sequence: Helps standardize personnel entry procedures at livestock production areas. Non-Slip Walking Area: Anti-slip surfaces and step guides support safe passage in wet hygiene environments. Safety Handrail: Provides additional support while personnel move across the rotating brush section. Open Hygienic Design: Accessible construction facilitates cleaning of brushes, tanks and machine surfaces. Low Utility Consumption: Water and chemical application can be controlled according to operating requirements. Project Customization: Brush length, passage direction, access-control configuration and utility connections can be adapted according to project requirements.
Structural Components	Stainless Steel Main Frame: Supports the integrated hygiene station and provides corrosion resistance in humid farm environments. Roller Brush Modules: Mechanically clean footwear soles as personnel move through the station. Water Spray System: Supplies water to the brush section during the cleaning cycle. Chemical Dosing System: Adds compatible cleaning or disinfecting agent according to the selected configuration. Hand Disinfection Chamber: Provides a controlled area for automatic hand disinfectant application. Hand Detection Sensors: Detect correct hand placement and activate the disinfection cycle. Spray Nozzles: Distribute disinfectant over the hands according to the programmed cycle. Motor-Driven Turnstile: Controls access to the designated clean production area. Safety Handrail: Helps guide and support personnel during passage. Drainage Base: Collects and directs wastewater and removed contamination away from the cleaning zone. Electrical Control Unit: Coordinates brushes, sensors, dosing and access-control functions.
Working Principle	Personnel enter the station and step onto the sole cleaning section. The roller brushes rotate and mechanically remove contamination from the footwear soles while the brush area is supplied with water and compatible cleaning or disinfecting solution. The user then places both hands into the automatic hand disinfection chamber. Sensors detect correct hand positioning and activate a controlled disinfectant application. After the required hygiene sequence has been completed, the access-control system releases the motor-driven turnstile, allowing the user to enter the clean production area. This controlled sequence helps reduce the possibility of bypassing essential footwear and hand hygiene procedures at commercial livestock farm entrances.
Technical Specifications	Product Type Sole Cleaning and Hand Disinfection Station Primary Application Personnel Hygiene and Biosecurity Entrance Main Functions Sole Cleaning, Sole Disinfection, Hand Disinfection and Access Control Sole Cleaning Method Motorized roller brushes Hand Disinfection Automatic contactless application Access Control Motor-driven turnstile Main Material Stainless steel configuration available Brush Length Customizable according to project requirements Chemical Dosing Adjustable according to selected configuration Water Supply According to project requirements Drainage Required according to installation conditions Electrical Configuration According to destination market and project requirements Passage Direction Customizable Dimensions Available upon request
Applications	Commercial pig farm personnel entrances Poultry farm hygiene corridors Dairy and beef cattle farms Livestock breeding and genetics centers Farm changing-room exits Clean-zone and dirty-zone transition points Veterinary and quarantine facilities Feed mills and agricultural processing facilities Meat and food processing facilities Large livestock group biosecurity projects New pig farm construction projects Steel structure livestock buildings
Customization Options	Brush Length: Cleaning section length can be selected according to personnel traffic and available installation space. Sole Edge Cleaning: Additional side-cleaning sections are available upon request. Hand Disinfection Configuration: Disinfectant dosing and operating cycle can be adapted to project requirements. Passage Direction: Left-to-right or right-to-left arrangements can be configured according to building layout. Access Control: Turnstile operation can be integrated with personnel access systems. Card Reader Integration: Access-card interfaces are available upon request. Chemical Dosing: Cleaning and disinfecting agent delivery can be adjusted according to operating procedures. Dry Cleaning Option: Dry brush configurations with dirt collection can be considered for suitable applications. Electrical Configuration: Adaptable according to destination-market standards. Farm Integration: Designed according to local climate, farm conditions and steel structure building layout.
Installation & Maintenance	Install the station at a controlled personnel entrance between changing facilities and the clean livestock production area. The location should provide adequate clearance for personnel passage, equipment servicing and utility connections. A stable and level floor is recommended. Water supply, electrical power and wastewater drainage should be prepared according to the final equipment configuration before installation. For new pig farm construction, the hygiene station can be integrated with shower rooms, changing areas, boot storage, personnel disinfection channels and other farm biosecurity equipment. Routine maintenance includes removing debris from the brush section, cleaning roller brushes, checking spray nozzles, inspecting chemical tubing and dosing systems, testing sensors and turnstile operation, and cleaning the wastewater collection area.
Project Cases	The Sole Cleaning and Hand Disinfection Station can serve as a controlled personnel hygiene checkpoint within commercial livestock farm biosecurity systems. In pig farm projects, the station can be positioned after changing or shower facilities and before access to animal production buildings. Personnel clean their footwear soles and complete hand disinfection before the controlled turnstile releases access to the clean zone. For existing livestock facilities, compact configurations can be integrated into personnel corridors and changing-room exits to improve hygiene control without extensive structural reconstruction. System layout can be customized according to farm capacity, personnel traffic, corridor dimensions and project biosecurity requirements.
Product FAQ	Q: What hygiene functions are integrated into this station? A: The station combines mechanical sole cleaning, footwear disinfection, automatic hand disinfection and controlled personnel access. Q: How are footwear soles cleaned? A: Motorized roller brushes mechanically remove contamination while water and compatible cleaning or disinfecting solution are applied according to the selected configuration. Q: Is hand disinfection contactless? A: Yes. Sensors can detect correct hand placement and automatically initiate disinfectant application. Q: Can personnel pass without completing hand disinfection? A: Controlled-access configurations can keep the turnstile locked until the required hand disinfection cycle has been completed. Q: Is this station suitable for commercial pig farms? A: Yes. It is suitable for controlled personnel entrances, changing-room exits and clean-zone access points in commercial pig farms and other livestock facilities. Q: Can the brush section be customized? A: Yes. Brush length and cleaning configuration can be selected according to project requirements. Q: Can an access card system be connected? A: Access-control and card-reader integration are available upon request. Q: What cleaning chemicals should be used? A: Only compatible products suitable for the equipment and intended hygiene application should be used. Concentration and safety procedures must follow the chemical manufacturer's instructions and applicable regulations.
