Product Name

Calibrated Poultry Vaccine Eye Dropper

Product Image

Product Overview

The Calibrated Poultry Vaccine Eye Dropper is a precision manual applicator designed for individual intraocular administration of suitable poultry vaccines.

Its calibrated dispensing mechanism is designed to deliver a controlled drop with each activation, helping standardize individual bird vaccination and reduce variation during repetitive vaccination work.

The compact handheld structure is suitable for commercial poultry farms, hatcheries, broiler operations, layer farms, breeder farms and veterinary vaccination teams.

The design can be adapted to compatible vaccine bottles, dispensing requirements and project specifications.

Key Features

Calibrated dispensing for consistent individual eye-drop vaccination.
Designed for intraocular vaccine administration in poultry.
Beveled dispensing nozzle supports controlled droplet formation.
One controlled drop per trigger activation in the applicable calibrated configuration.
Ergonomic grip and smooth trigger support repetitive vaccination work.
Top-mounted bottle position helps reduce direct heat transfer to the vaccine.
Simple construction supports convenient cleaning and maintenance.
Replaceable nozzle, inner tube and valve components can extend service life in applicable configurations.
Suitable for commercial poultry farms, hatcheries and veterinary vaccination programs.
No electrical power or compressed air is required for manual operation.

Structural Components

Ergonomic applicator body
Vaccine bottle mounting interface
Universal bottle adapter
Threaded adapter for compatible PET bottles
Internal vaccine flow tube
Trigger mechanism
Sealing components
Beveled dispensing nozzle
Replaceable internal components where applicable

The exact component configuration may vary according to the selected model, vaccine container and project requirements.

Working Principle / Structural Principle

The prepared vaccine is supplied from a compatible bottle mounted above the applicator. When the operator activates the trigger, the internal dispensing mechanism releases a controlled quantity of vaccine through the beveled nozzle.

For intraocular vaccination, the bird is gently restrained and the applicator is positioned according to the vaccine manufacturer's instructions. The controlled drop is delivered onto the eye without direct contact between the nozzle and the eye.

The upper bottle position provides a practical vaccine supply arrangement and helps minimize unnecessary heat transfer from the operator's hand to the vaccine container. The actual vaccine dose, dilution ratio and administration procedure must always follow the specific vaccine label and veterinary protocol.

Technical Specifications

Equipment Type	Calibrated manual poultry eye-drop applicator
Application Method	Intraocular vaccine administration
Target Animals	Poultry according to vaccine instructions
Reference Dose	30 µl per drop in the referenced calibrated applicator configuration
Dispensing Mode	One controlled drop per trigger activation
Bottle Compatibility	Universal bottle adapter and threaded PET-bottle adapter options
Reference Bottle Size	Compatible with selected 30 ml vaccine bottle configurations
Operation	Manual
Power Requirement	No electrical power required
Service Life	Up to 500,000 applications in the referenced configuration
Customization	Customizable according to project requirements

Reference specifications are based on a comparable commercial poultry intraocular applicator. Final dimensions, dosing characteristics, bottle compatibility and service life depend on the selected configuration.

Applications

Commercial poultry hatcheries
Day-old and young bird vaccination programs
Broiler production farms
Layer and pullet farms
Breeder farms
Veterinary vaccination teams
Flock health management programs
Poultry disease prevention operations
Poultry equipment distributors and agricultural projects

The applicable vaccination route and dose must be confirmed from the specific vaccine manufacturer's instructions and veterinary requirements.

Customization Options

The Calibrated Poultry Vaccine Eye Dropper can be configured for different poultry vaccination projects, vaccine containers and distribution requirements.

Dispensing volume
Dispensing nozzle design
Vaccine bottle compatibility
Bottle adapter configuration
Applicator body design
Material selection
Replaceable component configuration
Packaging and labeling
OEM branding

Customization is available according to project requirements, vaccine packaging specifications and local poultry farm conditions.

Installation & Maintenance

No permanent installation is required. Attach the compatible vaccine bottle or reservoir to the applicator using the specified adapter before vaccination.

Before operation, inspect the bottle connection, internal tube, dispensing nozzle, sealing components and trigger mechanism. Prime the applicator according to the equipment procedure.

During vaccination, maintain the recommended operating position and prevent the dispensing nozzle from contacting the bird's eye or other potentially contaminated surfaces.

After use, clean reusable components according to the equipment and vaccination protocol. Avoid contamination from disinfectants or unsuitable chemicals during live vaccine preparation and administration.

Store the applicator in a clean, dry location away from excessive heat, direct sunlight and incompatible chemicals. Replace worn nozzles, tubes, seals or valves when required.

Product FAQ

Q1: What is a calibrated poultry vaccine eye dropper?
A: It is a precision manual applicator designed to deliver a controlled vaccine drop directly onto the eye of individual poultry.

Q2: What is the reference dispensing volume?
A: The referenced calibrated applicator delivers one 30 µl drop per trigger activation. Final dosing depends on the selected equipment configuration and vaccine instructions.

Q3: Is the eye dropper suitable for commercial poultry farms?
A: Yes. It is suitable for hatcheries, broiler farms, layer farms, breeder farms and veterinary vaccination teams requiring individual intraocular vaccination.

Q4: Does the applicator require electricity?
A: No. The manual configuration operates without electricity, batteries or compressed air.

Q5: Can different vaccine bottles be used?
A: Compatible universal and threaded bottle adapters can be supplied according to the selected configuration and vaccine container.

Q6: How can service life be maintained?
A: Regular cleaning, correct handling and timely replacement of wear components such as the dispensing nozzle, inner tube and valves can support long-term operation.

Q7: Can the product be customized for distributors or poultry projects?
A: Yes. Bottle compatibility, dispensing configuration, packaging, labeling and OEM branding can be customized according to project requirements.

Product Gallery

Calibrated poultry vaccine eye dropper product

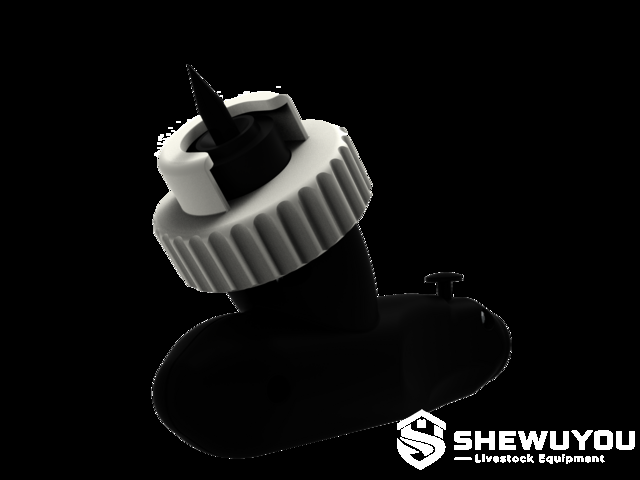

Poultry intraocular vaccine applicator with bottle adapter
