| Product Showcase | Content | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Farm Perimeter Odor Control Misting System | ||||||||||||
| Product Image |  |
||||||||||||

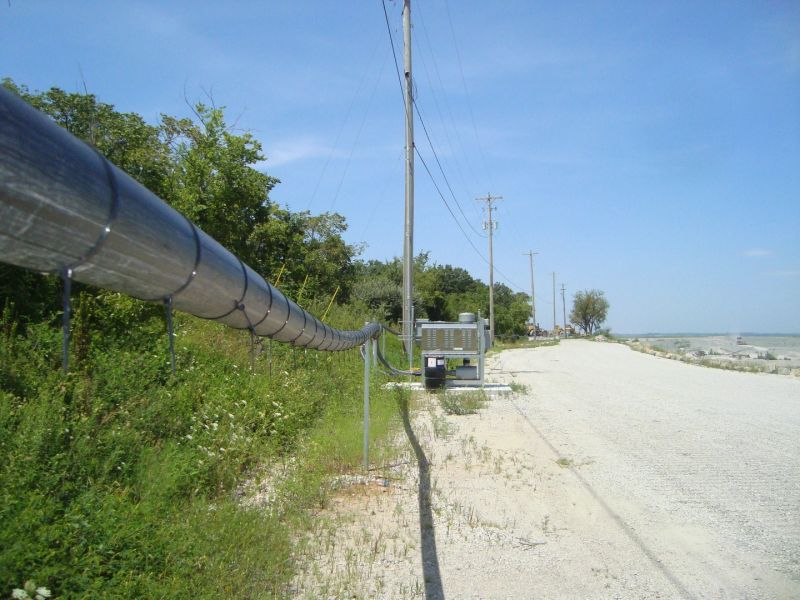

| Product Overview | The Farm Perimeter Odor Control Misting System distributes a fine mist of water and a compatible odor-control agent along selected livestock farm boundaries. It is intended for commercial pig farms, manure storage areas and agricultural waste facilities where odors may travel beyond the site. A pump unit supplies perimeter pipelines and atomizing nozzles mounted on suitable fences, posts or building structures. The layout can be incorporated into new pig farm construction or adapted to an existing facility. | ||||||||||||
| Key Features |
|
||||||||||||
| Structural Components | Typical components include a high-pressure pump unit, inlet filtration, treatment-agent dosing equipment where required, distribution pipelines, atomizing nozzles, zone valves and a control cabinet. Support brackets, protective housings and weather-resistant electrical components can be specified for the installation site. | ||||||||||||
| Working Principle | Filtered water, with a compatible odor-control agent when specified, is pressurized and delivered to nozzles along the selected perimeter. The nozzles atomize the liquid into a fine mist that contacts air moving through the treatment zone. Spray direction and operating periods are set according to odor sources, prevailing winds and site conditions. Performance depends on the treatment agent, weather, airflow and system design. | ||||||||||||
| Technical Specifications |
|
||||||||||||
| Applications | Commercial pig farm boundaries, perimeter sections downwind of pig house exhaust outlets, manure storage and transfer areas, composting zones, livestock wastewater facilities and other agricultural odor-management sites. | ||||||||||||
| Customization Options | Pump selection, nozzle spacing, pipeline routing, treatment zones, dosing arrangement and control logic are customizable. The final design should account for boundary length, odor sources, prevailing wind, local climate, available utilities and the layout of farm roads and buildings. | ||||||||||||
| Installation & Maintenance | Install nozzle lines on structurally suitable supports and position them to treat the intended airflow without unnecessarily wetting roads, electrical equipment or neighboring property. Allow access to the pump, filters, valves and nozzles for routine inspection. Maintenance includes checking filters, cleaning or replacing nozzles, inspecting connections and confirming that dosing and controls operate as specified. Treatment-agent dilution and handling must follow the agent manufacturer's instructions. | ||||||||||||
| Product FAQ |
Can the system operate only when wind blows toward a sensitive boundary? Can it be fitted to an existing pig farm? Which odor-control liquids can be used? |
||||||||||||
| Product Gallery |
|
