Product Name	Automatic Fowl Pox Vaccinator
Product Image
Product Overview	The Automatic Fowl Pox Vaccinator is a compact veterinary vaccination tool designed for fast and repeatable wing-web vaccination of poultry. The reference design combines a 2 cc vaccine chamber, a single vaccination needle and a spring-assisted one-handed operating mechanism. Unlike traditional manual applicators that require repeated dipping or additional handling, the vaccinator carries vaccine inside the syringe body and delivers vaccine through the eye of the needle during each vaccination cycle. The lightweight hand-operated structure is suitable for commercial layer, breeder and pullet vaccination programs where speed, dose consistency, reduced vaccine waste and operator comfort are important.
Key Features	Eye-of-the-Needle Delivery: Vaccine is delivered through the specialized needle during wing-web penetration for controlled application. 2 cc Vaccine Capacity: Compact internal capacity helps maintain a practical balance between vaccination output, handling comfort and vaccine management. One-Handed Operation: The lightweight spring-assisted design allows a trained operator to hold and actuate the vaccinator with one hand. Automatic Vaccine Delivery: The mechanism prepares vaccine for successive wing-web applications without repeated manual dipping. Reduced Vaccine Waste: Controlled needle delivery helps limit unnecessary vaccine loss during large flock vaccination. Improved Operator Safety: The dedicated injection mechanism reduces repeated manual contact with traditional wing-web applicator needles. High-Volume Poultry Use: Suitable for repetitive vaccination work in commercial poultry operations. Serviceable Design: Rubber sealing and washer components can be inspected and replaced during routine maintenance.
Structural Components	Vaccinator Body: Main metal housing containing the vaccine chamber and operating mechanism. Vaccine Chamber: Internal reservoir with a reference capacity of 2 cc. Wing-Web Needle: Specialized needle designed to deliver vaccine through the eye of the needle. Front Cap: Retains the needle and sealing components at the front of the vaccinator. Rubber Stopper: Provides sealing within the vaccine delivery assembly. Neoprene Washer: Supports reliable sealing around the front assembly. Return Spring: Resets the operating mechanism after each vaccination action. Finger Support: Provides operator control and stability during repetitive vaccination. Rear Operating Handle: Allows one-handed actuation of the vaccinator.
Working Principle	The required fowl pox vaccine is loaded into the vaccinator chamber according to the applicable vaccine instructions and veterinary protocol. During vaccination, the operator positions the needle through the bird's wing web in the recommended anatomical area while avoiding feathers, bone and major blood vessels. Actuating the vaccinator allows vaccine to pass through the eye of the specialized needle during wing-web penetration. The spring mechanism then returns the device to its ready position for the next bird. The process supports rapid sequential vaccination without repeatedly dipping a separate applicator into an open vaccine container.
Technical Specifications	Product Type: Automatic Fowl Pox Vaccinator Reference Configuration: Single needle Reference Vaccine Capacity: 2 cc Vaccination Method: Wing-web administration Delivery Method: Eye-of-the-needle delivery Operation: One-handed manual operation Return Mechanism: Spring assisted Power Requirement: None Compressed Air Requirement: None Primary Application: Fowl pox vaccination Needle Configuration: According to product specification Maintenance Parts: Rubber stopper and neoprene washer Packaging Configuration: Available upon request
Applications	The Automatic Fowl Pox Vaccinator is designed for poultry vaccination programs requiring wing-web administration of compatible fowl pox vaccines. Typical users include commercial layer farms, breeder operations, pullet rearing farms, poultry integrators, veterinary service teams and professional vaccination crews. Its compact manual design makes it suitable for routine farm vaccination as well as large poultry projects where portable equipment and efficient flock handling are required.
Customization Options	Vaccination kit configuration: Customizable Replacement needle supply: Available upon request Maintenance parts kit: Available upon request Spare rubber stopper: Available upon request Spare neoprene washer: Available upon request Packaging configuration: According to project requirements Bulk commercial supply: Available upon request Distributor packaging: According to project requirements

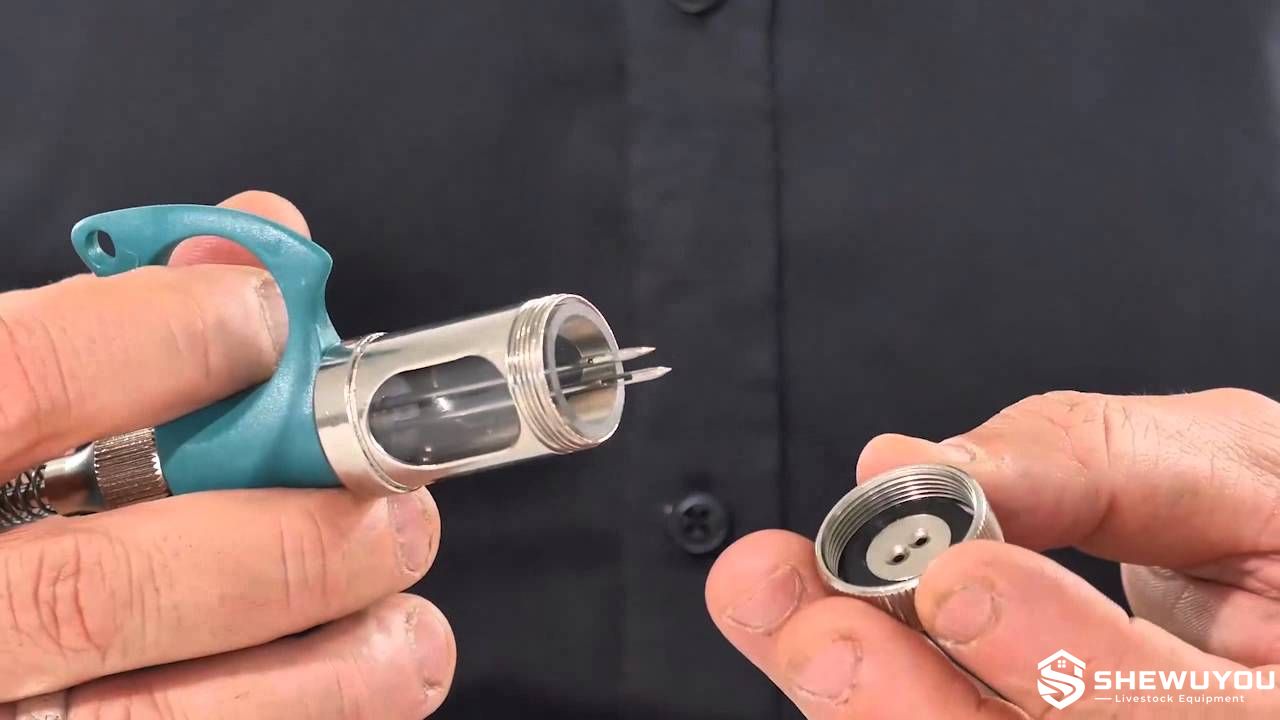

Installation & Maintenance	No permanent installation is required. Before vaccination, inspect the needle, front cap, vaccine chamber, rubber stopper, neoprene washer and operating spring. Confirm that the needle eye is clean and unobstructed before filling the vaccinator. The selected vaccine must be prepared, stored and handled according to the vaccine manufacturer's instructions. After vaccination, disassemble the serviceable components according to the equipment instructions and wash them with clean water. Make sure the needle eye remains free from dried vaccine or other deposits. Inspect sealing components periodically and replace damaged or worn rubber stoppers and washers to maintain reliable operation.
Project Cases	Automatic fowl pox vaccinators can be included in veterinary tool packages for breeder farms, layer operations, pullet rearing facilities and poultry vaccination contractors. For large commercial poultry projects, vaccinators can be supplied together with replacement needles, maintenance components and other vaccination accessories according to flock size and vaccination management requirements.
Product FAQ	Q: What is this vaccinator designed for? A: It is designed for wing-web administration of compatible fowl pox vaccines in poultry. Q: What is the reference vaccine capacity? A: The reference ThaMa 521 configuration has a 2 cc vaccine chamber. Q: How is vaccine delivered? A: Vaccine is delivered through the eye of the specialized vaccination needle during wing-web application. Q: Can the vaccinator be operated with one hand? A: Yes. The reference model is designed for lightweight, one-handed operation. Q: Does the vaccinator require electricity or compressed air? A: No. It is a manually operated veterinary vaccination tool. Q: Which components require routine inspection? A: The needle, vaccine chamber, rubber stopper, neoprene washer, front cap and return mechanism should be checked regularly. Q: Can spare components be supplied? A: Yes. Replacement needles and maintenance components are available according to project requirements.
