Product Showcase	Content

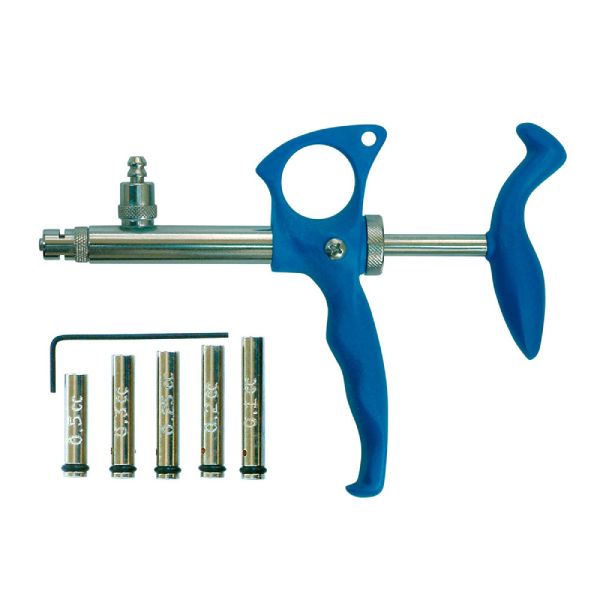

Product Name	All-Metal Automatic Poultry Vaccinator
Product Image
Product Overview	The All-Metal Automatic Poultry Vaccinator is a reusable continuous vaccination syringe designed for precise and efficient treatment of large poultry flocks. Its robust metal construction is suitable for demanding commercial poultry vaccination programs where durability, repeatable dosing and frequent sterilization are important. The vaccinator automatically draws the next dose through a flexible hose connected to a vaccine container after each injection cycle, helping reduce handling time and supporting continuous vaccination of broilers, layers, pullets and breeders.
Key Features	All-Metal Construction: Durable metal body is designed for intensive commercial poultry vaccination and long service life. Adjustable Dose Control: Supports accurate dose adjustment for different poultry vaccination programs. Automatic Refill: Internal valve components automatically draw the next dose from the connected vaccine container after each injection. Continuous Vaccination: Suitable for rapid repetitive vaccination of large flocks without manually refilling the syringe after every injection. Ergonomic Operation: Trigger-style hand operation provides practical control during intensive flock vaccination. Sterilizable Construction: Compatible components can be cleaned and sterilized for hygienic veterinary use. Serviceable Design: Internal seals, valves, springs and other wear components can be inspected and replaced when required. Commercial Poultry Application: Suitable for broiler, layer, breeder and pullet vaccination programs.
Structural Components	All-metal syringe body Adjustable dosage mechanism Trigger handle Rear operating handle Piston assembly Piston sealing components Inlet valve assembly Outlet valve assembly Valve springs Valve balls Flexible vaccine hose Draw-off cannula Needle connection Replaceable maintenance components
Working Principle	The vaccinator is connected to an external vaccine container through a flexible hose and draw-off cannula. The required injection volume is selected using the adjustable dosage mechanism. When the trigger is activated, the piston delivers the preset quantity through the injection needle. As the trigger and piston return to their starting position, the internal valve system draws the next measured dose into the syringe automatically. This automatic refill cycle supports fast, repetitive poultry vaccination and reduces interruptions during large-flock treatment.
Technical Specifications	Product Type: All-Metal Automatic Poultry Vaccinator Operation: Manual trigger with automatic refill Dosage Type: Adjustable Reference Dosage Range: According to selected model Main Structure: Metal construction Vaccine Supply: External vaccine container with flexible hose Needle Type: According to poultry species, bird age and vaccination program Hose Length: According to project requirements Sterilization: Suitable for sterilization of compatible components Maintenance Kit: Available upon request Replacement Components: Available upon request OEM Configuration: Customizable
Applications	Broiler vaccination Layer vaccination Pullet vaccination Breeder flock vaccination Chicken health management Poultry medication administration Hatchery vaccination operations Commercial poultry farms Veterinary service teams Large-scale livestock and poultry projects
Customization Options	SHEWUYOU can configure poultry vaccination equipment according to flock type, vaccination procedure and project requirements. Available options can include needle specification, vaccine hose length, draw-off cannula, maintenance kit, replacement seals, valve components and storage accessories. Vaccinators can also be supplied together with compatible veterinary needles and poultry vaccination accessories according to customer requirements.
Installation & Maintenance	Before operation, inspect the syringe body, piston, valves, seals, hose and needle connection to confirm that all components are correctly assembled and undamaged. Connect the flexible hose and draw-off cannula to the vaccine container and operate the vaccinator until trapped air is removed and liquid flows consistently. Set the required dosage before beginning flock vaccination and periodically verify correct operation during use. After vaccination, flush the syringe and hose according to the vaccine manufacturer's cleaning requirements. Serviceable components should be disassembled, cleaned and sterilized as required. Replace worn seals, valve springs, washers or other damaged components before returning the vaccinator to service.
Project Cases	All-metal automatic poultry vaccinators are suitable for commercial broiler, layer, breeder and pullet operations requiring frequent flock vaccination. Their durable construction is particularly useful for farm vaccination teams, poultry groups and veterinary contractors handling intensive repetitive injection programs. For complete poultry health management projects, the vaccinator can be supplied together with replacement needles, vaccine tubing, maintenance kits and other livestock equipment accessories.
Product FAQ	Q: What is an all-metal automatic poultry vaccinator? A: It is a reusable metal veterinary syringe designed for repetitive poultry injections with automatic refilling from an external vaccine container. Q: Why choose an all-metal vaccinator? A: Metal construction provides durability for intensive commercial vaccination and supports regular cleaning and servicing. Q: Does the vaccinator refill automatically? A: Yes. The internal valve mechanism draws the next dose through the connected vaccine hose after each injection cycle. Q: Is it suitable for large poultry flocks? A: Yes. Continuous automatic refill is designed to improve efficiency during repetitive flock vaccination. Q: Can different needles be used? A: Yes. Needle specification should be selected according to poultry species, bird age, injection site and vaccination program. Q: Are replacement parts available? A: Yes. Seals, valve components, springs, hoses and other maintenance parts are available according to the selected configuration.
Product Gallery
