Product Showcase	Content

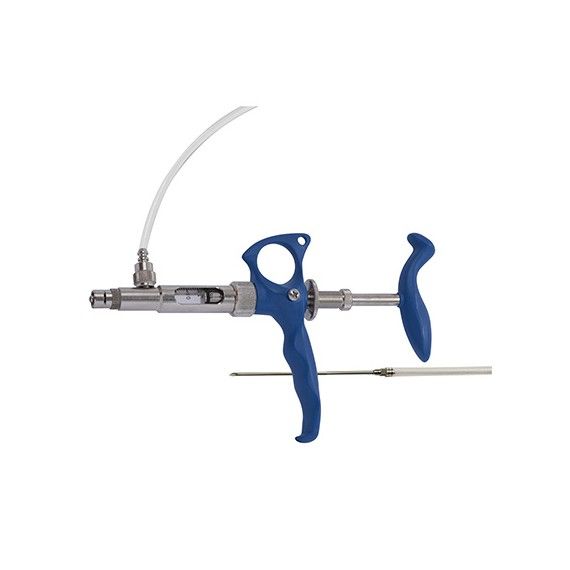

Product Name	High-Dose Automatic Poultry Vaccinator
Product Image
Product Overview	The High-Dose Automatic Poultry Vaccinator is a reusable veterinary syringe developed for repetitive vaccination and medication of poultry requiring larger individual injection volumes. Its adjustable dosing mechanism covers a wider range than standard low-volume poultry vaccinators, making it particularly suitable for turkeys, larger birds and vaccination programs requiring higher-volume oil-based or water-based products. The syringe combines automatic refill, a transparent graduated glass barrel and an ergonomic hand-operated mechanism to support accurate dose setting and efficient mass treatment in commercial poultry operations.
Key Features	Wide Adjustable Dose Range: Designed for vaccination volumes from 0.2 cc up to 2.0 cc. Automatic Refill: Draws the next dose from an external vaccine container through the connected supply hose after each injection cycle. Graduated Glass Barrel: Transparent barrel allows visual confirmation of medication level and dosage setting. Oil and Water-Based Medication Compatibility: Suitable for poultry vaccination programs using different veterinary formulations according to product instructions. Lightweight Ergonomic Design: Developed to improve operator comfort during repetitive flock vaccination. Reusable Construction: Serviceable seals, valves and barrel components support routine maintenance and long-term use. High-Volume Poultry Application: Particularly suitable for turkeys and larger poultry requiring greater injection volumes.
Structural Components	Metal Syringe Frame: Supports the dosing, valve and barrel assemblies during repeated operation. Tempered Glass Barrel: Provides a visible graduated chamber for dose adjustment and monitoring. Adjustable Piston Assembly: Controls the selected injection volume within the available dosage range. Dose Adjustment Mechanism: Allows the operator to set the required volume before vaccination. Inlet Valve: Controls medication intake from the external vaccine container. Outlet Valve: Directs medication toward the injection needle during the delivery stroke. Supply Hose Connector: Connects the syringe to a remote vaccine or medication container. Needle Connection: Accepts a suitable veterinary needle according to bird size and vaccination procedure.
Working Principle	Before vaccination, the operator sets the required injection volume using the syringe adjustment mechanism and connects the draw-off hose to the vaccine supply container. When the syringe handle is operated, the piston delivers the selected volume through the needle. As the mechanism returns to its starting position, the inlet valve opens and automatically draws another measured quantity into the barrel. This repeating intake-and-injection cycle reduces manual refilling and supports faster processing of large poultry flocks.
Technical Specifications	Product Type Automatic Adjustable Poultry Vaccinator Reference Model ThaMa 240 type Dose Range 0.2 cc to 2.0 cc Dose Increment 0.2 cc Barrel Type Thermally treated graduated glass barrel Refill Method Automatic draw-off through plastic hose Medication Types Oil-based and water-based formulations according to veterinary instructions Sterilization Temperature Up to 125°C for compatible components Needle Specification According to vaccination requirements Accessories Maintenance kit, plastic hose, cannula needle and manual
Applications	- Turkey vaccination programs - Layer vaccination - Broiler breeder vaccination - Poultry breeder farms - Larger bird medication - Hatchery vaccination operations - Commercial poultry farms - Veterinary vaccination teams - Large flock treatment programs - Oil-based vaccine administration
Customization Options	Available supply options may include: - Veterinary needle specifications - Needle guards - Draw-off tubing - Vaccine bottle connectors - Replacement glass barrels - Valve repair components - Replacement O-rings - Maintenance kits - Individual or bulk packaging - OEM labeling and packaging Final accessory configuration can be supplied according to vaccination procedures and project requirements.
Installation & Maintenance	Before use, inspect the glass barrel, valves, seals and threaded connections. Set the required dose and connect a clean plastic hose between the syringe and vaccine container. Prime the syringe until the barrel and fluid path are correctly filled and unwanted air is removed. Fit a suitable sterile needle according to the vaccination procedure. After use, clean and sterilize reusable components according to the manufacturer's instructions and the requirements of the veterinary product administered. Regularly inspect the cylinder washer, valve springs, stainless valve balls, valve washers, piston O-rings and fiber washer. Replace worn components when necessary to maintain reliable dosing and automatic refill performance.
Project Cases	High-dose automatic vaccinators are suitable for poultry operations where individual birds require injection volumes above the range commonly used for young chicks. The wider dosage range is especially useful in turkey production, breeder operations and other poultry vaccination programs involving larger birds or higher-volume veterinary products. For commercial projects, vaccinators can be supplied together with spare seals, barrels, hoses and compatible veterinary needles to support scheduled flock health programs.
Product FAQ	Q: What is the dose range of the reference high-dose poultry vaccinator? A: The reference automatic syringe is adjustable from 0.2 cc to 2.0 cc. Q: What is the dose adjustment interval? A: The reference ThaMa 240 configuration adjusts in 0.2 cc increments. Q: Is it suitable for turkeys? A: Yes. The wider dose range makes this type particularly suitable for turkey vaccination and other applications involving larger birds. Q: Can it handle oil-based vaccines? A: The reference syringe is designed for both oil-based and water-based medications when used according to veterinary product instructions. Q: Does it refill automatically? A: Yes. The syringe draws medication from an external container through a connected plastic hose between injection cycles. Q: Can the syringe be sterilized? A: Compatible components are designed for sterilization at temperatures up to 125°C.
