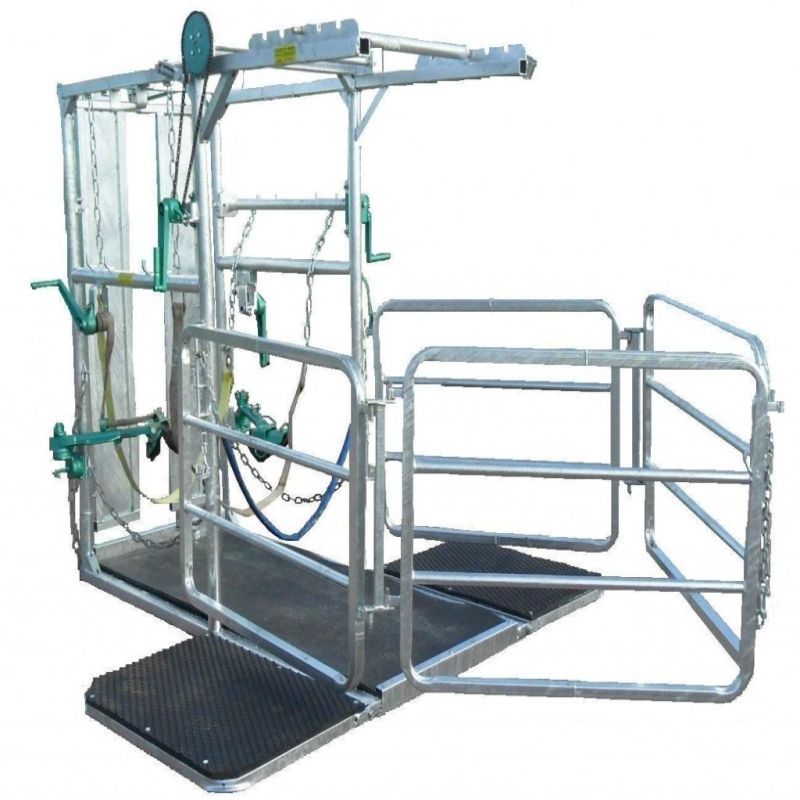

Mechanical Cattle Hoof Trimming Chute

The SHEWUYOU Mechanical Cattle Hoof Trimming Chute is a manually operated livestock restraint system designed for routine hoof trimming, hoof inspection, corrective claw care and selected veterinary procedures. It provides a practical solution for cattle farms that require dependable hoof-care equipment without relying on electric motors or hydraulic power units.

The chute combines a rigid structural steel frame with mechanical locking devices, manually operated lifting mechanisms, cattle body support and front and rear leg restraint assemblies. The straightforward mechanical design reduces system complexity and supports economical operation in dairy farms, beef cattle facilities and rural livestock projects.

Frame dimensions, restraint arrangements, surface treatment, cattle access direction and installation details can be customized according to animal size, farm layout and project requirements.

• Fully Mechanical Operation: Manual mechanisms allow cattle restraint and hoof positioning without electric or hydraulic systems.
• Heavy-Duty Steel Frame: Reinforced structural construction provides a stable working platform for repeated livestock handling.
• Low Operating Cost: The simplified mechanical system eliminates hydraulic power-unit and electric-drive requirements.
• Low Maintenance Requirements: Fewer powered components simplify routine inspection, lubrication and replacement of wear parts.
• Manual Leg Positioning: Front and rear limbs can be secured using straps, winches, locks or other mechanical restraint assemblies according to configuration.
• Stable Body Support: Belly support and head restraint help control cattle movement during hoof-care procedures.
• Independent Farm Operation: Suitable for locations where electrical infrastructure is limited or unavailable.
• Ergonomic Hoof Access: Open working zones provide practical access to front and rear hooves for trimming and treatment.
• Corrosion-Resistant Options: Galvanized or protective coated steel configurations are available upon request.
• Project Flexibility: Dimensions, cattle-flow direction and auxiliary gates can be adapted to existing or new livestock facilities.

• Heavy-duty structural steel main frame
• Front cattle head restraint or head gate
• Rear entrance gate
• Mechanical gate locking assemblies
• Belly support or belly-band system
• Manual front leg restraint mechanism
• Manual rear leg lifting mechanism
• Mechanical winches, pulleys or hand-operated lifting devices
• Hoof support blocks or working plates
• Safety chains and restraint straps
• Non-slip livestock standing platform
• Mechanical safety locks and latches
• Floor anchoring or support structure
• Optional operator tool holders

The animal is guided through the rear entrance into the chute and positioned inside the structural frame. The head restraint is then adjusted and mechanically locked to limit forward movement.

Belly support, chains or adjustable straps are used to stabilize the animal's body. The operator then uses hand-operated winches, lifting mechanisms or mechanical restraints to secure the required front or rear leg.

The hoof is positioned on an appropriate working support for trimming, inspection or treatment. Because the system relies on mechanical components, each restraint can be adjusted progressively according to animal size and working requirements.

After the hoof-care procedure is completed, the leg restraint, body support and head restraint are released in a controlled sequence before the cattle exit the chute.

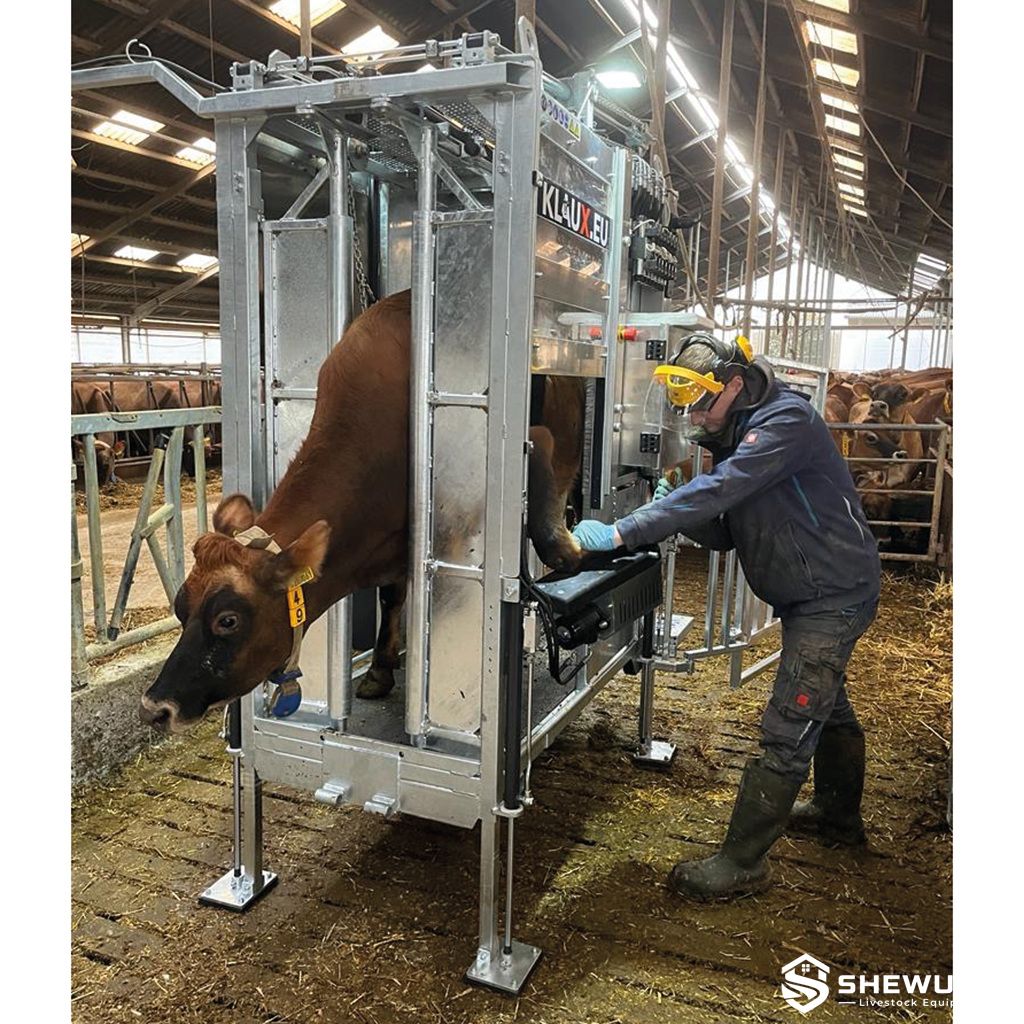

• Small and medium-sized dairy farms
• Commercial cattle farms
• Beef cattle and breeding operations
• Rural livestock facilities
• Farms with limited electrical infrastructure
• Veterinary livestock treatment areas
• Cattle breeding centers
• Farm cooperatives and livestock service centers
• Agricultural training and research facilities
• Livestock equipment distribution projects

The chute is suitable for preventive hoof trimming, corrective claw care, hoof examination and selected cattle treatments that require controlled animal restraint.

• Overall frame dimensions according to cattle size
• Head restraint configuration
• Front and rear gate arrangement
• Manual winch and lifting mechanism configuration
• Belly-support design
• Front and rear leg-restraint layout
• Hoof support position
• Left-hand or right-hand operating arrangement
• Non-slip floor configuration
• Hot-dip galvanized steel finish
• Protective painted or coated finish
• Portable or stationary structural arrangement
• Approach gates and cattle alley integration
• Holding pen and sorting-gate integration
• Tool holders and working accessories available upon request
• Designed according to local climate and farm conditions

Installation: Position the mechanical hoof trimming chute on a firm, level and structurally adequate surface. Floor-mounted models should be secured according to the anchoring arrangement supplied for the project.

Cattle Flow: The entrance should align with the cattle alley or holding area to encourage straightforward animal movement. Sufficient exit space should be maintained in front of the chute.

Working Clearance: Provide adequate space around both sides of the chute for hoof trimming, restraint adjustment, gate operation and operator movement.

Routine Inspection: Before operation, inspect restraint straps, safety chains, winches, cables, locks, latches and structural fasteners for wear or damage.

Lubrication: Lubricate designated bearings, hinges, winches, pulleys and pivot points at appropriate service intervals to maintain smooth mechanical operation.

Cleaning and Corrosion Protection: Remove manure, mud and hoof-trimming debris after use. Regular cleaning, lubrication and inspection of protective coatings help extend equipment service life.

The Mechanical Cattle Hoof Trimming Chute can operate as a standalone hoof-care station or be incorporated into a complete livestock handling project. SHEWUYOU can coordinate the chute with cattle alleys, holding pens, sorting gates, livestock fencing, treatment areas and steel structure cattle buildings. The final arrangement can be adapted to herd size, cattle-flow direction, building layout and local farm conditions.

Q: Does a mechanical hoof trimming chute require electricity?
A: No. Standard mechanical configurations use hand-operated restraint and lifting mechanisms and do not require electric or hydraulic power.

Q: What is the main advantage of a mechanical chute?
A: Its simple mechanical design provides reliable hoof restraint with relatively low operating and maintenance requirements, making it suitable for farms seeking an economical hoof-care solution.

Q: How are the cattle's legs positioned?
A: Front and rear legs can be secured using manual winches, straps, ropes or mechanical lifting assemblies depending on the selected configuration.

Q: Can the chute accommodate different cattle sizes?
A: Yes. Frame clearances and restraint positions can be customized according to the intended cattle type and project requirements.

Q: Can the frame be hot-dip galvanized?
A: Yes. Galvanized and other corrosion-resistant surface treatments are available upon request.

Q: Is the chute suitable for farms without reliable electrical infrastructure?
A: Yes. Since the mechanical configuration does not depend on electric motors or hydraulic power units, it is suitable for rural and remote livestock facilities.

Q: Can the chute be integrated with cattle gates and alleys?
A: Yes. Approach gates, holding pens, sorting gates and livestock fencing can be coordinated with the chute according to the overall cattle-handling layout.
