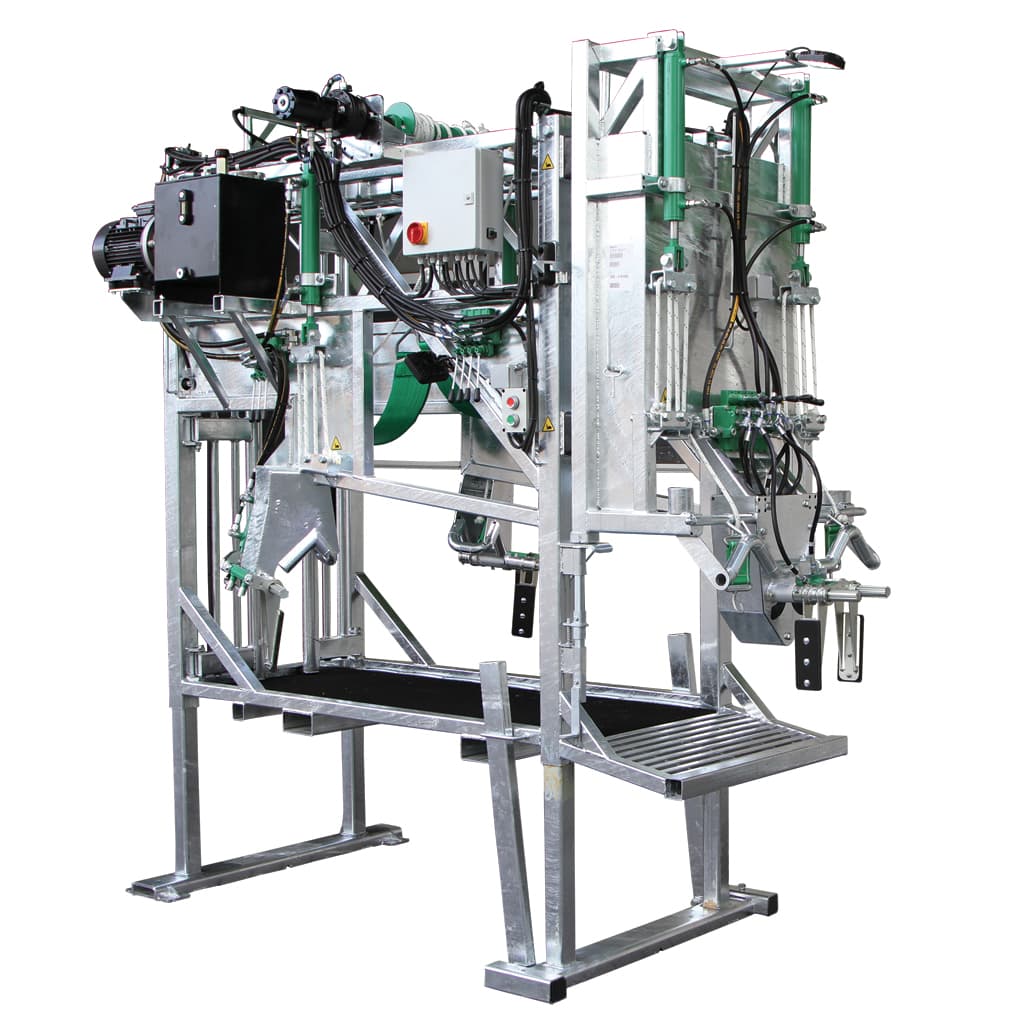

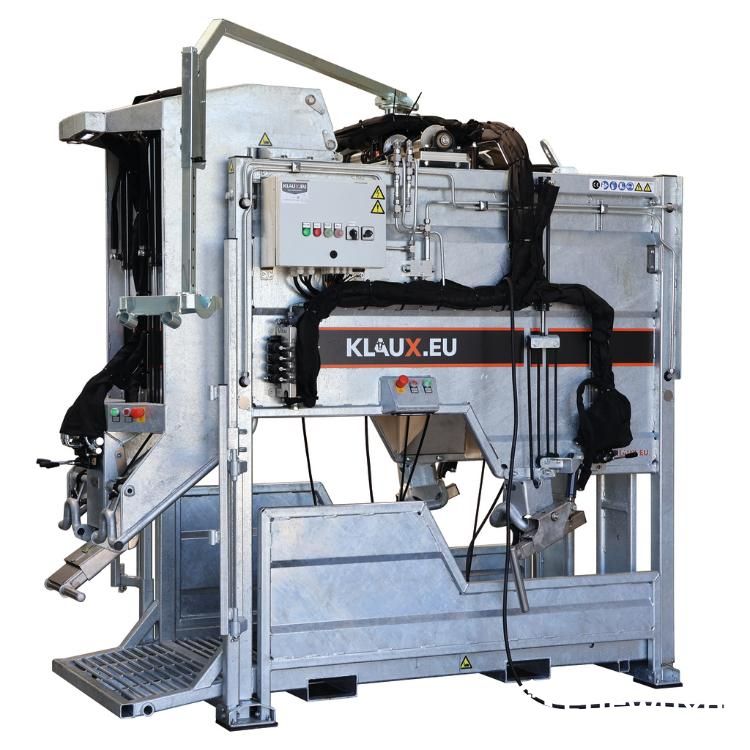

Fully Hydraulic Cattle Hoof Trimming Chute

The Fully Hydraulic Cattle Hoof Trimming Chute is a professional livestock restraint and hoof-care system developed for commercial dairy farms, cattle breeding operations, veterinary facilities and professional hoof-trimming services. Its heavy-duty steel structure provides a stable working platform while hydraulic functions reduce manual handling during animal positioning, restraint and hoof access.

Depending on the selected configuration, hydraulic functions can be applied to the entrance and exit gates, body support system, individual leg lifting mechanisms, hoof support assemblies and working-height adjustment. Centralized controls allow the operator to position the animal accurately while maintaining convenient access to all four hooves.

The chute can be integrated into existing cattle alleys or incorporated into new dairy barn and livestock handling projects. Dimensions, hydraulic configuration, power supply, surface protection and cattle-flow arrangements can be adapted according to project requirements.

• Full hydraulic operation: Hydraulic assistance can be configured for major restraint and hoof-positioning functions, reducing repetitive manual work.
• Heavy-duty steel frame: Reinforced structural members provide stability for intensive livestock handling and professional hoof-care applications.
• Secure cattle restraint: Head restraint, body support and individual leg handling systems help limit unnecessary animal movement during hoof trimming.
• Four-hoof accessibility: Designed to provide practical access to front and rear hooves for routine trimming, inspection and hoof treatment.
• Hydraulic body support: Belly-band or body-support arrangements can stabilize the animal during lifting and hoof positioning.
• Operator ergonomics: The working layout is designed to reduce unnecessary bending, pulling and manual lifting during repetitive trimming operations.
• Efficient cattle flow: Front and rear access can be coordinated with cattle alleys, holding areas and sorting gates for smoother entry and exit.
• Farm-environment durability: Corrosion-resistant surface treatments are available for humid, manure-intensive and frequently washed livestock buildings.
• Custom engineering: Chute configuration can be adapted to cattle size, building layout, power conditions and project operating requirements.
• Suitable for professional use: An appropriate solution for commercial dairy farms, livestock groups, hoof-trimming contractors and cattle-handling projects.

The animal is guided from the cattle alley or holding area into the hoof trimming chute. After the cow reaches the correct position, the front and rear restraint systems are engaged to control forward and backward movement. The belly support is then positioned to stabilize the body before a leg is lifted.

Hydraulic actuators or hydraulic winch mechanisms allow the operator to lift and position individual legs with controlled movement. The hoof is supported at a convenient working position so trimming, inspection or treatment can be carried out without requiring extensive manual lifting.

After all required hooves have been serviced, the restraints are released in sequence and the animal exits into the designated return alley or sorting area. Correct chute location and cattle-flow design are important for efficient operation in high-throughput dairy facilities.

Final dimensions, hydraulic configuration, electrical requirements and accessories are confirmed according to the individual farm project.

• Commercial dairy farms and large-scale dairy operations
• Cattle breeding farms and livestock production facilities
• Routine preventive hoof trimming programs
• Professional hoof-trimming contractors
• Veterinary examination and hoof-treatment areas
• Dairy cooperatives and centralized livestock service facilities
• New dairy barn construction and renovation projects
• Cattle handling, sorting and treatment centers
• Livestock equipment distributors and agricultural engineering projects

SHEWUYOU can coordinate the hoof trimming chute with the overall livestock handling layout rather than treating it as an isolated machine. Available engineering options may include:

• Overall chute dimensions according to cattle size and farm conditions
• Hydraulic gate and restraint configuration
• Single or multiple body-support arrangements according to project design
• Front and rear hoof-positioning assemblies
• Working-height adjustment options
• Hydraulic power-unit configuration
• Local voltage, frequency and electrical-control requirements
• Galvanized or other corrosion-resistant surface treatment options
• Cattle entrance and exit direction
• Connection with holding pens, raceways, crowd gates and sorting gates
• Operator platforms, lighting and tool-storage accessories
• Design according to local climate, building layout and farm management conditions

Installation: The chute should be installed on a stable, level foundation with sufficient clearance for cattle entry, animal exit and operator access. For permanent installations, fixing points should be coordinated with the concrete floor or structural foundation according to the approved project layout.

The hydraulic power unit and electrical controls should be positioned in an accessible location protected from unnecessary impact, excessive contamination and direct wash-down where required. Cattle gates and raceways should be aligned to provide smooth movement into and away from the chute.

Routine maintenance: Inspect hydraulic hoses, fittings, cylinders, restraint straps, moving joints, fasteners and hoof-support components regularly. Clean manure and dirt from the working platform after operation and check hydraulic-fluid condition according to the maintenance schedule.

Wear components should be replaced when necessary. Hydraulic and electrical service work should be carried out by qualified personnel in accordance with the equipment documentation and applicable local safety requirements.

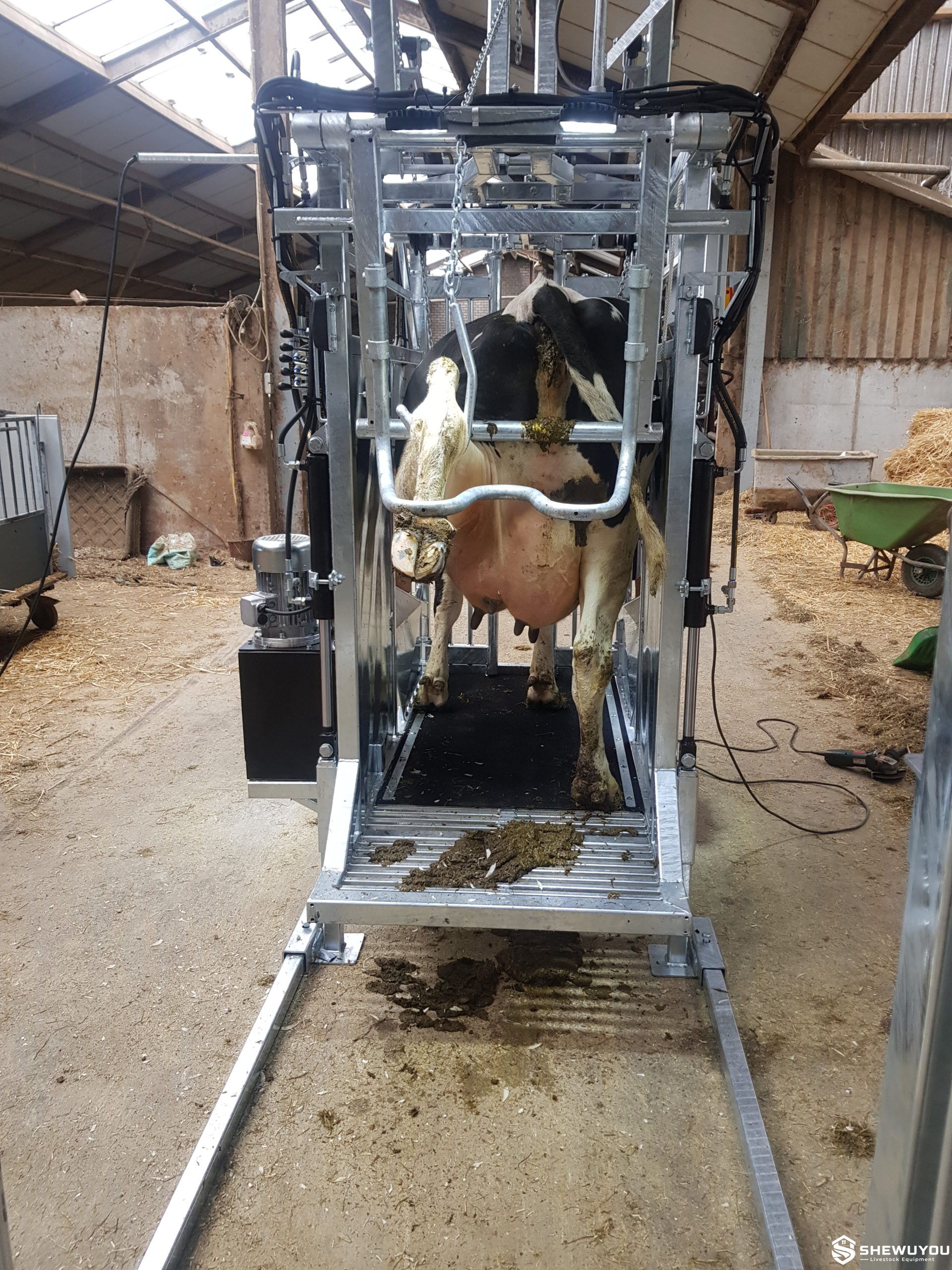

For commercial dairy projects, the hoof trimming chute can be positioned beside a return alley, treatment area or dedicated hoof-care zone. Proper integration with cattle gates and holding pens allows animals requiring hoof care to be separated from the main herd and guided through the treatment area without unnecessary movement.

For new livestock buildings, SHEWUYOU can coordinate chute positioning with the cattle handling system, steel structure layout, concrete works, drainage, electrical supply and surrounding farm equipment according to project requirements.

Q: What does “fully hydraulic” mean for a cattle hoof trimming chute?

A: It refers to a configuration in which the principal cattle-restraint and hoof-positioning functions are hydraulically assisted. The exact hydraulic functions depend on the selected model and project specification.

Q: Is the chute suitable for large commercial dairy farms?

A: Yes. Hydraulic operation is particularly useful where hoof trimming is performed regularly and efficient cattle handling, operator ergonomics and repeatable restraint are important.

Q: Can the dimensions be customized?

A: Yes. Dimensions and structural configuration can be adjusted according to cattle size, building restrictions, handling-system layout and project requirements.

Q: Can it be integrated with an existing cattle alley?

A: Yes. Entrance and exit interfaces can be coordinated with existing raceways, holding pens and gates after the site dimensions and cattle-flow direction are confirmed.

Q: What electrical supply is required?

A: The hydraulic power and electrical-control configuration can be selected according to the voltage, frequency and electrical standards of the destination market.

Q: Is corrosion protection available?

A: Yes. Surface treatment can be selected according to the project environment, cleaning procedures, humidity and livestock-building conditions.

Q: Can SHEWUYOU provide a complete cattle-handling solution around the chute?

A: Yes. According to project requirements, the chute can be coordinated with livestock gates, cattle alleys, holding areas, sorting equipment and other farm infrastructure.
