Cattle Crush Weighing Retrofit Kit

Product Image

Product Overview

The Cattle Crush Weighing Retrofit Kit adds a weighing function to a suitable existing cattle crush or squeeze chute. Load bars are installed beneath the crush frame and connected to a compatible weight indicator, allowing operators to record animal weights during routine handling. The mounting arrangement is planned around the existing steel frame, available clearance and foundation.

Key Features

• Upgrades an existing crush without replacing the complete handling system.
• Heavy-duty load-bar configuration for cattle handling applications.
• Bolted mounting arrangement designed for inspection and service access.
• Protected cable routing can be coordinated with gates, flooring and nearby livestock equipment.
• Indicator and data-recording options can be selected for the project's weighing workflow.

Structural Components

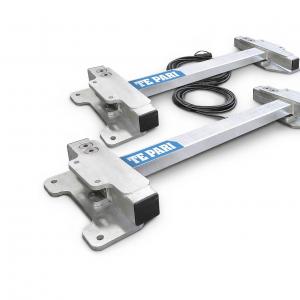

• Paired load bars or an engineered load-cell assembly
• Crush-frame mounting plates and foundation anchors
• Signal cables and protective cable routing
• Compatible weight indicator, available according to project requirements
• Optional brackets or interface components for an existing steel structure

Working Principle

When an animal stands in the crush, its weight and the weight of the crush are transferred through the supported frame to the load cells. The indicator receives the load-cell signals and displays the measured weight after the empty installation has been zeroed. A stable foundation, correctly supported frame and clearance from adjacent structures are essential to reliable readings.

Technical Specifications

Applications

Suitable for cattle farms, feedlots, livestock trading facilities and agricultural projects that need individual weighing during inspection, treatment or sorting. For mixed-species projects, the weighing layout can be coordinated with other livestock equipment and pig farm construction plans; the cattle crush itself should be used only for animals within its approved handling design.

Customization Options

Mounting plates, load-bar selection, cable protection and indicator placement can be adapted to the existing crush and site layout. Provide the crush drawings or measured mounting footprint, empty crush weight, expected animal weight range and foundation details for configuration review.

Installation & Maintenance

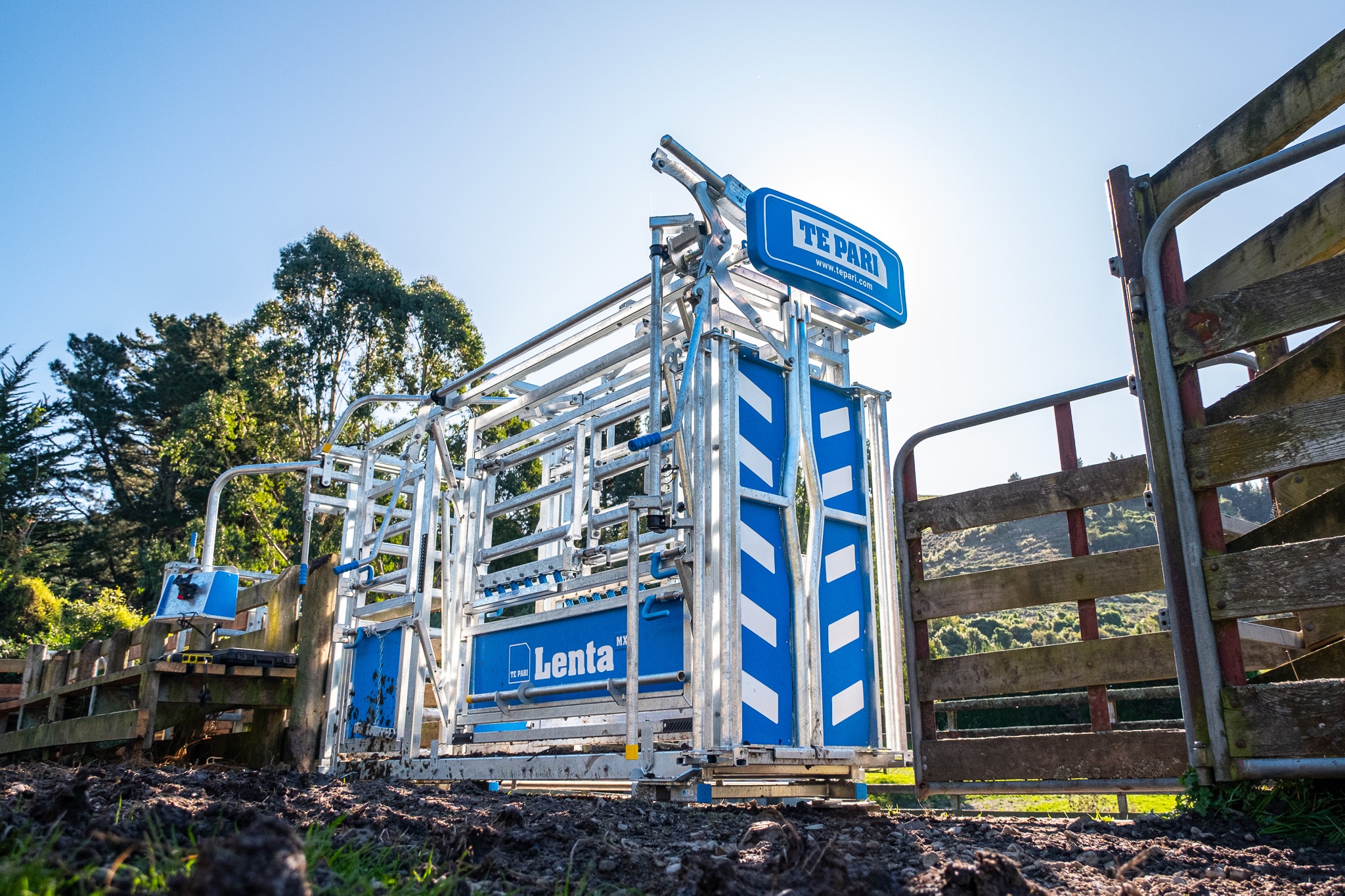

Position the crush on a sound, level foundation and fit the weighing supports so the frame bears on the intended load points. Secure the assembly using the specified anchors, route cables away from hooves and moving parts, then connect and zero the indicator. Check readings with a known test weight at both ends of the crush. Inspect anchors, cables and debris clearance during routine maintenance. Remove load cells before welding on connected steelwork.

Product FAQ

Can the kit fit any cattle crush?
Fit depends on the frame, support points, available clearance and foundation. These details should be checked before selecting components.

Is a weight indicator included?
The indicator can be specified as part of the project package. Its compatibility with the selected load cells must be confirmed.

Can the system be used for legal-for-trade weighing?
Legal-for-trade use depends on the final equipment configuration, certification and local regulations; it should be confirmed separately for the destination market.
