Product Name	Sole Cleaning and Hand Disinfection Station
Product Image

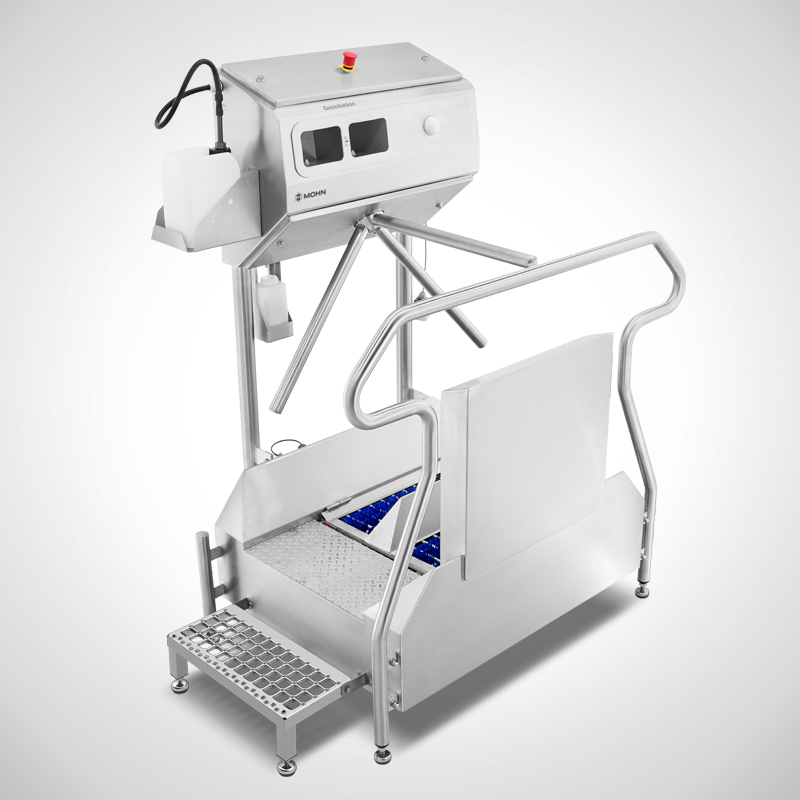

Product Overview	The Sole Cleaning and Hand Disinfection Station is an integrated personnel hygiene system designed for controlled entrances in commercial pig farms, poultry farms, cattle farms, breeding facilities and other livestock production sites. The system combines mechanical footwear-sole cleaning with automatic hand disinfection in one compact walk-through unit. Rotating brushes help remove dirt and organic residue from footwear soles while water and compatible cleaning or disinfecting solution are supplied to the brush area. Personnel then place both hands into the hand disinfection chamber for controlled sanitizer application. An optional or integrated turnstile can be configured to release access only after the required hygiene sequence has been completed, helping livestock farms standardize personnel movement between external, dirty and clean production zones.
Key Features	Integrated Personnel Hygiene: Combines sole cleaning and hand disinfection in one controlled entrance system. Motorized Sole Cleaning: Rotating brushes mechanically clean footwear soles during passage. Controlled Hand Disinfection: Sensor-operated hand chambers provide automatic disinfectant application. Multi-Directional Hand Coverage: Spray nozzles can be positioned to wet both upper and lower hand surfaces according to configuration. Controlled Access: A turnstile can release only after completion of the required hand hygiene procedure. Separate Water and Chemical Supply: Available configurations can provide separate wetting points for water and cleaning or disinfecting solution. Compact Walk-Through Design: Suitable for livestock farm corridors and personnel entrances where installation space is limited. Corrosion-Resistant Construction: Stainless steel configurations are suitable for frequent washing and humid farm environments. Easy Brush Maintenance: Removable brush arrangements can simplify routine cleaning and service. Customizable Configuration: Passage direction, brush length, control functions and utility connections can be adapted according to project requirements.
Structural Components	Stainless Steel Main Frame: Supports the complete hygiene station and personnel passage. Motorized Roller Brushes: Mechanically remove contamination from footwear soles and sole edges. Brush Wetting Nozzles: Supply water and compatible cleaning or disinfecting solution to the sole-cleaning area. Dosing Pump: Controls delivery of chemical solution to the brush or disinfection system. Hand Disinfection Chamber: Provides a defined contact-free area for hand sanitizing. Hand Spray Nozzles: Apply disinfectant to the hands according to the selected configuration. Photoelectric or Infrared Sensors: Detect correct hand placement and activate the disinfection cycle. Turnstile: Controls personnel access after completion of the required hygiene sequence. Handrails: Provide support and guide personnel through the cleaning section. Drainage Section: Collects used water and cleaning liquid for discharge to the facility drainage system.
Working Principle	Personnel enter the hygiene station and step onto the motorized sole-cleaning section. The rotating brushes contact the footwear soles while water and compatible cleaning or disinfecting solution are supplied to the brush area. The user then places both hands into the hand disinfection chamber. Integrated sensors detect the hands and activate the disinfectant dosing and spraying system. Depending on the configuration, multiple spray nozzles provide coverage to the upper and lower surfaces of both hands. After the programmed hand disinfection cycle has been completed, the turnstile releases and personnel can proceed into the designated clean area. This sequence is based on established personnel hygiene station designs in which sole cleaning, hand disinfection and controlled access are combined into one continuous entry procedure.
Technical Specifications	Product Type: Sole Cleaning and Hand Disinfection Station Primary Application: Personnel hygiene and livestock farm biosecurity entrance Sole Cleaning Method: Motorized rotating brush cleaning Hand Disinfection: Automatic sensor-controlled spraying Brush Length: Customizable according to project requirements Brush Configuration: Sole cleaning or sole-and-edge cleaning options available Chemical Dosing: Adjustable or available according to project requirements Hand Spray Configuration: Multi-nozzle design available Access Control: Turnstile control available Indicator System: Visual operating or access indicators available upon request Main Material: Stainless steel configuration available Passage Direction: Left-to-right or right-to-left configuration available Power Supply: According to destination market and project requirements Water Supply: According to equipment configuration Wastewater Connection: Required according to installation layout Dimensions: Customizable Installation Conditions: Designed according to local climate and farm conditions
Applications	Commercial pig farm personnel entrances Poultry farm biosecurity entrances Dairy and beef cattle facilities Breeding and genetics centers Livestock farm changing-room exits Clean-zone and dirty-zone transition points Veterinary and quarantine facilities Livestock feed production facilities Meat and agricultural processing facilities Large-scale livestock group projects New pig farm construction projects Steel structure livestock buildings Existing farm biosecurity renovation projects
Customization Options	Brush Length: Available according to passage capacity and project requirements. Brush Configuration: Sole-only or enhanced sole-and-edge cleaning configurations can be discussed. Passage Direction: Left-hand or right-hand passage arrangements are available. Hand Disinfection Configuration: Spray duration, dosing and nozzle arrangement can be adapted. Access Control: Turnstile, card reader or other controlled-access interfaces are available upon request. Chemical Supply: Integrated or external chemical container arrangements can be selected according to the project. Electrical Configuration: Voltage and frequency can be designed according to destination-market requirements. Structural Dimensions: Customizable for existing corridors, new livestock buildings or steel structure farm projects. Integrated Hygiene Line: Can be combined with hand washing, boot washing, shower rooms and personnel disinfection equipment.
Installation & Maintenance	The station should be installed at a controlled personnel entrance between external or dirty areas and the livestock production zone. Installation planning should consider personnel flow, water supply, electrical supply, chemical storage, wastewater drainage and sufficient service access. For pig farm construction and livestock building projects, the hygiene station can be positioned after changing or shower facilities and before the final clean production area. Routine maintenance should include rinsing and cleaning the brush section, removing accumulated debris, checking disinfectant and cleaning-agent levels, inspecting spray nozzles, cleaning sensors and checking turnstile operation. Brushes should be removed and cleaned at suitable intervals according to site contamination levels. Pumps, tubing, electrical connections and drainage components should also be inspected regularly. Only compatible cleaning and disinfecting chemicals should be used. Chemical concentration, contact time and handling requirements must follow the chemical manufacturer's instructions and applicable local regulations.
Project Cases	Sole cleaning and hand disinfection stations are suitable for livestock facilities that require personnel to complete defined footwear and hand hygiene steps before entering clean production areas. In commercial pig farms, the system can be installed between staff changing areas and animal production zones. The compact walk-through arrangement is especially suitable for projects where personnel hygiene equipment must fit within limited corridor space. For larger livestock projects, several hygiene modules can be combined to create a complete biosecurity entrance including changing rooms, shower systems, hand washing, hand disinfection, sole or boot washing and controlled access.
Product FAQ	Q: Does the station clean footwear automatically? A: Yes. Motorized rotating brushes can clean footwear soles while water and compatible cleaning or disinfecting solution are supplied to the brush section. Q: Is hand disinfection contactless? A: Yes. Sensor-controlled configurations detect both hands and automatically activate the disinfection system. Q: Can personnel pass through without disinfecting their hands? A: Controlled-access versions can keep the turnstile locked until the programmed hand disinfection cycle is completed. Q: Is this system suitable for commercial pig farms? A: Yes. It is suitable for controlled personnel entrances in pig farms, poultry farms, cattle facilities and other livestock production sites. Q: Can the station be installed in a narrow corridor? A: Compact configurations are available, and equipment dimensions can be selected according to the available installation space. Q: Can brush length be customized? A: Yes. Brush and passage configurations can be selected according to personnel flow and project requirements. Q: Can it connect to a card access system? A: Access-control interfaces can be provided according to the selected control configuration. Q: Can the brushes be removed for cleaning? A: Service-friendly configurations can use removable brush assemblies to simplify routine hygiene and maintenance.
Product Gallery
