Product Name	Full Boot Sole and Shaft Cleaning Machine
Product Image

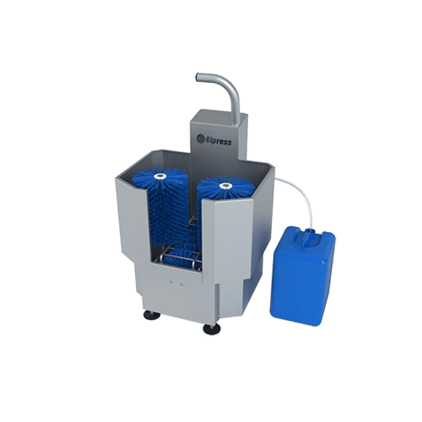

Product Overview	The Full Boot Sole and Shaft Cleaning Machine is a personnel hygiene system designed to clean the soles, sides and shafts of work boots before personnel enter or leave controlled livestock production areas. The system uses rotating brushes positioned around the footwear to remove mud, manure and other visible contamination from multiple boot surfaces. Depending on the selected configuration, the brushes can be automatically activated when personnel step into the machine, while water or compatible cleaning solution is supplied to support the cleaning process. The equipment is suitable for commercial pig farms, poultry farms, cattle farms, breeding facilities, feed production sites and other agricultural operations requiring controlled personnel movement and standardized footwear hygiene. Similar professional systems use sensor-activated rotating brushes for sole and shaft cleaning. :contentReference[oaicite:1]{index=1}
Key Features	Full Boot Cleaning: Designed to clean boot soles, sides and shafts in one personnel hygiene process. Rotating Brush System: Multiple brushes provide mechanical cleaning of heavily soiled footwear. Automatic Activation Available: Sensor-controlled configurations can activate the brushes only when the machine is in use. Controlled Liquid Supply: Water or compatible cleaning solution can be delivered to the brushes during operation. Stainless Steel Construction: Suitable for humid livestock environments and frequent wash-down procedures. Walk-Through Design: Enables installation directly in controlled personnel entrance routes. Safety Handrails: Support personnel balance while passing through the rotating brush zone. Low-Step Configuration: Available designs help simplify entry and exit for daily farm use. Easy Cleaning: Open and accessible brush areas support routine rinsing and maintenance. Project Customization: Dimensions, brush arrangement and operating configuration can be adapted according to project requirements.
Structural Components	Sole Brushes: Horizontal rotating brushes clean the underside of the boots. Shaft Brushes: Vertical brushes clean the boot sides and upper shaft surfaces. Brush Drive System: Powers the rotating cleaning brushes. Sensor System: Optional sensors detect personnel entry and activate the cleaning cycle. Water and Chemical Supply: Supplies water or compatible detergent to the brush area. Stainless Steel Body: Provides structural support and corrosion resistance. Safety Handrails: Help personnel maintain stability during cleaning. Entry and Exit Platforms: Provide stable access to and from the cleaning area. Drainage Section: Removes used wash water and cleaning residue. Control Components: Manage automatic or manual operation according to system configuration.
Working Principle	Personnel enter the boot cleaning machine while holding the safety handrails. In an automatic configuration, integrated sensors detect entry and activate the rotating brushes. Horizontal brushes mechanically clean the boot soles while vertical brushes contact the sides and shafts. Water or compatible cleaning solution can be supplied during operation to loosen and remove dirt and organic material. The rotating brushes operate only during the required cleaning cycle in sensor-controlled systems, helping reduce unnecessary energy and liquid consumption. Similar Elpress systems use sensors to activate rotating brushes and control chemical delivery only during use. :contentReference[oaicite:2]{index=2} Used liquid and loosened contamination are directed toward the drainage area. After completing the cleaning section, personnel continue into the next hygiene or production zone according to the farm's biosecurity procedure.
Technical Specifications	Product Type: Full Boot Sole and Shaft Cleaning Machine Cleaning Area: Boot soles, sides and shafts Cleaning Method: Rotating brush cleaning Activation Method: Sensor-controlled or according to project requirements Brush Configuration: Multiple horizontal and vertical brushes Main Material: Stainless steel configuration available Liquid Supply: Water or compatible cleaning solution Chemical Dosing: Available upon request Handrails: Available as part of the walk-through configuration Drainage: Required according to site conditions Passage Direction: Customizable Machine Dimensions: According to project requirements Electrical Configuration: According to destination market and project requirements Installation Environment: Designed according to local climate and farm conditions
Applications	Commercial pig farm personnel entrances Poultry farm hygiene passages Dairy and beef cattle farms Breeding and genetics facilities Livestock farm changing-room exits Clean-zone and dirty-zone transition areas Veterinary and quarantine facilities Feed mills and agricultural processing facilities Slaughterhouse and food-processing hygiene areas Large livestock group biosecurity projects New pig farm construction projects Steel structure livestock buildings
Customization Options	Machine Dimensions: Customizable according to passage width and available installation space. Brush Arrangement: Brush quantity, size and shaft-cleaning configuration can be adapted according to project requirements. Automatic Control: Sensor-controlled operation is available upon request. Chemical Dosing: Detergent or compatible disinfectant dosing can be integrated according to the required hygiene procedure. Passage Direction: Left-to-right or right-to-left configurations can be designed. Handrail Layout: Single-side or double-side handrails can be selected according to site requirements. Drainage Configuration: Drain outlets and floor interfaces can be adapted to the building drainage system. Electrical Configuration: Designed according to the destination country's electrical requirements. Integrated Hygiene Line: Can be combined with hand washing, hand disinfection, personnel disinfection and access-control equipment.
Installation & Maintenance	The machine should be installed at a controlled personnel entrance where footwear cleaning forms part of the site's biosecurity procedure. Installation planning should consider personnel flow, available passage width, water supply, electrical connection and floor drainage. A stable and level floor is recommended. Drainage should be arranged so wash water, dirt and cleaning residue can be removed efficiently without accumulating around the equipment. Routine maintenance should include cleaning the brushes, removing hair and solid debris, checking spray or wetting components, inspecting water lines and fittings, and verifying correct sensor and motor operation. Brushes should be inspected regularly for wear. Cleaning chemicals must be compatible with the equipment materials and used according to the chemical manufacturer's instructions.
Project Cases	Full boot cleaning machines are suitable for livestock projects requiring controlled personnel movement between external areas and clean production zones. In commercial pig farm construction, the equipment can be installed between changing facilities and animal production buildings. It can also be combined with automatic hand disinfection stations, personnel hygiene channels and access-control systems to create a complete biosecurity entrance. Walk-through sole and shaft cleaners are widely used where a higher level of footwear cleaning is required than sole-only washing. Elpress describes configurations using automatic rotating brushes to clean both soles and shafts. :contentReference[oaicite:3]{index=3}
Product FAQ	Q: Does this machine clean only the boot soles? A: No. This configuration is designed to clean the soles, sides and shafts of boots using multiple rotating brushes. Q: Can the brushes start automatically? A: Yes. Sensor-controlled automatic activation is available according to the selected configuration. Q: Can detergent or disinfectant be added? A: Yes. A compatible cleaning or dosing system can be configured according to project requirements and the selected chemical. Q: Is it suitable for pig farms? A: Yes. It is suitable for commercial pig farms, breeding facilities and other livestock operations requiring controlled footwear hygiene. Q: Can it be integrated with a hand disinfection station? A: Yes. Boot cleaning and hand hygiene equipment can be combined into an integrated personnel biosecurity entrance. Q: Can the equipment size be customized? A: Yes. Dimensions and configuration can be adapted according to available installation space and project requirements. Q: What utilities are required? A: Requirements normally include water supply, drainage and electrical power. Exact requirements depend on the selected equipment configuration.
Product Gallery
