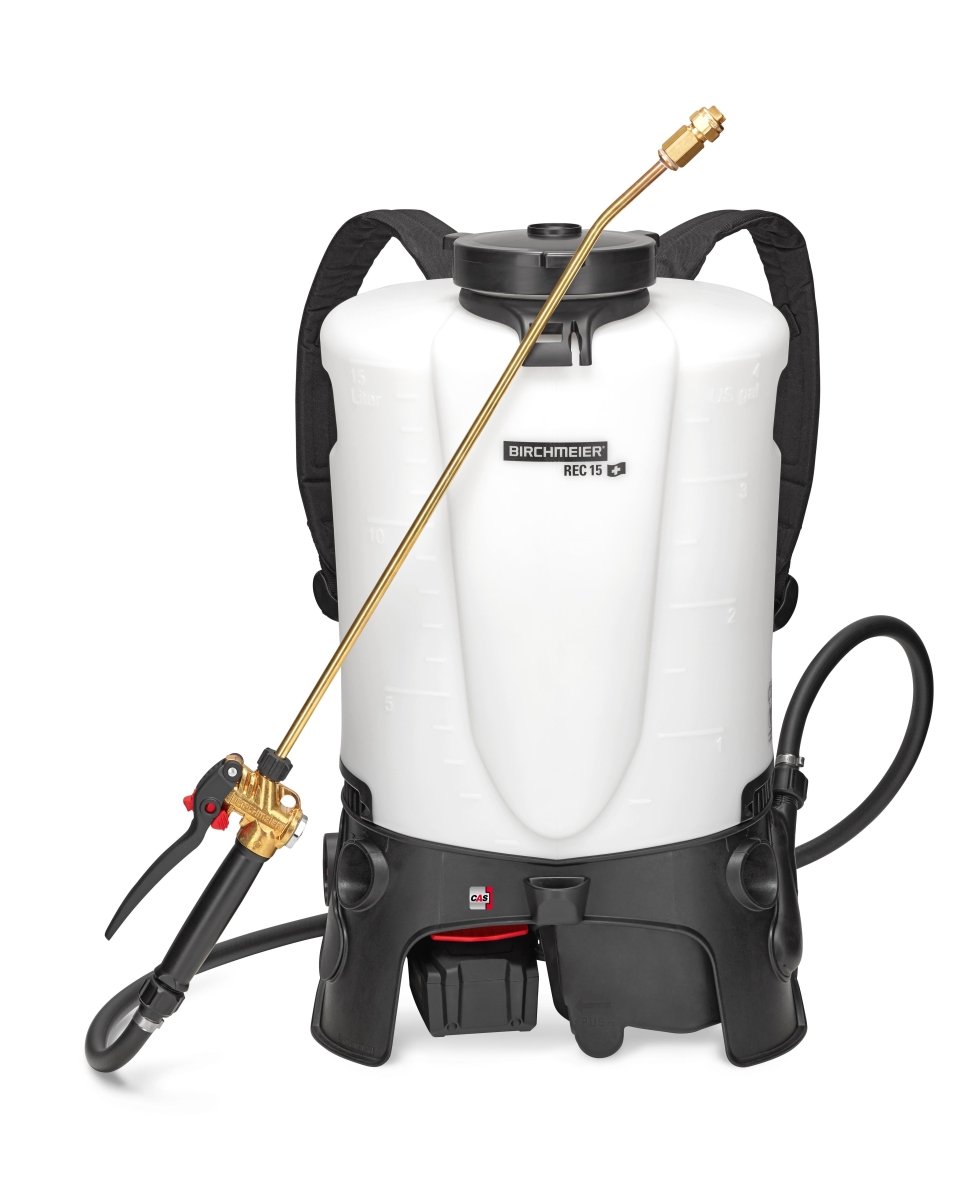

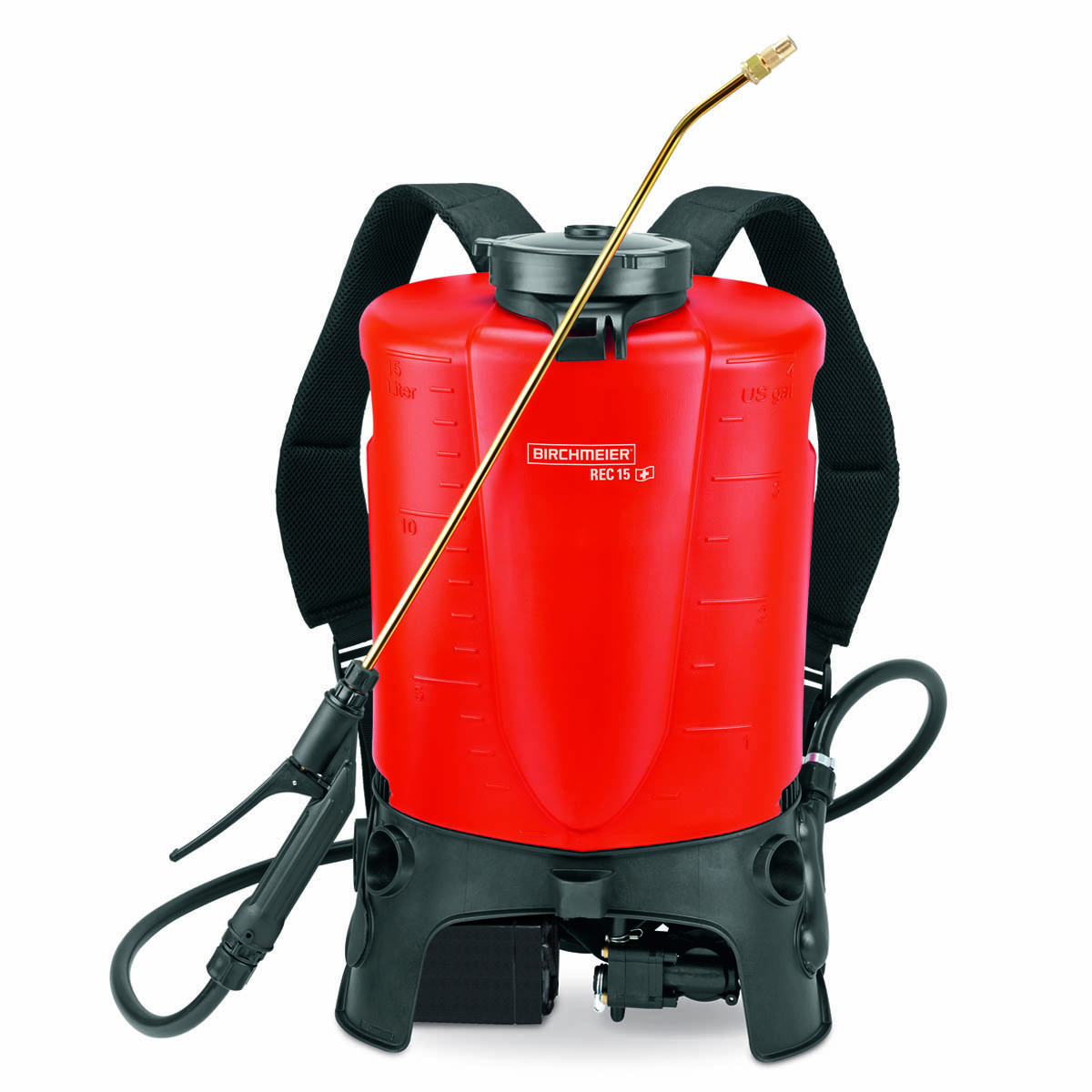

Battery Backpack Disinfection Sprayer

• Cordless Operation: Rechargeable battery power provides flexible movement throughout livestock buildings and farm service areas.
• Electronic Pressure Control: Intelligent pressure regulation helps maintain a consistent spray pattern during operation.
• Adjustable Working Pressure: The reference configuration provides a 0.5–6 bar pressure range.
• Fine Disinfection Spray: The NF 125 special nozzle provides a fine hollow-cone spray pattern suitable for compatible disinfection applications.
• Flexible Nozzle Configuration: A fanjet nozzle is available for broader surface treatment applications.
• Rechargeable Lithium-Ion Battery: The reference configuration uses an 18 V / 4.0 Ah battery pack.
• Quick Battery Change: The removable battery system simplifies charging, replacement and daily equipment management.
• Ergonomic Backpack Design: Click-belt construction, recessed grips and a balanced backpack structure support comfortable operation.
• Front Hose Outlet: Forward hose routing helps improve freedom of movement during spraying.
• Chemical-Compatible Construction: Plastic and stainless-steel liquid-contact components can be configured for compatible disinfectant formulations.
• Energy-Efficient Operation: Electronic pump control helps optimize spraying performance and battery use.
• Commercial Livestock Application: Suitable for professional farm sanitation and biosecurity procedures.

• Backpack Tank: 15 L reference tank configuration for portable liquid spraying.
• Battery Pack: Rechargeable lithium-ion battery supplies power to the electric pump and control system.
• Electric Pump and Motor: Generates liquid pressure without manual pumping.
• Electronic Pressure Controller: Regulates pump operation according to the selected pressure.
• Pressure Adjustment: Allows the operator to adapt spraying pressure to the nozzle and application.
• Fine Disinfection Nozzle: NF 125 special nozzle with a fine hollow-cone spray pattern.
• Fanjet Nozzle: TPU 8002 PP nozzle for broader surface spraying.
• Spray Tube: 50 cm curved stainless-steel spray tube in the reference disinfection configuration.
• Professional Trigger: Hand-operated trigger assembly with chemical-compatible sealing components.
• Reinforced Hose: Flexible hose transfers pressurized liquid from the pump to the spray assembly.
• Filter System: Filter components help protect the liquid circuit and nozzle from particles.
• Backpack Harness: Adjustable carrying belts provide support during mobile spraying operations.

The specifications above are reference values based on a professional battery backpack disinfection sprayer configuration. Final SHEWUYOU parameters are available according to the selected model and project requirements.

• Commercial Pig Farms: Targeted disinfection of cleaned livestock-house surfaces, equipment and designated sanitation areas.
• Poultry Houses: Portable application of compatible disinfectants to suitable surfaces and equipment.
• Farrowing, Nursery and Finishing Units: Mobile spraying for designated sanitation procedures between production areas.
• Breeding Facilities: Localized treatment of suitable surfaces in breeding and controlled-access areas.
• Livestock Equipment: Spraying of washable crates, carts, panels, tools and other suitable farm equipment.
• Farm Biosecurity Zones: Portable spraying at designated sanitation and transition points.
• Animal Housing: Application to suitable washable surfaces following farm cleaning procedures.
• Agricultural Service Areas: Treatment of corridors, service rooms, storage areas and other appropriate locations.
• Farm Contractors and Distributors: Mobile professional spraying equipment for livestock construction, sanitation and biosecurity projects.

• Tank Capacity: Customizable according to required liquid volume and operator workload.
• Battery System: Battery voltage and capacity can be selected according to required operating time.
• Charging System: Charger configuration can be adapted to local electrical standards.
• Pump Performance: Pump pressure and flow characteristics available according to application requirements.
• Pressure Range: Adjustable according to the selected pump, nozzle and spraying process.
• Nozzle Selection: Fine hollow-cone, fanjet and other compatible nozzle options available upon request.
• Spray Tube: Length, material and configuration can be customized.
• Hose Length: Standard or extended hose configurations available according to working conditions.
• Seal Materials: Chemical-compatible sealing materials can be selected according to the disinfectant formulation.
• Harness System: Shoulder, waist and chest support options can be configured for operator comfort.
• Climate Adaptation: Designed according to local climate, humidity and farm conditions.
• OEM / ODM: Branding, packaging, documentation and project-specific configurations are available upon request.

Installation: No fixed installation is required. Charge and install the battery, inspect the liquid circuit, fill the tank with a compatible prepared solution, select the nozzle and set the required operating pressure before spraying.

1. Charge the battery using the specified charger before operation.
2. Inspect the tank, lid, hose, trigger, spray tube, nozzle and connections for damage or leakage.
3. Clean and inspect the filter before filling the tank.
4. Use only chemicals confirmed to be compatible with the tank, pump, hose, seals and nozzle materials.
5. Follow the disinfectant manufacturer's instructions for dilution, application rate and contact time.
6. Keep the nozzle clean to maintain the intended spray pattern.
7. Flush the tank, hose, pump circuit and nozzle after use according to the equipment and chemical manufacturer's instructions.
8. Do not leave incompatible chemical residues inside the tank or liquid circuit.
9. Inspect hoses, seals, valves and connectors regularly and replace worn components when necessary.
10. Check battery contacts and electrical components before operation.
11. Store the battery according to the battery manufacturer's charging and temperature requirements.
12. Store the complete unit in a clean, dry location protected from excessive heat, freezing conditions and prolonged direct sunlight.

Q: What is a Battery Backpack Disinfection Sprayer?
A: It is a cordless professional sprayer using a rechargeable battery, electric pump and pressure-control system to apply compatible disinfectants and other approved liquid treatments.

Q: Is it suitable for commercial pig and poultry farms?
A: Yes. The portable configuration is suitable for targeted sanitation and disinfection procedures in livestock houses, poultry buildings, equipment areas and designated biosecurity zones.

Q: Does it require manual pumping?
A: No. The electric pump generates spraying pressure automatically, reducing repetitive manual pumping during extended spraying operations.

Q: What is the reference tank capacity?
A: The reference professional configuration uses a 15 L tank. Other tank capacities can be supplied according to project requirements.

Q: What pressure range is available?
A: The reference disinfection configuration provides electronically controlled pressure from 0.5 to 6 bar. Final pressure depends on the selected pump and system configuration.

Q: Can it produce a fine spray for disinfection?
A: Yes. The NF 125 special nozzle is designed for a fine hollow-cone spray pattern suitable for compatible disinfection applications.

Q: Can the spray nozzle be changed?
A: Yes. Different compatible nozzles can be supplied, including fine hollow-cone and fanjet configurations for different spraying requirements.

Q: What battery is used?
A: The reference configuration uses an 18 V / 4.0 Ah lithium-ion battery. Other battery capacities can be available according to project requirements.

Q: Can disinfectants be used with the sprayer?
A: Yes, when the selected disinfectant is compatible with the equipment materials and approved for the intended application. Chemical concentration, application rate and contact time must follow the product manufacturer's instructions.

Q: Can the sprayer be customized for livestock projects?
A: Yes. Tank capacity, battery system, pump performance, pressure range, hose, spray tube, nozzle, sealing materials, harness system and packaging can be customized according to project requirements.
