Product Showcase	Content
Product Name	Air Filter Fasteners and Retaining Clips
Product Image
Product Overview	Air Filter Fasteners and Retaining Clips are mechanical fixing components used to secure panel filters, pre-filters, bag filters, compact filters and other compatible filtration elements within air filter holding frames. They help maintain firm contact between the filter and the frame sealing surface, reducing the risk of movement, vibration and unintended air bypass. Designed for livestock house ventilation and agricultural air filtration projects, these compact components are suitable for new filter-bank construction, replacement projects and routine maintenance of pig house ventilation systems. Different clip geometries and materials can be supplied according to the filter depth, frame design, access direction and environmental conditions of the project.
Key Features	Provides secure mechanical retention of air filters inside compatible holding frames. Helps maintain consistent filter-to-frame contact and control air bypass around the filter perimeter. Suitable for repeated filter replacement and routine ventilation-system maintenance. Compact spring, wire-form or formed-metal designs can be selected according to the filter and frame configuration. Galvanized steel versions are suitable for general ventilation installations. Stainless steel or other corrosion-resistant materials are available upon request for demanding farm environments. Can be matched with pre-filters, final filters and multi-stage filter-bank arrangements. Suitable for commercial pig farms, poultry houses, livestock buildings and agricultural ventilation projects.

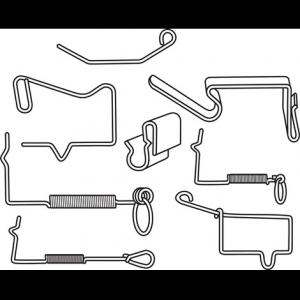

Structural Components	Typical assemblies consist of a formed metal clip, spring section, retaining hook, locating bend or attachment end designed to engage with the holding-frame lance, slot or mounting point. The exact geometry depends on filter depth, frame construction and the required clamping direction. For livestock filtration systems, the fastener should be selected together with the holding frame and gasket arrangement so that the filter is positioned evenly against the sealing flange without damaging the filter header or frame.
Working Principle / Structural Principle	The retaining clip engages with a designated fixing point on the filter holding frame and applies mechanical holding force to the filter header or filter body. This force keeps the filter seated against the frame gasket or sealing flange during ventilation operation. Correctly selected fasteners help resist movement caused by airflow, fan vibration and routine handling. When the filter is replaced, the clip can normally be released or repositioned so that maintenance personnel can remove the used filter and install a new element without rebuilding the filter-bank structure.
Technical Specifications	Product Type Air filter retaining fastener / mounting clip Standard Material Galvanized steel Optional Material Stainless steel or other materials available upon request Clip Configuration Customizable according to filter depth and frame structure Compatible Filter Types Panel filters, pleated filters, pre-filters, bag filters and compact filters according to project requirements Holding Frame Compatibility Designed according to frame lance, slot, flange and filter configuration Installation Direction According to filter-bank design and maintenance access requirements Surface Protection According to material selection and project environment
Applications	Pig house fresh-air filtration systems. Air filter walls for commercial swine farms. Positive-pressure and negative-pressure livestock ventilation systems. Pre-filter and final-filter mounting assemblies. Modular filter banks installed in livestock buildings. Poultry house and dairy farm ventilation projects. Agricultural HVAC and controlled-environment livestock buildings. Replacement and retrofit of existing filter holding frames.
Customization Options	SHEWUYOU can provide fastener and retaining-clip configurations according to the actual filter-bank design. Customization may include clip shape, spring form, attachment method, material, corrosion-resistance level and compatibility with different filter depths. For project selection, customers are recommended to provide filter dimensions, filter header thickness, holding-frame drawings, photographs of the fixing points, access direction and expected operating environment. Stainless steel configurations are available upon request for humid, corrosive or intensive livestock-house conditions.
Installation & Maintenance	Before installation, confirm that the selected clip matches the holding-frame attachment point and the filter depth. Insert or engage the fastener with the designated lance, slot or fixing position, then secure the filter evenly against the frame sealing surface. After installation, check that the filter is centered, the gasket is evenly compressed and the retaining components do not deform the filter frame. During filter replacement, inspect clips for corrosion, permanent deformation, loss of spring force or mechanical damage. Replace damaged retaining parts before installing the new filter.
Project Cases	Air filter retaining clips can be supplied as part of complete pig house air filtration projects, including filter holding frames, modular filter-bank walls, pre-filters and high-efficiency final filters. For large livestock projects, the fixing hardware can be selected according to the farm building layout, ventilation design and filter replacement procedure. Project configurations are available according to local climate and farm conditions.
Product FAQ	Q: Can the clips be used with different filter depths? A: Yes. Different fastener geometries can be selected according to the filter depth, header design and holding-frame structure. Q: Are stainless steel retaining clips available? A: Yes. Stainless steel versions can be supplied upon request for projects requiring increased corrosion resistance. Q: Can you match clips to an existing filter holding frame? A: Yes. Please provide frame photographs, dimensions, fixing-point details and filter specifications so that a compatible configuration can be evaluated. Q: Are these parts suitable for commercial pig-house filtration systems? A: Yes. They can be used in compatible filter-bank and air-intake systems for commercial pig farms and other livestock ventilation projects. Q: Can fasteners be supplied together with holding frames? A: Yes. Fasteners, retaining clips and filter holding frames can be configured together according to project requirements.
Product Gallery
