Product Name

Cow Teat Dip Cup

Product Image

Product Overview

The Cow Teat Dip Cup is a manual teat-dipping applicator developed for dairy herd udder hygiene programs. It enables operators to apply a measured quantity of teat dip directly around the teat, providing controlled coverage during pre- or post-milking procedures.

The ergonomic dip cup combines a flexible solution reservoir with an angled teat-dipping cup. When the bottle is gently squeezed, teat dip is transferred into the cup. The teat is then immersed in the solution to provide coverage from the teat end toward the base. When squeezing is released, unused solution can return to the reservoir in suitable dip-cup configurations.

The design is well suited to commercial dairy farms, milking parlors, stanchion barns, livestock hygiene stations and dairy farm construction projects. Configuration can be adapted according to the selected teat-dip formulation, operating procedure and project requirements.

Key Features

Angled dipping cup designed for convenient teat application and broad teat coverage.
Flexible squeeze bottle allows operators to control the transfer of teat dip into the cup.
Splash-control lip and overflow area help reduce unnecessary chemical spillage.
Compact manual design requires no electrical power or fixed installation.
Suitable for routine pre-milking and post-milking teat-dipping procedures.
Ergonomic shape supports repeated use during high-throughput milking operations.
Portable construction allows the applicator to move easily between milking stations.
Replaceable bottle, cap, cup and other service components can be configured according to product design.
Available in different colors or configurations according to project requirements.
Suitable for dairy equipment distributors, agricultural dealers and livestock engineering contractors.

Structural Components

A typical Cow Teat Dip Cup consists of a flexible chemical reservoir bottle, applicator cap, angled dipping cup, solution transfer tube and splash-control or overflow section. A belt hook or carrying attachment can also be incorporated for convenient operator handling.

Common material selections for this type of dairy hygiene equipment include flexible polyethylene-based bottles and durable polypropylene components. Exact material specifications are customizable and should be selected according to the chemical compatibility of the intended teat-dip formulation, cleaning procedure and local farm conditions.

The assembly is designed as a lightweight manual livestock hygiene tool rather than a permanently mounted component, making it suitable for installation-free use throughout a milking facility.

Working Principle / Structural Principle

The operator gently squeezes the flexible reservoir to transfer teat-dip solution into the applicator cup. The cup is positioned beneath the udder and raised around the teat. As the teat enters the cup, the solution is displaced around the teat surface, allowing the operator to establish the required dipping coverage.

After application, the cup is withdrawn and the unused solution may return to the reservoir on suitable dip-cup designs. Splash-control geometry helps limit overflow and spillage during repeated operation.

For post-milking use, the cup can be used as part of a standardized teat-disinfection procedure. For pre-milking use, the appropriate pre-dip formulation and farm hygiene protocol should be followed. Product concentration, contact time and application procedure must always comply with the selected chemical manufacturer's instructions and applicable local regulations. The reference StandardDipper design uses a large angled cup, splash-proof lip, squeeze bottle and controlled solution return. :contentReference[oaicite:0]{index=0}

Technical Specifications

Equipment Type	Manual teat dipping applicator
Application	Pre-milking or post-milking teat dipping
Operation	Manual squeeze operation; no electrical power required
Cup Configuration	Angled teat-dipping cup; configuration customizable
Dip Cup Capacity	Customizable according to project requirements; common commercial designs are available upon request
Bottle Material	Flexible chemical-resistant plastic; material selected according to formulation compatibility
Applicator Material	Durable molded polymer; specification available upon request
Color	Customizable according to project requirements
Accessories	Belt hook, replacement bottle, cap or other service components available according to configuration

As a reference for this product category, the Ambic StandardDipper specifies a 250 ml bottle, 30 ml dip-cup capacity and molded LDPE, polypropylene and PVC components. These figures relate to the referenced model and should not be treated as fixed specifications for every Cow Teat Dip Cup configuration. :contentReference[oaicite:1]{index=1}

Applications

Commercial dairy farms and large-scale cattle operations.
Herringbone and parallel milking parlors.
Rotary milking facilities and high-throughput dairy operations.
Stanchion barns and side-action milking routines where suitable.
Pre-milking teat preparation and post-milking teat disinfection procedures.
New dairy farm construction and livestock facility expansion projects.
Milking-parlor modernization and farm retrofit projects.
Agricultural EPC projects, livestock equipment distribution and farm-supply programs.

The Cow Teat Dip Cup is intended for cattle dairy hygiene applications. It is not a standard component for pig farm construction because pigs do not have the same teat-dipping requirements as dairy cattle.

Customization Options

For international B2B projects, the Cow Teat Dip Cup can be configured according to the target market, teat-dip formulation and farm operating procedure. Customizable options may include bottle capacity, dip-cup geometry, cup color, bottle color, logo marking, packaging, belt-hook configuration and replacement-component availability.

The product can also be developed for different pre-dipping and post-dipping workflows. Where barrier or higher-viscosity teat dips are used, the applicator design should be matched to the chemical's flow characteristics. Specialized configurations are available according to project requirements.

Private-label packaging and distributor-oriented configurations can be discussed for agricultural equipment dealers, livestock product importers and dairy farm engineering companies, subject to production and regulatory requirements.

Installation & Maintenance

No permanent installation is normally required. The bottle is filled with the approved teat-dip solution according to the chemical manufacturer's instructions, and the applicator is ready for manual use. A belt hook can be used to keep the dip cup readily accessible during milking.

Before each milking session, inspect the cup, bottle, transfer tube and sealing points for cracks, deformation or blockage. Keep the applicator clean and prevent manure, bedding, dust or other contaminants from entering the reservoir.

After use, empty and clean the dip cup according to the farm's hygiene protocol and the chemical manufacturer's instructions. Do not mix incompatible chemicals or return contaminated solution to a clean chemical container. Replace worn bottles, tubes, seals or applicator components when necessary.

For non-return dip-cup configurations, the purpose is to reduce the possibility of contaminated teat dip returning to the clean chemical reservoir. Such a configuration should be selected when required by the farm's udder-health protocol. :contentReference[oaicite:2]{index=2}

Product FAQ

Q: What is a Cow Teat Dip Cup used for?
A: It is used to apply teat-dip solution to dairy cow teats as part of pre-milking or post-milking udder hygiene procedures.

Q: Does the Cow Teat Dip Cup require electricity?
A: No. A standard manual dip cup operates through hand pressure on the flexible reservoir and does not require electrical power or a fixed water connection.

Q: Can the dip cup be used for both pre-dipping and post-dipping?
A: Yes, suitable configurations can be used for both procedures. Farms should follow separate hygiene procedures and use chemical products approved for the intended application.

Q: Can the dip cup handle different teat-dip formulations?
A: Yes, subject to material and flow compatibility. Standard and higher-viscosity formulations may require different tube or applicator configurations. Customized designs are available according to project requirements.

Q: Is a non-return design available?
A: A non-return configuration can be specified where required. Non-return systems are designed to help prevent used or contaminated chemical from flowing back into the clean reservoir. :contentReference[oaicite:3]{index=3}

Q: Can the product be supplied for private-label distribution?
A: Packaging, colors, product identification and other commercial configurations can be discussed for distributors and agricultural equipment suppliers, subject to production capability and destination-market requirements.

Q: Can the product be incorporated into a dairy farm construction project?
A: Yes. Although the manual dip cup requires no fixed installation, it can form part of the teat hygiene equipment package specified for a new milking parlor, dairy farm expansion or livestock facility retrofit.

Product Gallery

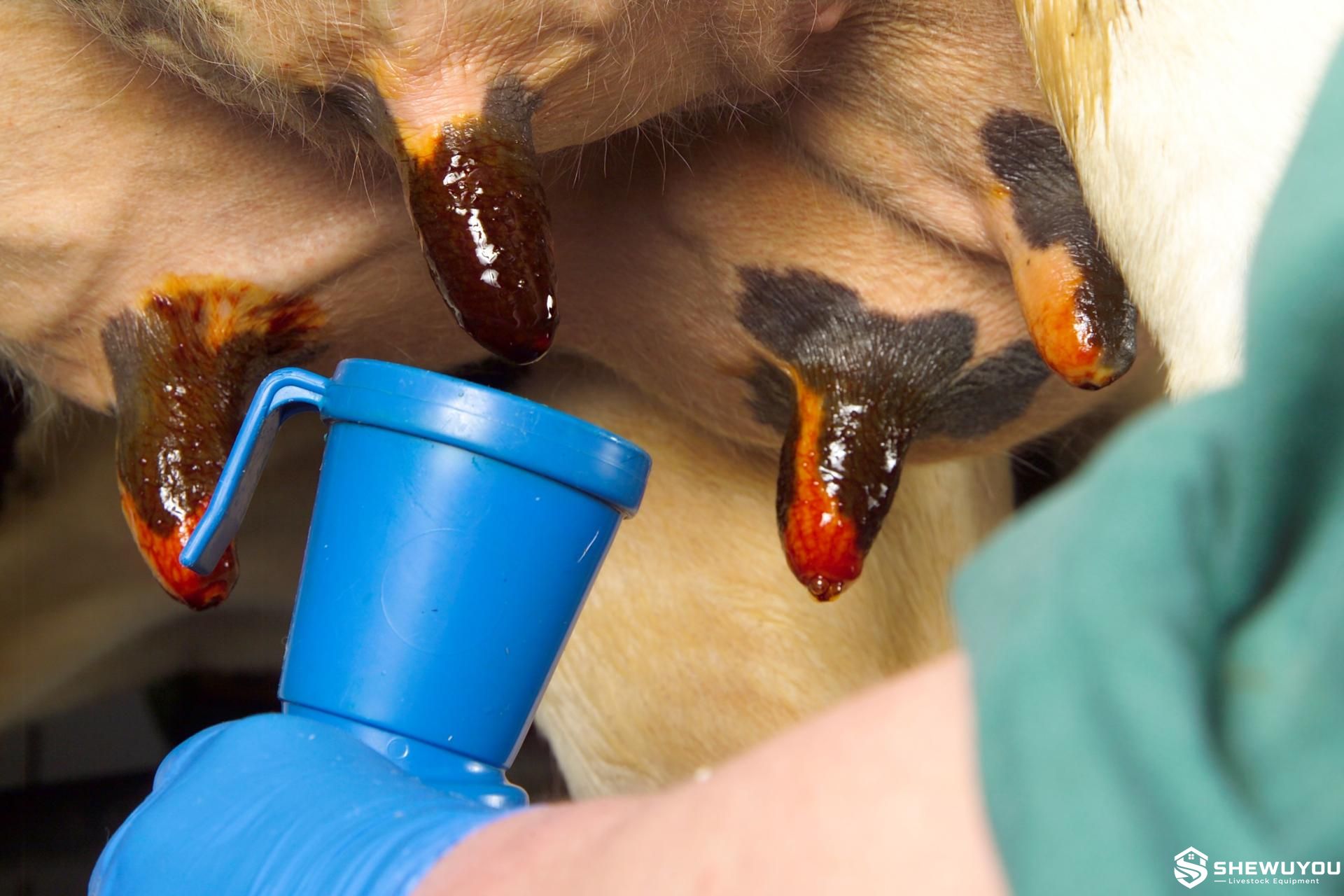

Cow Teat Dip Cup applying teat dip to dairy cow teats

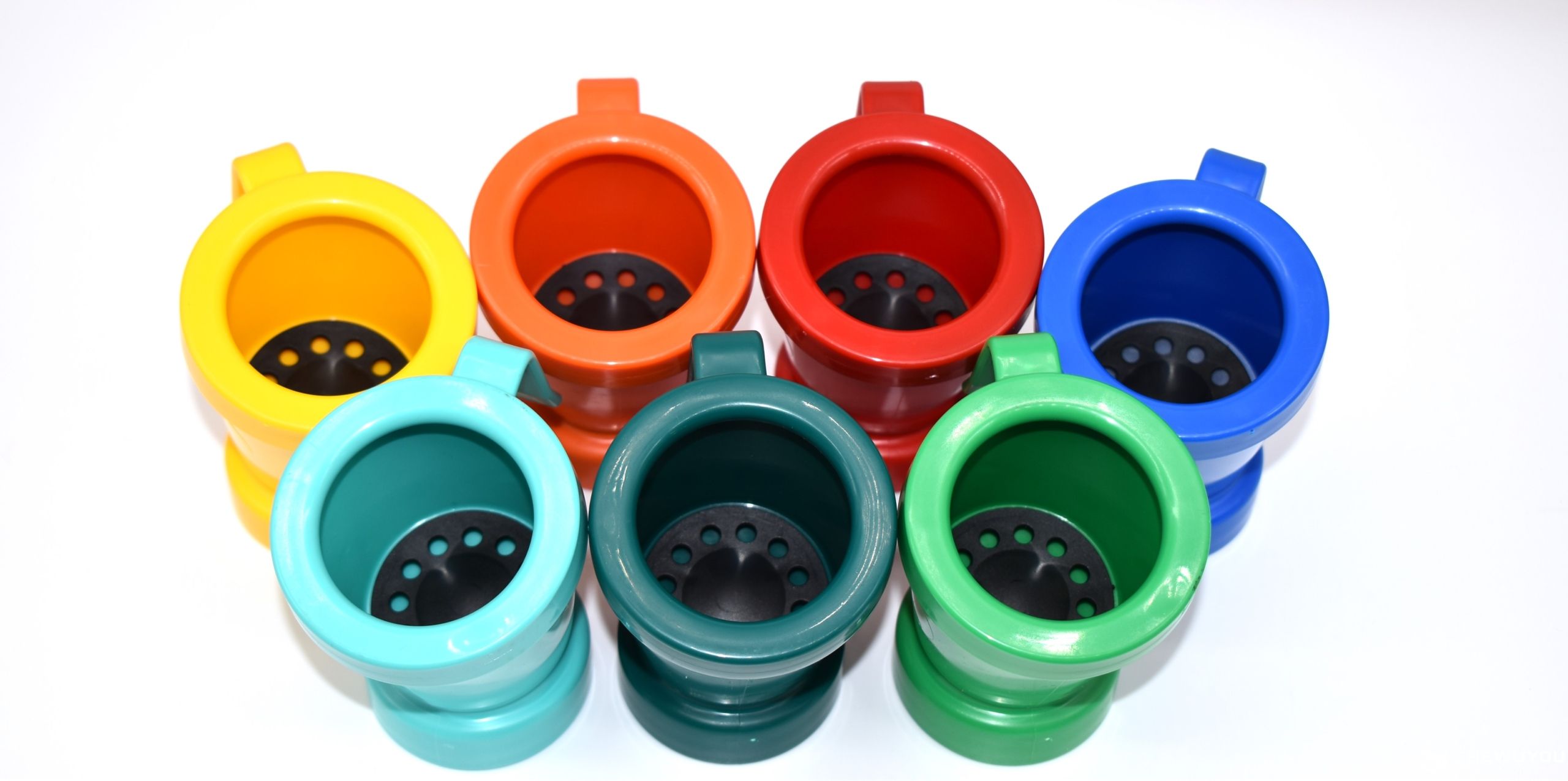

Teat dip cup components and livestock hygiene equipment

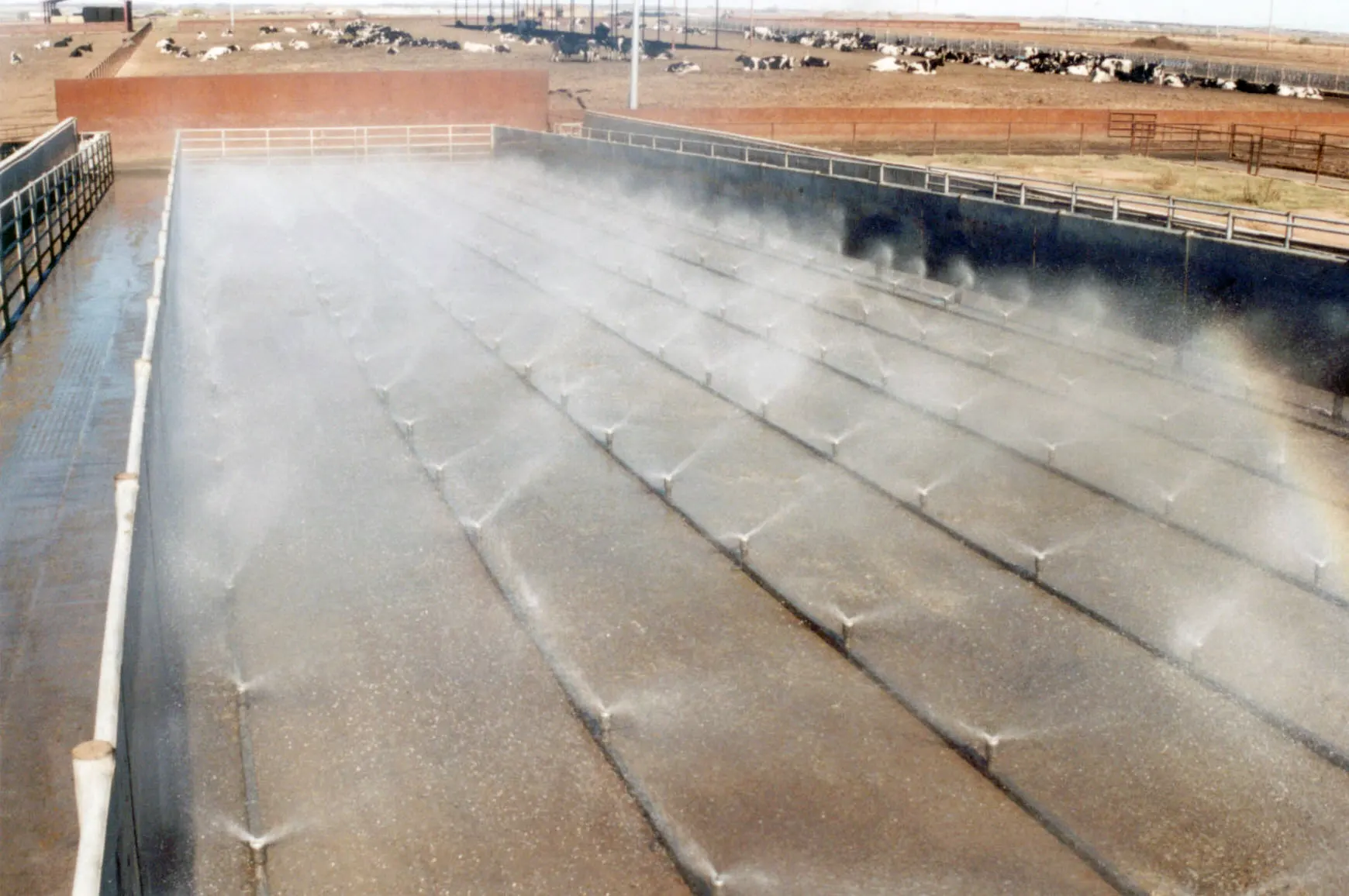

Dairy livestock hygiene equipment for commercial farm application
