Replacement Separator Press Auger

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Replacement Separator Press Auger
Product Image

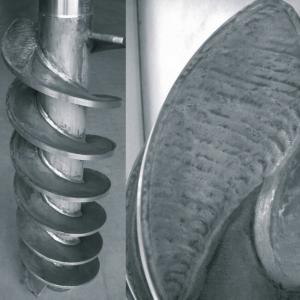

wear-resistant separator press auger reference

Illustrative reference image; the supplied auger is made to the confirmed machine specification.
Product Overview The Replacement Separator Press Auger is the rotating conveying and compression component inside a compatible screw press separator. It is intended for maintenance and refurbishment of solid–liquid separation equipment used in commercial pig farms, livestock manure treatment lines and biogas projects. Each replacement should be matched to the existing screen basket, housing, drive connection and discharge arrangement before manufacture.
Key Features
  • Custom flight geometry to suit the separator model and material being processed.
  • Wear-resistant flight edges or surface protection available according to operating conditions.
  • Connection and overall dimensions matched to the existing drive and separator assembly.
  • Replaceable component design that supports planned maintenance and reduces the need to replace the complete separator.
Structure and Working Principle The auger consists of a central shaft with helical flights and a machine-specific drive connection. During operation, the rotating flights move slurry through the surrounding screen basket toward the solids outlet. Liquid passes through the screen while conveyed solids are compressed toward the discharge. The screen clearance, flight profile and outlet resistance must work together for the intended feed material.
Technical Specifications
  • Compatible separator make and model: According to project requirements
  • Overall length, flight diameter and pitch: Customizable
  • Shaft end and drive connection: Matched to the existing assembly
  • Material and wear protection: Available upon request
  • Rotation direction and screen clearance: Confirmed from machine drawings or measurements
Applications Replacement or refurbishment of screw press separators in pig manure treatment systems, cattle and other livestock operations, digestate processing lines and farm wastewater projects. It can be specified for separator stations installed beside slurry tanks or on properly supported platforms within a pig farm construction or steel structure building project.
Customization Options Provide the separator model, existing auger drawings or clear photographs, key dimensions, shaft-end details, screen basket dimensions and feed material information. Flight geometry, construction material and protection at high-wear areas can then be reviewed for the installation and duty cycle.
Installation & Maintenance Isolate the separator and follow the machine manufacturer's service procedure before removing the worn auger. Check the screen basket, guides, bearings, seals and drive connection for damage. Install the matched replacement, verify its alignment and clearance, then test rotation before returning the separator to slurry service. Inspect flight wear and screen condition during routine maintenance.
Product FAQ

Is one auger suitable for every separator?
No. Dimensions, rotation direction, shaft connection and screen clearance must match the specific machine.

What information is needed for a quotation?
Send the separator make and model, part drawings or photographs, measured dimensions and the material being separated.

Can wear protection be specified?
Yes. Suitable flight-edge protection or coating can be reviewed according to abrasion, feed composition and operating requirements.
Product Gallery
replacement press augers for separator equipment reference screw press separator internal structure reference livestock manure screw press separator installation reference

Manufacturer reference images illustrate augers and separator applications; they do not depict a specific SHEWUYOU-supplied part or project.
