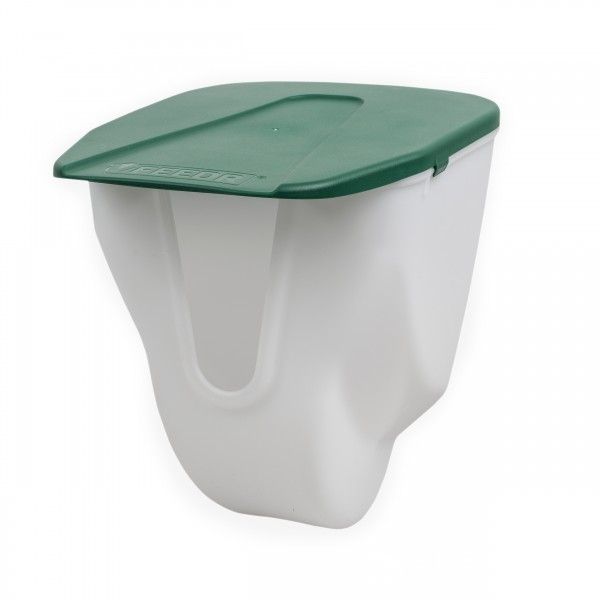

No-Waste Poultry Feeder

The No-Waste Poultry Feeder is a compact wall-mounted feeding solution designed to reduce feed loss caused by chickens scratching or flicking feed from conventional open troughs. Its distinctive V-shaped feeding entrance limits unnecessary access to the stored ration while allowing birds to eat comfortably.

When installed at the correct neck height, the bird inserts its head through the feeding opening and its neck partially closes the entrance during feeding. This structure helps keep feed inside the hopper and reduces contamination around the poultry house.

The feeder combines a covered feed reservoir, simple modular construction and durable UV-resistant plastic. It is suitable for poultry houses, breeder pens, free-range units and livestock equipment projects requiring compact individual feeding stations.

• V-shaped feed entrance: Restricts scratching access and helps minimize feed being pulled or flicked from the feeder.
• Neck-height feeding: Correct mounting height allows the bird's neck to partially close the opening during feeding.
• Reduced feed waste: Enclosed feed storage and controlled access help keep more feed inside the feeder.
• Wall-mounted design: Supplied mounting arrangement supports convenient installation on suitable poultry-house walls or panels.
• Covered hopper: The top lid helps protect stored feed from dirt and incidental moisture.
• Indoor and outdoor use: Suitable for sheltered outdoor use when the feeding opening is positioned away from driving rain.
• UV-resistant plastic: Durable plastic construction provides good resistance to sunlight and routine farm conditions.
• Simple assembly: The modular feeder consists of a small number of components for convenient assembly, cleaning and handling.

• Enclosed plastic feed hopper
• Removable protective lid
• V-shaped feeding entrance
• Internal divider / anti-waste component
• Lower feed reservoir
• Wall mounting bracket
• Modular three-part feeder construction

Dry poultry feed is placed inside the covered hopper. Feed remains available behind the restricted V-shaped opening rather than being presented in a completely open trough.

The feeder is mounted so the opening is approximately at the bird's neck height. When a chicken reaches through the entrance to eat, its neck occupies much of the opening, limiting the space available for scratching and rapid side-to-side feed movement.

This controlled-access principle helps reduce scattered feed while allowing poultry to eat naturally. Correct installation height is important for achieving the intended anti-waste performance.

• Product Type: No-waste poultry hopper feeder
• Application: Chickens and similar poultry according to bird size
• Feed Capacity: Approximately 2.5 kg / 5.5 lb
• Dimensions: Approximately 22 × 22 × 27 cm
• Material: High-quality UV-resistant plastic
• Feed Access: V-shaped restricted opening
• Installation: Wall mounted
• Use: Indoor and sheltered outdoor applications
• Feed Type: Dry poultry feed suitable for hopper feeding
• Mounting Height: Adjust according to poultry neck height
• Alternative Sizes / Configurations: Available upon request

• Layer chicken houses
• Breeder poultry pens
• Free-range chicken facilities
• Small and medium poultry production units
• Individual poultry feeding stations
• Steel structure poultry buildings
• Livestock equipment supply projects
• Supplementary feeding points in poultry houses

• Feed capacity according to project requirements
• Feeder dimensions
• Plastic color
• Wall mounting arrangement
• Feed entrance configuration
• Bulk packaging for distributors and farm projects
• OEM and project-specific configurations available upon request

Installation: Secure the feeder to a stable wall, partition or suitable poultry-house structure using the mounting bracket. The feeder should remain level and securely supported when filled.

Mounting Height: Position the V-shaped opening approximately at the neck height of the target birds. Correct height is essential for reducing feed scratching and spillage.

Outdoor Positioning: The feeder can be used outdoors under suitable conditions, but the feeding entrance should face away from prevailing rain and direct water exposure.

Maintenance: Empty residual feed periodically, separate removable components when necessary, wash with clean water and allow all parts to dry before refilling.

Q: How does the feeder reduce feed waste?
The V-shaped entrance restricts direct scratching access. When a chicken eats, its neck occupies much of the opening, helping prevent feed from being flicked outward.

Q: Why is mounting height important?
The entrance should be positioned near the bird's neck height so the restricted-access design can operate effectively.

Q: Can the feeder be used outdoors?
Yes. The covered design supports outdoor use, but the feeding entrance should be protected from driving rain.

Q: What is the standard feed capacity?
The referenced configuration holds approximately 2.5 kg / 5.5 lb of poultry feed.

Q: Is the feeder easy to clean?
Yes. Its modular plastic construction can be separated for routine cleaning and sanitation.
