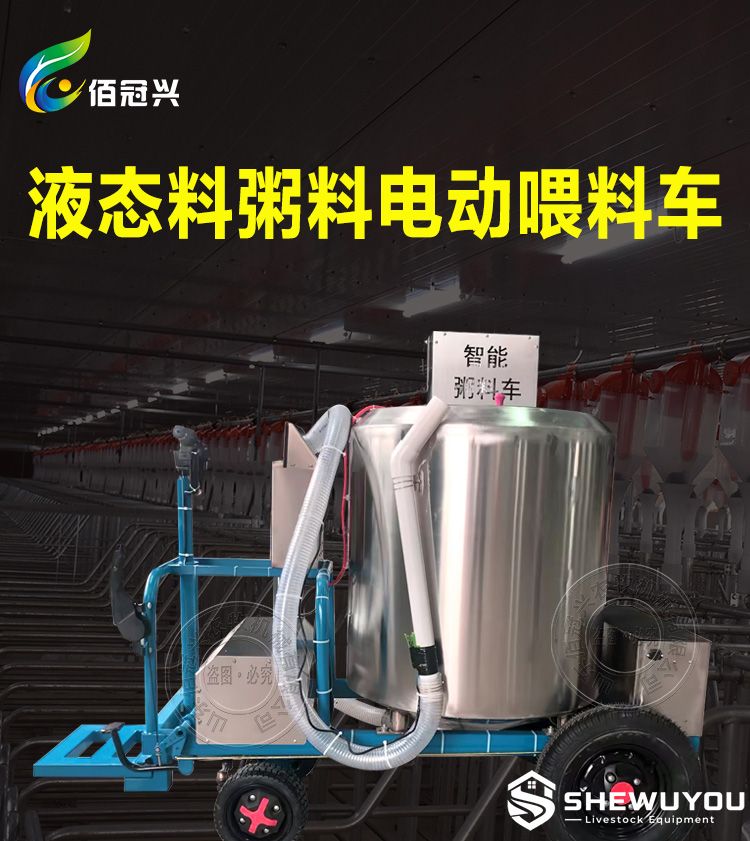

Round-Tank Electric Liquid Feed Cart

The Round-Tank Electric Liquid Feed Cart is a mobile feeding unit designed for transporting, mixing and distributing liquid feed, wet mash and porridge-style rations inside commercial pig houses. The cylindrical stainless steel tank provides a hygienic mixing chamber while the electric travel system reduces manual pushing during daily feeding.

A three-blade agitator keeps the feed mixture uniform during transport and dispensing. The control panel provides functions for travel, stirring, feed discharge and material return, with adjustable operating speeds in compatible configurations.

Push-type and ride-on versions can be configured according to barn aisle dimensions, required feed capacity and farm management requirements.

• Electric travel system reduces manual handling during feeding rounds.
• Round stainless steel tank is durable, corrosion-resistant and easy to clean.
• Three rotating mixing blades maintain a more uniform liquid-feed mixture.
• Agitator height can be adjusted in the reference configuration.
• Controllable discharge supports more consistent feed allocation between pens.
• Adjustable stirring and discharge speeds are available.
• Feed-return function helps manage material remaining in the delivery circuit.
• Flexible discharge hose allows convenient feeding along pig-house aisles.

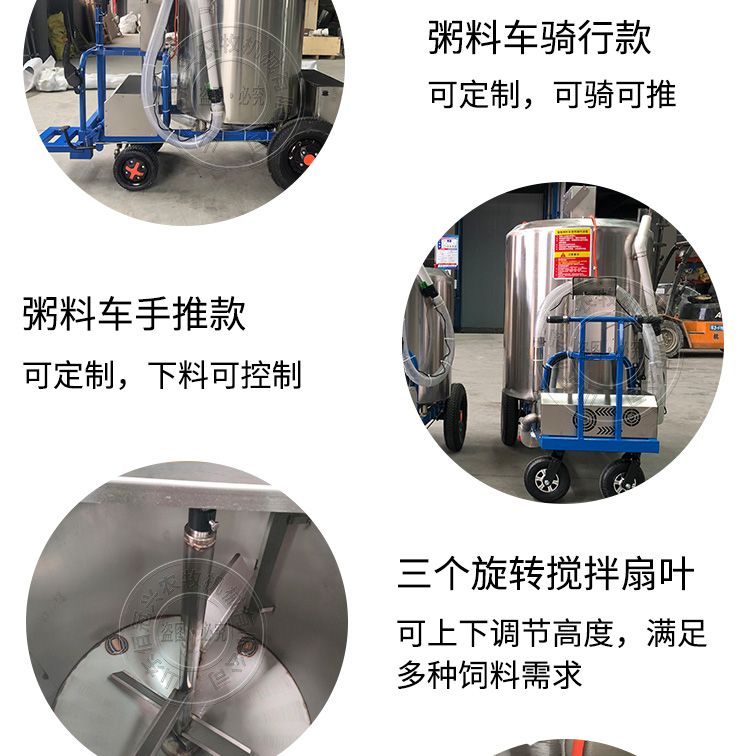

• Push-type and ride-on models are available according to project requirements.
• Suitable for wet mash, fermented liquid feed and compatible slurry-type rations.

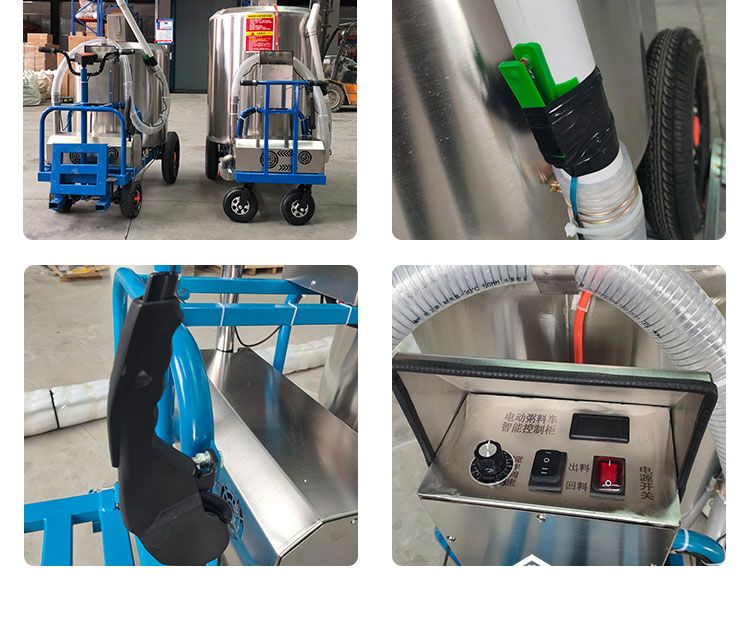

• Round Mixing Tank: Stainless steel vessel for storing and mixing liquid or wet feed.
• Three-Blade Agitator: Rotates inside the tank to reduce settling and maintain feed consistency.
• Electric Travel Drive: Provides powered movement through livestock-house aisles.
• Feed Transfer Pump: Moves mixed feed from the tank to the discharge hose.
• Flexible Delivery Hose: Directs liquid feed into individual troughs or feeding points.

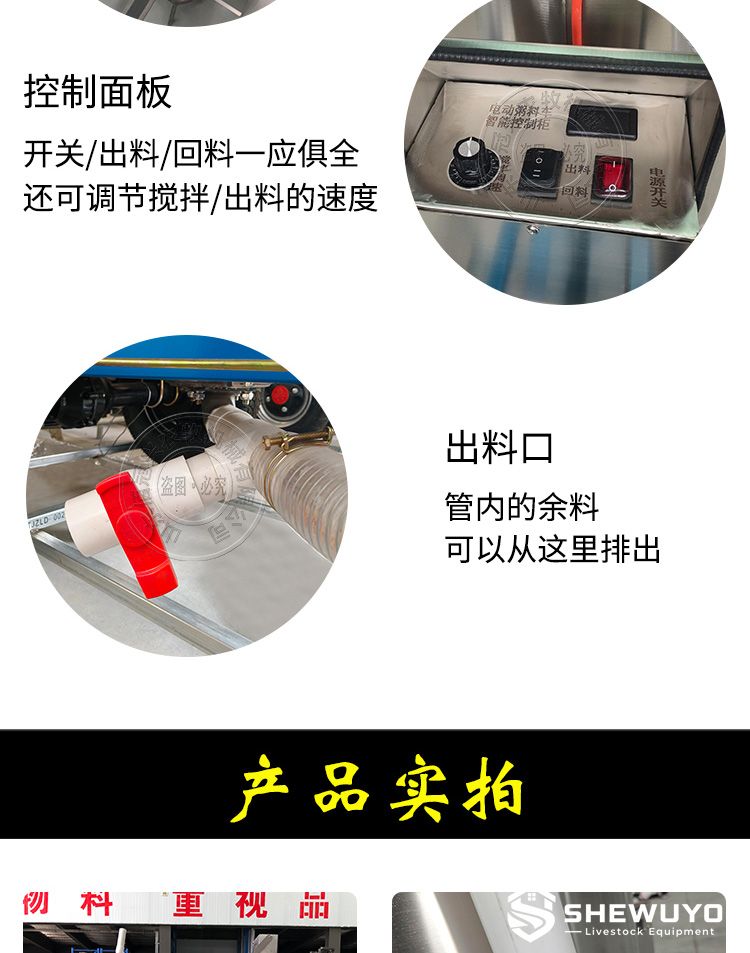

• Control Panel: Provides operating controls for power, stirring, discharge and material return.
• Residual Feed Outlet: Allows material remaining in the pipework to be discharged when required.
• Battery System: Supplies mobile electrical power to the cart.
• Wheeled Chassis: Supports the tank and operating components for mobile barn use.

Prepared feed ingredients and water are loaded into the round tank. The electric agitator rotates the internal mixing blades to produce and maintain a uniform wet-feed mixture.

The battery-powered drive system moves the cart along the pig-house feeding aisle. At each feeding point, the operator activates the discharge system and directs the flexible hose toward the trough.

Feed discharge can be started and stopped from the control panel. Compatible configurations also allow discharge-speed adjustment and return circulation, helping improve control during pen-by-pen feeding.

• Liquid and wet-mash feeding in pig houses
• Fermented liquid-feed distribution
• Nursery pig feeding
• Grower and finishing pig feeding
• Sow and breeding-unit feeding
• Small and medium commercial pig farms
• Farms without centralized liquid-feed pipelines
• Steel-structure pig houses
• Existing farm feeding-system upgrades

• Tank capacity and nominal feed load
• Push-type or ride-on chassis
• Stainless steel tank specification
• Agitator dimensions and blade position
• Travel motor and battery configuration
• Discharge pump and hose specification
• Adjustable discharge speed
• Feed-return function
• Outlet diameter and delivery-hose length
• Customizable according to project requirements

Commissioning:

• Confirm barn aisle width, floor condition and required tank capacity before selecting the cart.
• Fully charge and inspect the battery before first operation.
• Check agitator rotation before adding feed.
• Verify pump direction, delivery hose and discharge outlet.
• Test travel, stirring, discharge and return functions before entering the pig house.
• Adjust mixing and discharge speeds according to feed viscosity.

Maintenance:

• Empty residual wet feed after each feeding cycle.
• Flush the tank, pump, hose and outlet regularly.
• Use the residual-feed outlet to clear material remaining in the pipeline.
• Inspect mixing blades for feed buildup and mechanical wear.
• Check hose connections and seals for leakage.
• Inspect wheels, brakes and drive components periodically.
• Maintain and charge the battery according to the battery manufacturer's requirements.
• Keep the electrical control panel protected during high-pressure washing.

Q: What is the Round-Tank Electric Liquid Feed Cart used for?
A: It is used to mix, transport and distribute wet mash, porridge feed, fermented liquid feed and other compatible pig rations between pens.

Q: Does the cart require manual pushing?
A: The electric travel system provides powered movement. Push-type and ride-on configurations are available according to project requirements.

Q: How is the liquid feed kept uniform?
A: The reference design uses three rotating mixing blades inside the round tank to agitate the ration during preparation and distribution.

Q: Can the feed discharge rate be adjusted?
A: Yes. Compatible reference configurations allow adjustment of stirring and discharge speeds from the control panel.

Q: What capacities are available?

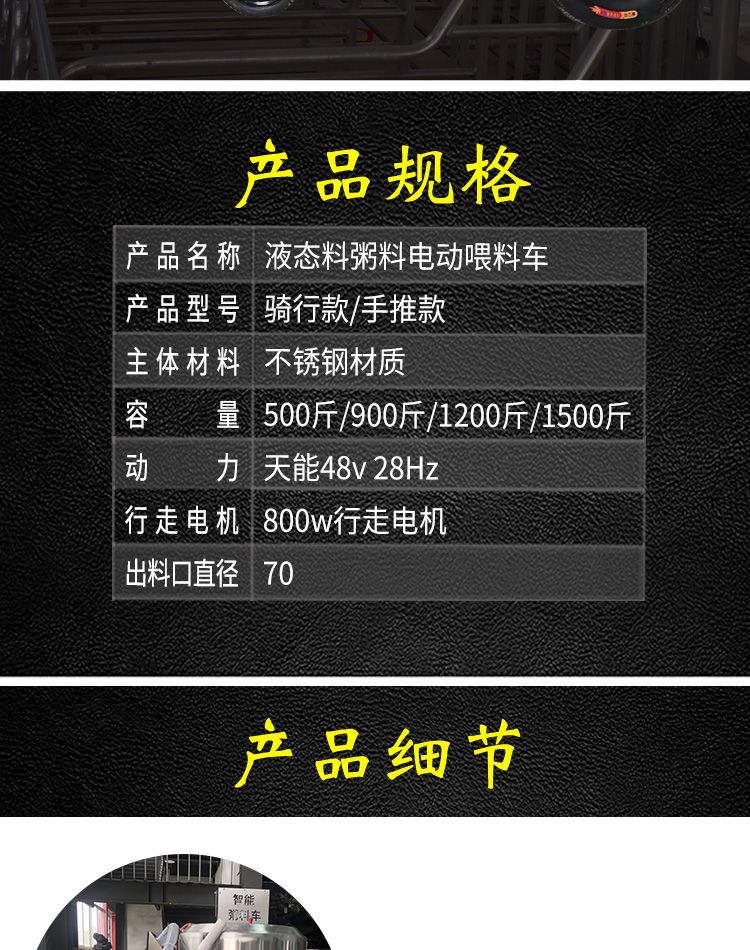

A: Reference models are offered in 500, 900, 1200 and 1500 jin nominal load classes. Final tank size can be selected according to farm requirements.

Q: Can residual feed inside the hose be removed?
A: Yes. The reference design includes a dedicated outlet for discharging material remaining inside the feed-delivery circuit.

Q: Is it suitable for large centralized liquid-feed systems?
A: The mobile cart is especially useful for smaller farms, separate barns, trial feeding or projects where installing a complete centralized pipeline is unnecessary.

Q: What information is required for a quotation?
A: Please provide farm size, pig production stage, daily feed volume, feed consistency, barn aisle width, required capacity, push or ride-on preference, power requirements and project location.
