| Product Showcase | Content |
|---|---|
| Product Name | Double-Side Discharge Electric Feed Cart |
| Product Image |  |
| Product Overview | The Double-Side Discharge Electric Feed Cart is a mobile dry-feed transport and distribution unit for commercial pig farms. Designed for pig houses with pens on both sides of a central aisle, its left-right discharge arrangement allows the operator to serve either row from the same travel route. The hopper, electric chassis, and powered conveying system combine feed transport and trough filling in one vehicle. Final dimensions and outlet positions can be specified for new steel structure pig houses or existing livestock buildings. |
| Key Features |
|
| Structural Components | A typical configuration includes a feed hopper, structural frame, wheeled electric chassis, rechargeable power system, operator controls, powered feed conveyor, left-right discharge arrangement, and outlet guards. The conveying and direction-selection mechanism is confirmed with the final model specification. |
| Working Principle | Dry feed is loaded into the hopper at the farm's designated filling point. The operator drives the cart along the central feeding aisle and selects the outlet facing the required pen row. When dispensing is activated, the powered conveyor moves feed from the hopper to the outlet and into the trough. The operator can then select the opposite side where the confirmed discharge configuration permits. |
| Technical Specifications |
|
| Applications | Suitable for sow, nursery, and grow-finish pig houses with feeding points on both sides of an aisle. It can support pen-by-pen feeding in commercial pig farms, breeding facilities, and farm renovation projects where a mobile distribution route is required. |
| Customization Options | Hopper volume, chassis width, wheel arrangement, discharge mechanism, outlet reach, feed flow controls, battery configuration, and feed-contact material can be reviewed against the project. Provide the aisle plan, trough positions, feed formulation, and daily feeding distance to specify a cart suited to local climate and farm conditions. |
| Installation & Maintenance | Before commissioning, verify door and aisle clearances, turning space, floor condition, charging access, and the reach of both discharge positions. Test travel, braking, side selection, and feed delivery using a small quantity of the intended feed. During routine service, clear residual feed and inspect the outlets, conveyor, guards, wheels, battery, and electrical connections according to the supplied manual. |
| Product FAQ |
Does double-side discharge mean both sides operate simultaneously? Can the outlets match existing troughs? What information is needed for a quotation? |
| Product Gallery |

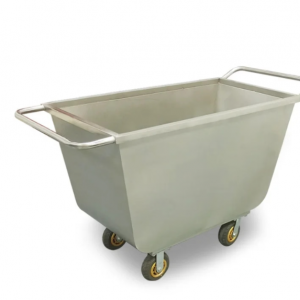

Gallery images show related electric feed cart configurations. Confirm the left-right discharge arrangement and final appearance with the selected model. |
