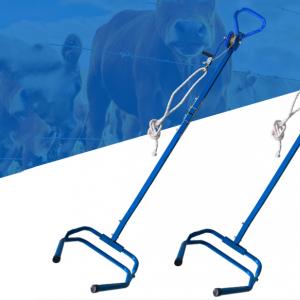

Cattle Calf Puller

• Heavy-duty 2.5 m cattle obstetric aid for professional calving assistance.
• Thickened square-steel frame provides high structural strength.
• 3 mm wall thickness supports demanding livestock applications.
• Sliding mechanical traction system provides controlled movement.
• Upgraded rotating and locking structure improves positioning flexibility.
• Dedicated nylon rope provides strong and flexible calf contact.
• Wide rear support frame helps distribute reaction force.
• Triangular handle provides a comfortable manual grip.
• Reusable mechanical design requires no electricity or batteries.

• Product Name: Heavy-Duty Cattle Calf Puller
• Product Type: Mechanical Bovine Calving Aid / Fetal Extractor
• Main Material: Thickened Square Steel
• Overall Length: Approximately 2.5 m
• Steel Wall Thickness: Approximately 3 mm
• Product Weight: Approximately 17.5 kg
• Rear Support Width: Approximately 53 cm
• Traction Mechanism: Mechanical Sliding and Locking System
• Position Adjustment: Rotatable and Lockable Structure
• Pulling Component: Heavy-Duty Nylon Rope
• Handle: Rounded Triangular Manual Handle
• Operation: Manual Mechanical Operation
• Power Requirement: None
• Animal Application: Cattle
• Listed Service Life: Approximately 10 Years under Appropriate Use and Maintenance

Dimensions and weight are based on the current product specification. Actual service life depends on operating frequency, loading, storage conditions and maintenance. Maximum traction force is not specified and should be confirmed if required.

• Appropriate assisted-calving procedures in cattle.
• Dairy cow maternity and calving areas.
• Beef cattle breeding farms.
• Cattle breeding and reproductive management programs.
• Large-animal veterinary obstetric work.
• Commercial cattle farms and breeding centers.
• Emergency calving equipment preparation.

• Inspect the main beam, support frame, sliding mechanism and rope before each use.
• Ensure all locking and rotating components move smoothly and engage securely.
• Check the nylon rope regularly for abrasion, cuts or weakening.
• Use only after proper assessment of the cow and calf by trained personnel.
• Apply traction gradually and discontinue use if abnormal resistance is encountered.
• Clean and disinfect animal-contact components after each procedure.
• Remove moisture and contamination from steel components after cleaning.
• Lubricate mechanical sliding and pivot points when required.
• Store the equipment clean and dry to reduce corrosion.

Q: What is a cattle calf puller used for?
A: It is a mechanical obstetric aid designed to provide controlled traction during appropriate assisted-calving procedures.

Q: What is the overall length?
A: The current product specification lists an overall length of approximately 2.5 m.

Q: What material is the main frame made from?
A: It uses thickened square-steel construction with an approximately 3 mm wall thickness.

Q: How much does the calf puller weigh?
A: The listed product weight is approximately 17.5 kg.

Q: Does it use a mechanical traction system?
A: Yes. The product uses a sliding mechanical mechanism designed to provide controlled traction and fixation.

Q: What type of pulling rope is supplied?
A: The current configuration uses a heavy-duty nylon rope designed for livestock obstetric applications.

Q: Can one person use the equipment?
A: The mechanical structure reduces manual pulling effort, but appropriate staffing should be determined by the calving situation and operator experience.

Q: When should professional veterinary assistance be requested?
A: Veterinary assistance is recommended whenever fetal position is abnormal, the calf appears oversized, the birth canal is not adequately dilated, abnormal resistance is encountered or the delivery cannot be completed safely.
