Product Name	Quick-Release Cow Immobilizer
Product Image
Product Overview	The Quick-Release Cow Immobilizer is an adjustable anti-kick restraint designed to improve operator control when working with dairy and beef cattle. Positioned around the cow's hindquarter area, the tubular restraint limits excessive kicking movement during procedures such as milking, veterinary examination, treatment and routine livestock management. A quick-release adjustment system allows the unit to be opened or resized even when it is under tension. The angled locking arrangement helps prevent accidental opening, while a clearly marked lower end assists with correct positioning. Galvanized steel and stainless steel versions are available for different farm, veterinary and distributor requirements.
Key Features	Quick-Release Adjustment: Allows fast opening and size adjustment, including when the restraint is under load. Anti-Kick Restraint: Helps limit hindquarter movement and reduce kicking risk during close-contact cattle procedures. Angled Locking Arrangement: Inclined adjustment positions help prevent the restraint from opening unintentionally. Adjustable Fit: Telescopic construction accommodates different cattle body sizes. Simple Positioning: Compact tubular construction allows fast installation by trained livestock personnel. Reinforced Tube Construction: Heavy-duty metal tubing provides stability for repeated livestock use. Corrosion-Resistant Options: Galvanized metal and stainless steel versions are available. Serviceable Components: Springs, caps and locking components can be replaced according to maintenance requirements.

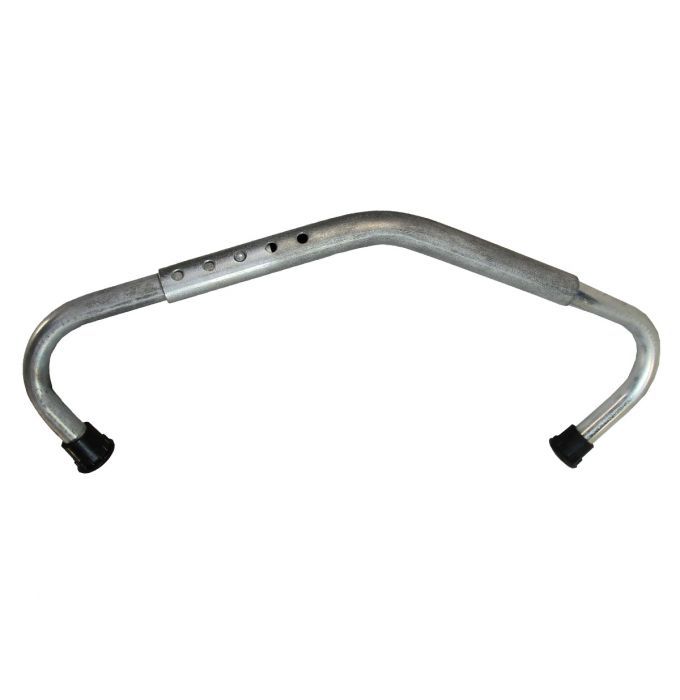

Structural Components	Heavy-duty bent tubular restraint frame Telescopic adjustment section Quick-release locking mechanism Multi-position adjustment slots Locking and retaining pin assembly Spring components Protective end caps Animal-contact support sections

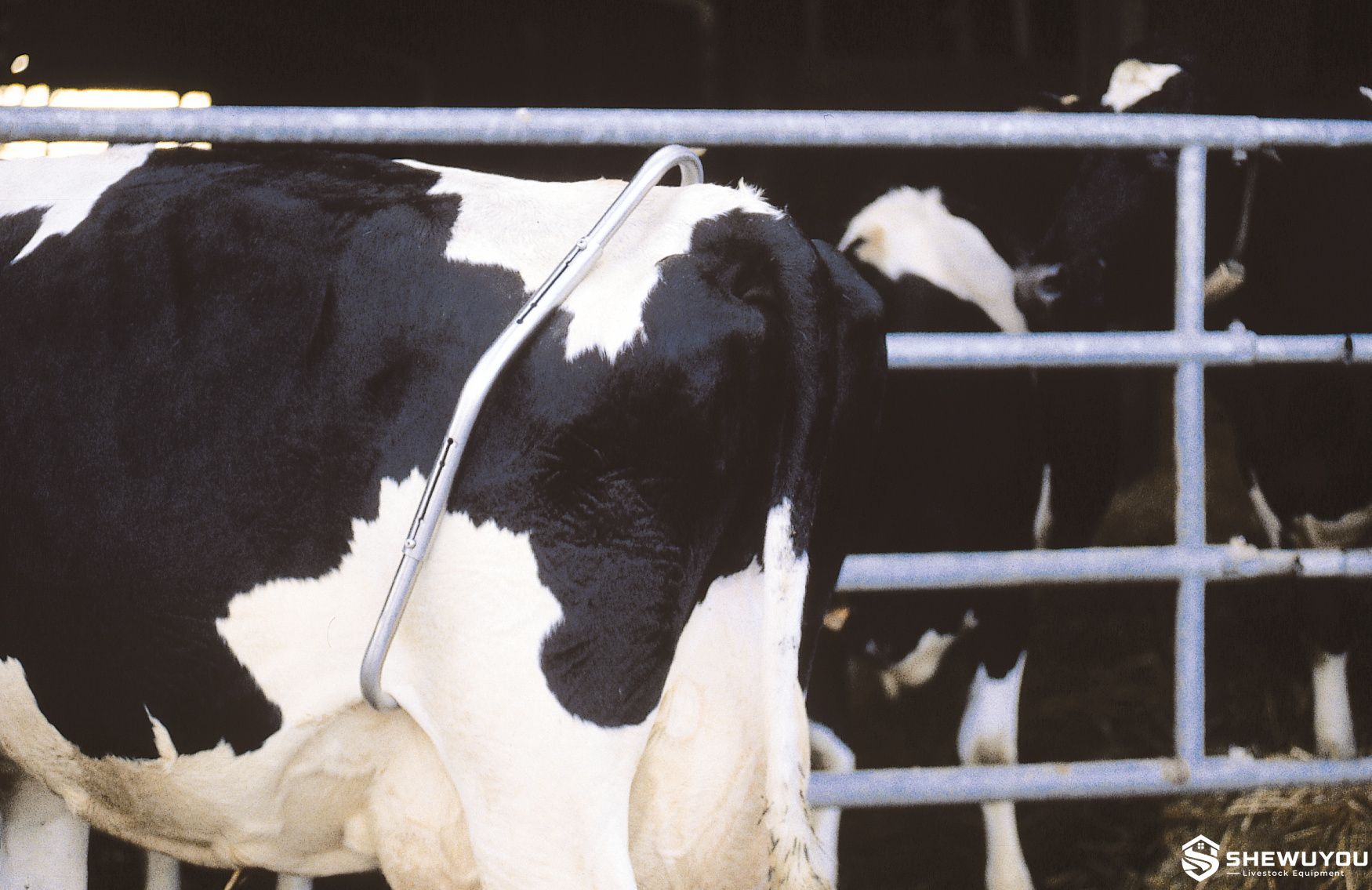

Working Principle	The immobilizer is positioned over and around the cow's hindquarter area and adjusted to fit the individual animal. Once correctly fitted, the tubular frame limits the range of movement available for a forceful backward or sideways kick. The telescopic section allows the operator to adapt the restraint to different animal sizes. Its quick-release mechanism can be opened or adjusted under tension, helping the operator remove unnecessary pressure without first forcing the animal or restraint into another position. The device is intended as a temporary anti-kick aid and does not replace a cattle crush, head gate or other primary restraint system when full-body immobilization is required.

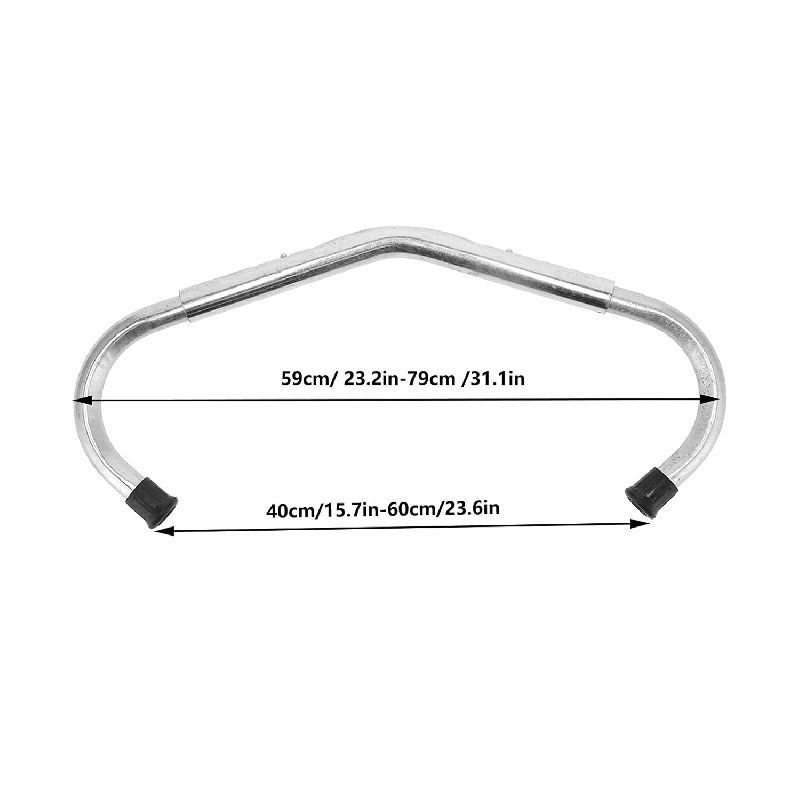

Technical Specifications	Product Type Adjustable cattle anti-kick immobilizer Operating Method Manual quick-release adjustment Adjustment Telescopic / multi-position Primary Function Temporary reduction of cattle kicking movement Material Option 1 Galvanized steel Material Option 2 Stainless steel Tube Construction Heavy-duty tubular steel Overall Dimensions According to model and project requirements Suitable Animals Dairy cows and suitable adult cattle Replacement Parts Available upon request

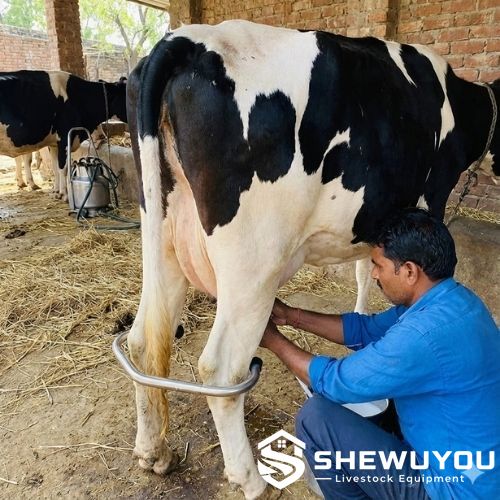

Applications	Dairy cow milking procedures Veterinary examination and treatment Artificial insemination support procedures Udder and teat inspection Hoof and claw care support Wound treatment and medication Animal identification procedures Dairy farm routine management Beef cattle handling Livestock teaching and veterinary facilities
Customization Options	Galvanized steel version Stainless steel version Alternative dimensions available upon request Tube specifications according to project requirements Replacement spring and cap kits available OEM branding and packaging available upon request Bulk packaging for distributors and agricultural equipment suppliers
Installation & Maintenance	Use: Use the immobilizer only with cattle already under appropriate handler control. Place the restraint carefully around the cow's hindquarter area. Adjust the telescopic section according to the animal's body size. Use sufficient restraint to limit kicking without applying unnecessary pressure. Confirm the locking mechanism is fully engaged before beginning the procedure. Use the quick-release function if immediate adjustment or removal is required. Remove the immobilizer promptly when the handling procedure is complete. Maintenance: Clean manure, bedding and organic contamination from the restraint after use. Inspect the telescopic section, locking mechanism, springs, pins and end caps regularly. Check that the quick-release mechanism operates freely before each handling session. Replace damaged springs, caps or locking components when required. Do not use the immobilizer if the tubing is severely bent, cracked or structurally damaged. Store cleaned equipment in a dry farm or veterinary equipment area.
Product FAQ	Q: What is a cow immobilizer used for? A: It is a temporary anti-kick restraint used to limit hindquarter movement during milking, veterinary treatment and other close-contact cattle procedures. Q: What is the advantage of the quick-release system? A: It allows the restraint to be opened or adjusted quickly, including situations where the device is under tension. Q: Can the immobilizer fit different cow sizes? A: Yes. Its telescopic or multi-position adjustment allows the working size to be adapted to suitable cattle. Q: What material options are available? A: Galvanized steel and stainless steel configurations are available according to requirements. Q: Is the immobilizer suitable for dairy farms? A: Yes. Typical applications include milking, udder examination, veterinary treatment, hoof-care support and routine dairy cow handling. Q: Are replacement components available? A: Replacement springs, caps, pins and related components can be supplied according to model requirements. Q: Does this product replace a cattle crush? A: No. It is an anti-kick handling aid. A suitable cattle crush, head gate or other primary restraint system should be used whenever full-body restraint is necessary.
