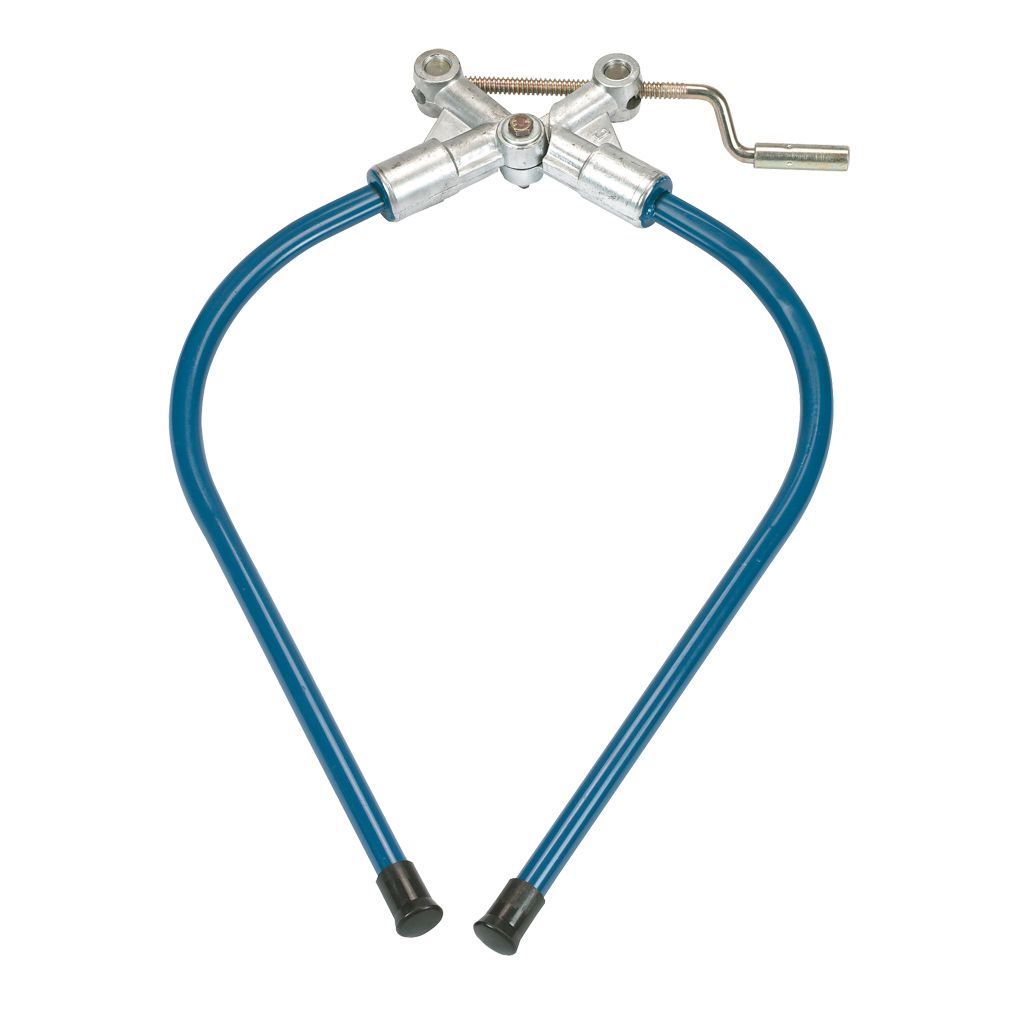

Heavy-Duty Cow Hip Shackle Restraint

• Designed to restrict kicking during cattle examination and treatment procedures.
• Suitable for demanding animals where additional temporary restraint is required.
• Heavy-duty mechanical construction for repeated livestock-farm use.
• Crank-operated spindle provides controlled width adjustment.
• Curved side arms conform to the general body profile of cattle.
• Protective end caps reduce direct contact between exposed metal ends and the animal.
• No electricity, compressed air or hydraulic power required.
• Quick to fit and remove by trained livestock handlers.
• Replaceable crank, spindle nut, protective cap and screw components are available for the reference design.
• Compact construction allows convenient storage in treatment and milking areas.

• Curved Restraint Arms: Extend down both sides of the cow to create the primary anti-kick restraint.
• Central Pivot Assembly: Connects the two arms and allows the restraint width to change.
• Threaded Spindle: Provides mechanical adjustment between the two sides.
• Hand Crank: Allows the operator to tighten or release the device in a controlled manner.
• Spindle Nut: Works with the threaded adjustment mechanism to maintain the selected position.
• Protective End Caps: Cover the lower contact ends of the restraint arms.
• Fastening Hardware: Secures the crank and adjustment assembly during repeated use.

• Veterinary examinations of dairy and beef cattle.
• Medical treatment and routine animal-health procedures.
• Artificial insemination and reproductive-management work.
• Milking-area handling where additional anti-kick control is required.
• Udder and teat inspection procedures.
• Hoof, leg and body inspection when supplementary restraint is appropriate.
• Breeding farms and artificial-insemination centers.
• Dairy parlors and cattle treatment areas.
• Supplementary restraint alongside cattle headlocks or handling equipment.

• Overall Size: Alternative dimensions available according to cattle size and project requirements.
• Arm Geometry: Customizable for different cattle breeds and body sizes.
• Surface Finish: Available according to project requirements.
• Protective End Components: Alternative contact-cap materials available upon request.
• Packaging: Individual or bulk packaging available for distributors and farm groups.
• Spare Parts: Adjustment and wear components can be supplied according to model requirements.

• Inspect the restraint, crank, spindle and protective caps before each use.

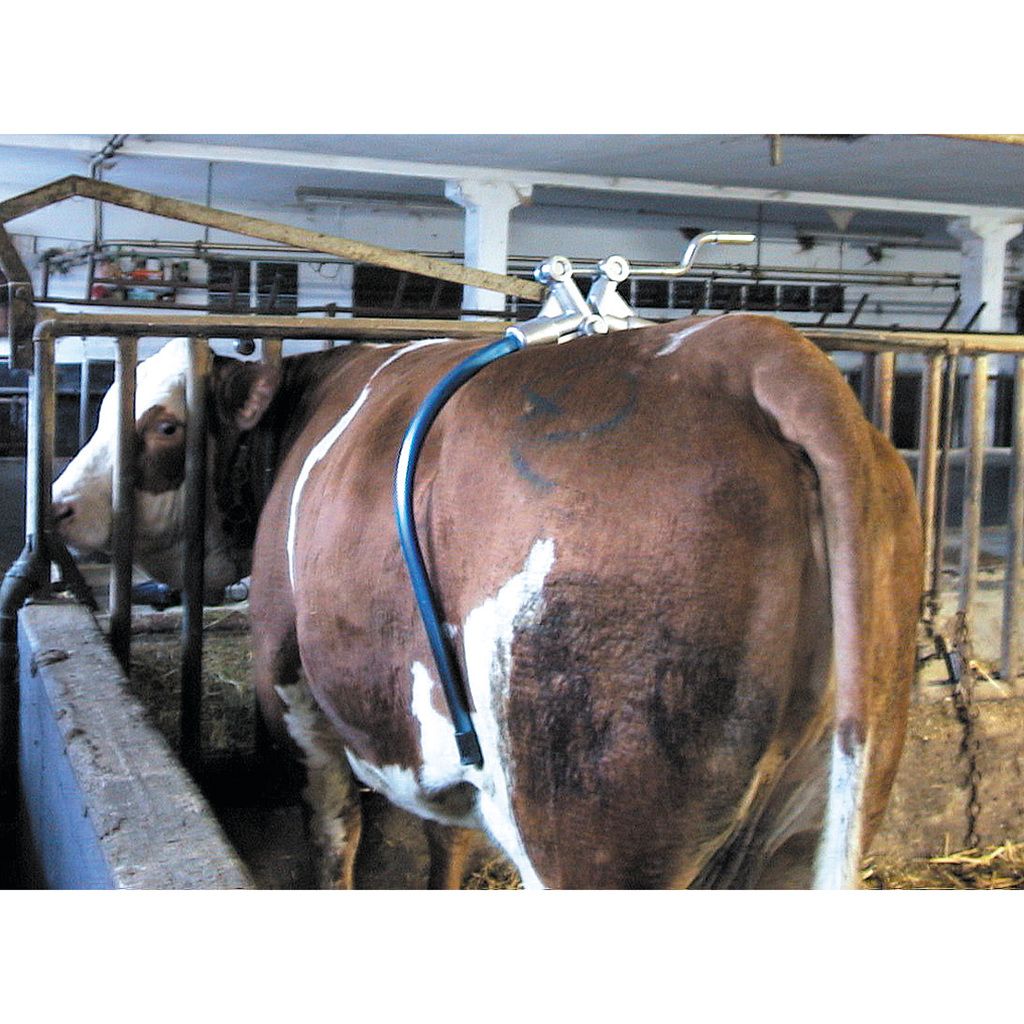

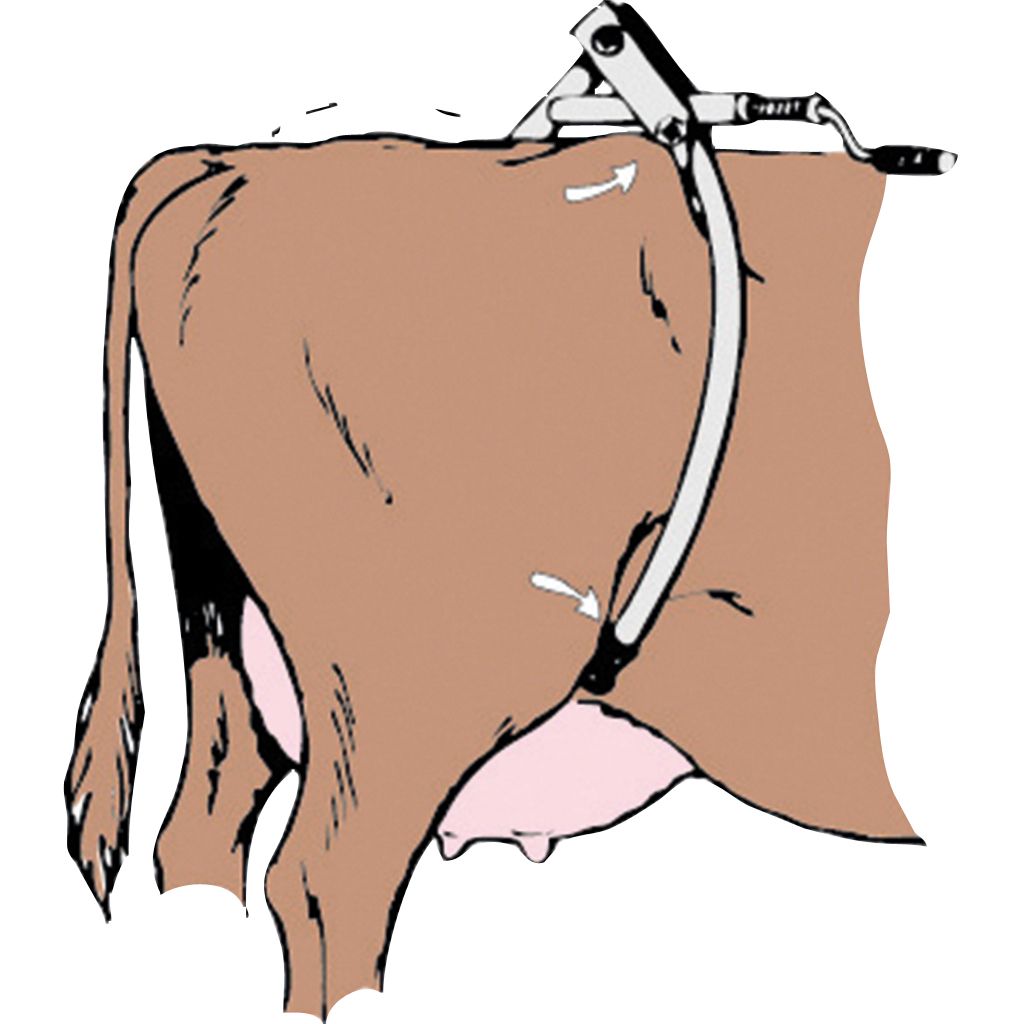

• Position the device correctly across the animal before tightening.
• Adjust the crank gradually until the restraint is secure without applying unnecessary pressure.
• Use only for temporary restraint during supervised cattle-handling procedures.
• Release the adjustment gradually before removing the device.
• Clean manure, dirt and moisture from the mechanism after use.
• Keep the threaded spindle and moving joints clean and functioning smoothly.
• Replace damaged protective caps, crank components or adjustment hardware before further use.
• Store the restraint in a dry location when not in service.
• Do not use the hip shackle to lift, suspend or support the body weight of cattle.

Q: What is the main purpose of this cow hip shackle?
A: It is designed to restrict kicking and improve control of cattle during examinations, treatment, breeding and other supervised handling procedures.

Q: How is the restraint adjusted?
A: The reference design uses a hand crank and threaded spindle to change the spacing between the two curved restraint arms.

Q: Does it require power or compressed air?
A: No. It is a fully mechanical restraint device.

Q: Can it be used during artificial insemination?
A: Yes. Artificial insemination is one of the principal applications specified for the reference product.

Q: Are spare parts available?
A: Yes. The reference manufacturer lists replacement crank, spindle nut, protective cap and crank-screw components.

Q: Is it suitable for difficult or kicking cows?
A: Yes. The reference product is specifically intended to reduce kicking, including with difficult animals, when correctly fitted and supervised.

Q: Can the device be used to raise a downer cow?
A: No. This restraint must never be used for lifting or supporting cattle. A dedicated cow lifting frame or lifting harness should be used for that purpose.

Q: Can the size or finish be customized?
A: Yes. Dimensions, contact components, surface finish and packaging can be supplied according to project and distributor requirements.
