Adjustable Cow Immobilizer Anti-Kick Bar

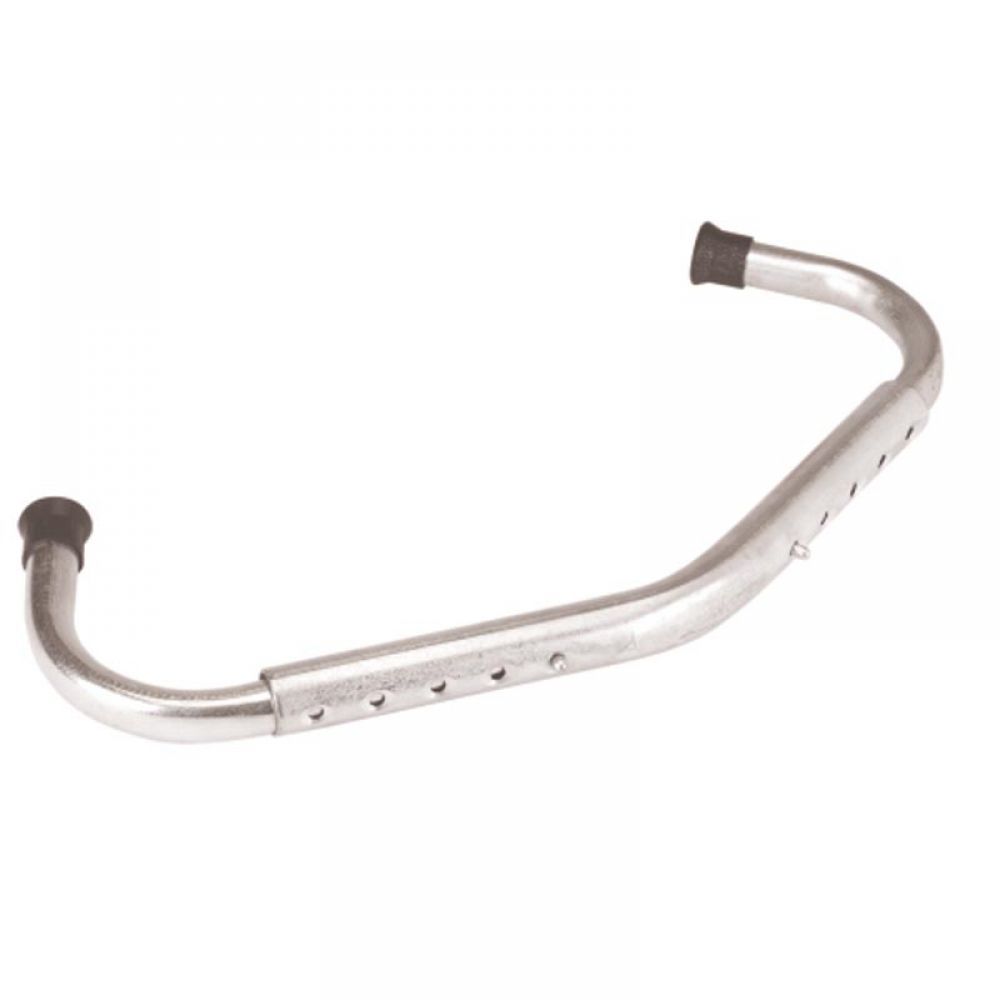

The Adjustable Cow Immobilizer Anti-Kick Bar is a portable cattle restraint tool designed to reduce kicking and sudden hindquarter movement during routine dairy, veterinary and livestock-management procedures.

Its telescopic galvanized-steel structure adjusts to different animal sizes, while spring-loaded locking pins engage a series of offset holes to maintain the selected working length. Curved ends with protective caps provide stable contact with the animal while helping reduce direct metal contact.

• Helps restrict kicking and excessive hindquarter movement during cattle handling.
• Telescopic structure adjusts for different cow sizes.
• Reference construction uses Ø33 mm center tubing and Ø26 mm side tubing.
• Free-running spring mechanism with 9 mm locking pin.
• 45° offset adjustment-hole arrangement helps reduce unintended release.
• Protective black end caps improve contact with the animal and identify correct orientation.
• Galvanized steel provides corrosion resistance for dairy and livestock environments.
• No assembly required on the reference configuration.
• Portable design supports rapid use between individual animals.
• Suitable for commercial dairy farms, veterinary practices and cattle-management operations.

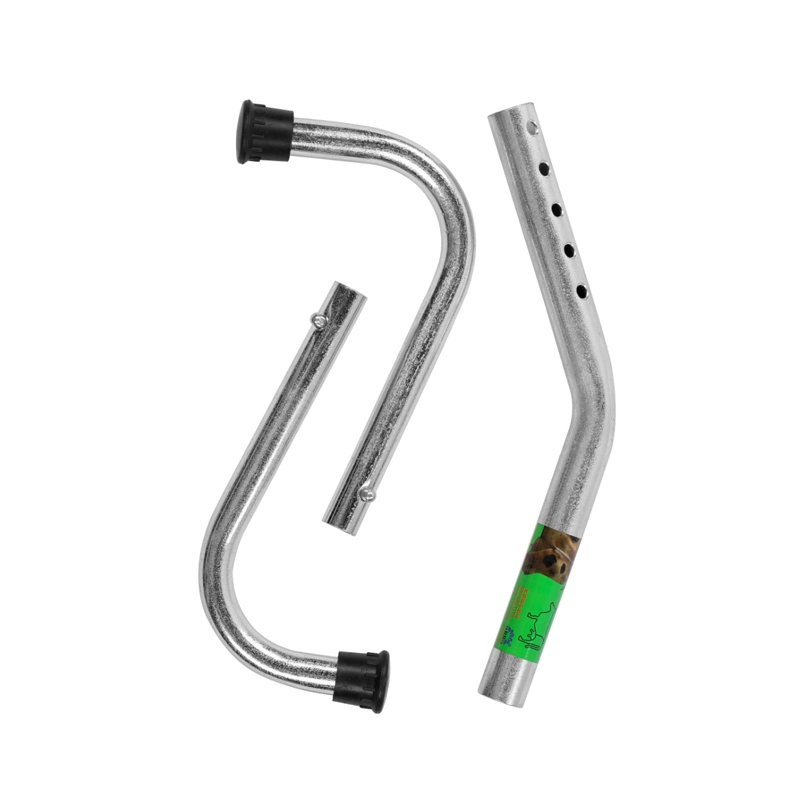

• Central Telescopic Tube: Forms the main adjustable section of the restraint.
• Curved Side Arms: Extend downward around the animal's hindquarter area.
• Adjustment Holes: Provide multiple working positions for different cattle sizes.
• Spring-Loaded Pins: Lock the telescopic sections at the selected length.
• Protective End Caps: Cover tube ends and provide a defined contact surface.
• Galvanized Surface: Protects the steel structure from routine farm moisture and corrosion.

The immobilizer is positioned across the cow's hindquarter area and adjusted so the curved ends sit securely against the animal without excessive pressure. The telescopic tubes are extended or shortened until a suitable fit is reached.

A spring-loaded locking pin engages the selected adjustment hole. The 45° offset hole arrangement helps maintain the selected position and reduces the possibility of accidental opening during normal use.

Correct positioning limits the animal's ability to raise the hindquarters into a kicking motion, providing the operator with additional protection during short-duration procedures.

• Dairy cow milking procedures.
• Veterinary examination and treatment.
• Artificial insemination support procedures.
• Udder inspection and routine dairy management.
• Grooming and livestock husbandry.
• Temporary cattle restraint during farm procedures.
• Commercial dairy farms and cattle breeding operations.
• Veterinary clinics and livestock service teams.

• Working Length: Customizable according to cattle size requirements.
• Tube Diameter: Alternative tube specifications available upon request.
• Tube Wall Thickness: Available according to required duty level.
• Material: Galvanized steel or stainless steel configurations available.
• Locking System: Spring-pin or project-specific adjustment arrangements available.
• End Caps: Different protective-cap materials or colours available upon request.
• Surface Treatment: Designed according to local climate and farm conditions.
• OEM Supply: Custom branding, packaging and bulk quantities available for distributors and farm projects.

• Select an immobilizer suitable for the animal's size before use.
• Approach and restrain cattle using appropriate livestock-handling procedures.
• Position the bar correctly across the hindquarter area before adjusting the length.
• Engage the locking pin fully in the selected adjustment hole.
• Ensure the device is secure without creating excessive pressure on the animal.
• Use the immobilizer only for short-duration restraint and under operator supervision.
• Inspect springs, locking pins, adjustment holes, tubes and end caps before use.
• Remove manure, dirt and moisture after operation.
• Replace damaged springs, pins or end caps before continued use.
• Do not use a bent, cracked or excessively corroded restraint device.

Q: What is the main purpose of a cow immobilizer?
A: It is designed to reduce kicking and excessive hindquarter movement during short-duration cattle handling procedures.

Q: Can the immobilizer be adjusted for different cow sizes?
A: Yes. The telescopic tube structure provides multiple length positions for different animal sizes.

Q: How is the selected length locked?
A: The reference design uses free-running springs with 9 mm locking pins engaging a series of 45° offset holes.

Q: What material is used?
A: The reference model is manufactured from galvanized steel. Stainless-steel configurations can also be supplied upon request.

Q: Does the product require assembly?
A: No. The reference configuration is supplied ready for use without assembly.

Q: Can it be used during milking or veterinary procedures?
A: Yes. Typical applications include milking, examination, treatment, artificial insemination support and routine livestock husbandry.

Q: Can SHEWUYOU provide OEM versions for distributors?
A: Yes. Tube specifications, materials, packaging and branding can be customized according to commercial requirements.
