| Product Name |
SMART THREE-WAY SHEEP WEIGHING AND SORTING SYSTEM |
| Product Image |
 |
| Product Overview |
The Smart Three-Way Sheep Weighing and Sorting System is an integrated livestock management solution designed for automated individual identification, weighing, data recording and three-way drafting of goat-farming-equipment/" target="_blank" class="keylink">sheep.
The system combines RFID ear-tag identification, an electronic weighing platform, automated sorting gates, PLC control and an industrial touchscreen. After each animal is identified and weighed, the control system can direct it to the appropriate group according to preset management rules, helping farms improve flock uniformity, feeding management and production efficiency. |
| Product Gallery |

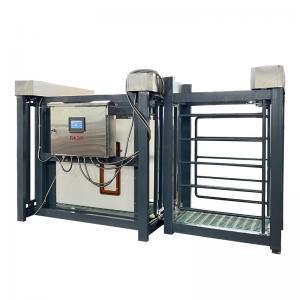

Integrated sheep weighing chamber, RFID identification area, three-way sorting structure, automated gates, industrial touchscreen control cabinet, PLC control system, weighing platform and livestock handling frame. |
| Key Features |
- RFID Individual Identification: Reads compatible electronic ear tags to associate each weighing record with an individual sheep.
- Automatic Weighing: Collects live-weight data as animals pass through the weighing chamber.
- Three-Way Automatic Sorting: Directs sheep into different groups according to preset weight or management criteria.
- PLC Intelligent Control: PLC-based control manages data processing, signal transmission and automated gate logic.
- Industrial Touchscreen: Provides on-site operating controls, parameter settings, system status and data management.
- Automatic Data Recording: Weighing and identification information can be stored for later flock analysis and management.
- Heavy-Duty Structure: Approximately 1500 kg equipment weight provides a robust platform for intensive livestock handling environments.
- Q235 or SUS304 Options: Structural material can be selected according to farm environment and project requirements.
- Expandable Smart Functions: Optional 4G communication, camera integration and temperature data collection are available for customized projects.
- Information-Based Flock Management: Supports weight-based grouping, growth monitoring and more precise feeding strategies.
|
| Working Principle |
When a sheep enters the system, the RFID reader identifies the electronic ear tag and associates the animal with its individual record. The sheep then enters the weighing area, where the electronic weighing system measures and records its body weight.
The PLC processes the identification and weighing data according to preset sorting rules. After the measurement is completed, the control system activates the corresponding gate and directs the sheep toward one of three sorting channels.
The weighing and identification information can be stored through the control system for later analysis, flock grouping and production management. |
| Technical Specifications |
| Product Type |
Automatic Sheep Weighing and Three-Way Sorting System |
| Rated Weighing Capacity |
2000 kg |
| Equipment Weight |
Approx. 1500 kg |
| Overall Length |
3200 mm |
| Overall Width |
1500 mm |
| Overall Height |
1760 mm |
| Material Options |
Q235 Carbon Steel / SUS304 Stainless Steel |
| Animal Identification |
Compatible RFID Electronic Ear-Tag Identification |
| Weighing Function |
Automatic Electronic Livestock Weighing |
| Sorting Configuration |
Three-Way Automatic Drafting |
| Main Controller |
PLC Control System |
| Human-Machine Interface |
Industrial Touchscreen |
| Data Functions |
Identification / Weighing / Storage / Processing / Upload Support |
| Optional Communication |
4G Data Upload Available Upon Request |
| Optional Sensors |
Camera / Temperature Collection According to Project Requirements |
| Customization |
Control Logic, Data Functions and Hardware Configuration Available Upon Request |
|
| Applications |
- Large commercial sheep farms
- Fattening sheep production
- Breeding sheep farms
- Automatic weight-based flock grouping
- Growth-performance monitoring
- Precision feeding management
- Livestock information management
- Pre-sale grading and sorting
- RFID-based individual animal management
- Smart livestock farm projects
|
| Installation & Maintenance |
- Install the equipment on a firm and level foundation with sufficient space for the entrance and three sorting channels.
- Connect surrounding sheep handling alleys so animals can enter and leave the system smoothly.
- Complete weighing calibration and RFID reader testing before commissioning.
- Configure sorting thresholds and operating parameters through the industrial touchscreen according to flock management requirements.
- Check automated gates, sensors and safety-related moving components before each operating session.
- Keep the weighing platform and animal passage free from manure, mud and accumulated debris.
- Inspect load cells, RFID components, cables, PLC connections and gate actuators regularly.
- Keep the electrical control cabinet closed and protect electrical components from direct washdown.
- Back up important animal and weighing records according to the farm's data-management procedure.
- Verify scale accuracy periodically and recalibrate when required.
|
| Product FAQ |
Q: What is the rated weighing capacity?
A: The listed rated weighing capacity is 2000 kg.
Q: What are the overall dimensions?
A: The listed overall dimensions are approximately 3200 × 1500 × 1760 mm.
Q: How does the system identify individual sheep?
A: Compatible RFID electronic ear tags can be read automatically and associated with each animal's weighing record.
Q: How are sheep divided into three groups?
A: The PLC evaluates the collected animal data according to preset sorting rules and activates the corresponding exit gate.
Q: Can animals be grouped according to body weight?
A: Yes. Weight-based automatic grouping is one of the primary applications of the system.
Q: Can weighing records be stored?
A: Yes. The industrial control system supports on-site data storage and management.
Q: Is remote data transmission available?
A: Yes. 4G data upload can be added according to project requirements.
Q: Can cameras or additional sensors be integrated?
A: Yes. Camera integration, temperature collection and other smart-farm functions can be customized according to the project.
|
