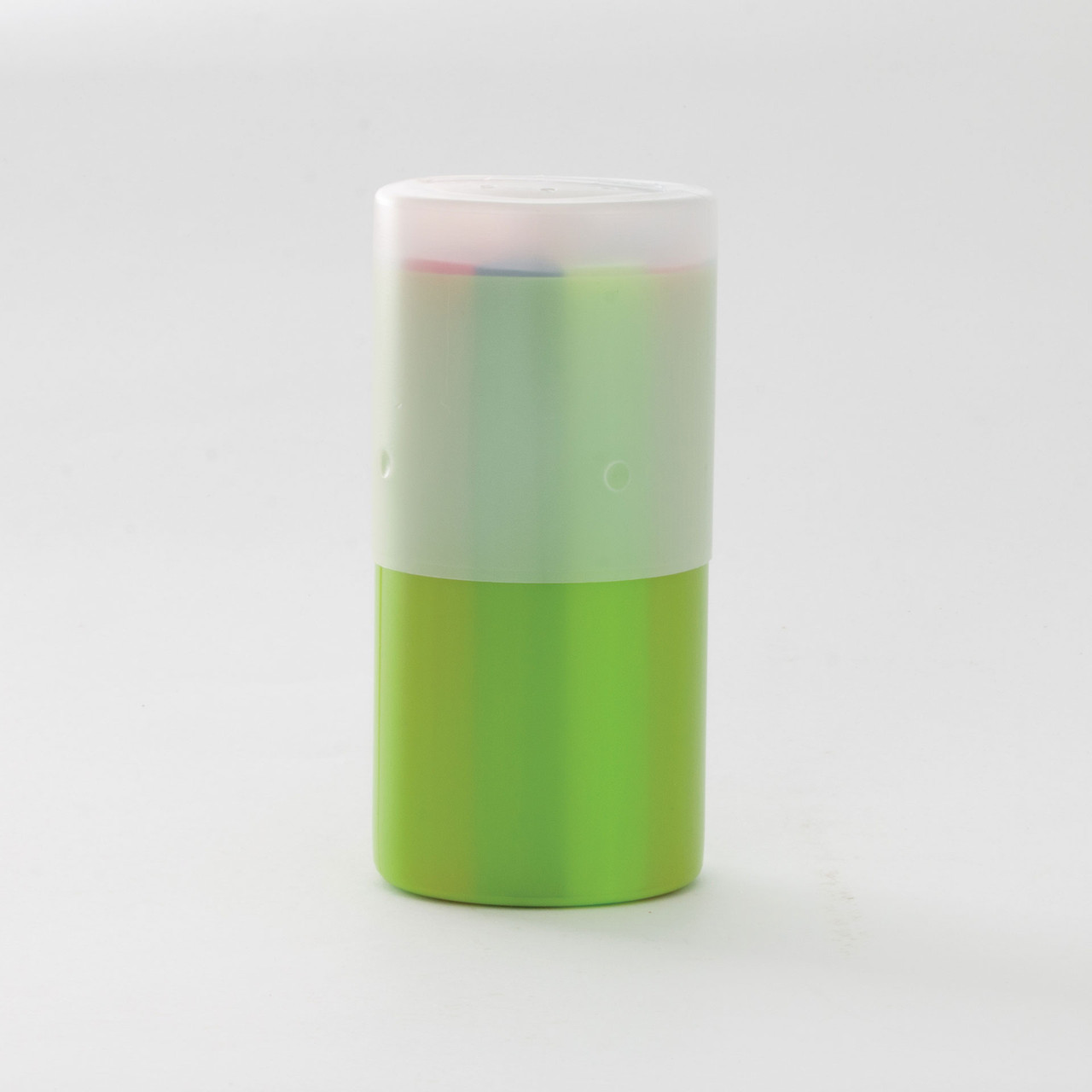

Product Name	Semen Straw Storage Goblet
Product Image
Product Overview	The Semen Straw Storage Goblet is a cryogenic storage accessory designed for organizing frozen semen straws and visotubes inside liquid nitrogen storage systems. It is suitable for artificial insemination centers, semen production laboratories, livestock genetics companies, veterinary reproduction facilities, and commercial breeding programs. The cylindrical storage design helps laboratories classify semen by animal, breed, genetic line, freezing batch, or production date. Different diameters and color-coded options support efficient sample identification and inventory management in high-volume cryogenic storage operations.
Key Features	Designed for storage of visotubes and frozen semen straws inside liquid nitrogen tanks. Multiple diameter options support different cryogenic tank and canister configurations. High-density polyethylene construction suitable for ultra-low-temperature storage. Color-coded options help simplify semen batch identification and inventory control. Compatible with mini and medium semen straw formats. Cylindrical structure provides efficient use of storage space. Suitable for cattle, horses, goat-farming-equipment/" target="_blank" class="keylink">sheep, goats, pigs, and other livestock breeding programs. Can be combined with visotubes, canisters, lifters, identification flags, and cryogenic tanks.
Structural Components	The Semen Straw Storage Goblet uses a lightweight cylindrical body made from high-density polyethylene. The open upper section allows compatible visotubes or semen straws to be inserted and removed efficiently. Depending on the selected storage system, the goblet can be positioned inside compatible liquid nitrogen tank canisters. Smaller visotubes may be arranged within the goblet to divide samples into clearly identifiable groups.
Working Principle / Structural Principle	Frozen semen straws are organized inside suitable visotubes or directly within the selected goblet configuration. The loaded goblet is placed inside a cryogenic canister and lowered into the liquid nitrogen tank. The goblet keeps samples grouped together while they remain within the cryogenic storage environment. During retrieval, the relevant canister is raised temporarily so the technician can identify the required goblet and remove specific semen straws while minimizing exposure to ambient temperature.
Technical Specifications	Product Type Cryogenic semen straw storage goblet Primary Application Storage of semen straws and visotubes in liquid nitrogen tanks Material High-density polyethylene Reference Diameters 35 mm, 42 mm, 53 mm, and 65 mm 65 mm Reference Capacity Up to 365 medium straws or 820 mini straws in bulk 53 mm Reference Capacity Up to 265 medium straws or 565 mini straws in bulk 42 mm Reference Capacity Up to 150 medium straws or 315 mini straws in bulk 35 mm Reference Capacity Up to 100 medium straws or 220 mini straws in bulk 65 mm Reference Height 120 mm 65 mm Reference Weight Approximately 19 g Color Options White, green, red, blue, yellow, violet, pistachio, depending on model Compatible Equipment Liquid nitrogen tanks, canisters, visotubes, lifters, and identification accessories
Applications	Cattle frozen semen storage. Equine semen cryopreservation. Sheep and goat breeding laboratories. Swine genetics and frozen semen programs. Artificial insemination centers. Livestock semen processing laboratories. Genetic resource banks. Veterinary reproduction facilities. Commercial breeding and agricultural projects.
Customization Options	SHEWUYOU can provide semen storage accessories according to liquid nitrogen tank model, straw format, storage capacity, laboratory workflow, and identification requirements. Available options may include different goblet diameters, color combinations, visotubes, canisters, semen straw holders, identification flags, cryogenic forceps, protective equipment, and liquid nitrogen storage tanks. Configurations are available according to project requirements.
Installation & Maintenance	Select a goblet size compatible with the liquid nitrogen tank canister. Arrange semen straws inside appropriate visotubes or the selected storage arrangement and place them securely inside the goblet before lowering the assembly into cryogenic storage. Maintain accurate identification records for each goblet and storage position. Inspect the polyethylene body regularly for cracking, deformation, or other damage caused by repeated handling. During semen retrieval, minimize the time the goblet remains above the liquid nitrogen storage zone and always follow appropriate cryogenic handling procedures.
Project Cases	The Semen Straw Storage Goblet can be incorporated into complete frozen semen storage systems for artificial insemination centers, livestock breeding companies, and genetics projects. A typical system can include liquid nitrogen tanks, cryogenic canisters, goblets, visotubes, semen straws, identification rods, canister flags, cryogenic forceps, and inventory management systems. Color coding can be used to separate breeds, sires, batches, genetic lines, or customer inventories.
Product FAQ	Q: What is a semen straw storage goblet used for? A: It is used to organize frozen semen straws and visotubes inside liquid nitrogen storage tanks. Q: What sizes are available? A: Common reference diameters include 35 mm, 42 mm, 53 mm, and 65 mm. Q: How many straws can a 65 mm goblet hold? A: A reference 65 mm model can hold up to approximately 365 medium straws or 820 mini straws in bulk. Q: Are different colors available? A: Yes. Selected models are available in several colors to support semen batch and inventory identification. Q: Can goblets be used with visotubes? A: Yes. Goblets are commonly used to store visotubes containing frozen semen straws. Q: Can complete cryogenic storage accessories be supplied? A: Yes. Compatible visotubes, canisters, lifters, identification accessories, forceps, and liquid nitrogen tanks are available according to project requirements.
Product Gallery
