Product Name	12V Portable Boar Semen Temperature-Controlled Box

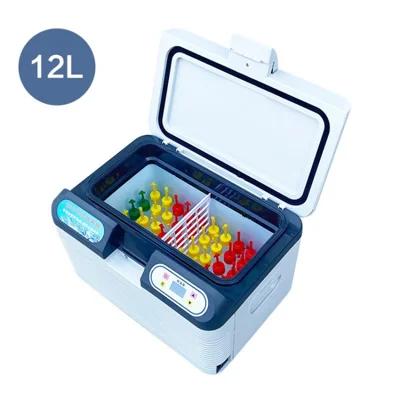

Product Image
Product Overview	The 12V Portable Boar Semen Temperature-Controlled Box is designed for controlled storage and transportation of fresh porcine semen doses between boar studs, artificial insemination laboratories, commercial pig farms, breeding centers, and other livestock reproduction facilities. Its thermoelectric heating and cooling system helps maintain a stable internal environment when ambient temperatures change. The portable cabinet and 12V DC power configuration make the unit particularly suitable for vehicle transport, mobile artificial insemination teams, and semen distribution between centralized boar stations and commercial farms.
Key Features	Designed for storage and transport of fresh boar semen doses. Thermoelectric heating and cooling for controlled internal temperature. Automatic switching between heating and cooling according to operating conditions. Electronic temperature control for stable semen storage management. Insulated cabinet helps reduce the influence of external temperature changes. 12V DC connection is suitable for mobile and vehicle-based operation. Portable construction supports semen delivery between boar studs and pig farms. Preset or adjustable temperature configurations are available according to project requirements.
Structural Components	The typical system consists of an insulated outer cabinet, hinged lid, sealing gasket, internal storage chamber, thermoelectric Peltier heating and cooling module, temperature sensor, electronic controller, ventilation components, power cable, and internal dividers or baskets for organizing semen tubes, bottles, or compatible semen packages. The compact structure is designed to provide convenient loading, transport, cleaning, and daily operation in commercial swine breeding environments.
Working Principle / Structural Principle	The temperature control system uses thermoelectric Peltier technology to provide both heating and cooling. An electronic controller monitors the internal temperature and activates the required operating mode according to the target setpoint. When the internal temperature becomes higher than the required setting, the cooling system removes heat from the chamber. When ambient conditions cause the chamber temperature to fall, the heating function can compensate. This two-way control helps maintain suitable conditions for transporting and temporarily storing fresh boar semen doses.
Technical Specifications	Product Type Portable temperature-controlled boar semen storage and transport box Reference Capacity 8 L Reference Storage Capacity Up to 24 tubes or bottles Reference Temperature Preset +17°C version available Temperature Setting Preset or variable setting according to configuration Heating / Cooling Thermoelectric Peltier system Temperature Control Electronic automatic control Insulation Insulated cabinet; polyurethane foam configuration available Power Supply 12V DC AC Power Option 12V / 100-240V AC converter available upon request Configuration Customizable according to project requirements
Applications	Fresh boar semen transportation. Short-term semen dose storage. Commercial boar studs. Swine artificial insemination centers. Large commercial pig farms. Pig genetics and breeding companies. Mobile veterinary reproduction services. Livestock breeding and agricultural engineering projects.
Customization Options	SHEWUYOU can provide portable semen storage solutions according to transport distance, semen package format, farm operating conditions, local climate, electrical requirements, and commercial breeding workflow. Available options may include different storage capacities, preset or adjustable temperature control, internal dividers, transport baskets, vehicle power cables, AC power converters, temperature monitoring devices, and supporting semen transportation accessories. Final configuration is available according to project requirements.
Installation & Maintenance	Place the temperature-controlled box on a stable surface and keep the ventilation openings unobstructed. When used in a vehicle, secure the unit to prevent excessive movement and connect it to a compatible 12V DC power supply. Before loading semen doses, operate the unit until the required internal temperature is reached. Minimize unnecessary opening of the lid during transportation to reduce temperature fluctuations. Clean the internal chamber regularly and inspect the lid seal, power cable, ventilation openings, temperature controller, and electrical connections. Avoid allowing liquid to enter electrical or ventilation components.
Project Cases	The 12V Portable Boar Semen Temperature-Controlled Box can be incorporated into complete swine artificial insemination and semen distribution projects. A typical system may include semen collection equipment, semen analysis instruments, extender preparation equipment, filling and packaging machines, stationary semen storage cabinets, portable transport boxes, and insemination equipment. For centralized boar stud projects, multiple portable boxes can be used to distribute prepared semen doses to satellite pig farms while supporting temperature-controlled transport during routine breeding operations.
Product FAQ	Q: What is this box mainly used for? A: It is designed for controlled storage and transportation of fresh boar semen doses between semen laboratories, boar studs, and commercial pig farms. Q: Does the unit provide both heating and cooling? A: Yes. A thermoelectric Peltier system can provide both heating and cooling according to internal and ambient temperature conditions. Q: What is the reference storage temperature? A: A preset +17°C configuration is commonly available, while variable-temperature versions can also be supplied. Q: What is the reference capacity? A: The reference compact configuration has an 8 L capacity and can hold up to 24 tubes or bottles. Q: Can it be powered from a vehicle? A: Yes. The 12V DC configuration is designed for mobile operation with a compatible vehicle power supply. Q: Can it also be used with AC mains power? A: Yes. A compatible 12V / 100-240V AC converter can be supplied upon request. Q: Are other capacities available? A: Yes. Different storage capacities and configurations can be supplied according to project requirements.
