Product Name	Large-Capacity Heated Semen Extender Vat

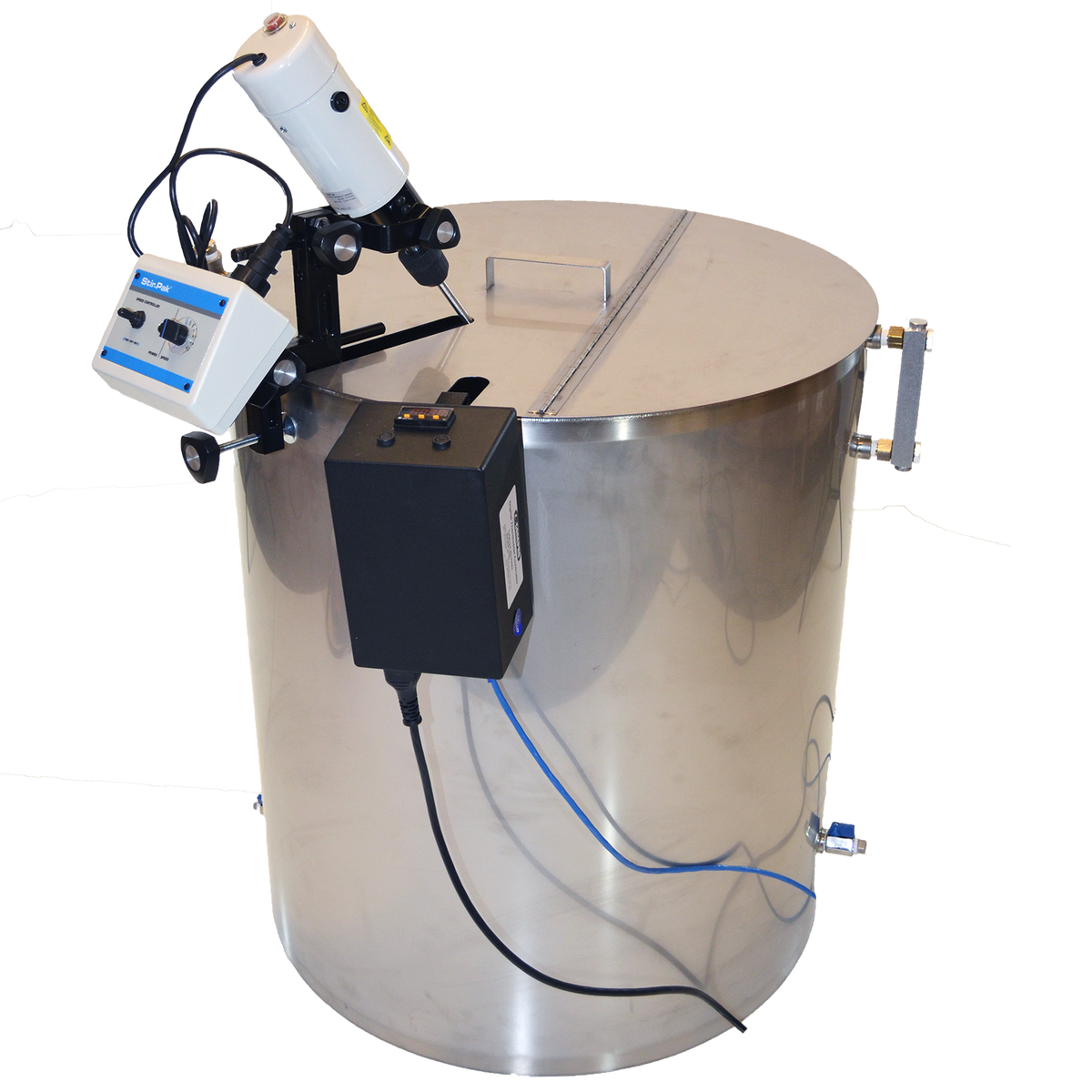

Product Image
Product Overview	The Large-Capacity Heated Semen Extender Vat is designed for the preparation, heating, and controlled mixing of semen extender in commercial boar studs, swine artificial insemination laboratories, breeding centers, and livestock genetics facilities. The system uses a stainless steel vessel with a double-wall heating structure to promote even heat distribution and stable extender preparation. Depending on the selected configuration, the vat can be equipped with a mixer, temperature controller, scale, mobile base, disposable liner, plumbing components, and other semen processing accessories. It is suitable for facilities that require efficient batch preparation, hygienic operation, repeatable processing procedures, and integration with downstream semen dilution and packaging equipment.
Key Features	Large-capacity configuration for commercial semen processing laboratories. Stainless steel construction supports durability, cleaning, and routine disinfection. Double-wall heating design helps improve heat distribution throughout the vessel. Temperature control system supports controlled extender preparation. Optional variable-speed mixing system promotes uniform dissolution and blending. Smooth internal surfaces simplify cleaning and reduce areas where residues can accumulate. Optional disposable liner system supports hygienic batch processing. Mobile base, weighing system, lid, mixer, controller, and plumbing packages are available upon request. Capacity and electrical configuration can be selected according to project requirements.
Structural Components	The typical system consists of a stainless steel mixing vessel, double-wall heating jacket, insulated or covered top section, temperature control unit, outlet connection, electrical heating components, and supporting base. Optional configurations can include a motorized agitator, mixer shaft, digital scale, mobile dolly, disposable liner, plumbing fittings, heated lid, UV sanitation components, and transfer pump connections. The modular structure allows the vat to be configured as a basic heated vessel or as part of a complete semen extender preparation workstation.

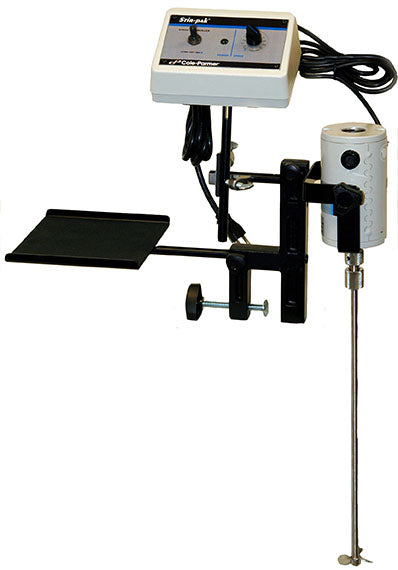

Working Principle / Structural Principle	The heating system transfers heat through the double-wall jacket to help bring purified water or prepared extender to the required processing temperature. The controller regulates heating according to the selected operating setting. When equipped with an agitator, the mixer circulates the liquid inside the vat to promote uniform dissolution of semen extender powder and stable distribution of dissolved components. After preparation, the extender can be transferred through the outlet or compatible pumping system to the next stage of semen processing. Disposable liner options can be used to reduce direct contact between the prepared extender and the vessel interior, supporting more efficient cleaning and laboratory hygiene management.
Technical Specifications	Product Type Heated semen extender preparation and mixing vat Application Boar semen extender preparation and dilution processing Construction Stainless steel Heating Structure Double-wall fluid or heated jacket design Capacity Large-capacity configurations available according to project requirements Reference Capacity Range Commercial systems are commonly available from approximately 20 L to 200 L Temperature Control Adjustable electronic control system Mixer Optional variable-speed agitator Electrical Configuration Available according to project requirements Scale Available upon request Mobility Fixed or wheeled configuration available upon request Disposable Liner Available upon request
Applications	Commercial boar studs. Swine artificial insemination centers. Pig genetics and breeding companies. Porcine semen processing laboratories. Large-scale pig breeding farms. Veterinary reproduction laboratories. Livestock breeding and agricultural engineering projects. Centralized semen production and distribution facilities.
Customization Options	SHEWUYOU can configure the semen extender vat according to laboratory capacity, semen production volume, workflow, electrical supply, and project requirements. Available options may include different vessel capacities, heating configurations, temperature controllers, mixer assemblies, mixer shafts, mobile bases, digital scales, disposable liners, outlet fittings, transfer pumps, lids, sanitation accessories, and integration with semen dilution or packaging systems. Final configuration can be designed according to local climate, laboratory layout, farm operating conditions, and commercial project requirements.
Installation & Maintenance	Install the equipment on a stable, level laboratory floor with sufficient working space around the vessel. Electrical supply, drainage, water connections, and transfer piping should be arranged according to the selected configuration and local installation requirements. Before operation, inspect the heating system, controller, mixer, outlet fittings, electrical connections, and liner if fitted. After each production cycle, clean and disinfect all reusable surfaces and components that may contact the extender. Mixer shafts, seals, valves, fittings, wheels, scales, and temperature control components should be inspected regularly. Disposable liners and other single-use consumables should be replaced according to laboratory hygiene procedures.
Project Cases	The Large-Capacity Heated Semen Extender Vat can be integrated into new or upgraded boar stud laboratories as part of a complete semen processing workflow. Typical projects may combine purified water systems, heated extender vats, semen evaluation equipment, dilution systems, transfer pumps, semen packaging machines, temperature-controlled storage units, laboratory workbenches, and sanitation equipment. For commercial breeding projects, the vat capacity and supporting equipment can be matched to daily semen collection volume, extender consumption, packaging capacity, and laboratory workflow.
Product FAQ	Q: What is a heated semen extender vat used for? A: It is used to prepare, heat, mix, and temporarily hold semen extender before it is combined with processed boar semen. Q: Can the vat be supplied with a mixer? A: Yes. A variable-speed mixer and compatible mixer shaft can be supplied according to project requirements. Q: Are large-capacity versions available? A: Yes. Commercial extender mixing systems are available in multiple capacities, including configurations suitable for high-volume semen production facilities. Q: Can the equipment be supplied with a weighing system? A: Yes. Integrated or supporting scale configurations are available upon request. Q: Is a disposable liner available? A: Yes. Compatible disposable liners can be supplied to support hygienic extender preparation and easier cleaning. Q: Can the electrical configuration be customized? A: Yes. Electrical and heating configurations can be selected according to project requirements and local power supply conditions.
Product Gallery
