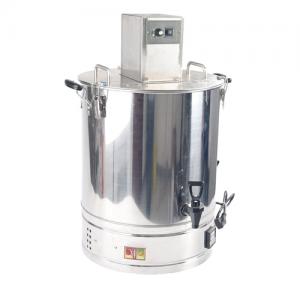

30 L Boar Semen Extender Mixing Tank

The 30 L Boar Semen Extender Mixing Tank is designed for preparing and warming semen extender in commercial boar studs, pig artificial insemination centers and semen processing laboratories.

The unit combines controlled heating with mechanical mixing to help dissolve extender powder evenly and maintain the prepared solution at the required working temperature.

Its 30-liter capacity is suitable for routine batch preparation in medium and large pig AI laboratories.

• 30 L Capacity: Suitable for batch preparation of boar semen extender.
• Microcomputer Temperature Control: Provides convenient temperature setting and monitoring.
• Heating Ring System: Provides efficient heating for extender preparation.
• Integrated Mixing: Helps dissolve extender powder and maintain a uniform solution.
• Wide Temperature Range: Supports heating from ambient temperature up to 100°C.
• Bottom Discharge Valve: Allows convenient transfer of prepared liquid.
• Laboratory-Oriented Design: Suitable for commercial pig AI and semen processing facilities.

Purified water is added to the tank and heated to the required preparation temperature. Semen extender powder is then added according to the manufacturer's recommended mixing ratio.

The motor-driven agitator continuously mixes the solution while the microcomputer controller regulates heating. After complete dissolution and temperature stabilization, the prepared extender can be transferred for semen dilution.

Technical specifications may vary by production configuration. Please confirm voltage, stirring parameters and final configuration before ordering.

• Boar semen extender preparation
• Extender powder dissolution
• Temperature-controlled liquid mixing
• Semen dilution preparation
• Commercial boar studs
• Pig artificial insemination centers
• Pig genetics and breeding laboratories

• Place the tank on a stable and level laboratory surface.
• Use purified water that meets the semen extender manufacturer's requirements.
• Confirm the required liquid volume before switching on the heating system.
• Do not operate the heater when the tank is empty.
• Clean the tank, agitator and outlet after each preparation cycle.
• Remove extender residue promptly to maintain laboratory hygiene.
• Inspect the mixer, controller and heating system regularly.

Q: What is this 30 L mixing tank mainly used for?
A: It is designed for preparing, heating and mixing boar semen extender before semen dilution.

Q: What is the tank capacity?
A: The listed capacity is 30 liters.

Q: Does the unit provide temperature control?
A: Yes. It uses a microcomputer temperature controller with a heating range up to 100°C.

Q: How is the liquid heated?
A: The listed configuration uses a heating-ring system with approximately 2500 W heating power.

Q: Can it mix semen extender automatically?
A: Yes. The top-mounted mechanical agitator continuously mixes the liquid during extender preparation.

Q: Is the prepared extender easy to discharge?
A: Yes. A bottom outlet valve allows the prepared liquid to be transferred conveniently.

Q: Is it suitable for commercial pig AI centers?
A: Yes. The 30 L capacity is suitable for routine extender preparation in commercial boar studs and semen processing laboratories.
