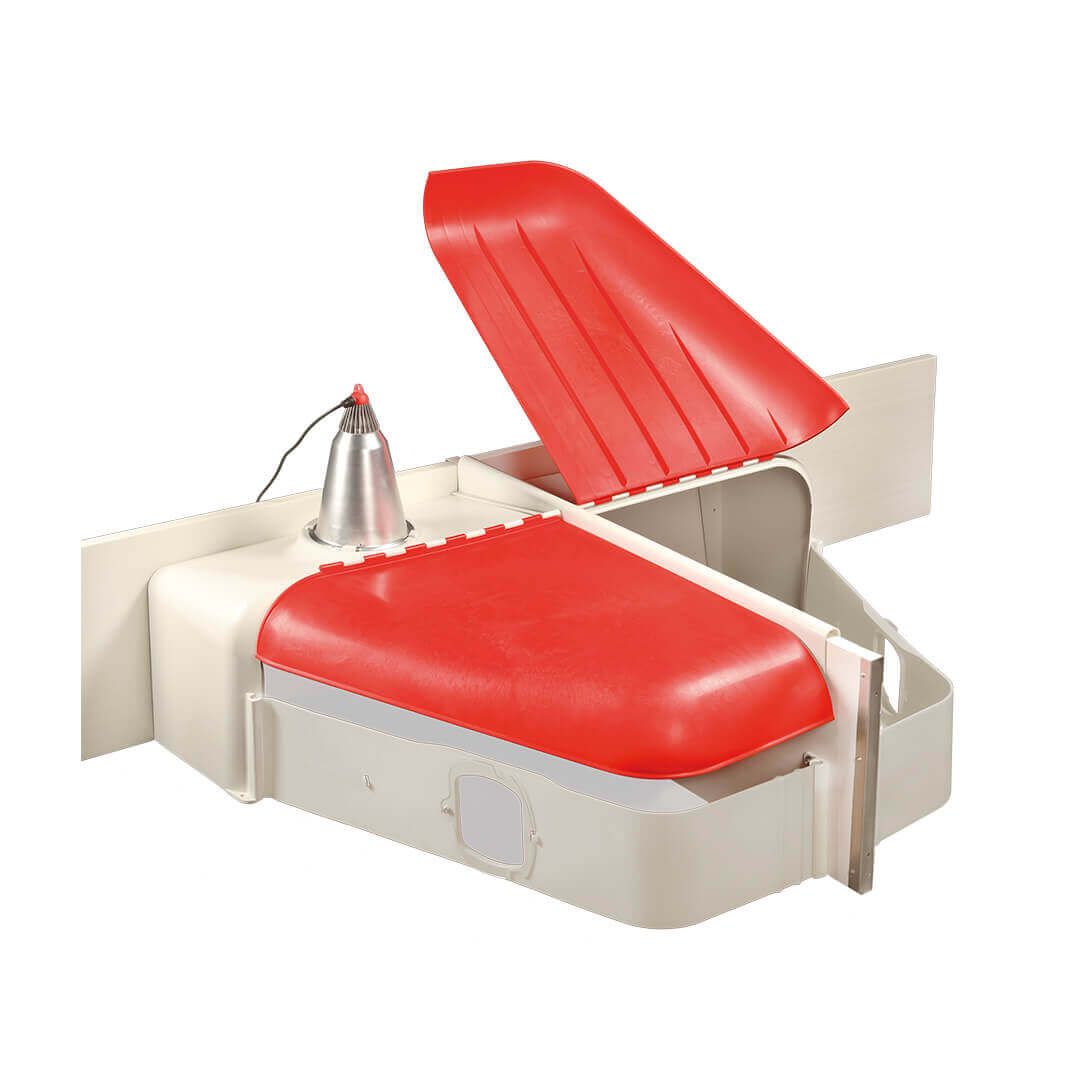

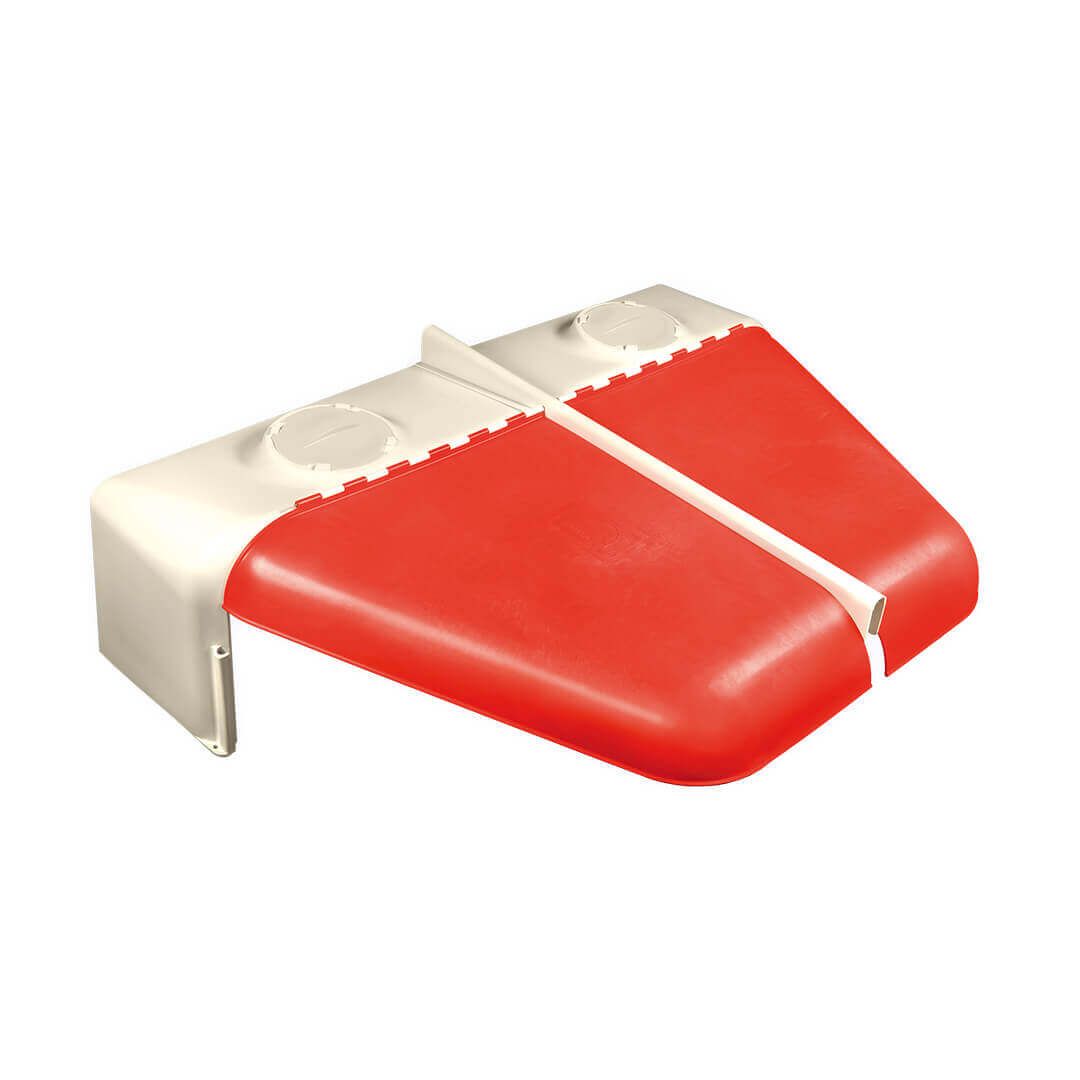

Piglet Creep Box with Heat Lamp Opening

The Piglet Creep Box with Heat Lamp Opening is designed to create a warm and protected resting area for newborn piglets in farrowing pens. The integrated lamp opening allows a compatible infrared heat lamp to be positioned directly above the creep zone while maintaining a close connection between the lamp assembly and the cover.

The enclosed structure helps reduce drafts and localized heat loss, allowing the piglet microclimate to be managed separately from the sow area. This design is suitable for commercial pig farms, standardized farrowing houses and complete livestock equipment projects requiring efficient piglet heating and convenient daily management.

• Integrated heat lamp opening for localized piglet heating.
• Close-fitting lamp connection helps minimize unwanted air leakage around the opening.
• Creates a protected microclimate for newborn piglets in farrowing pens.
• Helps reduce drafts and unnecessary heat loss in the creep area.
• Supports separate thermal management for piglets and lactating sows.
• Sloped cover structure facilitates cleaning and routine sanitation.
• Smooth construction reduces dirt accumulation and simplifies washing.
• Suitable for intensive commercial pig production and new-build farm projects.

• Creep Cover Body: Forms the insulated upper zone above the piglet resting area.
• Heat Lamp Opening: Provides a dedicated mounting position for a compatible infrared lamp or lamp adapter.
• Lamp Connection Interface: Helps maintain continuity between the heat source and creep cover to limit drafts.
• Hinged or Accessible Cover Section: Allows access for piglet handling, cleaning and inspection depending on the selected configuration.
• Fixed Support Section: Provides structural stability and connection to compatible farrowing pen partitions.
• Optional Closing Components: Available according to pen layout and piglet management requirements.

The creep box partially encloses the piglet resting zone and positions the heat lamp directly above the protected area. Heat from the lamp is concentrated beneath the cover, while the enclosed structure helps reduce convective heat loss and exposure to drafts. This allows the piglet zone to remain warmer without raising the temperature of the entire farrowing room to the same level.

• Commercial farrowing houses
• Newborn piglet creep areas
• Sow and piglet maternity pens
• Infrared piglet heating systems
• Large-scale pig breeding farms
• New pig farm construction projects
• Farrowing house renovation projects
• Integrated livestock equipment packages

• Cover dimensions customizable according to farrowing pen layout.
• Heat lamp opening configuration available according to project requirements.
• Lamp holder and adapter options available upon request.
• Fixed or accessible cover arrangements can be supplied according to farm management requirements.
• Piglet entrance and closing components can be customized.
• Integration with heating plates and slatted flooring is available upon request.
• Complete creep-area systems can be designed according to local climate and farm conditions.

The creep box should be installed over the designated piglet resting area and coordinated with the farrowing pen partitions, flooring system and heat source. The lamp opening should align correctly with the compatible lamp holder or adapter to provide stable positioning and minimize gaps around the connection.

For routine maintenance, remove dust and organic residues from the cover and lamp connection area. Wash and disinfect according to the farm hygiene program. The heat lamp, cable, switch, holder and electrical connections should be inspected regularly and installed in accordance with applicable local electrical and livestock-house safety requirements.

Q: What is the purpose of the heat lamp opening?

A: It provides a dedicated position for installing a compatible infrared heat lamp directly above the piglet creep area, helping concentrate heat where newborn piglets need it.

Q: Can the creep box be supplied without a lamp?

A: Yes. The cover, lamp holder and heating components can be configured separately according to project requirements.

Q: Can it be combined with a piglet heating plate?

A: Yes. Depending on the farm design, the creep box can be integrated with floor heating plates or other localized piglet heating systems.

Q: Can the dimensions be customized?

A: Yes. Dimensions, lamp opening position and mounting arrangements can be customized according to the farrowing pen layout and project requirements.

Q: Is it suitable for commercial pig farms?

A: Yes. The product is intended for standardized farrowing facilities requiring localized piglet heating, convenient cleaning and integration with commercial livestock equipment systems.
