Transparent Mobile Piglet Creep Box

Published: 2026-09-03 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Transparent Mobile Piglet Creep Box

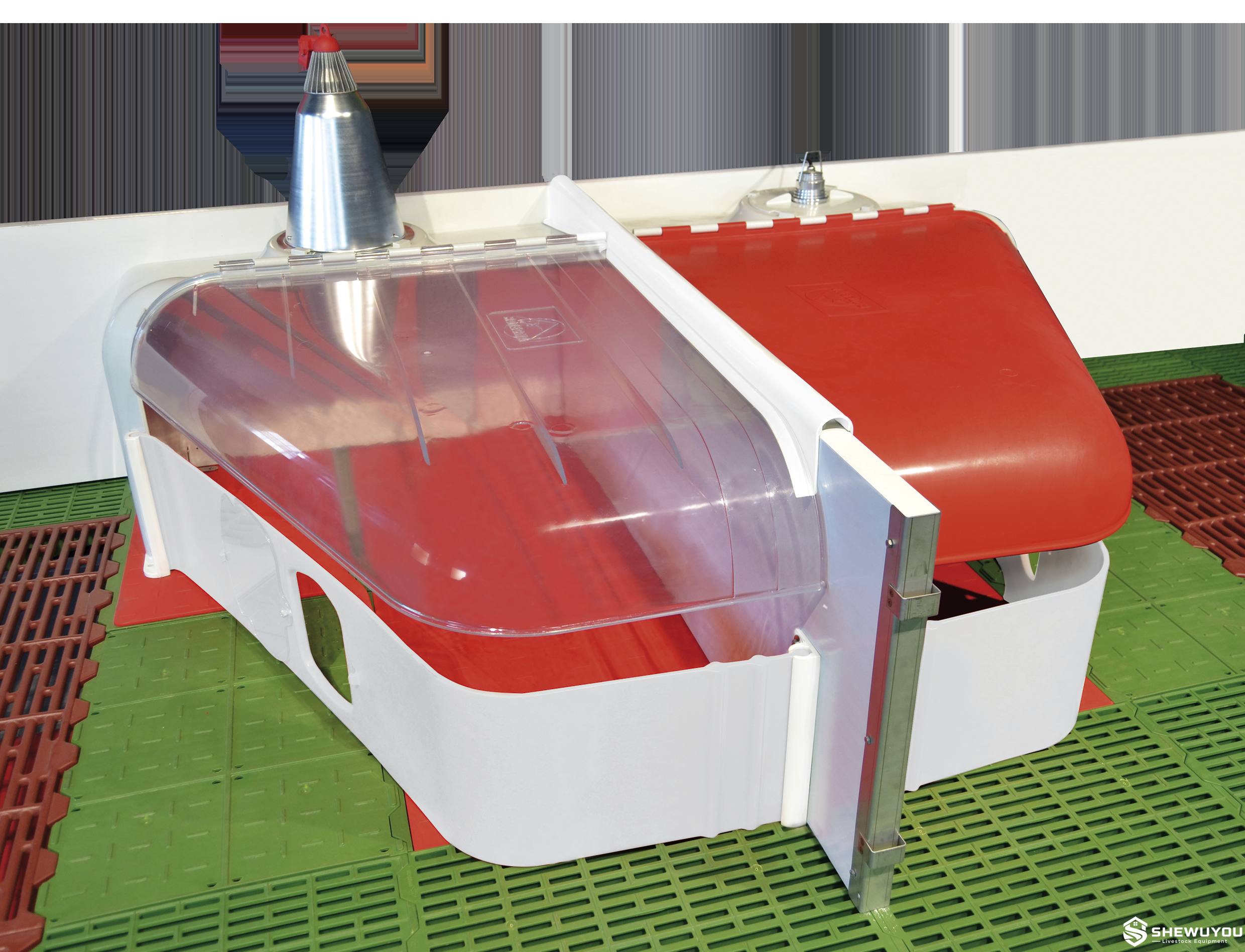

Product Image Transparent Mobile Piglet Creep Box
Product Overview The Transparent Mobile Piglet Creep Box is a portable nest cover designed to create a protected microclimate for newborn and suckling piglets in commercial farrowing pens. The transparent cover provides clear visibility inside the creep area, allowing farm personnel to observe piglet distribution and activity without repeatedly lifting the cover. Its movable structure provides flexible positioning while helping protect piglets from drafts and reduce localized heat loss.
Key Features
  • Transparent cover provides convenient visual inspection of piglets inside the creep area.
  • Portable design allows flexible positioning and relocation between farrowing pens.
  • Creates a sheltered microclimate that helps protect newborn piglets from drafts and heat loss.
  • Quick and easy height adjustment supports practical microclimate management.
  • Top opening can accommodate an infrared heat lamp or compatible lighting and heating equipment.
  • Lightweight and sturdy monoblock-type construction supports intensive commercial farm use.
  • Smooth internal surfaces without unnecessary ribs simplify washing and sanitation.
  • Allows the farrowing room to operate at a lower ambient temperature while maintaining localized warmth for piglets.
Structural Components The system typically consists of a transparent protective canopy, supporting frame or positioning structure, height-adjustment components, piglet access area and a top opening for compatible heating equipment. The lightweight cover can be lifted for convenient access to the creep floor during cleaning and inspection. Depending on project requirements, it can be integrated with piglet heating plates, infrared lamps, PP or PVC pen partitions and other commercial farrowing equipment.
Working Principle / Structural Principle The transparent canopy forms a sheltered zone over the piglet resting area, limiting direct air movement and helping retain localized heat. An infrared lamp, heating plate or other compatible heat source can provide additional warmth beneath the cover. The transparent structure enables caretakers to inspect piglets without unnecessarily opening the creep box, supporting efficient routine management while minimizing disturbance to the protected microclimate.
Technical Specifications
Product Type Transparent mobile piglet creep box / nest cover
Application Farrowing pens and maternity pig houses
Cover Type Transparent protective canopy
Installation Type Portable / movable
Height Adjustment Adjustable according to operating requirements
Heating Compatibility Infrared heat lamp, heating plate or compatible localized heating system
Lamp Opening Available for compatible infrared lamp or LED equipment
Structure Lightweight and durable monoblock-type construction
Dimensions Customizable according to project requirements
Climate Configuration Designed according to local climate and farm conditions
Applications
  • Commercial sow farrowing houses
  • Newborn and suckling piglet creep areas
  • Conventional farrowing crate systems
  • Free-farrowing and welfare-oriented maternity pens
  • Farrowing facilities requiring frequent visual piglet inspection
  • Temporary or seasonal piglet microclimate management
  • New pig farm construction and maternity-house renovation projects
  • Integrated commercial swine equipment projects
Customization Options SHEWUYOU can configure the Transparent Mobile Piglet Creep Box according to farrowing-pen dimensions, creep-area layout and heating requirements. Cover dimensions, support configuration, installation height, heating compatibility and connection details can be customized. The system can also be coordinated with galvanized steel farrowing crates, PP or PVC partitions, plastic slatted flooring, piglet heating plates, feeders and drinking equipment for complete pig farm projects.
Installation & Maintenance Position the creep box above the designated piglet resting and heating area while maintaining convenient piglet access. Adjust the cover height according to the required microclimate and heating arrangement. Where an infrared lamp is installed, electrical components should follow the equipment manufacturer's instructions and applicable livestock-house electrical safety requirements. The movable cover can be lifted to provide convenient access to the floor for washing and disinfection. Transparent surfaces should be cleaned with suitable non-damaging cleaning materials to maintain visibility.
Project Cases Transparent mobile creep boxes are suitable for commercial farrowing projects where farm personnel require both localized piglet climate control and convenient visual supervision. The movable design can be used temporarily during the critical period after birth or throughout lactation according to farm management requirements. For complete projects, SHEWUYOU can integrate the creep boxes with farrowing crates, partition systems, plastic flooring, heating plates, heat lamps, feeding equipment and drinking systems.
Product FAQ

Q: What is the advantage of a transparent creep box?
A: The transparent cover allows farm personnel to observe piglets inside the nest without repeatedly lifting the cover, making routine inspection more convenient while helping maintain the protected microclimate.

Q: Is the creep box permanently installed?
A: No. The mobile configuration is designed for convenient positioning, relocation and removal according to farrowing-house management requirements.

Q: Can the height be adjusted?
A: Yes. Height-adjustable configurations allow the position of the cover to be adapted to operating and microclimate requirements.

Q: Can an infrared lamp be installed?
A: Yes. The upper section can be configured with an opening for compatible infrared heating equipment.

Q: Can it be combined with a piglet heating plate?
A: Yes. The creep box can be positioned over a compatible heating plate to create a concentrated warm resting area for piglets.

Q: Can SHEWUYOU customize the system for complete farrowing projects?
A: Yes. Dimensions, support configuration, heating arrangement and integration with other farrowing equipment can be customized according to project requirements.

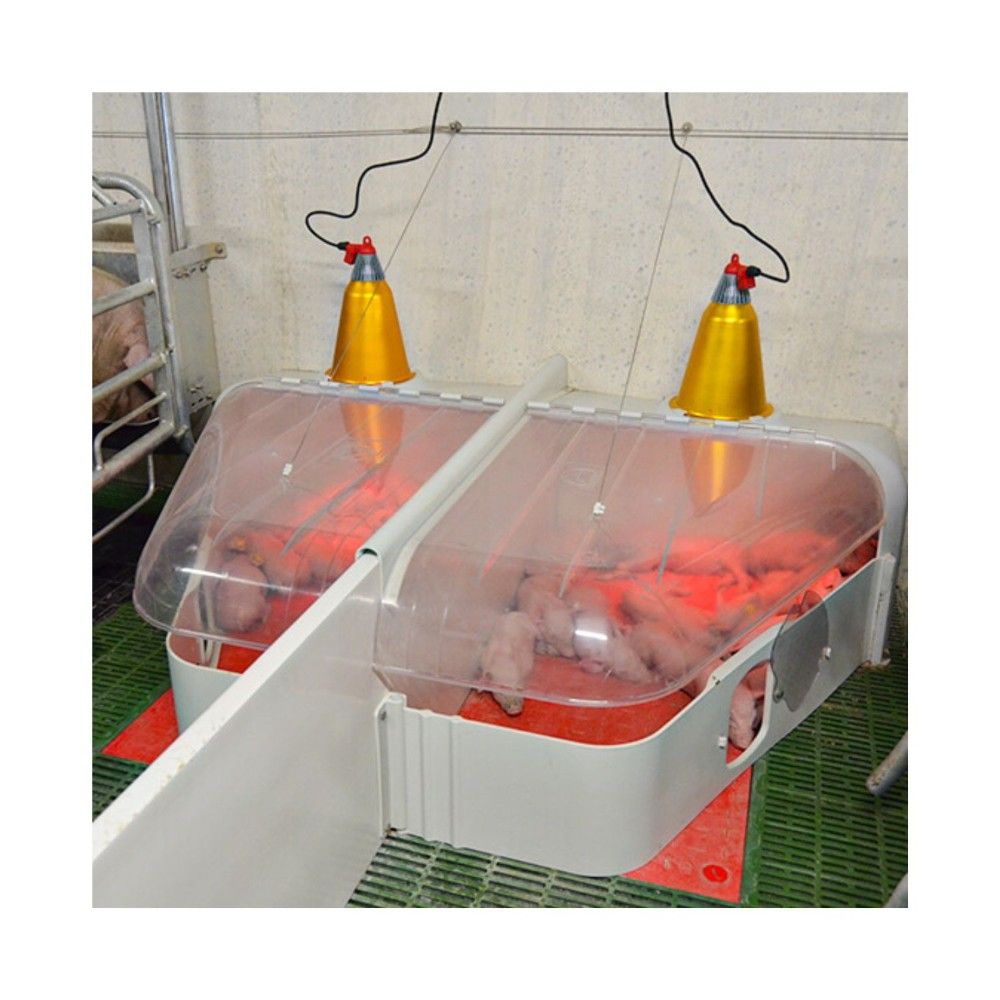

Product Gallery Transparent Piglet Creep Box with Heat Lamp

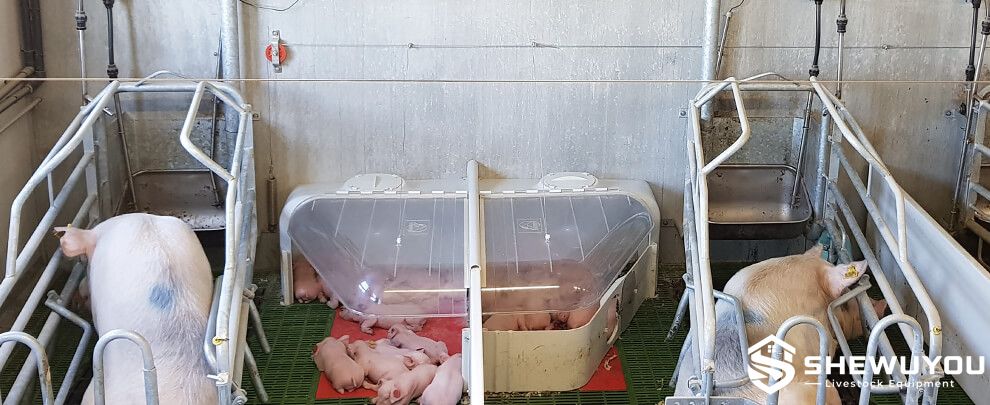

Transparent Piglet Creep Box in Farrowing Pen

Transparent Piglet Nest Cover for Farrowing House
