Dual-Height Stepped Cattle Loading Ramp

Published: 2026-09-26 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Dual-Height Stepped Cattle Loading Ramp
Product Image Dual-height stepped cattle loading ramp with upper and lower loading paths
Product Overview The Dual-Height Stepped Cattle Loading Ramp connects a cattle handling yard to both decks of a suitable livestock truck. A diverter gate directs cattle toward the selected loading path, while the stepped floor provides defined hoof positions on the incline. The structure is designed as a permanent part of a farm or commercial yard loading area.
Key Features
  • Separate routes provide direct access to upper and lower truck decks.
  • Stepped loading surfaces support cattle footing and forward movement.
  • Sheeted sides guide animals and reduce distractions along the ramp.
  • Entry diverter gate selects the required loading route.
  • Operator walkway, handrail and access gates support controlled loading.
  • Galvanized steel construction is suited to outdoor livestock facilities.
Structural Components A typical system includes a structural steel frame, lower and upper loading passages, stepped floors, sheeted side panels, an entry diverter gate, loading landings and operator access points. Walkways, handrails, foundations and connections to the lead-up race are specified for the site.
Working Principle After aligning and securing the truck at the loading point, the operator sets the diverter gate for the lower or upper deck. Cattle move from the holding yard through the lead-up race and along the selected enclosed path. Operators manage the gates and monitor animal flow from designated access areas.
Technical Specifications
  • Installation type: Permanent, site-specific
  • Loading arrangement: Upper and lower truck deck access
  • Reference construction: Galvanized steel frame with sheeted sides
  • Floor configuration: Stepped cattle loading surfaces
  • Ramp dimensions and deck heights: According to project requirements
  • Structural capacity and foundation design: Available upon request for the confirmed layout
Applications Suitable for beef cattle farms, feedlots, breeding operations, livestock collection yards and commercial loading facilities using compatible double-deck trucks. It can be integrated with cattle races, drafting gates, holding pens and loading areas associated with steel-structure farm buildings.
Customization Options Upper and lower deck heights, ramp length, internal width, gate layout, landing geometry, side sheeting and operator access can be reviewed according to project requirements. The final design should account for truck dimensions, yard flow, ground levels and local climate conditions.
Installation & Maintenance Install the ramp on engineered foundations or a suitable raised concrete base and connect its entrance to the cattle race. Confirm that both loading exits align with the intended truck decks before commissioning. Remove manure and debris after use, and inspect steps, gates, hinges, handrails, fixings and galvanized surfaces regularly.
Product FAQ

How are cattle directed to each deck?
An entry diverter gate selects the upper or lower loading path.

What site information is needed for design?
Provide truck deck heights, vehicle access dimensions, yard drawings, ground levels and expected cattle flow.

Can the ramp connect to an existing yard?
The entry connection and gate arrangement can be designed around a compatible lead-up race.
Product Gallery

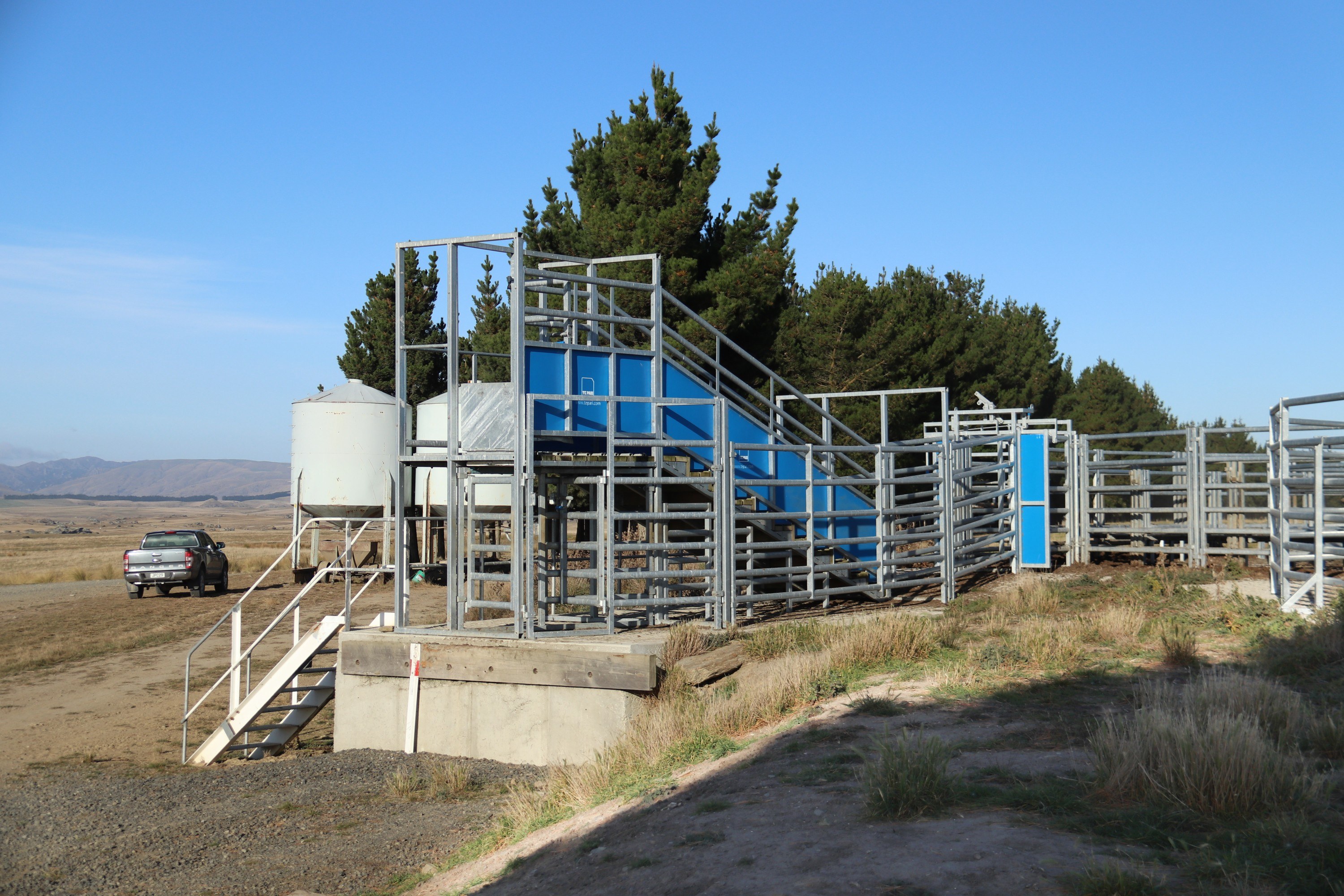

Dual-height cattle loading ramp installed in a livestock yard

Cattle loading ramp operator gate beside double-deck truck

Stepped dual-height cattle loading ramp beside steel farm building
