Name: Batch Animal By-Product Pressure Sterilizer
Brand: SHEWUYOU

Product Showcase	Content
Product Name	Batch Animal By-Product Pressure Sterilizer
Product Image	Representative equipment image for configuration reference.
Product Overview	The Batch Animal By-Product Pressure Sterilizer is designed for controlled thermal treatment of animal by-products in a sealed, agitated vessel. Indirect heating through a jacket, together with mixing, helps distribute heat through each batch. The equipment can be specified for livestock by-product handling, carcass processing and rendering lines serving commercial pig farms and agricultural projects.
Key Features	Batch operation allows temperature, pressure and holding time to be controlled for the selected process. Indirect steam or thermal-oil heating can be selected according to the available utility system. Internal agitation promotes more even treatment of mixed by-products. A robust vessel and serviceable drive arrangement suit demanding processing environments. Feed, discharge and piping connections can be planned around the overall rendering line.
Structural Components	Typical assemblies include the pressure-rated processing vessel, heating jacket, agitator and drive, feed opening, discharge arrangement, thermal insulation, temperature and pressure instruments, safety devices, and utility connections. Final component selection depends on the approved process and project design.
Working Principle	Prepared by-products are loaded into the vessel and the opening is secured. Heat transfers indirectly from steam or thermal oil through the heated surfaces while the agitator moves the material. The control system monitors the specified temperature, pressure and holding period. After the cycle, the vessel is depressurized under the approved operating procedure before discharge. The treatment cycle must be validated for the intended material and applicable local requirements.
Technical Specifications	Operating mode: Batch pressure treatment Heating method: Indirect steam or thermal oil, according to project requirements Vessel capacity: Customizable Contact material: Available upon request Design pressure, temperature and cycle duration: According to project and regulatory requirements Electrical supply and control configuration: According to project requirements
Applications	Suitable for engineered animal by-product treatment and batch rendering facilities associated with commercial pig farms, livestock groups, poultry operations and agricultural waste projects. Feed preparation, permitted materials and the required treatment outcome should be confirmed during process design.
Customization Options	Vessel size, heating medium, agitator arrangement, material selection, loading and discharge interfaces, instrumentation, and control functions can be configured for the project. Layout can be coordinated with a dedicated processing room or a steel structure building, with access for lifting, inspection and maintenance.
Installation & Maintenance	Provide a suitable foundation, lifting access, utility connections and clearance around the vessel and drive. Installation planning should include pressure-vessel approvals, steam or thermal-oil services, condensate or heat-transfer connections, ventilation and safe discharge handling as applicable. Routine maintenance includes inspection of seals, agitator drive, instruments, valves, safety devices and heated surfaces according to the supplied operating manual.
Product FAQ	Can the sterilizer be integrated into an existing rendering line? Yes. Feed, discharge, utilities and controls can be reviewed against the existing plant layout. Is steam the only heating option? Indirect steam and thermal-oil heating are possible configurations, subject to project design. Does the machine alone guarantee a compliant treatment result? The complete process, including feed preparation, operating cycle, monitoring and validation, must meet the requirements that apply at the installation site.

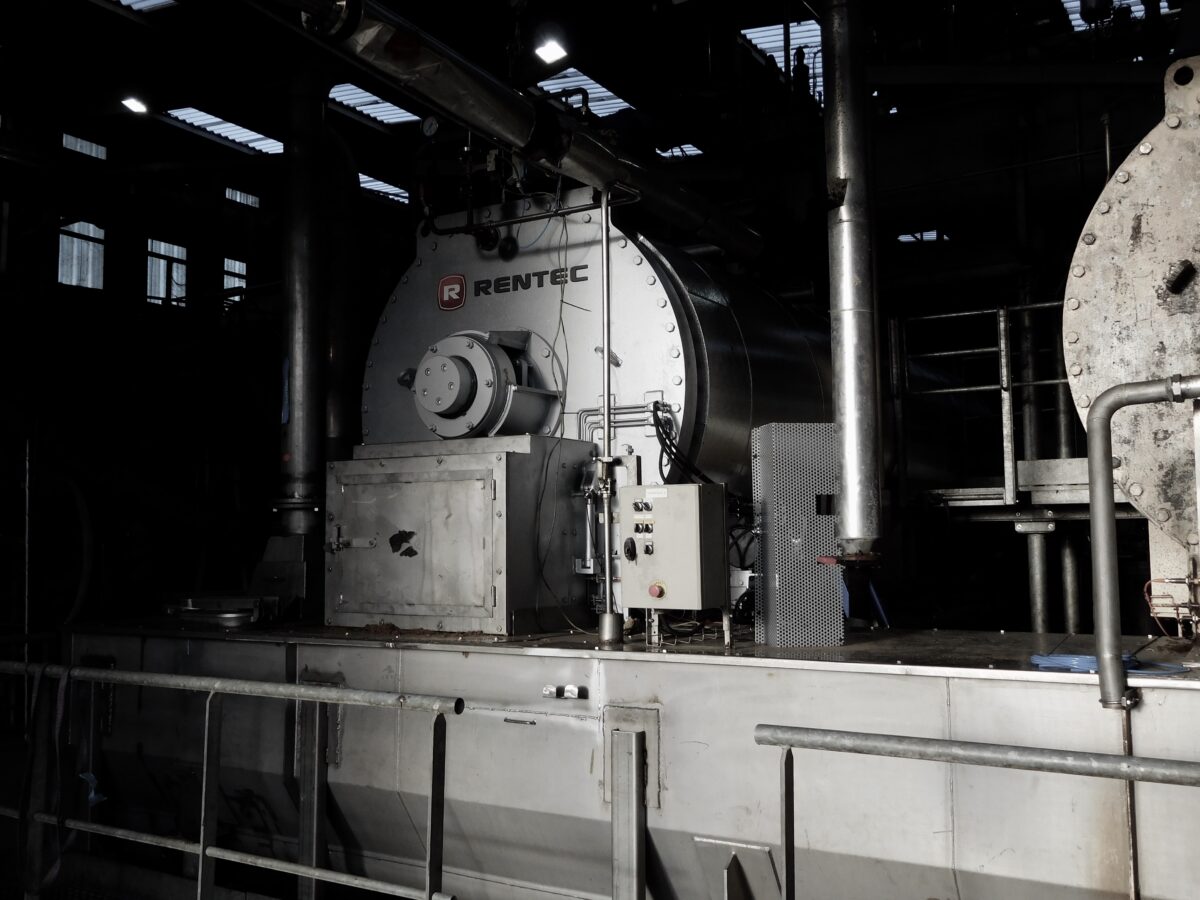

Product Gallery	Representative equipment and installation images; final project configuration may differ.

Batch Animal By-Product Pressure Sterilizer

Batch Animal By-Product Pressure Sterilizer
