| Product Showcase | Content |
|---|---|
| Product Name | Foot-Mounted Electric Wire Rope Hoist |
| Product Image |
 Illustrative manufacturer reference image; supplied configuration may vary. |
| Product Overview | The Foot-Mounted Electric Wire Rope Hoist is designed to be secured by its mounting feet to an engineered base or supporting structure. It provides powered lifting at a fixed installation point and can also serve as a hoist component within a separately engineered lifting assembly. This configuration is useful for planned equipment handling in commercial pig farms, livestock equipment workshops, and steel structure buildings. |
| Key Features |
|
| Structural Components | Typical components include a foot-mounted frame, lifting motor, reduction gearbox, brake, rope drum, rope guide, wire rope, hook block, and electrical controls. The mounting fasteners, foundation or steel support, sheaves, and rigging arrangement must be specified as part of the complete lifting system. |
| Working Principle | The motor drives the drum through the gearbox. As the drum winds or pays out the wire rope, the reeved hook block rises or falls. The brake holds the load when lifting stops, subject to the design of the selected hoist. Rope lead-off, sheave positions, and hook travel must follow the approved installation drawing. |
| Technical Specifications |
|
| Applications | Applications may include designated maintenance lifting points for pumps, motors, ventilation equipment, and feed system components in pig farms and livestock facilities. The hoist can also be integrated into workshop lifting equipment or a custom steel structure lifting assembly. Each application requires an engineered support and load path. The hoist is for materials only, not for lifting people or animals. |
| Customization Options | Rated capacity, lift height, reeving, mounting orientation, control method, power supply, and protective finish can be discussed according to project requirements. For installation in livestock buildings, provide details of humidity, dust, cleaning chemicals, and washdown practices so the configuration can be evaluated against local climate and farm conditions. |
| Installation & Maintenance | Before installation, verify the strength of the base, anchors, supporting steelwork, and complete rope path under all expected loads. Mount and align the hoist according to the approved drawing and supplied manual. During commissioning, check rope winding, hook travel, controls, brakes, and fitted limit and overload devices. Inspect the wire rope, drum, guide, sheaves, fasteners, and electrical connections at the prescribed intervals. Do not side pull or exceed the rated capacity. |
| Product FAQ |
Does a foot-mounted hoist travel along a beam? Can it be installed in a pig farm building? What information is needed for a quotation? |

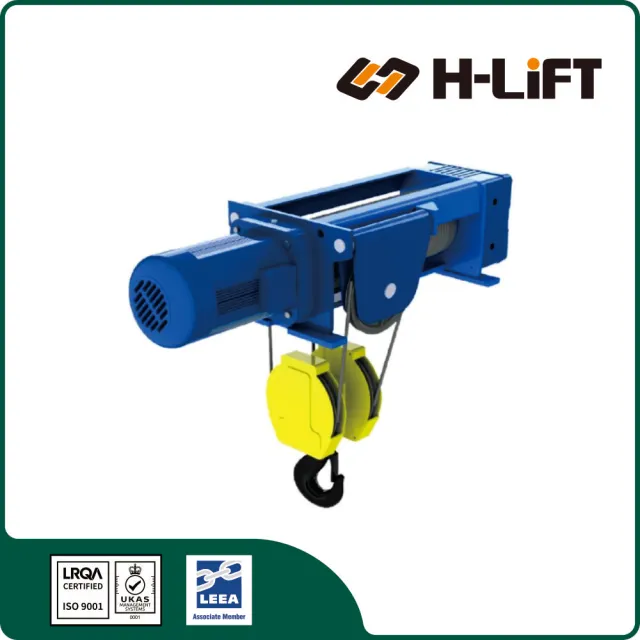

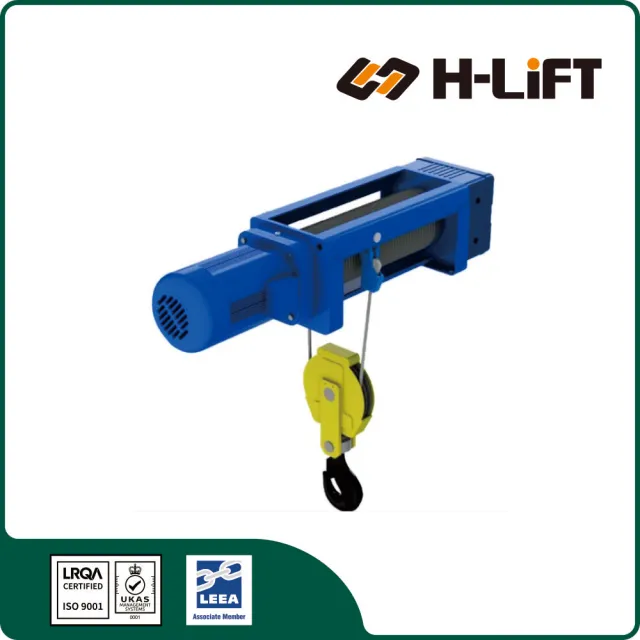

| Product Gallery |
  Illustrative manufacturer reference images; confirm the supplied model and image-use rights before publication. |
