| Product Showcase | Content |
|---|---|
| Product Name | Manual Hydraulic Pallet Stacker |

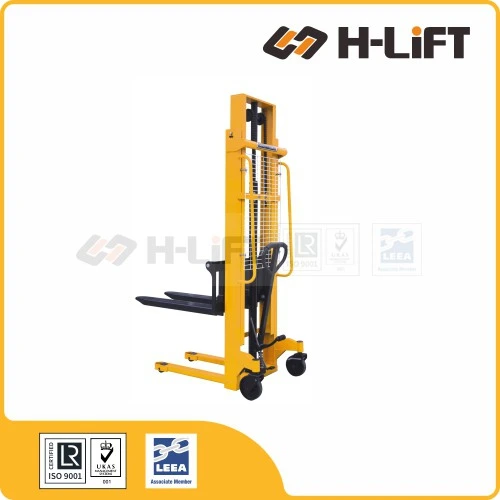

| Product Image |
 Illustrative manufacturer reference image; supplied configuration may vary. |
| Product Overview | The Manual Hydraulic Pallet Stacker combines a wheeled steel frame, lifting mast, forks, and hand-operated hydraulic system for occasional pallet handling. An operator pushes the stacker into position and pumps the handle or foot pedal, where fitted, to raise the load. It is suited to compact storage rooms, equipment workshops, and project warehouses serving commercial pig farms and other livestock facilities. |
| Key Features |
|
| Structural Components | Typical components include a steel mast and chassis, fork carriage, load forks, support legs, hydraulic cylinder and pump, operating handle, lowering control, steering casters, and front load wheels. Mast stages, fork adjustment, foot pedal, wheel locks, and safety screen depend on the confirmed configuration. |
| Working Principle | Pumping the handle or fitted foot pedal pressurizes hydraulic fluid and extends the lifting cylinder. The cylinder raises the fork carriage through the mast mechanism. Operating the lowering control releases pressure in a controlled manner so the forks descend. The operator moves the stacker manually with the load lowered to a safe travel height. |
| Technical Specifications |
|
| Applications | Suitable tasks include stacking palletized feed bags, moving packaged livestock equipment, and positioning crates or installation supplies in farm storage buildings and steel structure project warehouses. Use requires a firm, level floor, adequate aisle clearance, a compatible pallet, and a load within the stacker's rated capacity. It is not intended for moving live animals or lifting personnel. |
| Customization Options | Capacity, lift height, fork spacing, straddle-leg arrangement, wheel material, and protective finish can be discussed according to project requirements. For humid farm storage areas, provide the cleaning and exposure conditions when requesting a suitable finish and component specification. |
| Installation & Maintenance | Before operation, verify pallet entry, fork support, load center, floor condition, and overhead clearance. Follow the supplied assembly and operating instructions, and engage fitted wheel locks when positioning a stationary load. Inspect the hydraulic system for leaks and check the mast, forks, wheels, chains, and fasteners at the prescribed intervals. Do not travel with a raised load or operate on ramps and uneven farmyard surfaces unless the selected model is specifically rated for those conditions. |
| Product FAQ |
Does this stacker need electricity? Will it handle every pallet type? What details are needed for a quotation? |

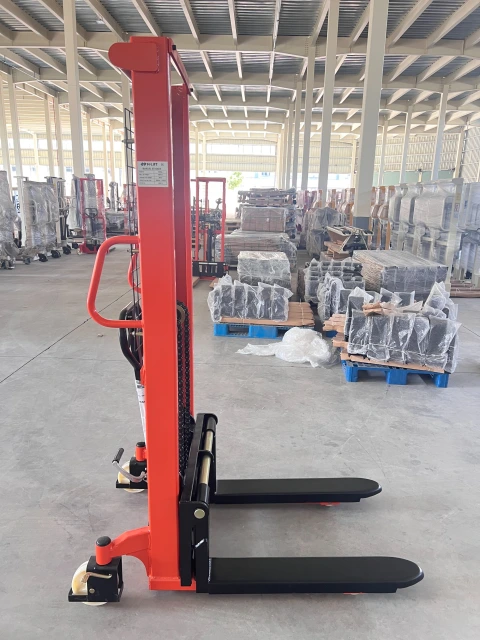

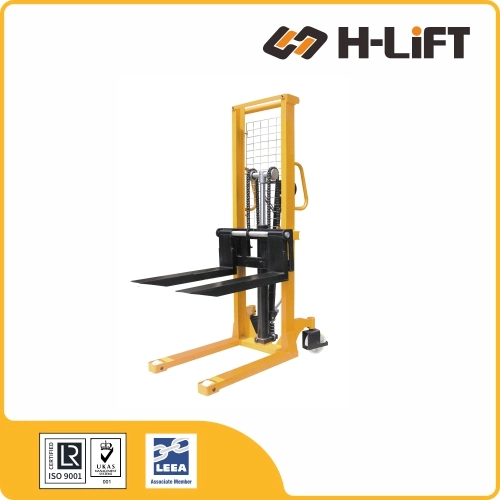

| Product Gallery |
  Illustrative manufacturer reference images; confirm the supplied model and image-use rights before publication. |
