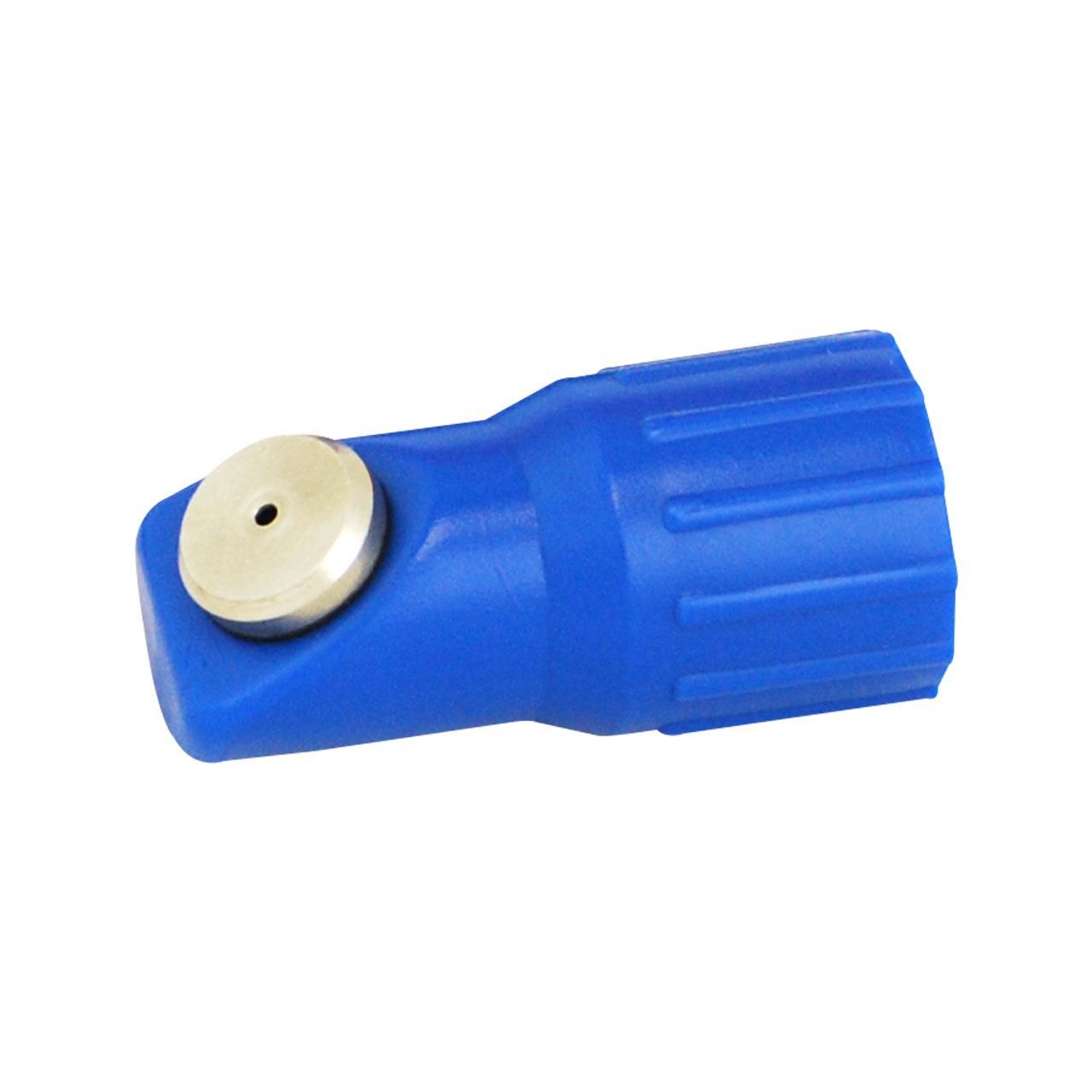

Udder Washing Spray Nozzle

The Udder Washing Spray Nozzle is designed to deliver a controlled water spray for cleaning the udder and teat area before milking. It is suitable for integration with manual udder washing guns, fixed washing assemblies and other dairy hygiene systems.

The compact construction supports convenient replacement and installation while allowing the spray direction and connection arrangement to be adapted to different milking parlor layouts and washing procedures.

• Designed for targeted udder and teat-area washing.
• Controlled spray output helps direct water toward the required cleaning area.
• Compact structure is suitable for manual and integrated dairy washing systems.
• Plastic, stainless steel or other suitable materials can be selected according to application requirements.
• Suitable for wet, high-frequency working environments in dairy parlors.
• Easy to connect, remove and replace during routine equipment maintenance.
• Different spray patterns and connection configurations are available according to project requirements.
• Suitable for new dairy farm construction, milking parlor upgrades and replacement programs.

• Nozzle Body: Forms the main flow passage and provides mechanical support for the spray outlet.
• Spray Outlet: Controls the direction and distribution of discharged water.
• Connection Section: Provides attachment to a hose, lance, pipe or compatible washing assembly.
• Internal Flow Passage: Guides water from the supply connection to the spray outlet.
• Sealing Components: Optional seals or washers help maintain a secure connection and reduce leakage.

Water enters the nozzle through the connected hose or pipe and passes through the internal flow passage before being discharged through the spray outlet.

The outlet geometry determines the spray direction and distribution. Depending on the selected design, the nozzle can produce a focused stream, fan-shaped spray or other controlled pattern suitable for udder washing. Spray pressure and flow should be matched to the nozzle specification and connected water system.

• Pre-milking udder washing
• Teat-area cleaning before milking

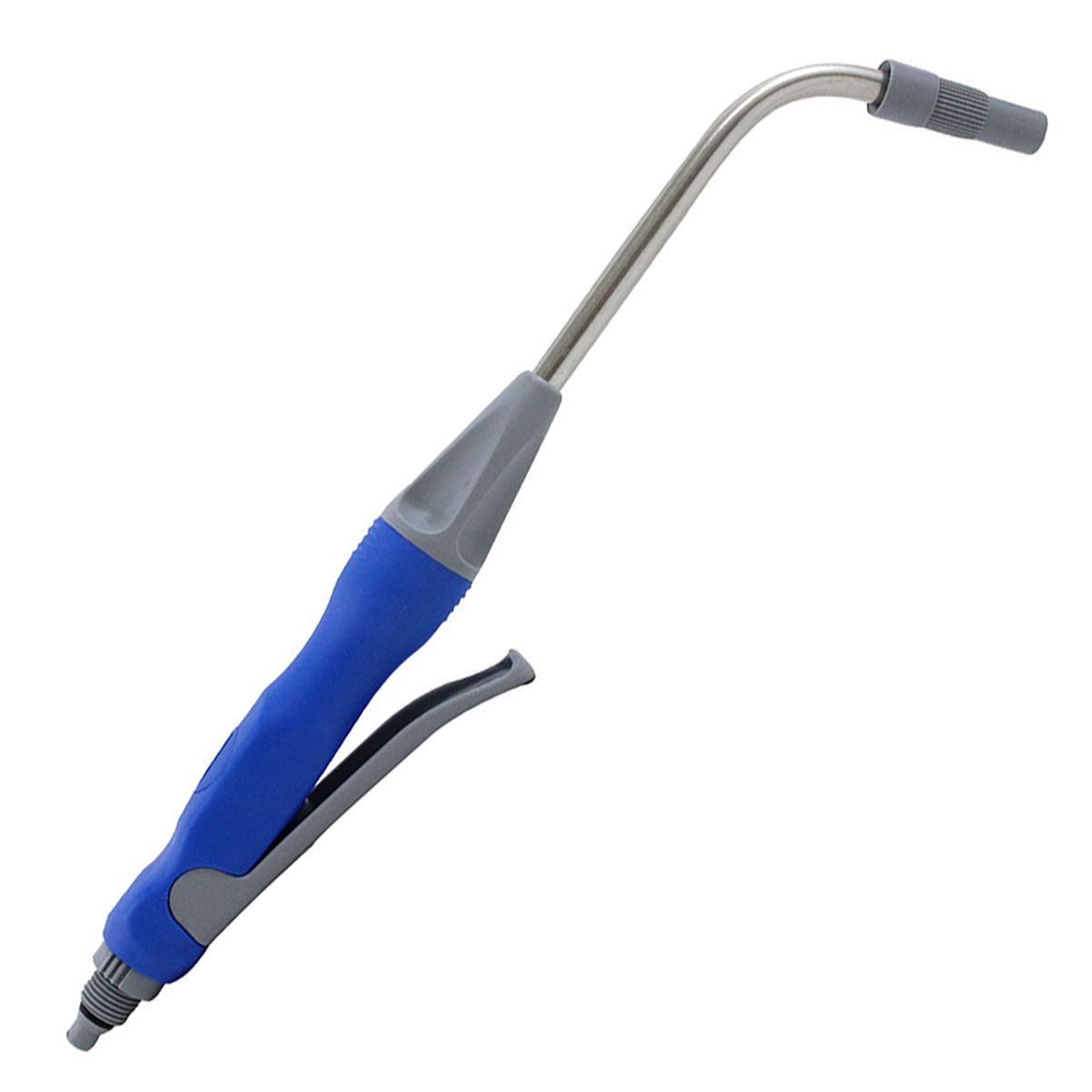

• Manual udder washing guns
• Fixed udder washing systems
• Commercial dairy farms and milking parlors
• Dairy equipment replacement and maintenance projects
• Agricultural engineering and dairy farm construction projects

The spray nozzle can be customized to match different dairy hygiene systems, water supply arrangements and installation conditions.

• Nozzle outlet design and spray pattern
• Connection type and connection size
• Overall dimensions
• Nozzle body material
• Color and visual identification
• Thread and hose connection standards
• OEM packaging, labeling and private-label requirements

Final specifications can be designed according to the milking parlor layout, water system and local farm conditions.

Installation: Connect the nozzle to a compatible hose, lance, pipe or washing assembly. Use the specified sealing method and ensure the connection is secure before opening the water supply.

Positioning: Adjust the nozzle orientation to provide the required coverage of the udder and teat area while maintaining safe clearance from the animal and operator.

Maintenance: Inspect the outlet regularly for sediment, mineral deposits or blockage. Flush the nozzle with clean water after use when required and check connections, seals and spray performance during routine dairy equipment maintenance.
