High-Pressure Submersible Manure Pump

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name High-Pressure Submersible Manure Pump
Product Image high-pressure submersible manure pump for livestock slurry
Product Overview The High-Pressure Submersible Manure Pump is intended for transferring pumpable livestock slurry where the discharge line must overcome substantial elevation or pipeline resistance. Positioned inside a reception pit or liquid manure tank, the pump can move slurry to remote storage, tanker loading or further treatment equipment. Pump selection is based on the complete hydraulic duty rather than motor power alone.
Key Features
  • Submersible construction reduces the space needed around the pit or tank.
  • High-pressure pump design supports slurry transfer through longer or higher-resistance pipe routes when correctly sized.
  • A large pump housing and suitable intake arrangement help accommodate pumpable manure containing fibres.
  • An intake auger, chopping mechanism and wear-protected components can be specified according to the selected design.
  • Guide-rail installation can provide a repeatable mounting position and facilitate pump retrieval.
Structural Components The pump assembly typically includes a sealed submersible electric motor, pump casing, impeller, slurry intake, discharge flange, power cable and motor-protection equipment. Depending on the specified model, the wet end may incorporate an intake auger and shearing components. A guide-rail bracket, lifting arrangement and discharge coupling can be coordinated with the pit structure.
Working Principle Slurry enters the submerged intake and moves into the pump housing. The motor-driven impeller adds pressure and directs the material into the discharge pipeline. Where an intake auger and chopping mechanism are fitted, they feed and process suitable fibrous material before it passes through the pump. Actual flow depends on slurry density, viscosity, dry-matter content, delivery height and pipe losses.
Technical Specifications
  • Required flow and total dynamic head: According to project requirements
  • Motor power and electrical supply: Available upon request
  • Discharge connection: Matched to the approved pipeline design
  • Installation depth and mounting arrangement: Customizable
  • Wet-end materials and wear protection: Selected according to slurry composition and duty cycle
  • Control and protection options: Designed according to local climate and farm conditions
Applications Applications include transferring liquid manure from pig farm reception pits to storage tanks, pumping slurry from livestock buildings to centralized handling facilities, and supplying compatible manure treatment or tanker-loading systems. It can be integrated into a new commercial pig farm or an existing installation after the pit, pipeline and electrical infrastructure have been assessed.
Customization Options The pump duty, discharge orientation, mounting hardware, controls and pipework interfaces can be reviewed for each project. For pig farm construction and steel structure livestock building projects, coordination with concrete pit drawings and manure system plans helps establish adequate access, lifting clearance and service space.
Installation & Maintenance Confirm the pit opening, guide-rail or support fixing, discharge connection, cable route and lifting access before installation. During commissioning, verify motor rotation, protection devices, pipe joints and performance at the intended operating level. Follow the selected model's immersion limits. Periodic service should include inspection of the intake, impeller, wear components, seals, cable and mounting assembly; electrically isolate the pump before retrieval.
Product FAQ

When is a high-pressure manure pump needed?
It is considered when the required flow must be delivered against significant elevation, pipeline friction or both. The complete system duty should be calculated before selection.

Can it pump fibrous slurry?
A suitable intake and chopping arrangement can help handle fibres. The selected pump's limits for solids and foreign objects must be confirmed.

What information is needed for a quotation?
Provide the pit drawing, slurry characteristics, target flow, pipeline length and diameter, elevation change, operating schedule and available power supply.
Product Gallery

high-pressure submersible slurry pump installed in manure tank

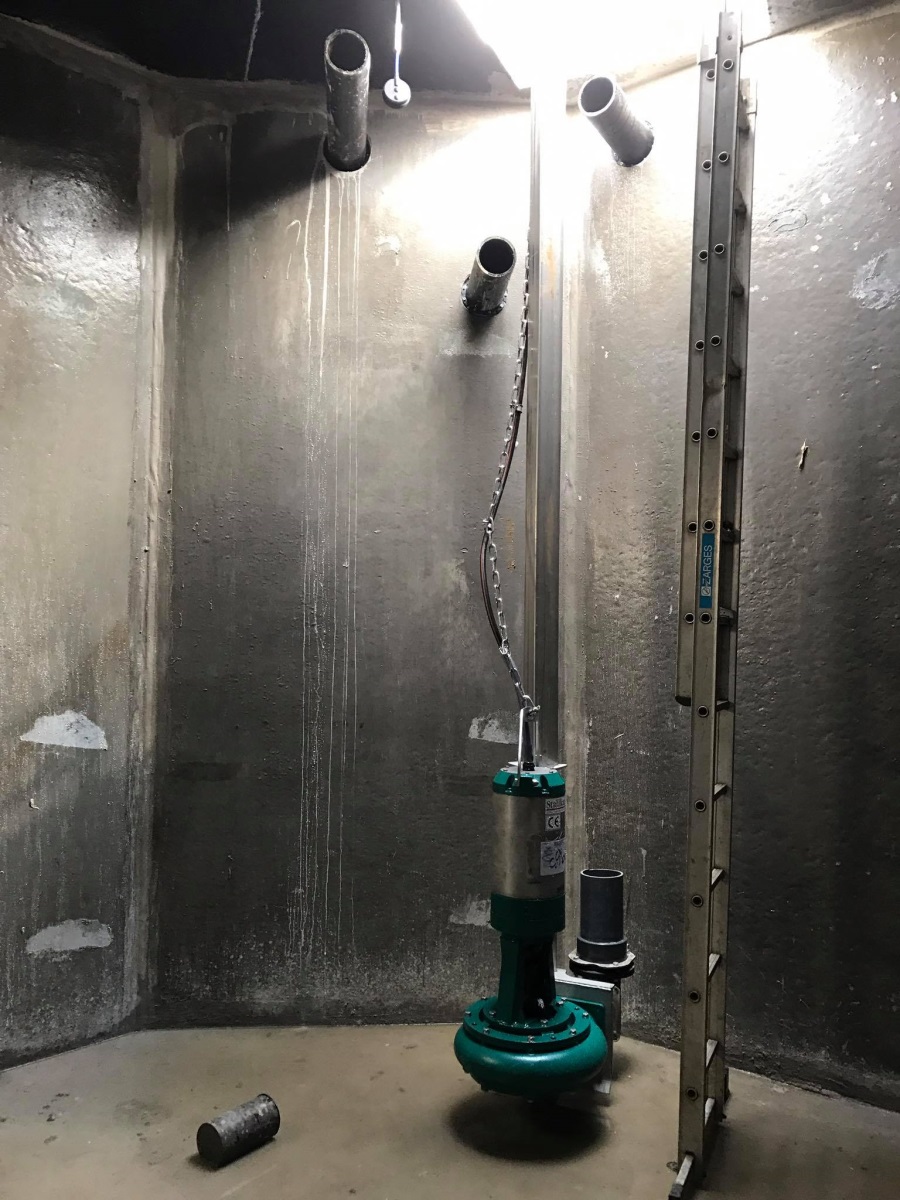

submersible manure pump installation in livestock slurry storage

Reference product and installation images: Stallkamp. Final supplied equipment and installation layout are subject to project confirmation.
