Product Name	Heavy-Duty Commercial Sheep Loading Ramp
Product Image
Product Overview	The Heavy-Duty Commercial Sheep Loading Ramp is designed for permanent livestock loading facilities where large numbers of goat-farming-equipment/" target="_blank" class="keylink">sheep must be transferred efficiently between yards and multi-deck livestock vehicles. The structure is suitable for demanding commercial operations such as saleyards, large sheep farms, livestock collection centers and processing facilities. A heavy structural steel support system provides the strength required for repeated high-throughput use. The adjustable loading platform can be configured for different vehicle deck heights, while dual side walkways provide operator access along both sides of the livestock race. Galvanized structural components, protective side panels, anti-slip walking surfaces and robust lifting equipment make the system suitable for long-term outdoor livestock infrastructure projects.
Key Features	Heavy-Duty Commercial Construction: Designed for frequent loading cycles and high-throughput livestock operations. Hot-Dip Galvanized Structural Frame: Provides corrosion resistance for permanent outdoor farm and saleyard installations. Multi-Deck Loading Capability: Adjustable configuration can service different livestock vehicle deck heights. Powered Ramp Adjustment: Heavy-duty hoist system raises and lowers the loading deck to the required vehicle position. Dual Side Walkways: Provides operator access on both sides of the livestock passage. Safety Handrails: Walkway rails improve operator security during loading operations. Sheeted Livestock Sides: Reduce visual distractions and help maintain controlled forward sheep movement. High-Traction Flooring: Provides improved hoof grip on the inclined livestock passage. Vehicle Protection: Rubber bump stops can reduce metal-to-vehicle contact at the loading interface. Permanent Installation: Suitable for integration with commercial sheep yards, forcing pens and truck loading bays.
Structural Components	Main Structural Frame: Heavy steel beam and column structure supporting the adjustable livestock deck. Loading Race: Provides the controlled passage used by sheep during loading and unloading. Adjustable Ramp Deck: Moves vertically to align with different transport vehicle deck heights. Hoist Assembly: Powered lifting equipment controls ramp elevation. Dual Operator Walkways: Side platforms allow handlers to work alongside the livestock passage. Safety Handrails: Provide protection along elevated operator walkways. Livestock Side Panels: Help maintain animal direction and prevent lateral movement. Non-Slip Floor: Designed to maintain traction under repeated livestock traffic. Vehicle Interface: Upper loading connection aligns the ramp with livestock truck decks. Rubber Buffer Stops: Help protect the ramp and vehicle during positioning. Foundation and Anchor Points: Secure the permanent structure to the prepared civil foundation.
Working Principle	The livestock truck is positioned at the loading bay and the adjustable ramp deck is raised or lowered until the discharge end aligns with the required vehicle deck. The lifting system maintains controlled height adjustment while the supporting frame carries the ramp load. Sheep move from the holding or forcing area into the loading race and travel along the inclined deck toward the vehicle. Solid side sections help reduce visual distractions, while the traction floor supports stable hoof contact. Operators can use the side walkways to guide animal flow without entering the main livestock passage. After loading one vehicle deck, the ramp can be repositioned to the next required deck height.
Technical Specifications	Product Type Heavy-duty permanent commercial sheep loading ramp Reference Ramp Length 9 m commercial configuration Reference Structural Frame Hot-dip galvanized 250UB structural framing Reference Hoist Capacity 2000 kg Loading Range Designed for multi-deck livestock vehicles, including deck 1 to deck 4 configurations Operator Walkway Dual side walkway Vehicle Protection Rubber bump stops Floor Configuration High-traction livestock floor according to project requirements Side Panel Configuration Customizable Ramp Width According to project requirements Lifting System Electric hoist or project-specific powered lifting system Surface Treatment Hot-dip galvanized or available upon request Installation Type Permanent fixed installation Foundation Designed according to site conditions and structural requirements
Applications	Large commercial sheep farms High-throughput livestock saleyards Sheep feedlots and finishing facilities Livestock collection and dispatch centers Abattoir receiving and loading areas Commercial sheep transport terminals Multi-deck livestock truck loading bays Export livestock handling facilities Permanent sheep yard systems Agricultural engineering and livestock infrastructure projects
Customization Options	SHEWUYOU can configure commercial sheep loading ramps according to livestock throughput, transport vehicle dimensions, deck heights, sheep breed, yard layout and site infrastructure. Customization options can include ramp length, loading width, operating height range, structural beam specification, floor material, side panel height, walkway width, handrail configuration, lifting system, electrical controls and truck interface design. The ramp can also be coordinated with forcing pens, lead-up races, drafting areas and complete steel livestock handling structures. Final specifications are designed according to project requirements, local climate and farm conditions.
Installation & Maintenance	A heavy-duty commercial ramp requires a properly engineered foundation and accurately positioned structural anchor points. The truck loading interface, ramp travel range and adjoining sheep yards should be confirmed before fabrication and installation. Electrical lifting equipment should be installed according to the selected hoist specification and local electrical requirements. All elevated walkways, handrails and safety components should be checked before commissioning. Routine maintenance includes inspecting structural connections, hoist components, cables or chains, electrical controls, safety mechanisms, rubber buffers, flooring and handrails. Manure and debris should be removed frequently to preserve traction and prevent corrosion or obstruction of moving components.

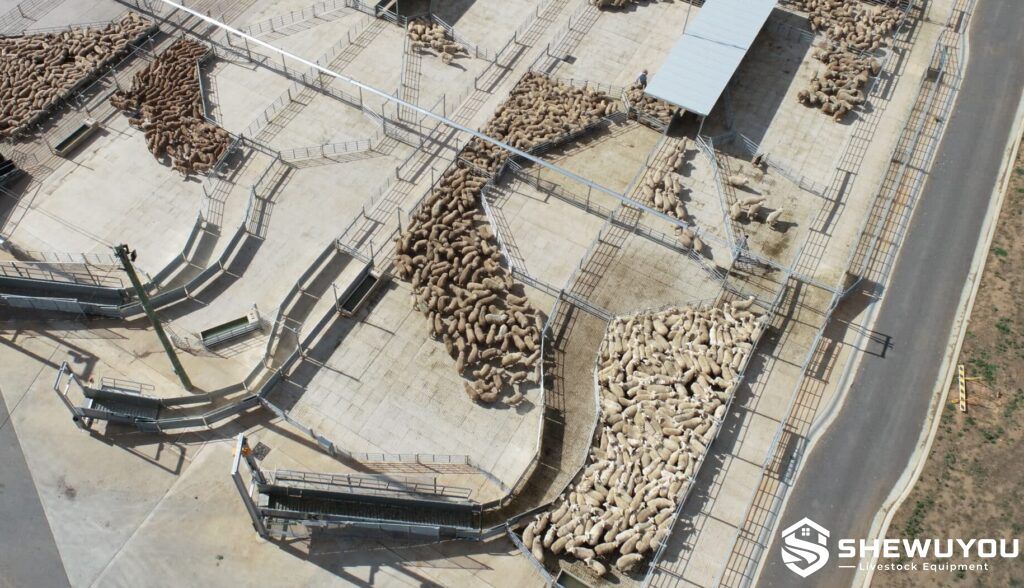

Project Cases	Heavy-duty commercial ramps are typically installed in saleyards, large livestock farms and processing facilities where loading equipment must operate repeatedly during peak livestock movements. A typical commercial project can combine 9 m adjustable loading ramps with lead-up pens, forcing areas, operator walkways and multiple loading bays. Large saleyard projects may use several hoist-operated ramps to process sheep efficiently across different livestock vehicle deck heights.
Product FAQ	Q: What type of farm is this ramp designed for? A: It is intended for high-throughput commercial operations such as large sheep farms, saleyards, livestock collection facilities and processing plants. Q: Can the ramp reach different livestock truck decks? A: Yes. The adjustable lifting system can be configured for multiple vehicle deck heights, including multi-deck livestock transport applications. Q: Why does the ramp use a heavy structural frame? A: Commercial loading facilities require a rigid support structure capable of handling repeated livestock traffic, elevated working positions and powered deck adjustment. Q: Are walkways available on both sides? A: Yes. Dual side walkways can be provided to improve operator access and livestock flow management. Q: Can the lifting system be customized? A: Yes. Hoist capacity, power supply and control configuration can be selected according to project requirements. Q: Can the ramp be integrated into an existing sheep yard? A: Yes. The entrance, forcing area and loading interfaces can be designed to connect with existing livestock handling infrastructure. Q: Is hot-dip galvanizing available? A: Yes. Hot-dip galvanized structural components are available for long-term corrosion protection in outdoor livestock environments.
