Poultry Weighing Equipment
Popular

Large-Platform Turkey Weighing Scale

Published: 2026-09-28 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Name Large-Platform Turkey Weighing Scale
Product Image large-platform turkey weighing scale reference image

Reference image illustrating a suspended turkey weighing platform; final configuration is subject to project specifications.
Product Overview The Large-Platform Turkey Weighing Scale is intended for automatic weight monitoring in commercial turkey houses. Birds step onto the suspended platform during normal activity, allowing the weighing system to collect readings throughout the day. The resulting data can support flock growth reviews, feeding decisions and production planning without routine manual capture for every measurement.
Key Features
  • Generous platform area suited to the movement and body size of growing turkeys.
  • Suspended arrangement helps keep the weighing surface accessible above the litter.
  • Adjustable installation height can accommodate changes in bird size during the production cycle.
  • Detachable platform arrangement can simplify cleaning between flocks.
  • Load-cell measurement supports repeated readings and flock weight trend analysis when paired with a compatible controller.
Structural Components A typical system includes a washable weighing platform, supporting frame, suspension members, load cell, height-adjustment hardware and a compatible weighing controller. Suspension points and mounting hardware are selected for the poultry house structure and the specified system load.
Working Principle When a turkey steps onto the platform, its weight is transferred through the suspension assembly to the load cell. A compatible controller processes valid readings and can calculate flock weight trends. The platform height is adjusted as birds grow so they can continue to access it comfortably.
Technical Specifications
  • Application: Commercial turkey growing and flock weight monitoring
  • Platform dimensions: Customizable according to project requirements
  • Weighing capacity and accuracy: Available upon request
  • Platform and frame materials: Available upon request
  • Controller and data interface: According to project requirements
  • Mounting arrangement: Designed according to poultry house structure and farm conditions
Applications Suitable for commercial turkey houses, integrated poultry operations and farm expansion projects requiring routine flock weight data. It can be considered alongside feeding, drinking and livestock ventilation systems during poultry house equipment planning.
Customization Options Platform size, suspension layout, mounting details, controller selection and data connection can be reviewed according to project requirements. For a steel structure building, the proposed fixing point should be coordinated with the building designer and equipment layout before installation.
Installation & Maintenance Install the scale at an accessible location away from obstacles that could touch the platform or affect readings. Confirm the capacity of the overhead support, secure the suspension hardware and route electrical cables clear of birds and wash areas. Check that the platform hangs freely, then commission and calibrate the system using the supplied controller instructions. Inspect connections regularly and remove the platform for cleaning when the specified assembly permits.
Product FAQ

Can the platform height be adjusted as turkeys grow?
A height-adjustable suspension arrangement can be specified for the project.

Can weight data connect to a farm management system?
Integration depends on the selected controller and communication interface. Confirm compatibility during specification.

How many scales are needed in one house?
The quantity depends on house layout, flock size and the farm's sampling plan; it should be determined during project design.

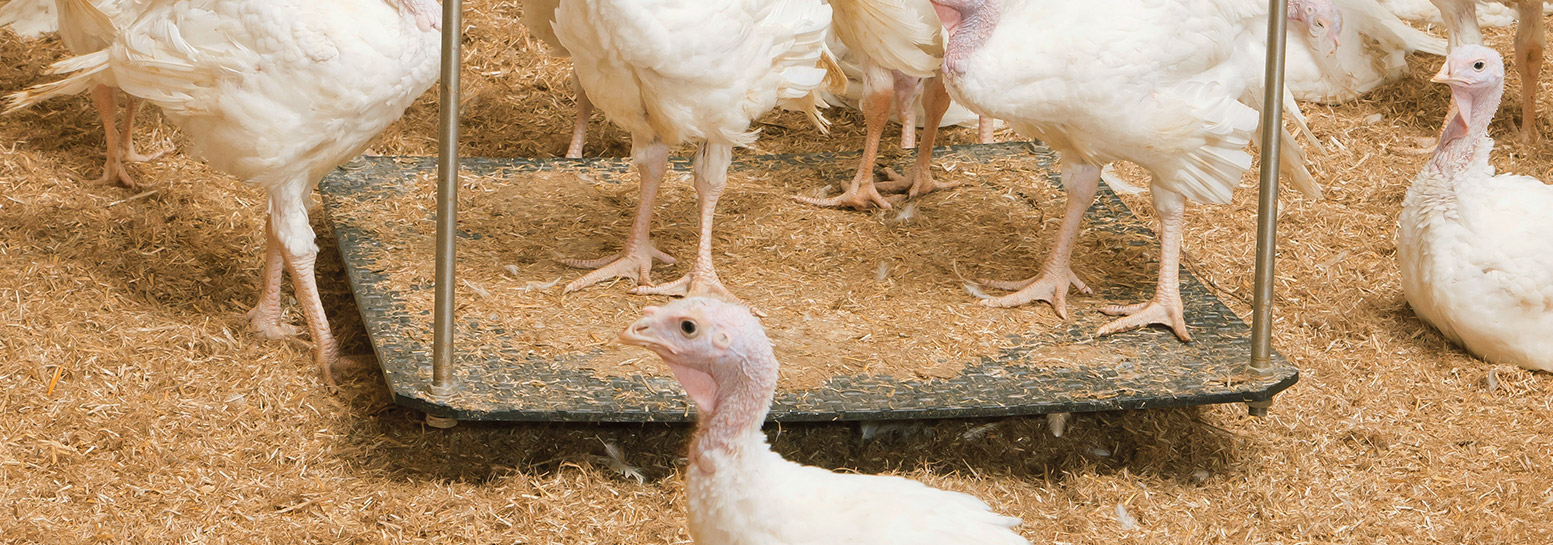

Product Gallery large turkey weighing platform in a poultry house reference installation

Reference installation image showing a turkey weighing platform in a poultry house.
