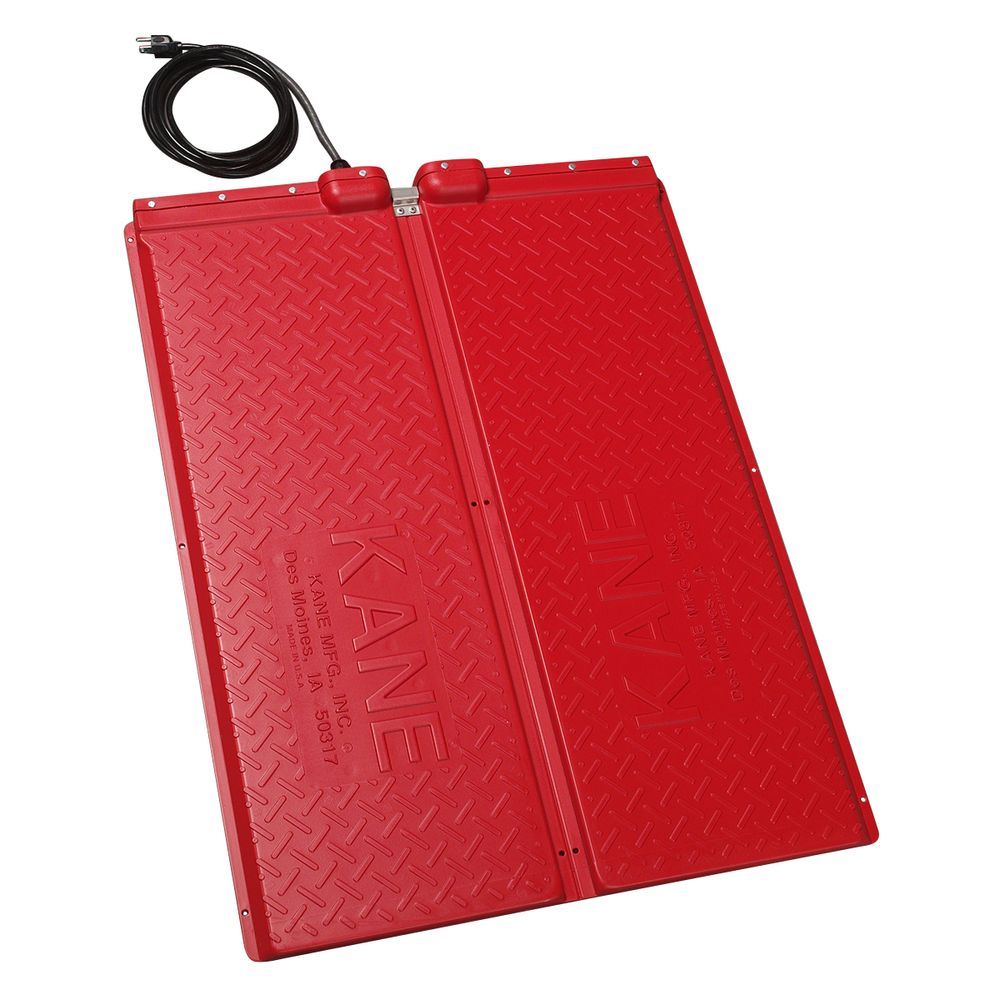

Electric Piglet Heating Plate

The Electric Piglet Heating Plate is a floor-level heating solution designed to create a warm and comfortable resting zone for newborn and young piglets. It is suitable for use in farrowing crates, piglet creep areas, nursery pens and other commercial swine housing systems where localized supplemental heat is required.

Unlike whole-room heating, a piglet heating plate concentrates warmth where the piglets rest. This allows the livestock house climate to be managed according to the different thermal requirements of piglets and lactating sows while supporting efficient environmental control in modern pig farms.

SHEWUYOU can supply heating plate configurations according to pig house layout, farrowing equipment, flooring design, electrical requirements and local farm conditions. The product can be incorporated into new pig farm construction projects or selected for renovation and equipment replacement programs.

• Localized Piglet Heating: Provides floor-level supplemental warmth in the piglet resting or creep area without unnecessarily heating the entire farrowing room.
• Uniform Heated Surface: Designed to distribute heat across the usable lying area for comfortable piglet resting.
• Suitable for Commercial Farrowing Systems: Can be matched with farrowing crates, piglet creep areas, plastic slatted flooring and other common pig housing layouts.
• Animal-Friendly Surface: Surface configuration can incorporate an anti-slip texture to provide secure footing for young piglets.
• Easy-to-Clean Design: A solid heating surface facilitates routine washing and sanitation as part of commercial pig house hygiene procedures.
• Durable Farm Construction: Designed for livestock-house environments where equipment is exposed to frequent cleaning, animal traffic and continuous production cycles.
• Flexible Installation: Depending on the selected model and floor system, heating plates can be installed on or integrated with the piglet resting area.
• Project Customization: Dimensions, electrical configuration, heating capacity, cable arrangement and installation details are customizable according to project requirements.

• Heating Plate Body: Forms the solid piglet lying surface and protects the internal heating system.
• Electric Heating Element: Embedded or enclosed within the plate structure to transfer heat toward the upper resting surface.
• Surface Texture: Designed to improve piglet footing while remaining practical for washing and disinfection.
• Thermal Insulation Structure: Depending on the model, the lower structure can be designed to reduce unnecessary downward heat loss.
• Power Cable: Connects the heating element to the electrical supply or temperature-control system.
• Cable Protection and Fixing Components: Protective conduit, brackets or mounting hardware can be provided or specified according to the pen layout and project requirements.

Electrical energy is converted into heat by the internal heating element. The plate structure transfers and distributes this heat across the upper lying surface, creating a localized warm zone where piglets can rest.

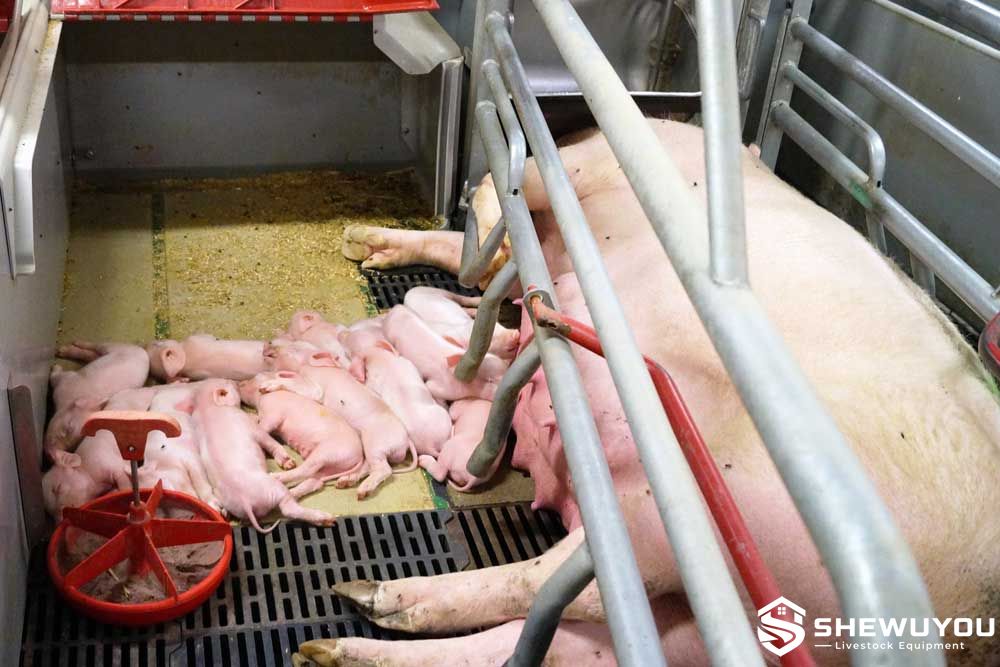

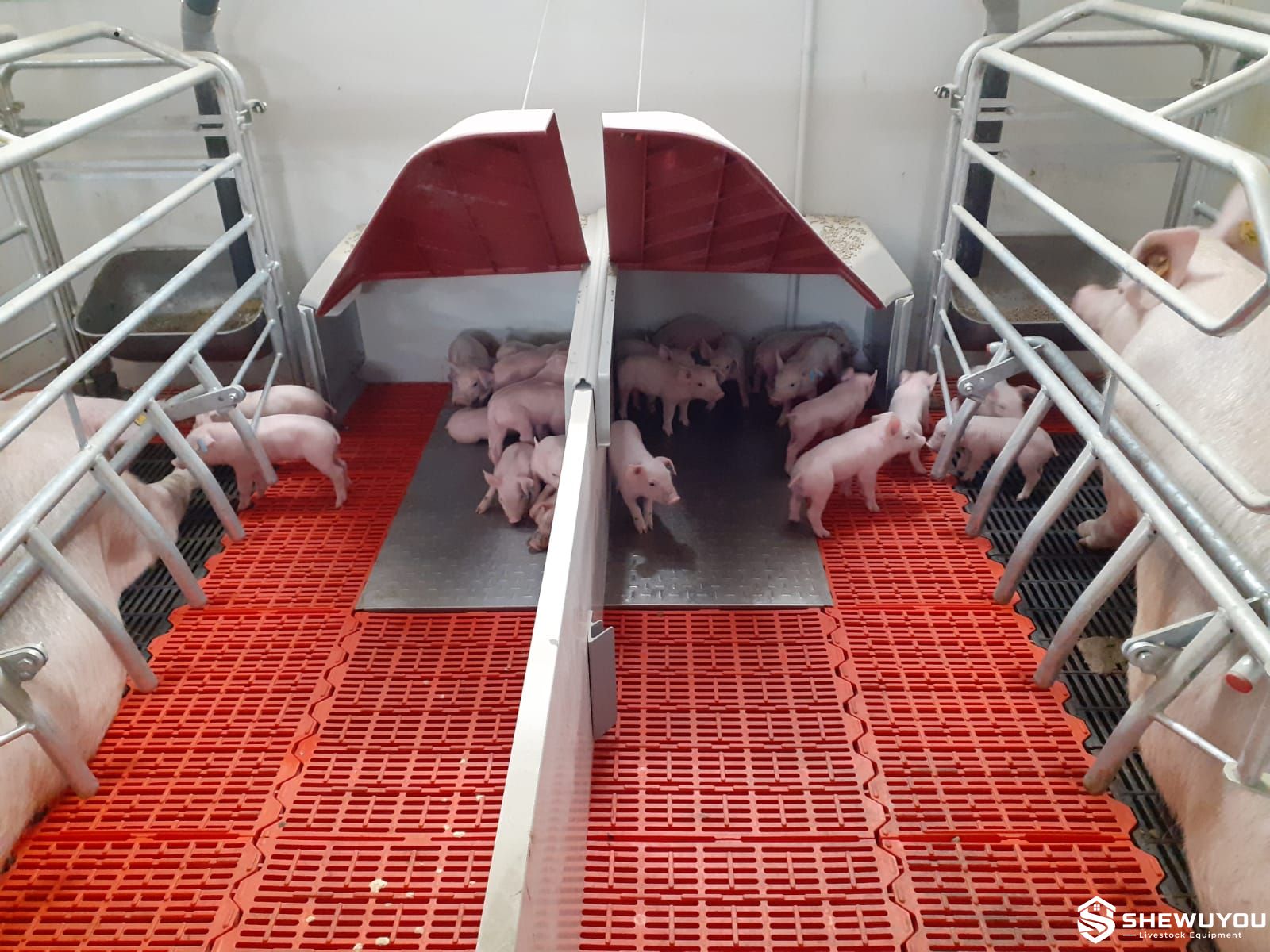

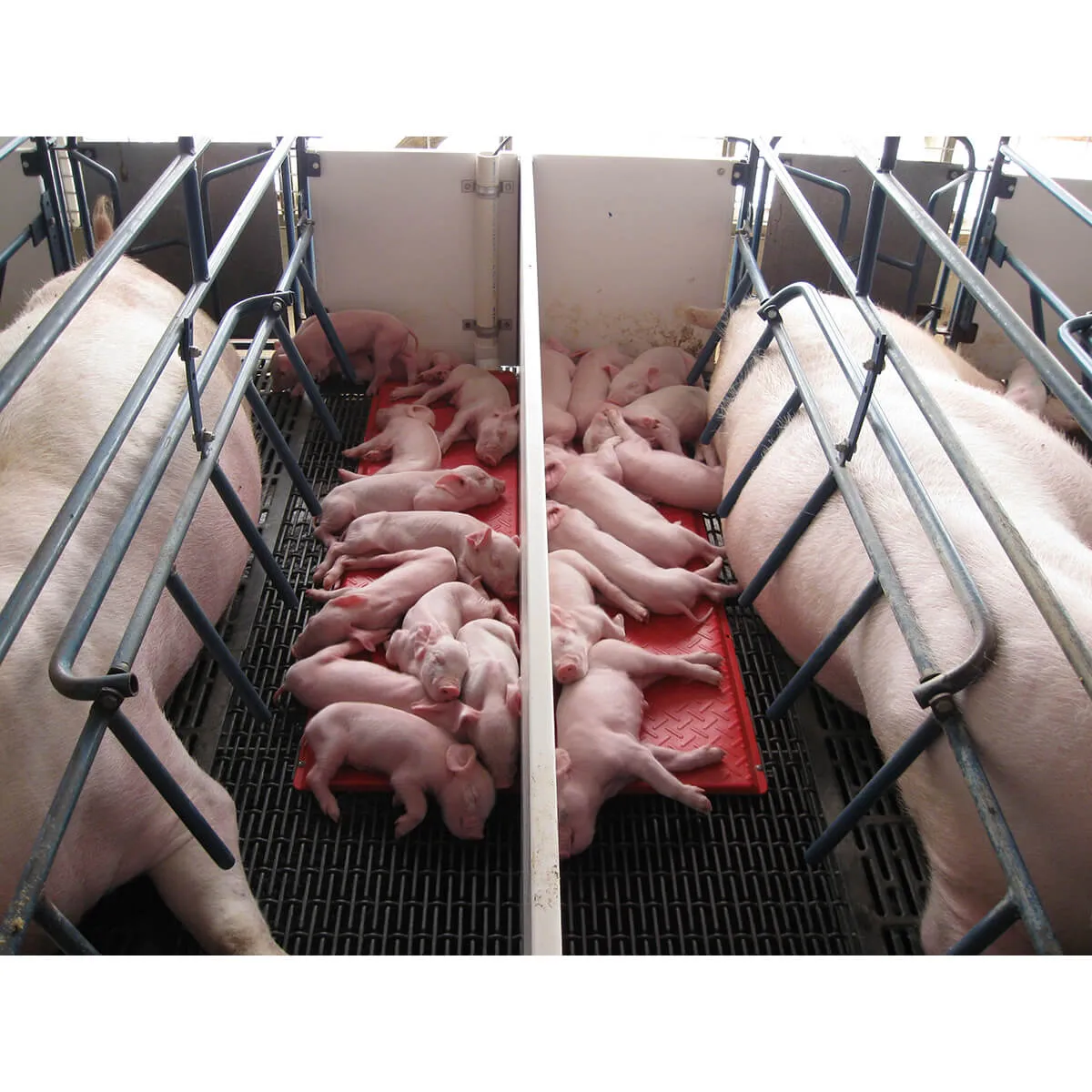

In a properly designed farrowing environment, the heating plate forms part of the piglet microclimate. Piglets can use the warmer creep area while the general room temperature and ventilation system can be managed separately for sow comfort, air quality and overall livestock-house environmental control.

Final dimensions, voltage, power rating, cable specification and control method should be confirmed according to the destination country, pig house design and project operating conditions.

• Commercial sow farms and farrowing houses
• Newborn piglet creep areas
• Farrowing crates and free-farrowing pen systems
• Piglet nursery and rearing facilities
• New-build pig farm construction projects
• Existing pig house renovation and equipment replacement
• Integrated livestock equipment projects supplied with flooring, penning, feeding and drinking systems
• Agricultural engineering, EPC and livestock farm modernization projects

For B2B orders and complete pig farm projects, SHEWUYOU can coordinate the heating plate specification with the farrowing pen, flooring system and electrical design. Available customization can include:

• Plate dimensions and heating area
• Electrical voltage and plug or connection configuration
• Heating capacity according to local climate and farm conditions
• Power cable length and routing direction
• Cable protection arrangements
• Mounting and fixing configuration
• Compatibility with plastic slats and piglet creep flooring
• Temperature-control solution
• OEM and project-specific supply requirements available upon request

Installation: Position the heating plate in the designated piglet creep or resting area according to the farrowing pen layout. The plate should be firmly secured where required and installed so that it does not create unstable edges or interfere with manure drainage, flooring support or animal movement.

Electrical Connection: Electrical installation should be carried out by qualified personnel in accordance with the product specification and applicable local electrical regulations. Power cables should be routed away from animal access and protected against chewing, pulling, crushing and mechanical damage.

Control: Where a temperature controller is specified, the control settings should be adjusted according to piglet age, house temperature, ventilation conditions and farm management procedures.

Maintenance: Inspect the plate surface, cable, connectors, protective conduit and fixing points during routine barn checks. Disconnect electrical power before maintenance. Clean and disinfect the plate according to the farm's biosecurity program and avoid damaging electrical components with inappropriate tools or cleaning procedures.

Electric piglet heating plates can be supplied as individual livestock equipment or incorporated into a complete pig farm package. For commercial farm construction, SHEWUYOU can coordinate heating equipment with farrowing crates, piglet flooring, pen partitions, feeders, drinking systems, ventilation equipment and steel structure livestock buildings according to project requirements.

Q: Where is an electric piglet heating plate normally installed?
A: It is typically installed in the piglet resting or creep area of a farrowing pen. It can also be used in suitable nursery and piglet rearing layouts.

Q: Why use localized floor heating instead of only increasing room temperature?
A: Piglets require a warmer microclimate than lactating sows. Localized floor heating helps create a warm resting zone for piglets while allowing the overall farrowing-room environment to be managed separately for sow comfort and ventilation.

Q: Can the plate size and power specification be customized?
A: Yes. Dimensions, voltage, heating capacity, cable arrangement and other parameters can be selected according to project requirements and the destination market.

Q: Can the heating plate be used with plastic slatted flooring?
A: Suitable configurations can be selected for common commercial pig flooring systems. The final installation method should be confirmed according to the slat dimensions, support structure and farrowing pen design.

Q: Is temperature control available?
A: Temperature-control options are available according to the selected product configuration and farm control requirements.

Q: What information is required for a project quotation?
A: Please provide the required quantity, farrowing pen layout, plate dimensions if specified, electrical voltage, destination country and any temperature-control requirements. For complete pig farm projects, drawings or floor plans can also be used to coordinate equipment selection.
